Description

Twist Plus 2.0 Harvester

Twist Plus is an electric olive harvester (new opposed oscillatory system of the 2 combs, equipped with pure carbon whipping rods). This patented system ensures very low vibrations for the operator, while being particularly effective in harvesting olives, even the most stubborn ones, making them fall within the tree's perimeter.

The harvester, equipped with a 2.3m pole, can reach a length of 3.3m thanks to the 2 extension poles included, mountable at the end of the pole

Twist Plus is the harvester designed for all types of olives and trees, with no difference between mechanization-ready, well-pruned trees, or dense ones, in flat or hilly cultivation. It is made of high-quality materials, tested and 100% inspected, and is covered by warranty. Designed to adapt to any working situation, it guarantees excellent results and does not damage the fruit, branches, and does not stress the plant, setting a new market standard for this parameter.

Aima Twist Plus 2.0 - Battery-powered electric olive harvester - Fixed pole + Extension

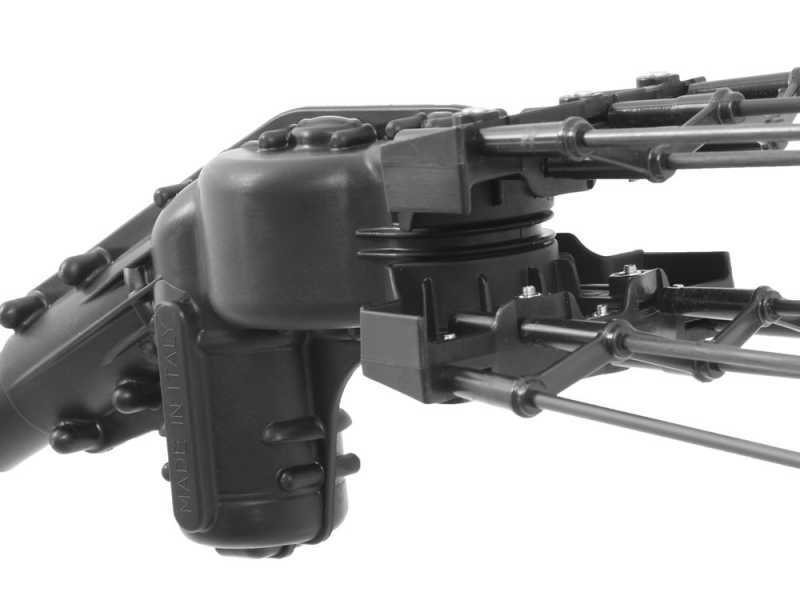

Horizontal Opposed Motion

The carbon combs move each making lateral oscillations, with movement opposite to each other. This allows for both excellent yield in harvesting and detaching even the most stubborn olives from the plant (making them fall nearby) through the vibration transmitted by the flexible rods to the branches, without damaging the fruit or stressing the plant. It therefore stands out significantly from other manufacturers of carbon-toothed harvesters on the market. The advantages:

greater harvesting capacity of each individual tooth, i.e., greater detachment of olives
significantly superior harvesting capacity
reduced vibrations (thanks to the 2 counter-oscillating motions that counterbalance each other, lowering the level of vibrations)

Unlike all the harvesters on the market, there is no specific technique for using the Twist Standard: it can be used as a comb on well-pruned and less dense plants or inserted and repeatedly extracted from the canopy in unpruned and very dense plants, which do not allow the combing of machines.

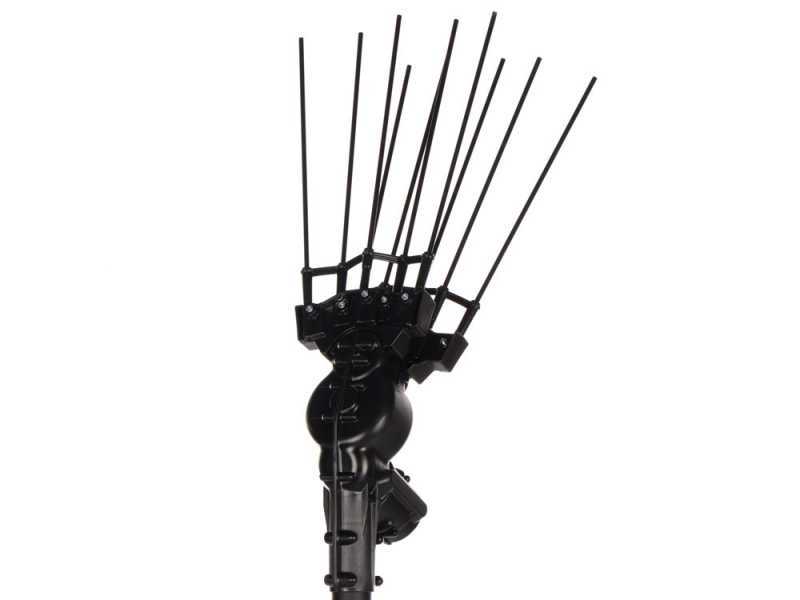

The Rods

The best deep penetration on the market, thanks to its very long rods, of 28 cm. It therefore harvests to a considerable depth. All these features make it particularly suitable for working on very dense and/or unpruned olive trees. It does not damage the olives and does not cause breakages or damage to the twigs. The rod fastening system, with conical fitting and nut, is designed to allow simple and quick replacement in case of breakage.

Width of each comb: 21 cm

Number of rods: 5 + 5

Rod material: carbon fibre

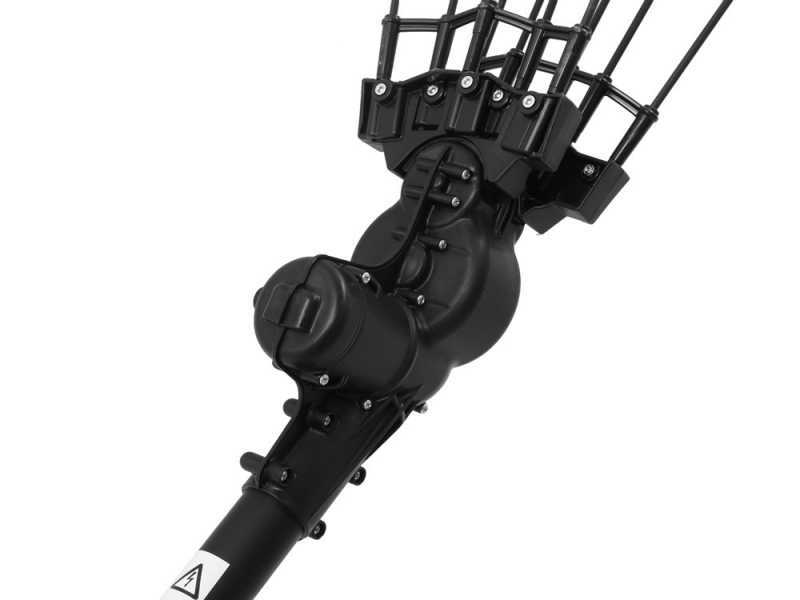

The Motor

270 W = maximum motor power; delivered under momentary maximum machine effort conditions (very dense plants where the comb strokes slow down).

The type of use the operator makes of the machine (normal or heavy); determines the duration of the motor itself.

The motor unit is equipped with a device that ensures the constant maintenance of the number of strokes of the parallel combs, thus guaranteeing an optimal level of harvesting performance.

It is equipped with an automatic stop device in case of exceeding maximum effort, which restarts automatically after a few seconds.

The mechanism of the working head is entirely mounted on shielded ball bearings that guarantee very long maintenance intervals, excellent reliability, and low friction with consequent energy savings.

All enclosed in a robust ABS housing that protects all the mechanisms that transmit movement to the combs from dust, dirt, and impacts.

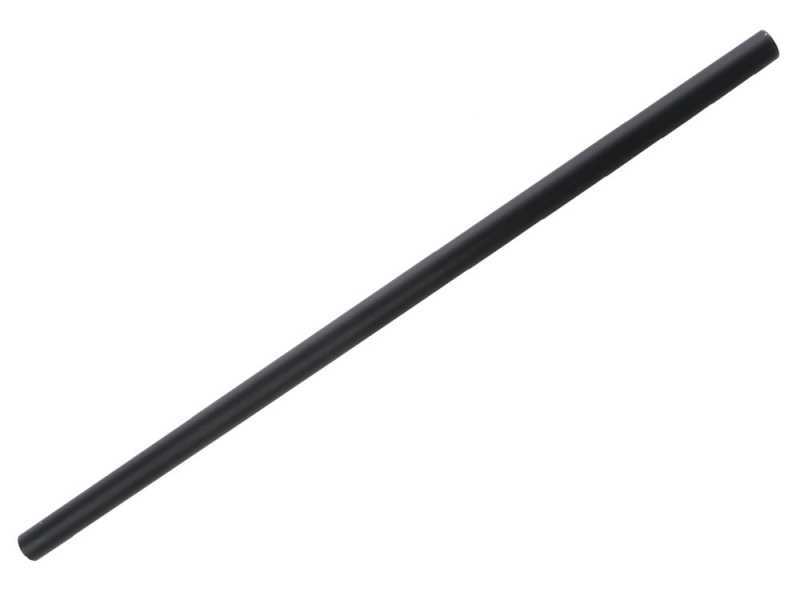

Extension Pole and Handle

The lightweight extension pole in aluminium, is equipped with an ergonomic handle.

The ON/OFF switch positioned at the bottom of the pole allows the operator, once turned on, to hold the machine in the most suitable way for the work being done, without forcing them to keep a hand in a fixed position to hold the trigger.

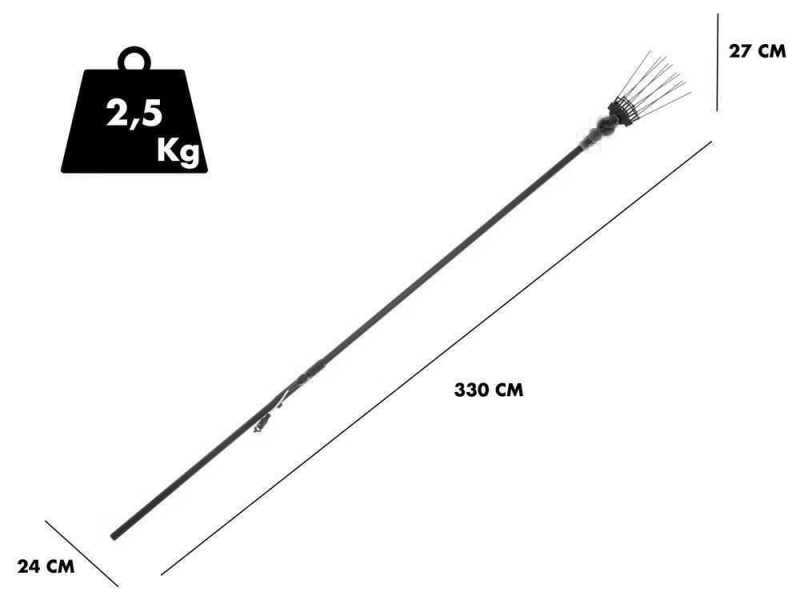

Effective length of the pole:

Only pole: 230 cm
2 additional extension poles of 100/20 cm included.

Free items & Standard equipment

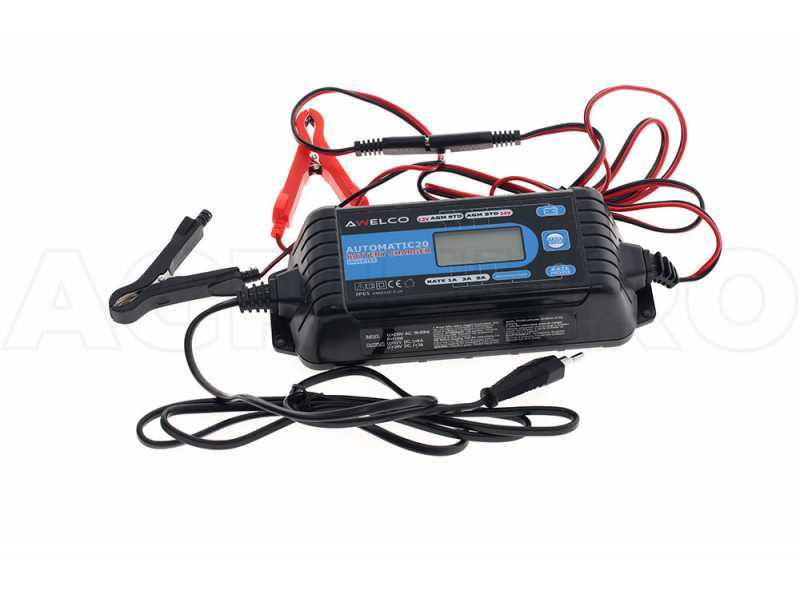

COMPLIMENTARY: Awelco Automatic20 Battery Charger

The Deca SM Automatic20 battery charger maintainer is an automatic charger with a charge maintenance program (Pulse charging). This type of charger is compact, efficient and easy to use. Suitable for motorcycles, cars, vans, campers and small displacement tractors.

Characterized by a special automatic charging cycle that allows you to never damage the battery, it is also possible to leave it connected to the battery because it has the MAINTENANCE function (maintenance function "Pulse Maintenance"). This way, the battery is always ready to use.

It is highly safe: it does not damage the electronics of the vehicle, it does not create sparks, it is equipped with protection against polarity reversals and short-circuits.

This product is innovative, versatile and low weight (only 0.60 kg).

This small car battery charger is suitable for outdoor use thanks to the IP65 protection level and its retractable hook.

5 ways of use:

Charging
Impulses
Maintenance
Sulphate batteries reconditioning
Operation testing

Technical features:

Power supply: 230V single-phase
Power: 65W
Nominal battery voltage 12V / 24V
Average charging current: 3A - 6A
Charging programs: 4 + TEST
Battery type: Pb, Gel, Pb/Ca, Agm
Battery capacity: 2 - 120 Ah min / max
Battery capacity in charge maintenance: 120Ah max
Protection rating: IP65
Charging process LED display, maintenance and testing
Equipped with cable pliers and cable with eyelets
With one 10-stage multi-stage charging process

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Free items included

INCLUDED

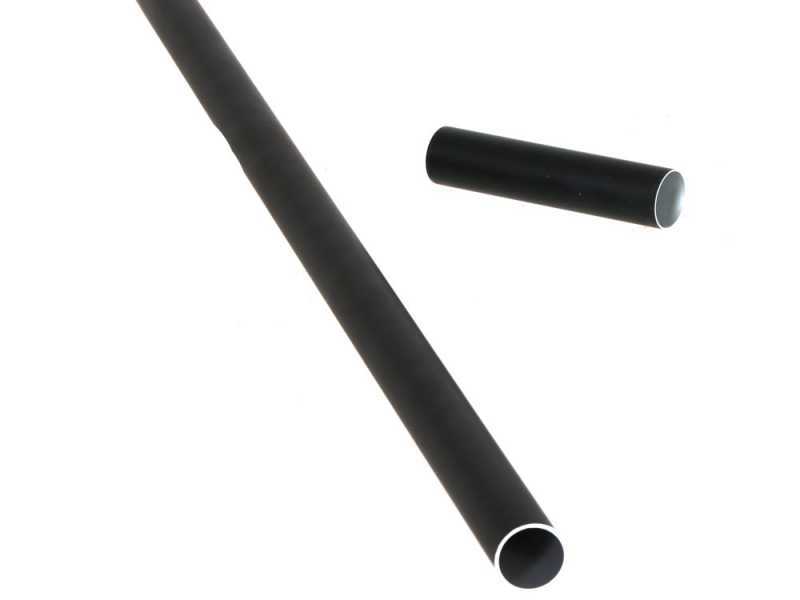

Additional extension poles of 1/0.20mt
Spare rod
Connection cable length 15 MT with polarised terminals
