AGT 7500 - 6.5 HP Petrol Garden Tiller - Honda GX200 196 cc - 2+1 Reverse Gear Gearbox

The AGT 7500 GX200 garden tiller is a compact medium-sized, handy, powerful and highly-reliable machine.

The Honda GX200 engine performance combined with its ease of use, make this garden tiller suitable for both hobbyists and professional users.

Professional series engine, which is able to guarantee high reliability and power.

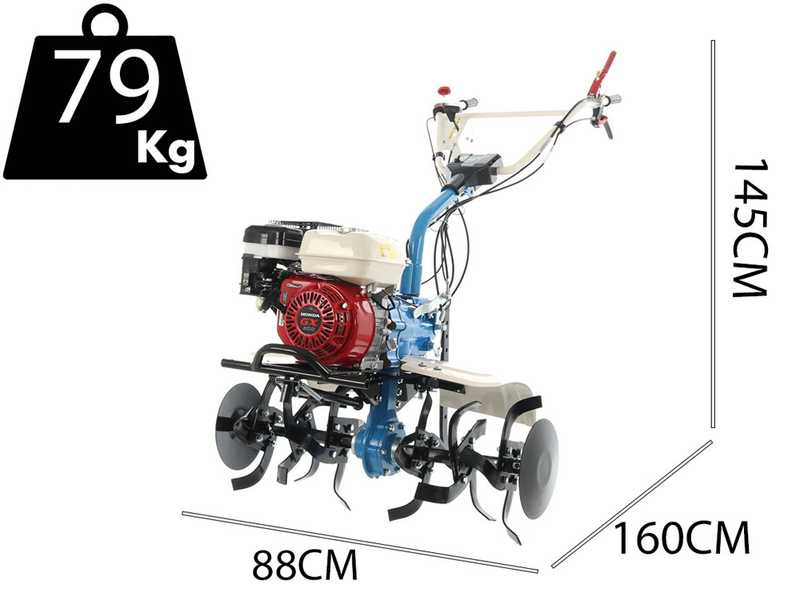

This garden tiller weighs 79 Kg, which is a definite plus as the weight helps with ground penetration.

This model is intended for large-sized land to till or hard ground or with the presence of small stones (where a smaller-sized, more lightweight garden tiller or equipped with a less sturdy transmission, such as belt-driven models would not be able to work as effectively).
Versatile, sturdy and powerful, on medium-compact soils, this garden tiller is perfect for quickly preparing the seedbed, making finely crushed and well-ventilated soil soft and ready for cultivation.

It can be used by anyone, even less experienced users.

Also remarkable are the ergonomics of the controls and ease of use coupled with safety at all times for the operator.

This garden tiller is equipped with cast iron gearbox with gears and clutch in oil bath.

Mudguards comply to standard (EN 709) in both thickness 2 mm, and shape.

Furrower and transport kit with tractor wheels provided on standard equipment. This provides for a much easier and faster transportation of the machine.

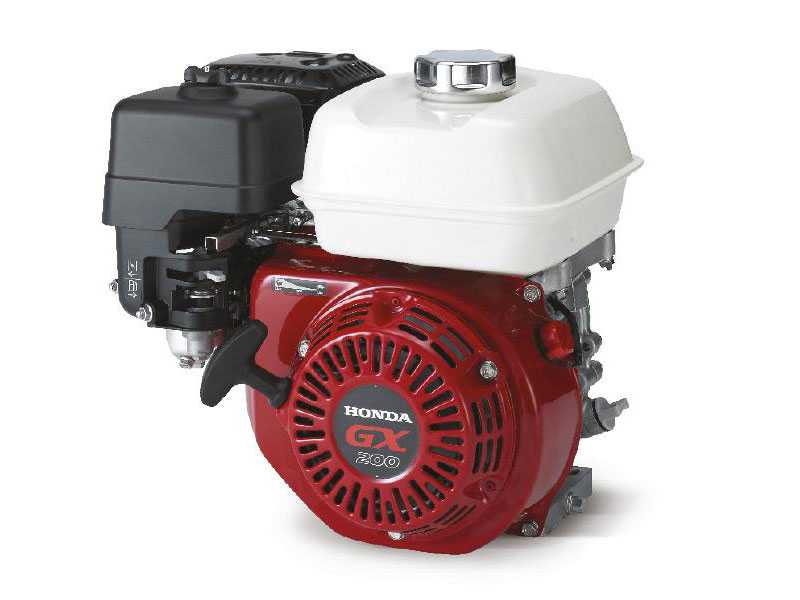

The Honda GX 200 a is powerful and professional engine with OHV overhead valve technology.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.58 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

The gearbox features 2+1 gears, which can be engaged from the special lever located on the steering handles.

Main specifications of the gearbox:

• overall size and sturdiness, also visually detectable
• upper gear tempering
• precise gear shifting engagement
• accuracy in gear manufacturing

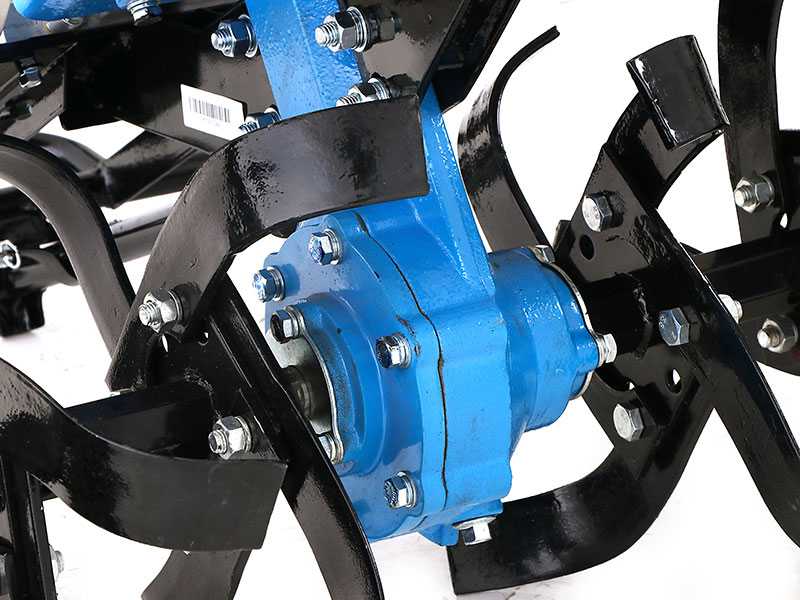

The transmission on the lower side on the engine is protected by a sturdy cast iron housing.

The gearbox is made with gears in oil bath with direct drive and clutch lever placed on the shaft.

WARNING!

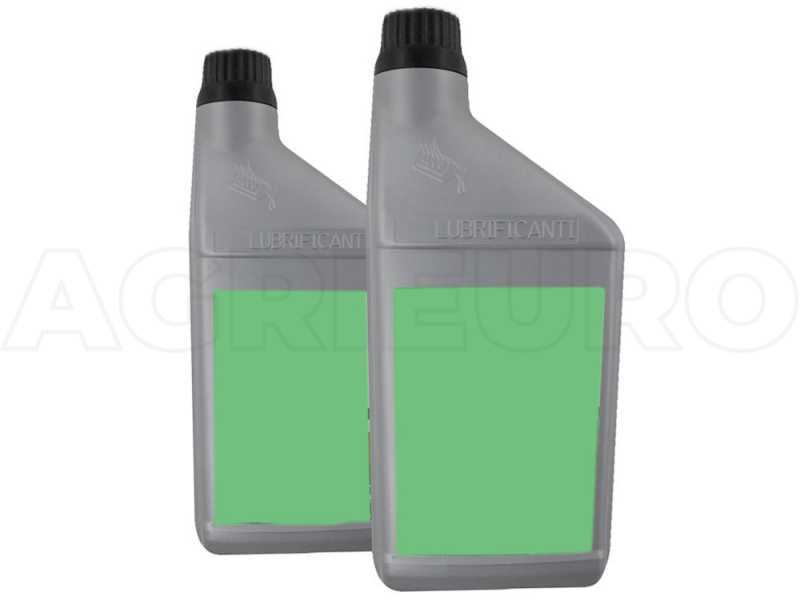

The engine and transmission are PROVIDED WITHOUT OIL.
It is highly recommended that the lubricating oil is filled up to the correct level.

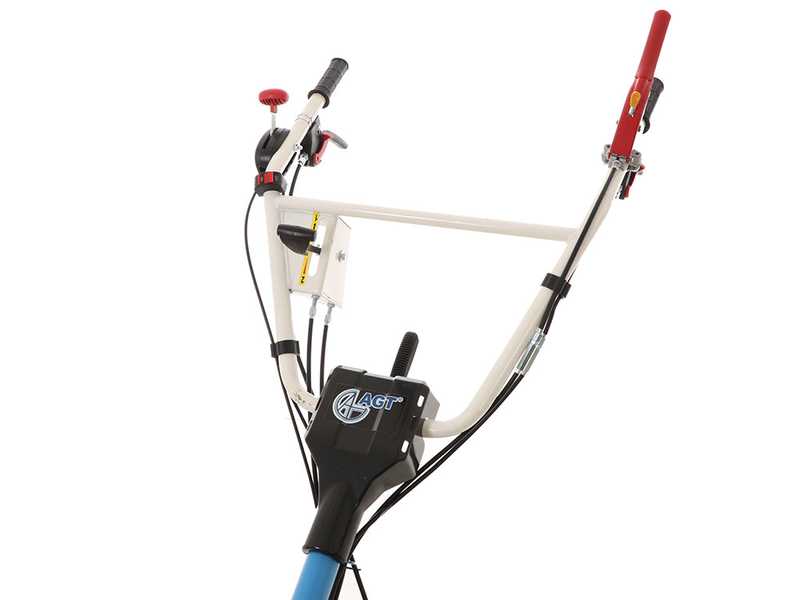

The steering handles are height adjustable thanks to the special lever made of cast steel placed between them.

All controls are within easy reach and all are located in the handlebars, in compliance with EN 709 standards.

The handlebars are also adjustable in all positions, laterally and vertically.

Operating controls:

- Lower black lever on the right, which engages the reverse gear (make sure to run the equipment in neutral gear whenever the reverse gear is engaged).

- Red lever on the left side, which engages the forward gear.

- Left lower lever: handlebar side adjustment

- Throttle lever

- Gear-engaging lever

Large front bumper: the tiller bumper features a retractable supporting foot.

Focus on the tiller casing.

Adjustable stake

WARNING!

Carefully check that all cables are correctly adjusted before use, in particular the cable of the right-hand reverse gear lever.

It is also important to check that the earth cable has been fitted correctly and that the red safety lever is working properly (when the lever is released, the garden tiller must switch off immediately!).

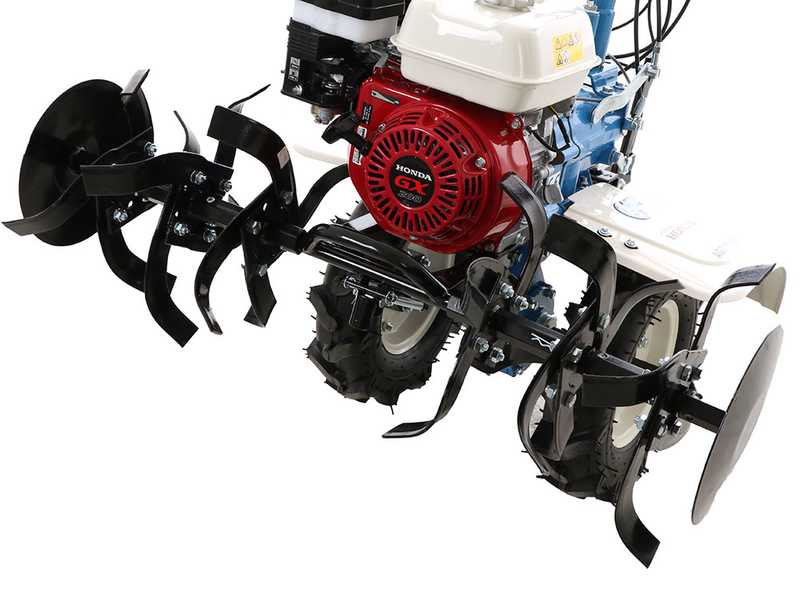

Tine: 80 cm, with 6 rows of rotary hoes + side crop protection discs.

Easily adjustable to 55 cm with a short operation.

The cutters are made for professional use, their thickness of 6 mm and width of 4 cm guarantee durability and safety even on difficult terrain.

The working width adjustment can be carried out easily: just insert or remove the most external element and insert the crop protection disc.

This garden tiller can also be operated without the crop protection discs.

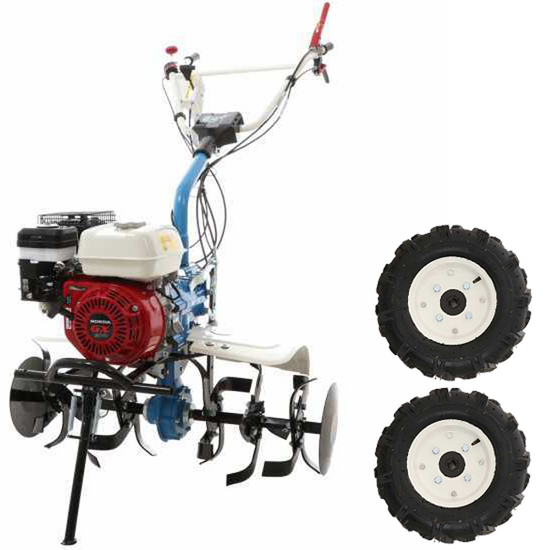

In addition, the machine is equipped with tractor wheels, which are useful for moving the garden tiller away from the work area for storage, thus freeing the operator from an additional dedicated means of transport.

Height and side adjustable rear stake.

Furrower attachment provided on standard equipment.

Practical tine holder for easy transport.

Hexagonal shaft diameter for the hoes: 23 mm

To ensure the correct operation of the petrol garden tiller and maintain its performance over time, it is important to use the machine in accordance with the specified operating conditions and to follow a few simple recommendations.

Before each use, it is advisable to check the general condition of the machine, ensuring that the tines are correctly assembled, the protective guards are intact, fluid levels are correct and the controls are working properly. A pre-use check allows you to work more safely and reduces the risk of malfunctions.

The petrol garden tiller must only be used on ground suitable for tilling. It is not advisable to work on surfaces containing a high number of stones, rocks, roots, debris or other large foreign objects, as these may strike the tines and place excessive strain on the transmission and mechanical components.

On particularly hard, compacted or previously untilled soil, it is preferable to carry out several passes at progressively greater depths, avoiding subjecting the machine to excessive loads during a single operation.

It is also not recommended to use the rotary tiller on excessively damp ground. High moisture levels cause the soil to adhere to the tines, leading to build-up of material, increased resistance to rotation and a reduction in the quality of the tilling.

Where there is tall grass, wild vegetation or unchopped plant residues, it is advisable to prepare the working area in advance. Plant material can wrap around the rotating parts, causing clogging, reduced efficiency and increased wear on components.

To ensure the machine operates correctly, only use tines, tools and accessories that are compatible with the model in use and approved by the manufacturer. Unsuitable or damaged components can cause abnormal vibrations and compromise the service life of the transmission and frame.

While working, it is important to allow the machine to advance at a rate determined by the capacity of the tines and the characteristics of the soil, avoiding forcing the machine forward with excessive pressure. On hard ground, it is preferable to reduce the working depth and proceed gradually.

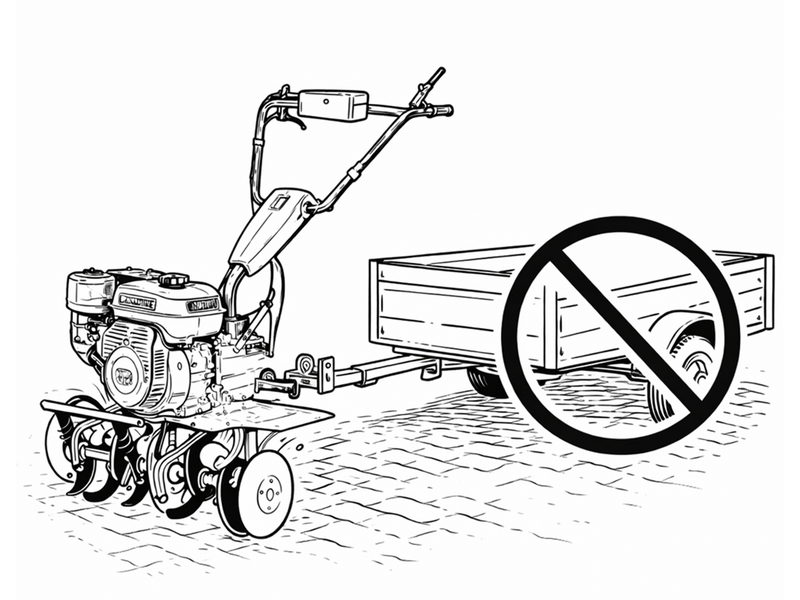

The rotary tiller must be used exclusively for soil cultivation and must not be used to pull, push or perform towing operations with loads, trailers or equipment for which it is not designed. Improper use may result in loss of control, mechanical damage and dangerous situations for the operator.

While in use, all the required guards must remain fitted. Do not touch or work on any  moving parts while the engine is running.

Proper maintenance ensures that the petrol garden tiller continues to perform efficiently. It is advisable to clean the machine regularly, remove any residue from the tines and check the condition of components subject to wear and tear.

It is always important to use fuel and lubricants suitable for the specific model of machine, following the instructions set out in the user and maintenance manual. The use of unsuitable or degraded products may compromise the correct operation of the engine and mechanical components.

If the rotary tiller is to be left unused for a prolonged period, it must be stored in a dry, clean place, protected from the elements.
