AGT 2" GX160 Petrol Water Pump - 50 mm Fittings

AGT 2" GX160 Petrol Water Pump - 50 mm Fittings
Safe shipment: box secured to wooden pallet
Motor brand
Honda
Engine Model
GX160
Cubic Capacity
163 cm³
Rated output
5.5 HP
Power
petrol
Water pump type
Self-priming
Material
Aluminium
Pipe fittings (joints) diameter
50 mm
Head lift
32 mt
Maximum suction depth
8 m
Aluminium fittings
Yes
Manufacturing Country
Romania
FREE:
Free items: 2 bottles of 600 ml engine oil each
FREE:
Free items: 2 bottles of 600 ml engine oil each
€ 524,41
VAT Included
Prompt Delivery
23 items in stock
|
Free Shipping
You should receive it by 03/11/2021
ID: K602894

EAN: 5949017008966

MPN: WP 20 HKX GX160

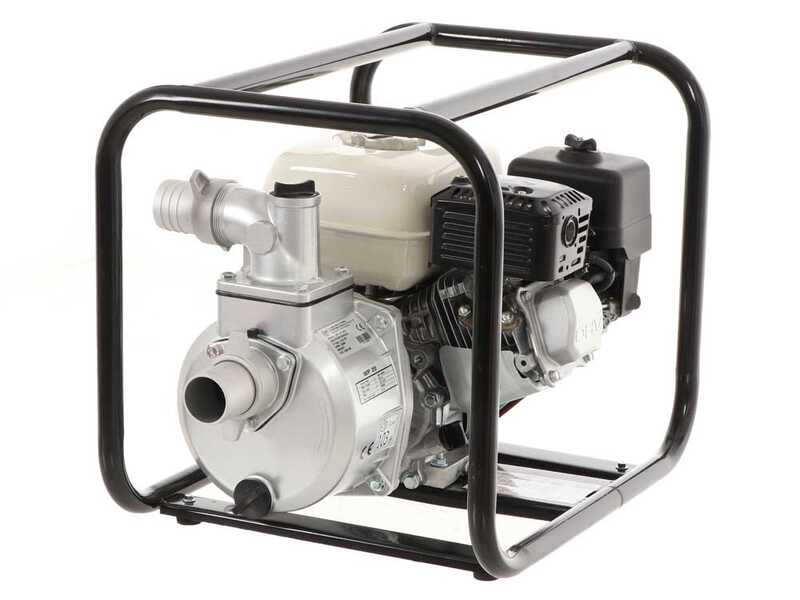

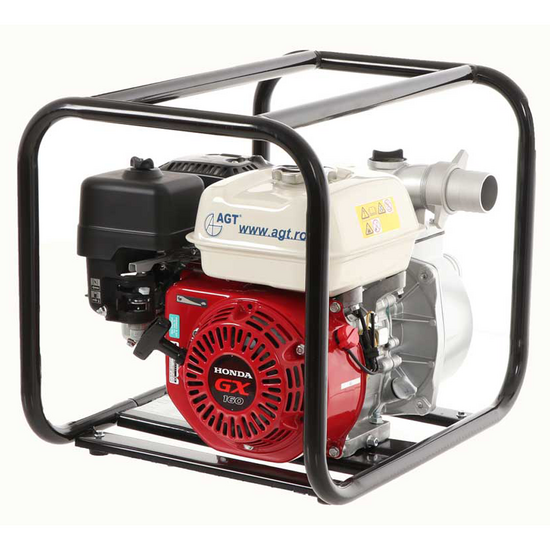

AGT 2" GX160 Water Pump

The GX160 Water Pump is an ideal tool for pumping water at high pressure and push it over long distances.

This model is an excellent compromise between power and size, and it’s easily transportable.

In particular, this product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, from a cistern or from ponds and tanks that are difficult to reach, or even when you have to drain a cellar or a garage that has been flooded.

The pump is self-priming and can start to work by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • Oil-free engine, remember to refill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These water pumps are suitable for transferring water (for example form one cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with sprinklers of different typologies or various types of real irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head, pressure, pipe diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

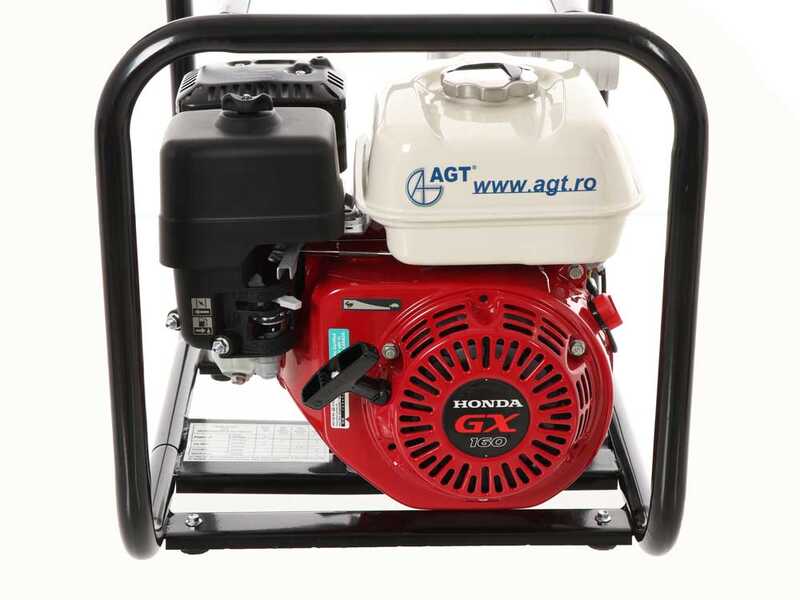

Engine technical features

Engine specifications:

Model: GX160
Type: 4-stroke, single-cylinder, air-cooled, OHV
Displacement: 163 cc
Power: 5.5 Hp
Fuel: petrol
Tank: 3.1 L

The engine has recoil start and a metal tank with fuel shut-off valve.

Detail of the engine controls.

Detail of the access to the spark plug.

Detail of the oil level cap.

Water pump technical features

The pump mounted on GX160 is made with a cast iron impeller able to resist abrasion and prolonged pumping works.

Pump features:

Suction: 50 mm
Delivery: 50 mm
Maximum suction height: 8 mt
Maximum flow rate: 465 L/min
Maximum head: 32 mt

Detail of the pump filling cap

Detail of the pump emptying cap.

Focus on air filter

Assembly tutorial of the AGT 2\" GX160 Petrol Water Pump
Product Features
Model:
GX 160
Power:
petrol
Start:
Recoil
Reinforced square tubular frame:
No
For dirty water:
No
Anti-corrosion pump for chemicals:
No
Double delivery mode:
No
Manufacturing Country:
Romania
Motor data
Motor/Engine brand:
Honda
Engine Model:
GX160
Cubic Capacity:
163 cm³
Number of pistons:
1
Rated output:
5.5 HP
Fuel:
gasoline
Power supply:
Overhead valve
Engine lubrication type:
Oil bath
Pressure reducing system:
Automatic
Tank capacity:
3.1 L
Manufacturing Country:
Japan
Pump data
Pump brand:
AGT
Water pump type:
Self-priming
Material:
Aluminium
Revolutions per Minute:
3600 RPM
Pipe fittings (joints) diameter:
50 mm
Flow Rate:
465 L/min
Head lift:
32 mt
Maximum suction depth:
8 m
Manufacturing Country:
China
Equipment
Recoil Starter (cord):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Couple swivel fittings:
yes
Cable ties:
yes
Suction filter:
Yes
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
53x43x4 cm
Net weight:
23 Kg
Packaging:
On pallet
Packaging dimensions cm (LxWxH):
54x43x46 cm
Gross weight (packaging incuded) :
24 Kg
Assembly time:
5 minutes

FORE FREE: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

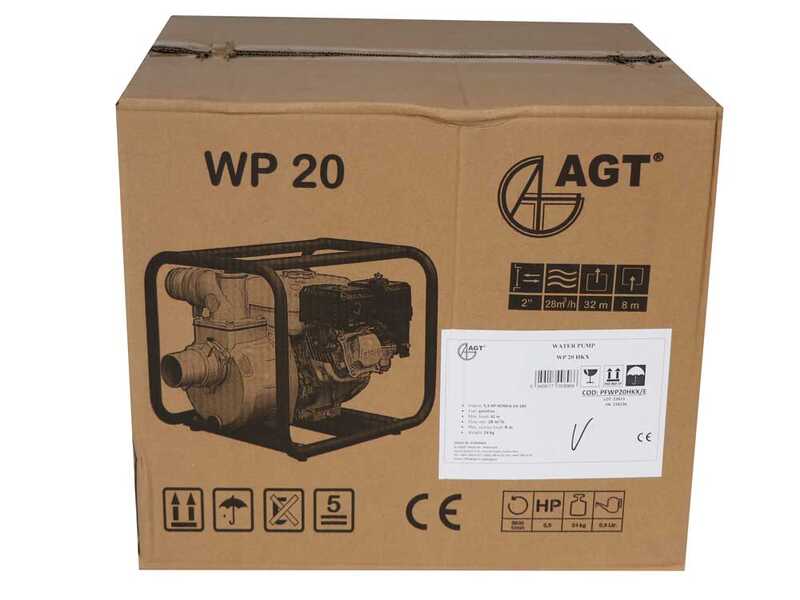

Standard equipment

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2 50 mm fittings 3 metal clamps and 2 rubber gaskets for fittings, in addition to the suction filter.

All of this is provided with the instruction manual.
