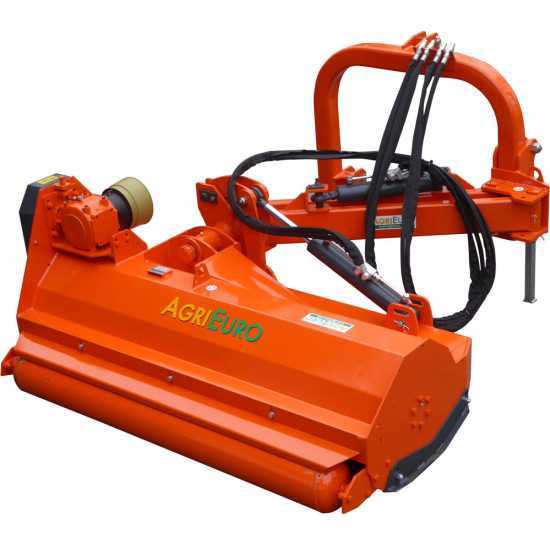

AgriEuro Top Line A-PS 160 - Tractor-mounted side verge flail mower with Arm - Heavy series

The HEAVY-DUTY AgriEuro THL A-PS 160 side flail mower with arm is an entirely Italian machine with an excellent quality and components.

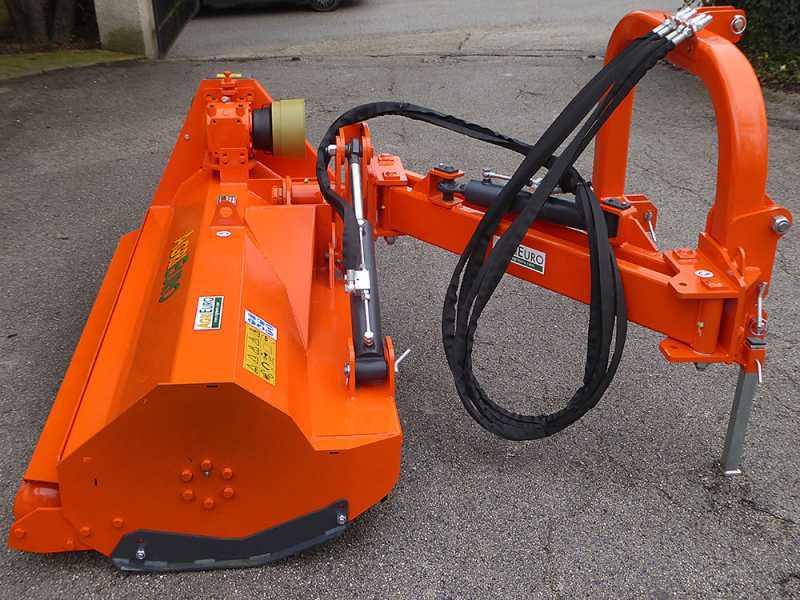

This model represents the maximum level of flexibility of the flail mowers, in fact, the (totally hydraulic) movement is both horizontal and vertical. It can be used to clean street edges, banks and moats where it is requested that the flail mower works sideways to the tractor or even in vertical for the hedge and bush cutting.

• Ideal for municipal words, ditches, embankmets and inclined lands in general.

The hydraulic side shift is carried out by two sturdy pistons and the side transmission is made by 4 belts. Balanced electronic dynamics of the rotor and Comer gearbox with free wheel.

TECHNICAL DETAILS (in summary):

• Real working width: 160 cm
• Real width occupied (with side skids assembled): 174 cm
• Weight: 600 kg

STANDARD EQUIPMENT (in summary):

• Universal 3 point hitch of 1st category
• Boxed frame with anti-noise system
• Steel toothed hammer flails with M20 bolts
• Counter-blade blades
• Rear roller with large diameter

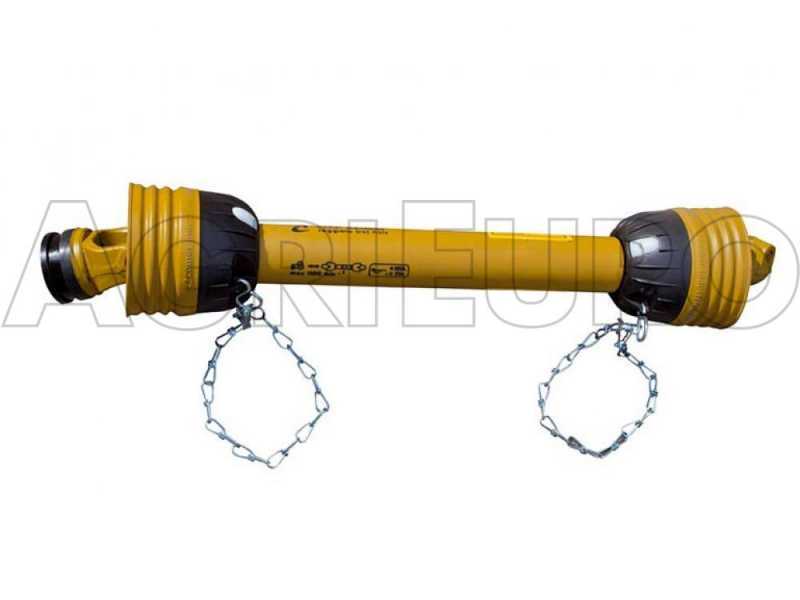

• Cardan shaft T60-120 cv L800 "Made in Italy by Comer"
• Rotation mechanisms on hardened steel bushings (Pcm)

Big size oil bath reduction gearbox group, original made by COMER. The outer body is moulded, while the inner gear made of tempered steel.

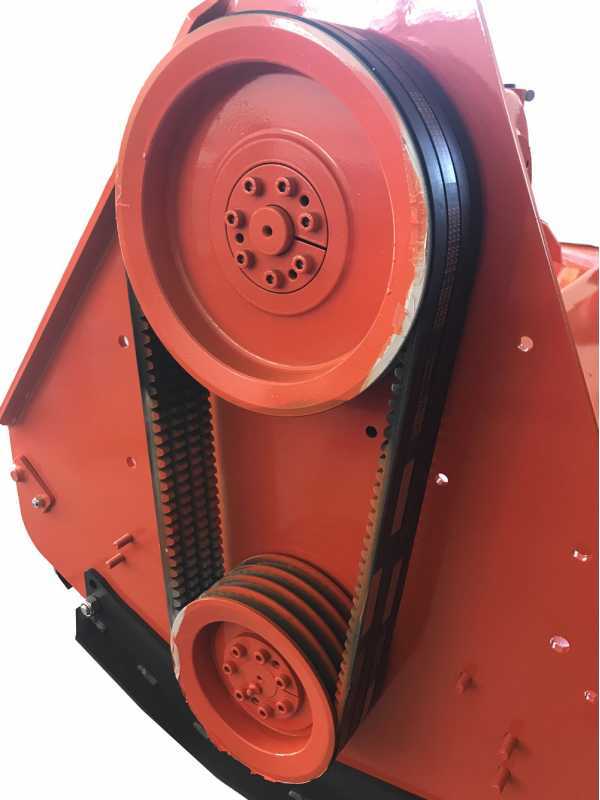

Side 4 big section belts transmission (the most part of the flail mowers on market have a 3 belt transmission)

Belt protection side shield, with optimized dimension: only 10 cm depth 4 big section belts. This kind of side shield save room on the product’s total width making it smallest product on market compared with their working width. Considering the room taken from the slides the total flail mowers width is only 14 cm more than the cutting width!!

Greaser side transmission particular, easy to access from a dedicated opening

Nr. of toothed hammer flails on standard equipment: 12

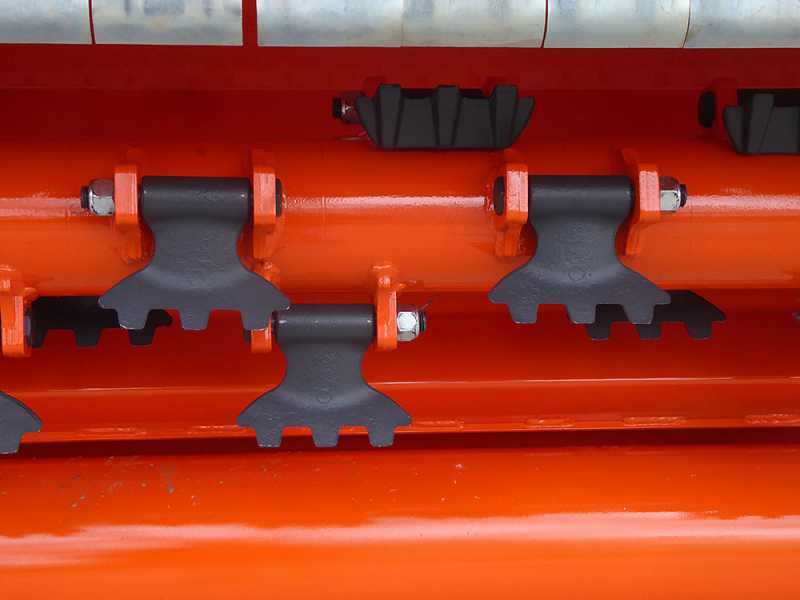

Brand new toothed hammer flails.

They are the heaviest hammer flails on market (the most common are up to 1,6 kg).

The toothed hammer flails are more sturdy and heavy than the common flat flails. They allow even the wood and small stones crunching, not only grass and straw. This is possible also thanks to their three strong "teeth" able to easily break and pass over them. They are firmly fixed to the frame by means of a 20 mm diameter and 150 mm length tempered steel bolt. The bolt dimensions make impossible it can be broken if hit (the 90% of flail mowers on market have the hammer flails fixed by means of 16 mm diameter bolts). The hammer flail connection features 90 mm width.

Provided with double counter-blades bar. It is opposite to the hammer flails rotation with a counter-blade function for a fine crunching.

Focus on the hammer flails trajectory: very close to the counter-blades sharp edge.

High thickness rotor. It can resist to many years job and accidental hits.

It is electronically balanced.

Molded steel resistant hammer flails support brackets. Support brackets and rotor give a good solidity to the flail mower

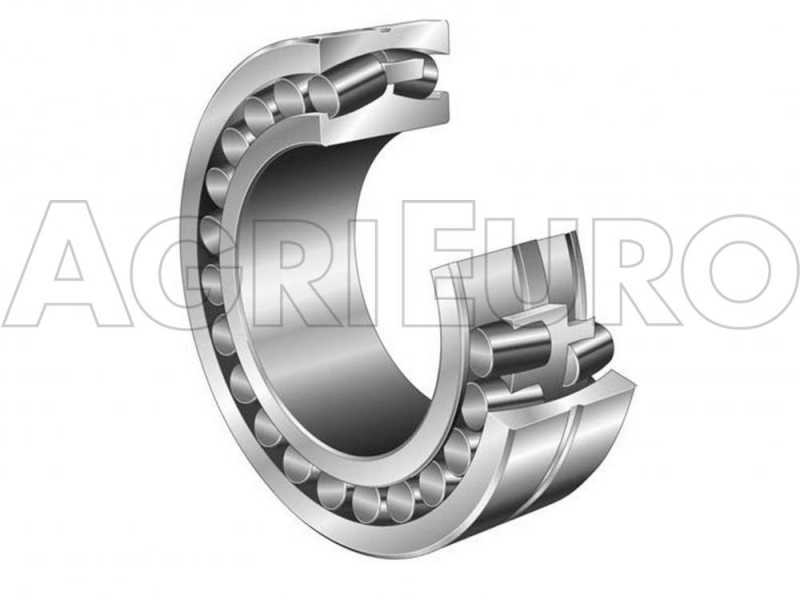

Moreover, rotor is assembled on the steel side support and are provided with highly professional swivelling C roller bearings with double retaining double lips rings.
The roller bearings represent the most professional and reliable technology on the flail mowers field.

High thickness double skin frame (double shell). The two shells are one laying over the other one and this makes the equipment sturdiest than the ones with a standard frame. This fail mover is indestructible even in hostile conditions. Resistant even to medium-sized stones, shrubs and the underbrush

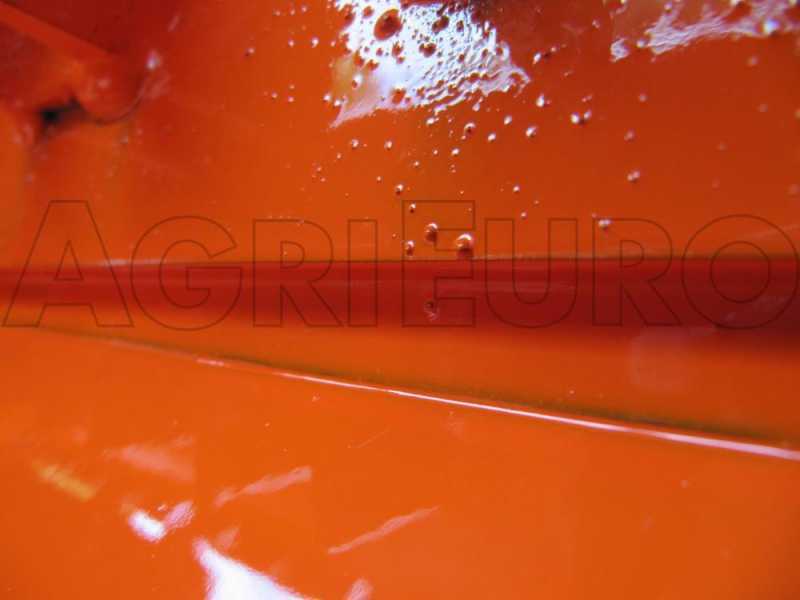

Nr. 02 counter-blades rows on the under-shell. This is the biggest innovation on a flail mower. The 3 tips trajectory of the hammer flail perfectly fits the counter-blades when passing over them. This means that all the material involved in this rotational system is “PULVERIZED”. Hammer-flail passes through the double counter blades row more than 30 times per second! Fragmentation capacity is 3 or 4 times more than the traditional flail mowers provided with flat hammer flails and not provided with the double intersection counter blades rows.

Awesome visible results, mostly with grass, branches and pruning residuals mulching. On a common flail mower the hammer flail, when strikes a branch while running, sections it no more than in two pieces, sometimes leaving it intact behind. On this machinery, it is leaded from the hammer flails inside the counter-blades rows that thinly crumble it.

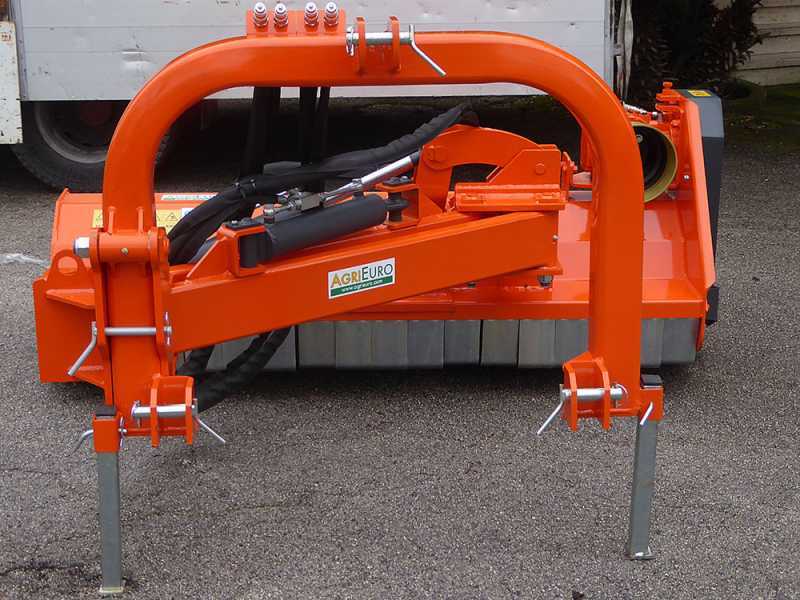

Side and vertical movement actioned by means of 2 cylinders. Provided with four fast linkage tubes to be connected to the tractor’s hydraulic joints.

It is a very sturdy side shift system with flexible arms and rotation mechanisms on hardened steel bushings (Pcm).

Focus on the locking valve of the hydraulic piston. This ensures that flail mower maintains the right position when tractor is moving.

The flail mower can work up to 90° vertical upwards and -65° downwards.

Standard supplied rear roller with height adjustment.

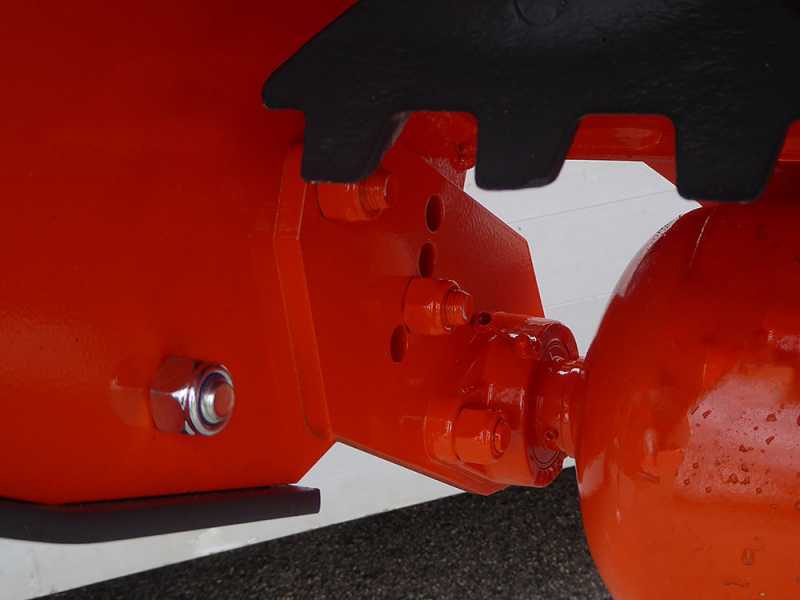

Focus on the big bearing with cast iron plate for roller fixing

Focus on the side steel support for the roller with holes for the height adjustment.

Standard supplied side support skids

Lay foot.

Front protection flaps made of folded steel .

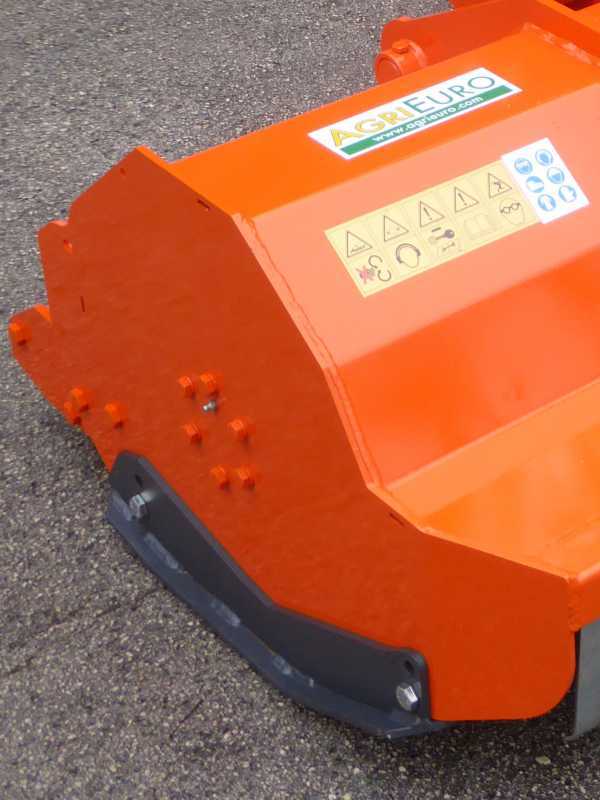

Special side shield styling , particular, specifically designed to avoid that any trunk or obstacles may damage the flail mower or tractor if hit.

Remarkable how the skid is designed as an integral part of the shield and not protruding (not even a bolt) that may represent a stumbling block.
