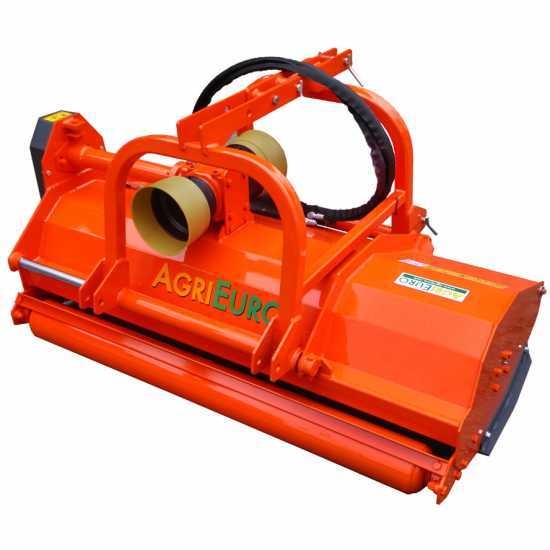

AgriEuro Top Line R-MS 160 - Tractor-mounted Flail Mower - Medium series - Hydraulic shift

... wood and grass medium series flail mower with excellent components, in terms of price and equipment they are second to none ...

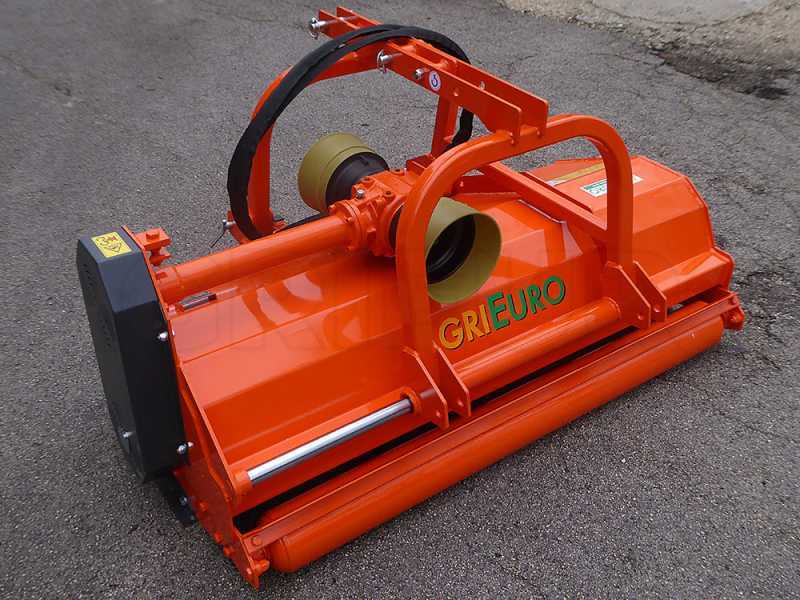

Reversible flail mower with side shift and hydraulic jack suitable for different operations (grass, pruning, staw, etc.)

• Suitable for reversible tractors and for tractors with front attachment. It can be applied to tractors in both frontal and rear position.

The hydraulic side shift is on chromed guide in C45.

Side trasmission with 3 belts, spherical barrel roller bearings with double double lip seals, rear roller, and Comer gearbox with lubricated extension.

TECHNICAL DETAILS (in summary):

• Real working width: 160 cm
• Real width occupied (with side skids assembled): 173 cm
• Weight: 402 kg

STANDARD EQUIPMENT (in summary):

• Double power take-off
• Hydraulic side shift (44 cm)
• Toothed steel hammer flails with M20 bolts
• Counter-blade blade
• Rear roller

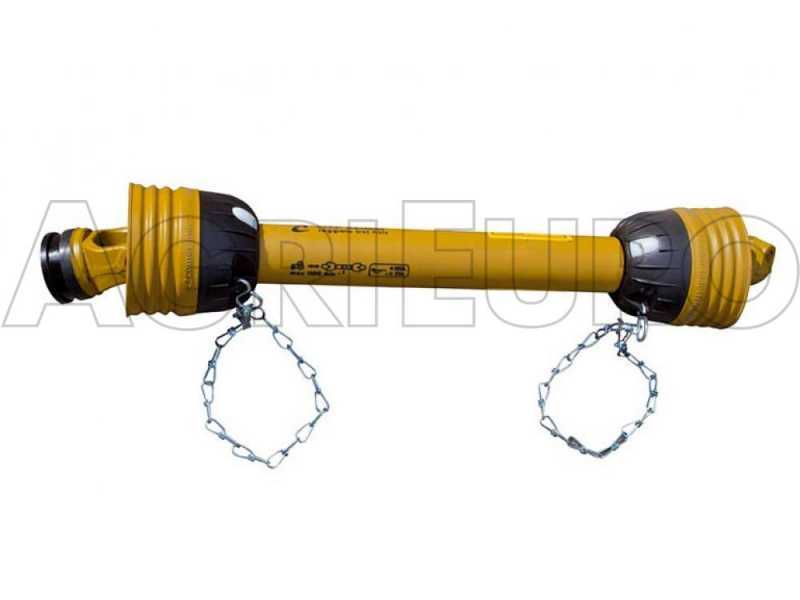

• Cardan shaft T50 L800 "Made in Italy by Comer"

The reversible flail mower is suitable for tractors with front or rear attachment. It can be linked to the tractor in frotal or in rear position.

To use it in one direction or the other, just remove the pivot, turn the upper attachment and change the lower joints so transforming the flail mower

It is suitable for the shredding of grass, bushes and brambles.

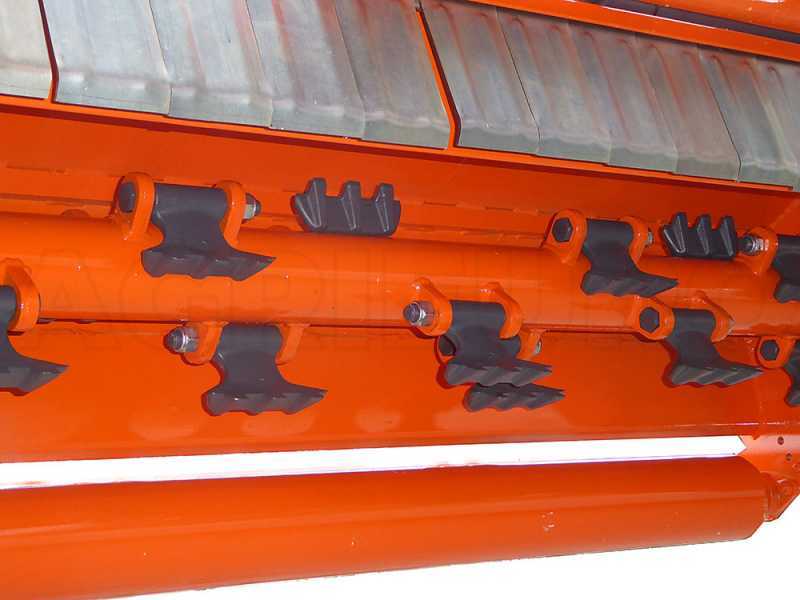

Nr. of toothed hammer flails on standard equipment: 12

They are the heaviest hammer flails on market (the most common are up to 1,6 kg).

The toothed hammer flails are more sturdy and heavy than the common flat flails. They allow even the wood and small stones crunching, not only grass and straw. This is possible also thanks to their three strong "teeth" able to easily break and pass over them. They are firmly fixed to the frame by means of a 20 mm diameter and 150 mm length tempered steel bolt. The bolt dimensions make impossible it can be broken if hit (the 90% of flail mowers on market have the hammer flails fixed by means of 16 mm diameter bolts). The width of the hammer flail attachment is 90 mm.

Provided with double counter-blades bar. It is opposite to the hammer flails rotation with a counter-blade function for a fine crunching.

Detail of the hammer flails trajectory: very close to the counter-blades sharp edge.

High thickness rotor. It can resist to many years job and accidental hits.

It is electronically balanced.

Molded steel resistant hammer flails support brackets. Support brackets and rotor give a good solidity to the flail mower

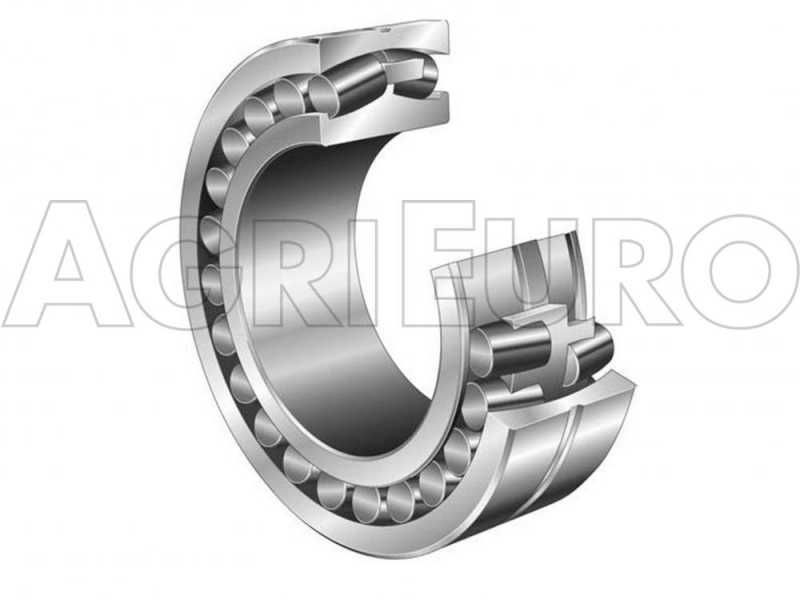

Moreover, rotor is assembled on the steel side support and are provided with highly professional swivelling C roller bearings with double retaining double lips rings.
The roller bearings represent the most professional and reliable technology on the flail mowers field.

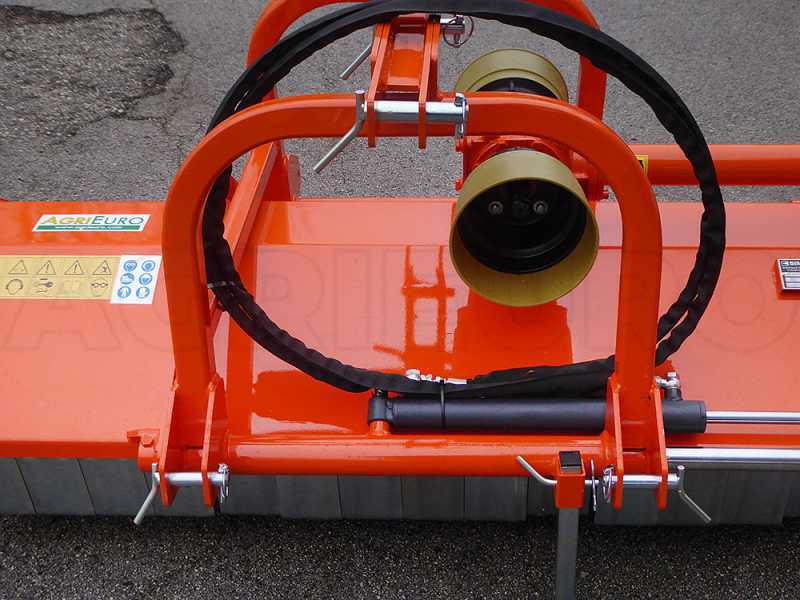

Side movement actioned by means of an hydraulic cylinder. Provided with two fast linkage tubes to be connected to the tractor’s hydraulic joints. The side shift is of 44 cm.

It is very solid movement, structured by means of two C45 steel RODS resistant to accidental hits.

Focus on the joints, very close to the machinery frame , and not protuberant. This allows the flail mower to work very close to the tractor, avoiding the stone is thrown towards the operator and mostly eliminating any possibility the machinery could be lifted as its weight will charge the tractor in a minor way. This allows the machinery connection despite its big weight, also to tractors of minor mass and dimensions compared to it.

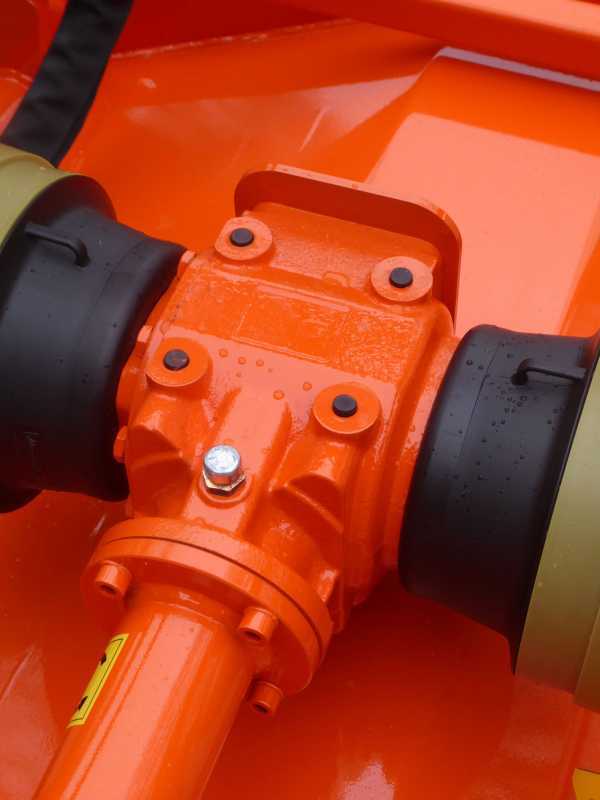

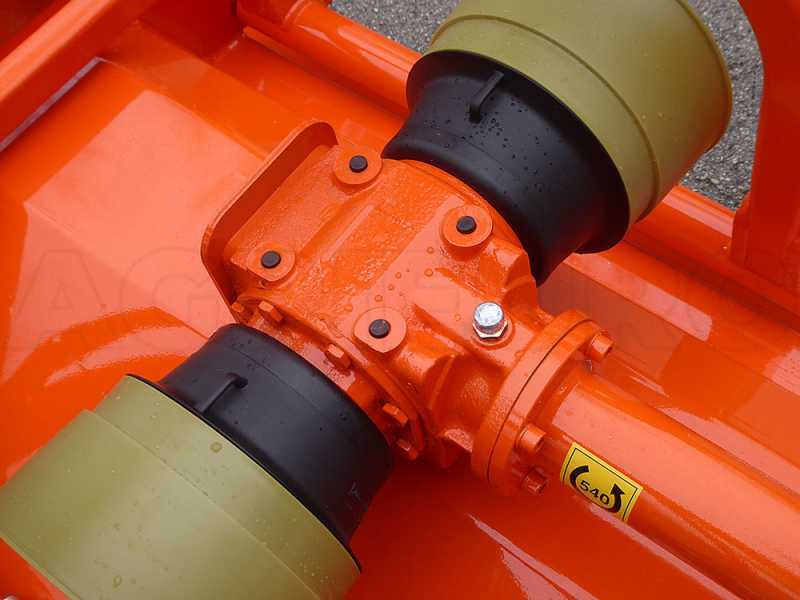

Big size oil bath reduction gearbox group, original made by COMER. The outer body is moulded, while the inner gear made of tempered steel. Provided with lubricated extension.

Side 3 big section belts transmission (the most part of the flail mowers on market have a 2 belt transmission)

Belt protection side shield, with optimized dimension: only 9 cm depth 3 big section belts. This kind of side shield save room on the product’s total width making it smallest product on market compared with their working width. Considering the room taken from the slides the total flail mowers width is only 13 cm more than the cutting width!!

Focus on the greaser side transmission, easy to access from a dedicated opening.

Standard 1 3/8" z6 power take-off PTO (suitable for each model of recently manufactured tractors): whether you are dealing with older tractors, it is recommended to previously check that they provide the same power take-off type featuring the standard right/clockwise rotation.

WARNING:

The flail mower is equipped with a double power take-off at 540 rpm. On request, during order, it is possible to ask for a power take-off providing 1000 rpm. Please consider that the request will suppose aprox. 10/15 days for production.

Rear support height adjustable roller on standard equipment.

Focus on the bearing at the roller fixing

Roller side supporting plate particular, with holes for the height adjustment.

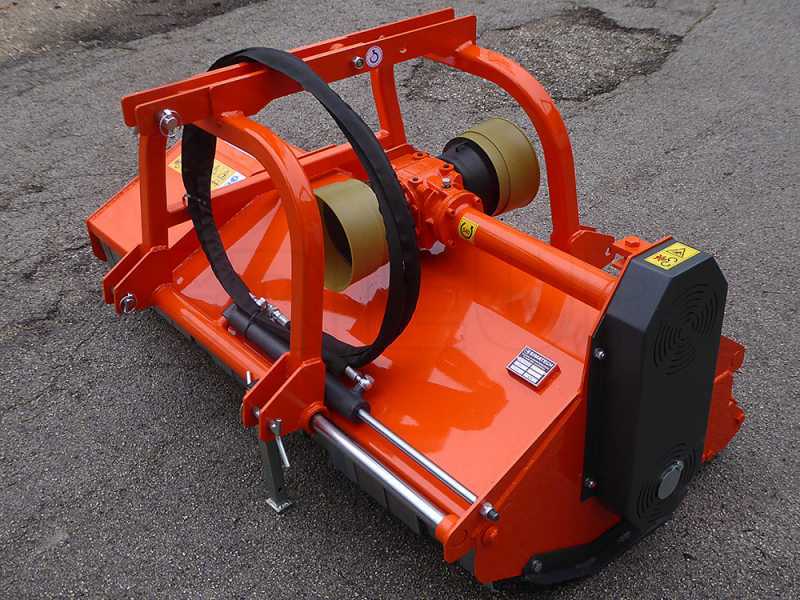

Side adjustable supporting skids, supplied with standard equipment.

Sturdy protective front flaps made of steel.

Lay foot .
