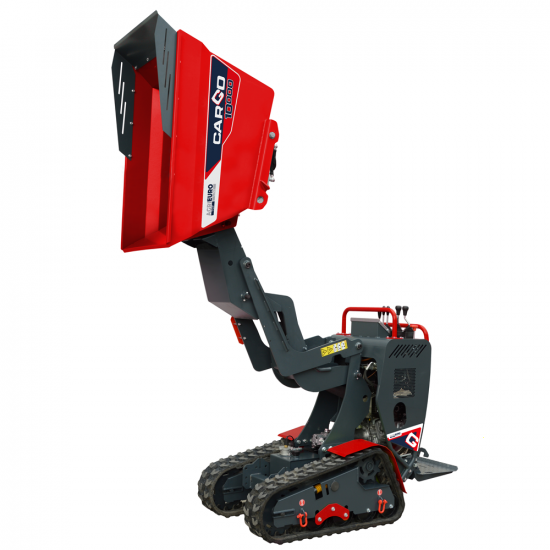

AgriEuro Top-Line CARGO J 10000 HEDH 4.0 Tracked Power Barrow with Joystick - Honda GXe630

Add a question
ID: 110689

EAN: 8052532841745

MPN: H1000HT-GX

9,0/10
After-sales assistance & Spare parts
AgriEuro Top-Line CARGO J 10000 HEDH 4.0 Tracked Power Barrow with Joystick - Honda GXe630
Load capacity
1000 Kg
Barrow body type
Dumper
Box
Metal
Body tipping
Hydraulic
Max. slope
30 %
Type
Tracked
Starting mode
Electric
Motor brand
Honda
Motor Model
GX630
Motor type
4-stroke
Cubic capacity
688 cm³
Nominal power
20.8 HP
Gear shifting system
Hydrostatic
Gears
Unlimited
Throttle lever
Yes
Assisted steering
Yes
Tilting track
Operator platform
Manufacturing country
Italy
Product Features
Model:
CARGO J 10000 HEDH 4.0
Type :
Tracked
Operating mode:
Spark ignition
Self-propelling:
Yes
Load capacity:
1000 Kg
Max. slope:
30 %
Load capacity on slopes:
700 kg
Barrow body type:
Dumper
Dumper body:
Body tipping:
Hydraulic
Starting mode:
Electric
Box:
Metal
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX630
Motor type:
4-stroke
Cubic capacity:
688 cm³
Nominal power:
20.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
Japan
Transmission data
Gear shifting system:
Hydrostatic
Gearbox:
Hydraulic
Throttle lever:
Yes
No. of forward speeds:
Unlimited
Gears:
Unlimited
Forward speed:
2,5 - 4,2 Km/h
Operating mode:
Control levers
Equipment
Driving system:
Joystick
Hydraulic piston:
Yes
Tubular extension sides:
No
Box:
Dumper
Hydraulic tipping kit:
Yes
Operator platform:
Assisted steering:
Yes
Tilting track:
Track width:
200 mm
Total rollers no.:
4
Electric start with key :
Yes
Led Spotlight:
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
182x152x96 cm
Net weight:
790 Kg
Packaging:
On pallet
Assembly time:
Assembled
High-tip Skip
>
Model with Joystick
>
Without Attachments
>
10 - 12 days from purchase
Free Shipping
€ 19.022,58
VAT Included
You're viewing:
Customers also viewed:
Description

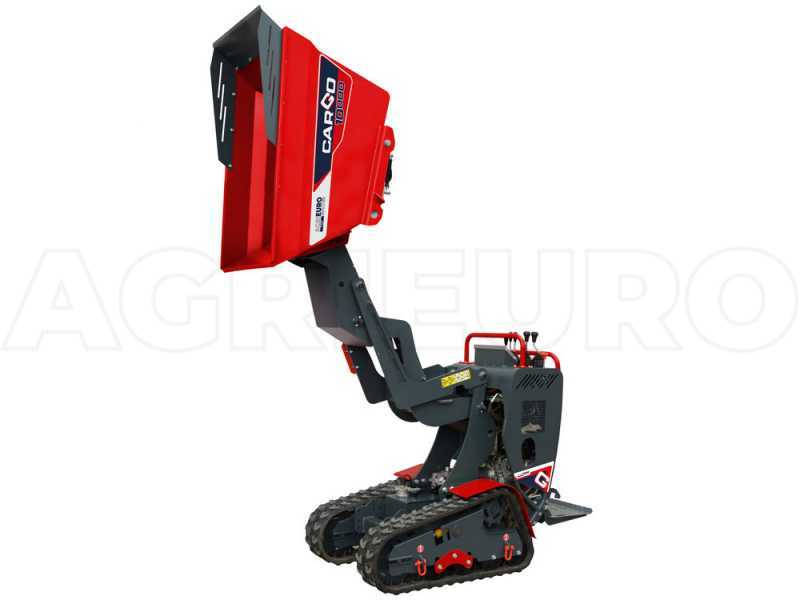

AgriEuro Top-Line CARGO J 10000 HEDH 4.0 power barrow

The AgriEuro Top-Line CARGO J 10000 HEDH 4.0 tracked power barrow is equipped with a hydraulic dumper body featuring high-tip skip and a powerful Honda GXe630 twin cylinder engine with electric start. The engine is capable of reaching a power of 20,8 Hp.

This model is equipped with a proportional hydraulic Joystick for moving. (please refer to the specific section).

The Industria 4.0 models are intended for highly professional use. By purchasing the Industria 4.0 model it will be possible to benefit from the tax credit in force at the time of purchase.

On the LCD display, specifically made for the Industria 4.0 series, you’ll find:

  • Engine rpm indicator
  • Longitudinal tilt indicator
  • Transverse tilt indicator
  • Fuel level indicator
  • Hour meter
  • Battery voltage indicator
  • Hydraulic oil filter clogging warning light

This mode is equipped with 3 gear pumps that guarantee the movement and use of all its functions. In addition to the hydraulic circuit, the machine is equipped with a radiator to keep the oil temperature below critical thresholds.

A hydraulic power take-off with quick coupling, which allows the connection of tools, equipment and accessories such as breakers, circular saws, drills, etc. is placed on the side of the machine.

The PTO features a capacity of 24 L/m at a pressure of 180 bar max.

In addition, thanks to the INDUSTRY 4.0 KIT, the alarm can be forwarded to the power barrow remote management app, so that to signal the request for intervention.

The power barrow is equipped with hydrostatic transmission, which allows changing the operating speed even while moving without having to stop.

  • Up to a maximum of 1000 Kg on flat ground.
  • Up to a maximum of 700 Kg on soils featuring a maximum slope of 30%, which makes it an indispensable tool for each type of transport.

The hydraulic system for lifting the dumper body of which this wheelbarrow is equipped with, facilitates at the maximum each working stage, eliminating the effort to raise the truck once loaded. Thanks to the self-propulsion on tracks and to the powerful HONDA engine, this power barrow is intended for carrying loads.

One of the main features of this power barrow are its tracks, which guarantee stability and safety when using the machine even with heavy loads and slopes that standard wheelbarrows are not able to handle.

Warning: these machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level.

Remember that it is always a good idea to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

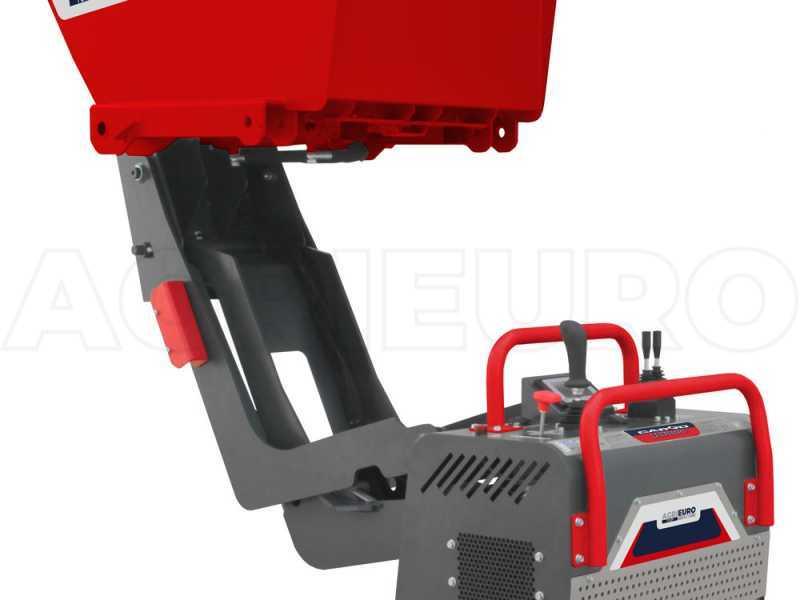

Technical features

These power barrows are equipped with a very high active safety system. Indeed the machine is provided with 2 OverCenter valves flanged directly to the engine that immobilise the machine when stationary on uneven terrain and prevent the machine from gaining speed downhill.

The safety systems also include an automatic parking brake. The system consists of a piston that is engaged by releasing the track movement lever; the piston fits between the spaces in the crown inside the track, preventing it from turning. This allows the machine to stand completely still even on a slope. Once engaged the forward lever, the piston will retract, allowing the crown and consequently the track to move freely.

The power barrow is then able to emit acoustic signals that warn the Operator in case of:

  • Longitudinal inclination greater than 30%-17°
  • Transversal inclination greater than 15%-8.5°.
  • In the extreme case of tipping, the machine will emit a continuous acoustic warning signal to alert people near it.

The track is designed to provide the machine a low centre of gravity so that it is stable on all types of terrain. It is made of carbon steel at least 5 mm thick. The height from the ground (16 cm) has been increased to allow overcoming obstacles on uneven terrain.

Here follow the main features of the machine:

  • Engine model: Honda GXe630
  • Nominal power: 20,8 Hp
  • Fuel tank capacity: 12 L petrol
  • Activation: electric
  • Tip skip type: high
  • Transmission: hydrostatic
  • Driving speed: 2 speeds - 2.5 Km/h - 4.2 Km/h
  • Hydraulic motors: 315 cc orbital
  • Hydraulic pumps type: 4 stage triple
  • Pump flow rate: 24+12+12+12 L/m at 3000 rpm
  • Max. operating pressure: 180/150 bar
  • Hydraulic oil tank capacity: 21 L
  • Max. slope: 30% (17°)
  • Max. load capacity on level/slope ground 1000/ 700 Kg
  • Body tipping system: hydraulic
  • Overall size: 182x152x96 cm - 795 Kg
  • Driving system: Joystick
  • Tracks size: 200 mm width - 72 mm pitch
  • Track rollers: 4, 2 of which tilting

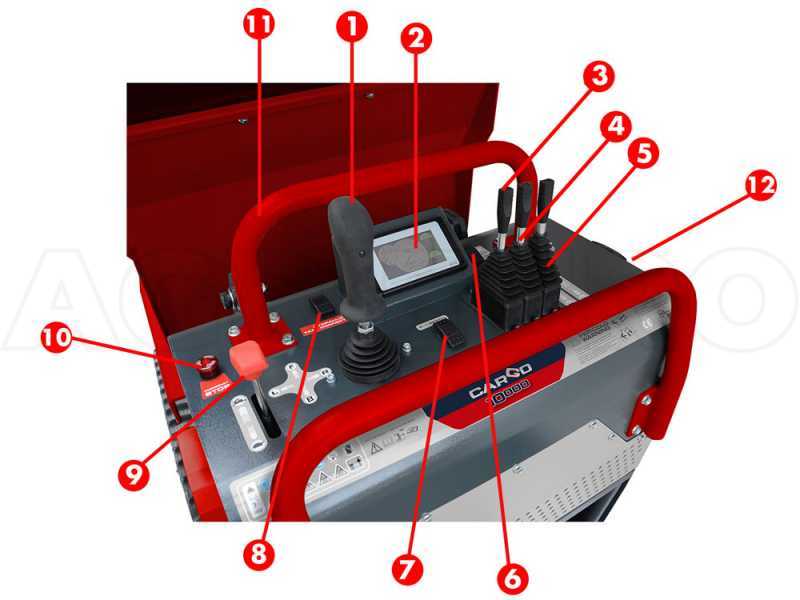

Control panel on the Industria 4.0 model with Joystick

The Industria 4.0 models are intended for highly professional use. Indeed they are equipped with a very high active safety system provided with acoustic sensors.

Among the controls we’ll find:

  1. Proportional hydraulic joystick for moving
  2. LCD* display
  3. Loading bucket (on models equipped with loading bucket)
  4. Dumper tipping
  5. High-tip skip managed via individual hydraulic joysticks
  6. Led lights switch
  7. 2 speed selector
  8. Hydraulic PTO
  9. Engine throttle lever
  10. Safety switch to immediately stop the machine
  11. Support handlebar
  12. 12 L fuel tank

* On the LCD display (3), specifically made for the Industria 4.0 series, you’ll find:

  • Engine rpm indicator
  • Longitudinal tilt indicator with acoustic signal (if above 30%-17°)
  • Transverse tilt indicator with acoustic signal (if greater than 15%-8.5°)
  • Fuel level indicator
  • Hour meter
  • Battery voltage indicator
  • Hydraulic oil filter clogging warning light

In the extreme case of tipping, the machine will emit a continuous acoustic warning signal to alert people near it. In addition, thanks to the INDUSTRY 4.0 KIT, the alarm can be forwarded to the power barrow remote management app, so that to signal the request for intervention.
