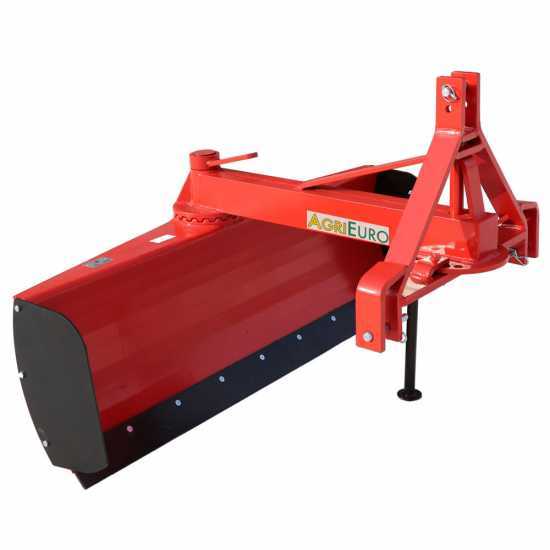

AgriEuro LLP200 Tractor-mounted Grader Blade - Heavy Series - Swivel Ring and Rotating Blade

Questions & Answers (2)
ID: 104302

EAN: 9999237541954

9,1/10
After-sales assistance & Spare parts
AgriEuro LLP200 Tractor-mounted Grader Blade - Heavy Series - Swivel Ring and Rotating Blade
+40 sold
Sturdiness/Series
Heavy
Body material
Enamelled steel
Manufacturing country
Italy
Product Features
Model:
LLP200
Type:
Lama livellatrice
Body material:
Enamelled steel
Sturdiness/Series:
Heavy
Fixed 3-point hitch:
Yes
Manufacturing country:
Italy
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
133x201x110 cm
Net weight:
270 Kg
Packaging:
On pallet
Gross weight (packaging included) :
305 Kg
Assembly time:
30 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
€ 1.462,16
VAT Included
You're viewing:
Customers also viewed:
Description

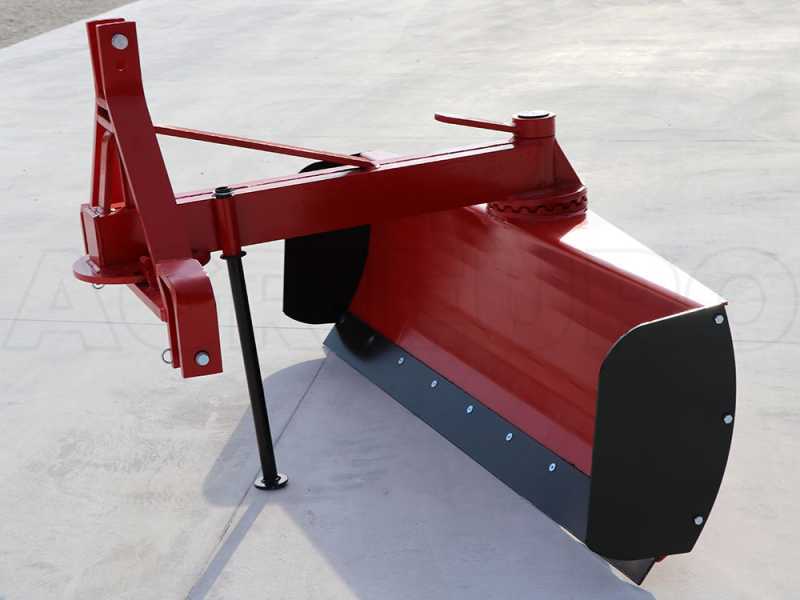

AgriEuro LLP200 tractor-mounted grader blade - 200 cm blade

The AgriEuro LLP200 tractor grader blade is a versatile tool that can be used in many situations thanks to its 200 cm wide opening.

It is mainly designed for levelling bumps in the soil to avoid water stagnation and wasted irrigation.

Tillage generally takes place on a previously tilled soil, to partially reduce clodiness and cavernousness, making the soil homogeneous, bringing weed rhizomes to the surface.

It can remove snow from courtyards and large spaces, making it an efficient cleaning tool.

The machine is equipped with 3-point hitch and sturdy quick-release devices for avoiding loosing the working speed and ensuring the Operator’s safety.

The blade can rotate 360° thanks to a screw system on serrated locking plates, allowing the soil to be moved sideways.

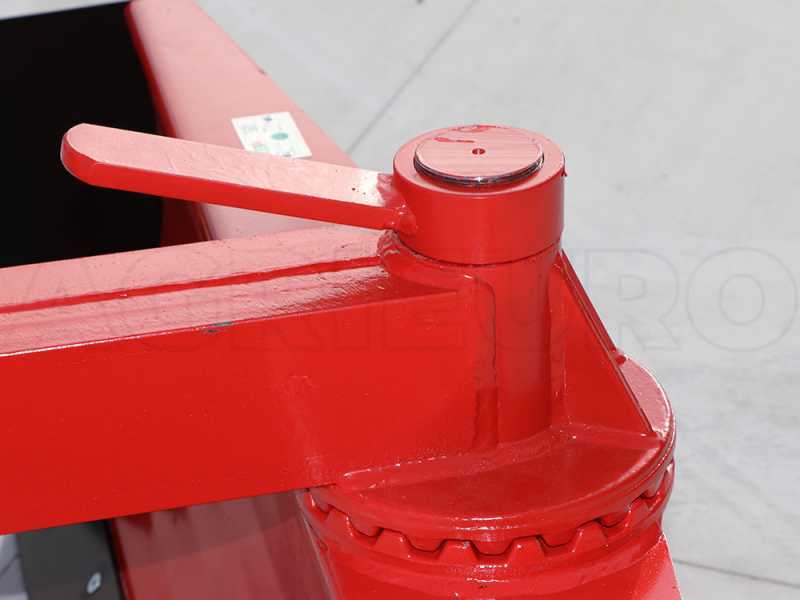

Slewing ring with double-hook safety device, which allows you to move the frame of the grader blade while keeping the blade steady.

Main features:

  • Wear-resistant interchangeable steel blade
  • 3-Point hitch
  • Removable end plates
  • Adjustable removable stand
  • Rotating blade and slewing ring

Made in Italy

Frame angle with adjustable slewing ring and 360° rotating blade

The heavy-duty series grader blade is a long-lasting and adjustable machine that allows you to level the ground according to your needs.

The grader blade allows you to easily level the ground as the blade can rotate 360° thanks to a screw system on serrated locking plates and it is also possible to move the implement sideways thanks to a 5-position system secured by 2 pivots.

This last movement allows the grader blade to move out of the tractor track, enabling it to reach difficult areas such as ditches, walls or boundaries with plants.

Focus on the straight blade positioned behind and sideways to the tractor.

Focus on the pivot pin grease nipple

Other features

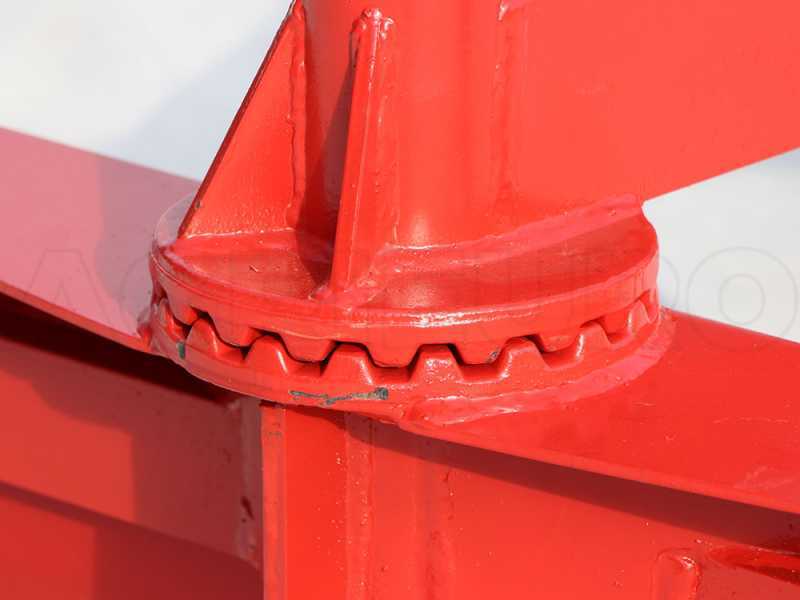

  • Screw system on serrated locking plates
  • Lock release screw of the serrated locking plates
  • Adjustable stand
  • Focus on the rear blade reinforcement
  • Wear-resistant steel blade
  • Removable end plates
  • Focus on the 5 positions adjustable by means the locking pin on the frame.
Free items & Standard equipment

Standard equipment

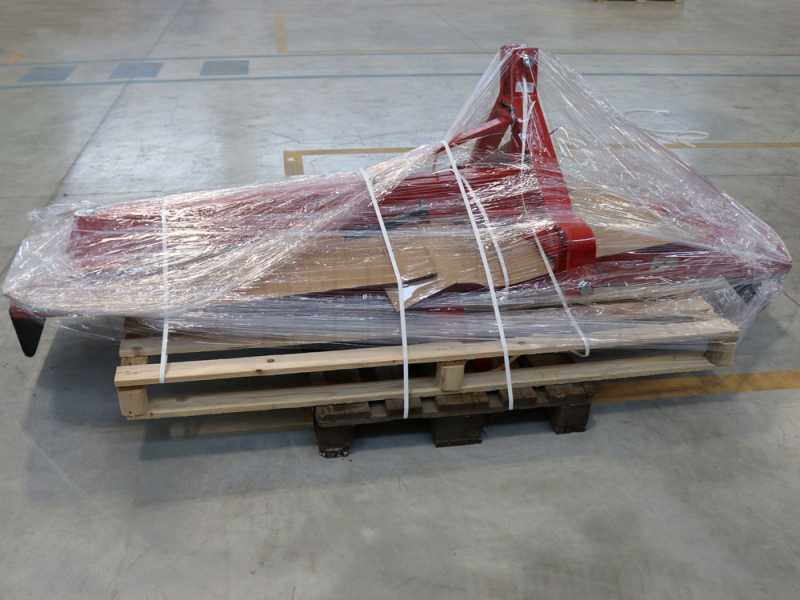

The grader blade is shipped on pallet.

The assembly is extremely easy and quick.
