AgriEuro LLP180 Tractor-mounted Hydraulic Grader Blade - Heavy Series - Swivel Ring and Rotating Blade

Questions & Answers (1)
ID: 104306

EAN: 9999237541985

9,1/10
After-sales assistance & Spare parts
AgriEuro LLP180 Tractor-mounted Hydraulic Grader Blade - Heavy Series - Swivel Ring and Rotating Blade
+50 sold
Sturdiness/Series
Heavy
Body material
Enamelled steel
Manufacturing country
Italy
Product Features
Model:
LLP180 idrauica
Type:
Lama livellatrice
Body material:
Enamelled steel
Sturdiness/Series:
Heavy
Fixed 3-point hitch:
Yes
Manufacturing country:
Italy
Equipment
Hydraulic Piston for moving:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
124x181x110 cm
Net weight:
240 Kg
Packaging:
On pallet
Gross weight (packaging included) :
255 Kg
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
€ 1.648,37
VAT Included
You're viewing:
Customers also viewed:
Description

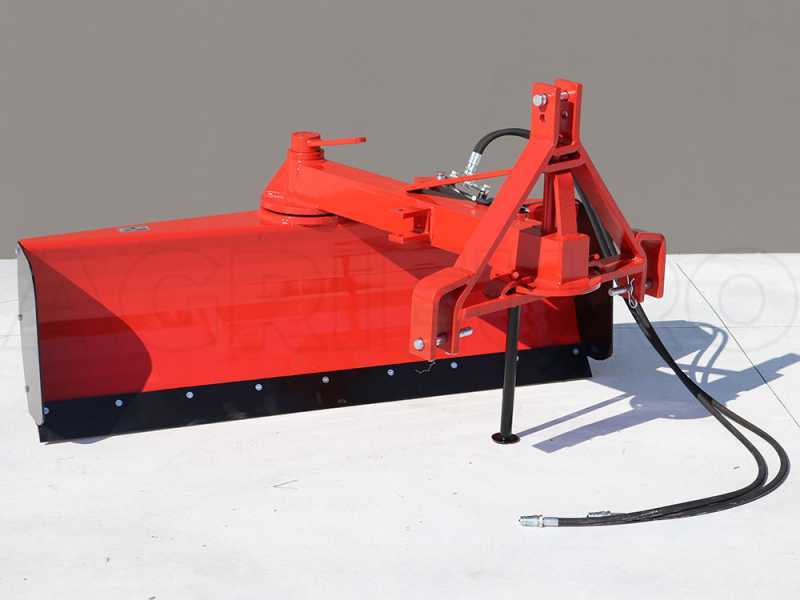

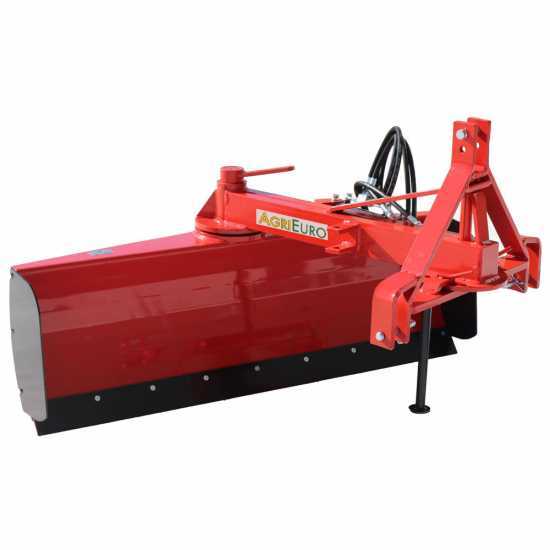

AgriEuro LLP180 tractor-mounted hydraulic grader blade - 180 cm blade

The AgriEuro LLP180 tractor grader blade is an excellent tool for soil tilling, land care and gardening.

Equipped with hydraulic rotation system:
The blade can rotate thanks to a hydraulic piston system, allowing you to move the ground sideways and adjusting the working angle directly from above the tractor, quickly, practically, effortlessly and without having to stop he operation for manually adjusting it.

It is suitable for levelling the soil from bumps, in order to prevent water stagnation and wasted irrigation.
It can also be used for cleaning stables and ditches, clearing snow, levelling roads, yards, etc...

Also useful as a soil cleaning tool.

The machine is equipped with 3-point hitch and sturdy quick-release devices for avoiding loosing the working speed and ensuring the Operator’s safety.

Slewing ring with double-hook safety device, which allows you to move the frame of the grader blade while keeping the blade steady.

Main features:

  • Wear-resistant interchangeable steel blade
  • 3-Point hitch
  • Removable end plates
  • Adjustable removable stand
  • Rotating blade and slewing ring
  • Hydraulic system for blade positioning

Made in Italy

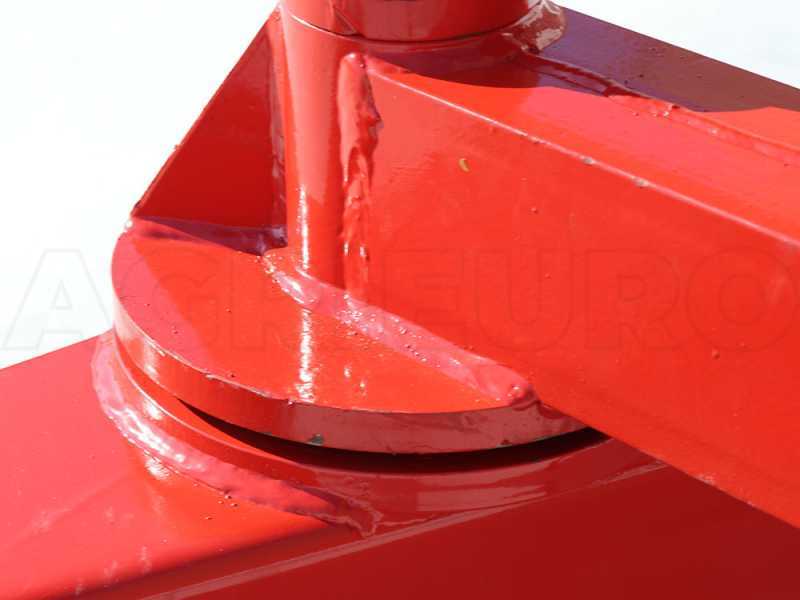

Frame angle with adjustable slewing ring and 360° rotating blade

The heavy-duty series grader blade is a long-lasting and adjustable machine that allows you to level the ground according to your needs.

The grader blade allows you to easily level the ground as the blade can rotate 360° thanks to a hydraulic movement system and it is also possible to move the implement sideways thanks to a 5-position system secured by 2 pivots.

The hydraulic system can be mounted either to the right or left of the central axis by means a quick release system, to allow full rotation of the equipment and use in every situation.

This last movement allows the grader blade to move out of the tractor track, enabling it to reach difficult areas such as ditches, walls or boundaries with plants.

Focus on the straight blade positioned behind and sideways to the tractor.

Focus on the pivot pin grease nipple

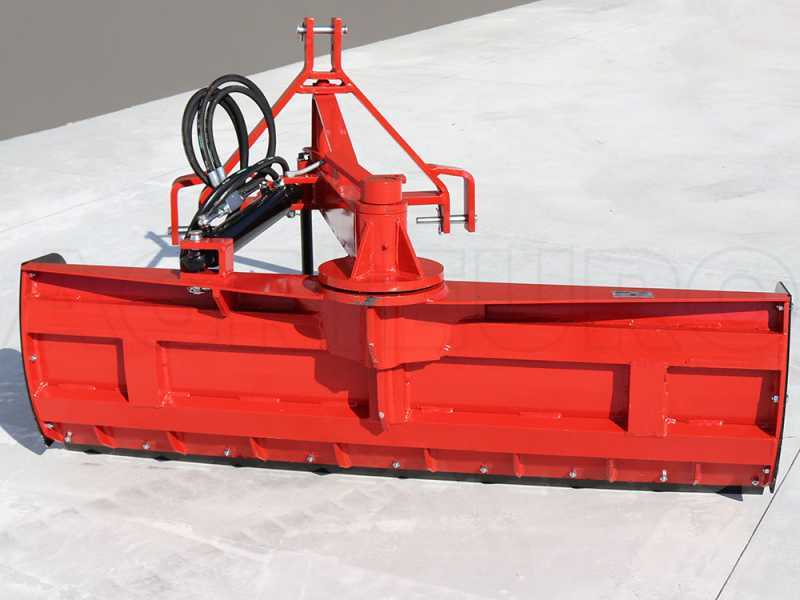

Other features

  • Screw system on smooth locking plates
  • Hydraulic rotation system
  • Lock release screw of the plates
  • Adjustable stand
  • Focus on the rear blade reinforcement
  • Wear-resistant steel blade
  • Removable end plates
  • Focus on the 5 positions adjustable by means the locking pin on the frame.
Free items & Standard equipment

Standard equipment

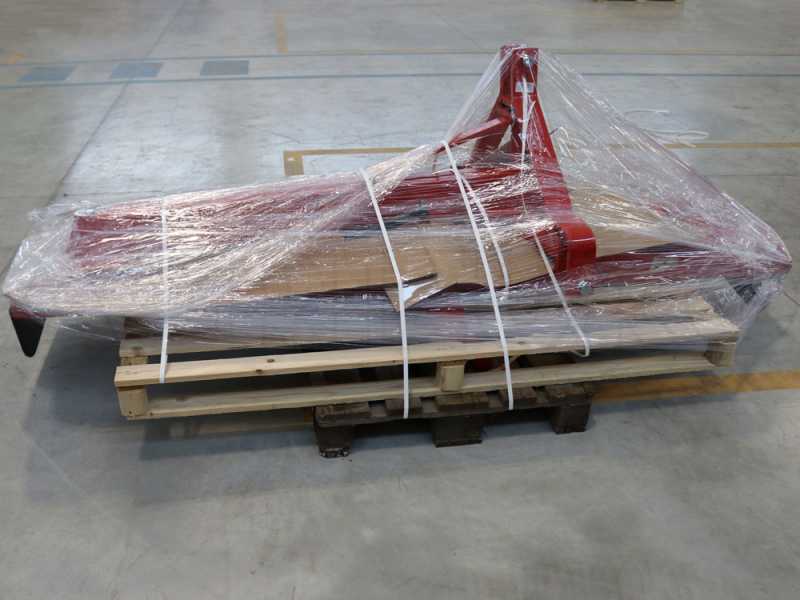

The grader blade is shipped on pallet.

The assembly is extremely easy and quick.
