AgriEuro LLP160 Tractor-mounted Grader Blade - Heavy Series - Swivel Ring and Rotating Blade

Questions & Answers (4)
ID: 104300

EAN: 9999237541930

9,1/10
After-sales assistance & Spare parts
AgriEuro LLP160 Tractor-mounted Grader Blade - Heavy Series - Swivel Ring and Rotating Blade
Sturdiness/Series
Heavy
Body material
Enamelled steel
Manufacturing country
Italy
Product Features
Model:
LLP160
Type:
Land leveler
Body material:
Enamelled steel
Sturdiness/Series:
Heavy
Fixed 3-point hitch:
Yes
Manufacturing country:
Italy
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
161x120x110 cm
Net weight:
205 Kg
Packaging:
On pallet
Gross weight (packaging included) :
235 Kg
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 1.211,60
VAT Included
You're viewing:
Customers also viewed:
Description

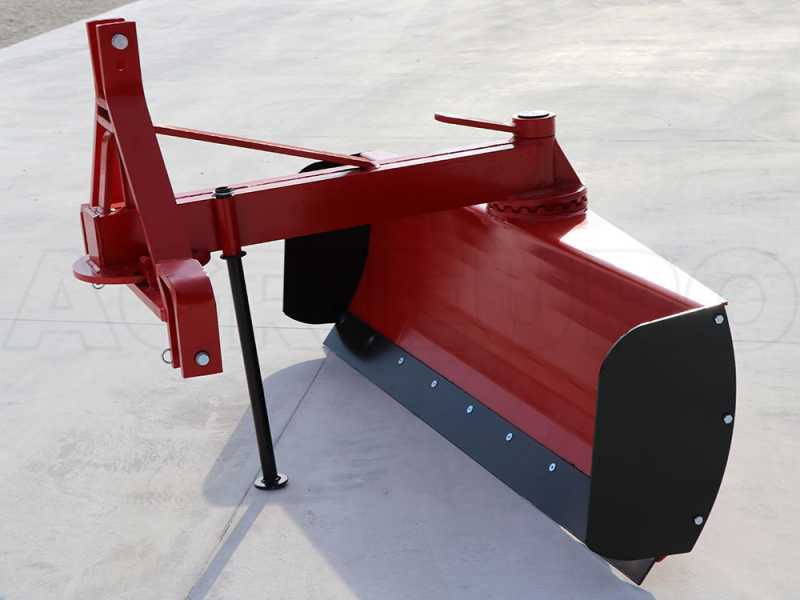

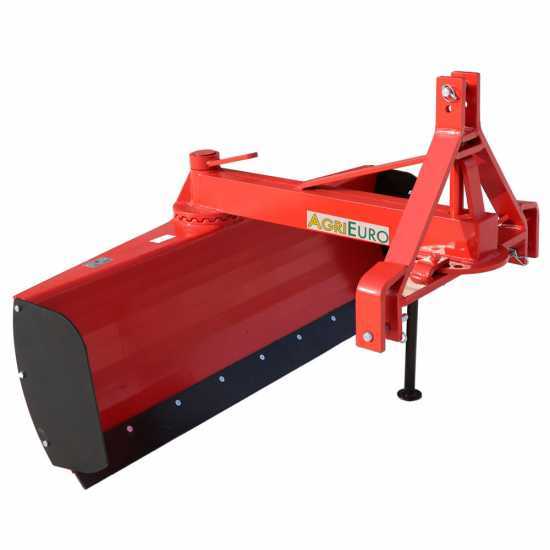

AgriEuro LLP160 tractor-mounted grader blade - 160 cm blade

The AgriEuro LLP160 tractor-mounted grader blade is a useful tool for levelling lands for agricultural use or on tilled soils before sowing.

It perfectly levels the soil by eliminating bumps and thus preventing water stagnation and wasted irrigation.

It is also useful for recovering land surface from ditches, thus resulting particularly useful in rice fields, flowing irrigated areas, etc.

It can remove snow from courtyards and large spaces, making it an efficient cleaning tool.

The machine is equipped with 3-point hitch and sturdy quick-release devices for avoiding losing the working speed and ensuring the Operator’s safety.

The blade can rotate 360° thanks to a screw system on serrated locking plates, allowing the soil to be moved sideways.

Slewing ring with double-hook safety device, which allows you to move the frame of the grader blade while keeping the blade steady.

Main features:

  • Wear-resistant interchangeable steel blade
  • 3-Point hitch
  • Removable end plates
  • Adjustable removable stand
  • Rotating blade and slewing ring

The measurements of the 3-point hitch are:
height 65.5 cm
width 91.5 cm

Made in Italy

Frame angle with adjustable slewing ring and 360° rotating blade

The heavy-duty series grader blade is a long-lasting and adjustable machine that allows you to level the ground according to your needs.

The grader blade allows you to easily level the ground as the blade can rotate 360° thanks to a screw system on serrated locking plates and it is also possible to move the implement sideways thanks to a 5-position system secured by 2 pivots.

This last movement allows the grader blade to move out of the tractor track, enabling it to reach difficult areas such as ditches, walls or boundaries with plants.

Focus on the straight blade positioned behind and sideways to the tractor.

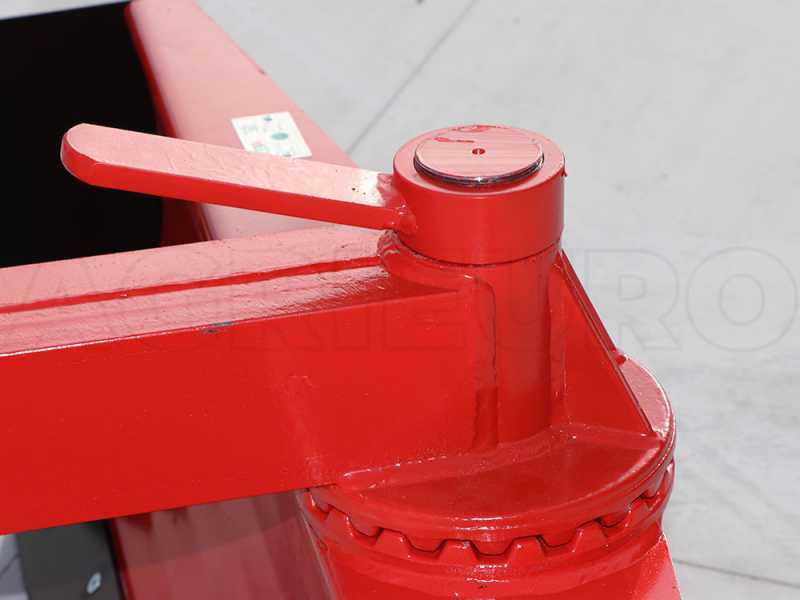

Focus on the pivot pin grease nipple

Other features

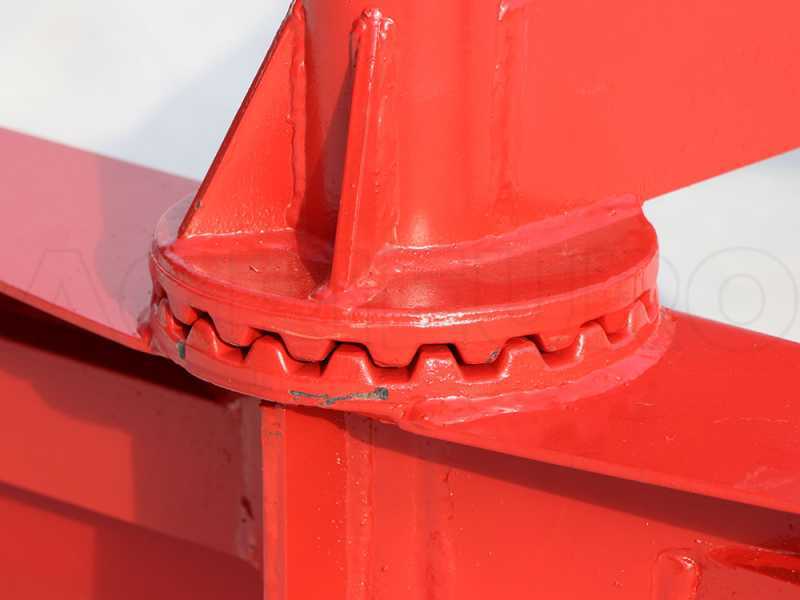

  • Screw system on serrated locking plates
  • Lock release screw of the serrated locking plates
  • Adjustable stand
  • Focus on the rear blade reinforcement
  • Wear-resistant steel blade
  • Removable end plates
  • Focus on the 5 positions adjustable by means the locking pin on the frame.
Free items & Standard equipment

Standard equipment

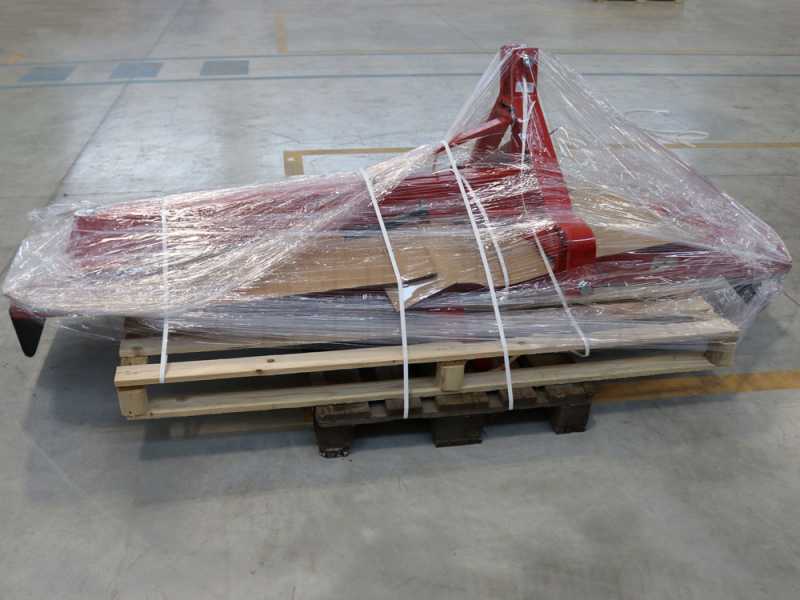

The grader blade is shipped on pallet.

The assembly is extremely easy and quick.
