AgriEuro FU SPECIAL 138 Tractor-mounted Side Flail Mower with Arm - Light Series

Questions & Answers (1)
ID: 113082

EAN: 8000002837712

MPN: FUSPECIAL138SX

9,1/10
After-sales assistance & Spare parts
AgriEuro FU SPECIAL 138 Tractor-mounted Side Flail Mower with Arm - Light Series
Tractor power
from 30 to 35 HP
Sturdiness/Series
Light
Weight
240 Kg
Cutting width
132 cm
Pantograph motion
Shift
Hydraulic
Standard cutting tools
Hammer flails
Pantograph arm
As standard
Internal gearbox
Hammer flail weight
0.4 Kg
Cardan shaft
Yes
Manufacturing country
Italy
Product Features
Model:
FU SPECIAL 138
Mulcher type:
Side mulcher
Tractor power:
from 30 to 35 HP
Sturdiness/Series:
Light
Shift:
Hydraulic
Manual shift:
No
Hydraulic shift:
Yes
Pantograph motion:
Fixed 3-point hitch:
No
Reversible three-point-hitch:
No
Internal gearbox:
Cardan shaft rotation:
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
132 cm
Wood diameter:
Up to 25 mm
No. of blades:
20
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.4 Kg
Hammer flails:
Blades bolt diameter:
14 mm
Max. cutting height:
100 mm
Min. cutting height:
30 mm
Cutting width:
132 cm
Equipment
Counter-blade:
Single row
Side drive belts:
2
Hydraulic Piston for moving:
Yes
Pantograph arm:
As standard
Rear crampons (collecting rods):
No
Rear support roller:
Yes
Free gifts/extra features
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
150x140x70 cm
Net weight:
240 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
150x140x80 cm
Gross weight (packaging included) :
260 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
€ 3.945,73
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

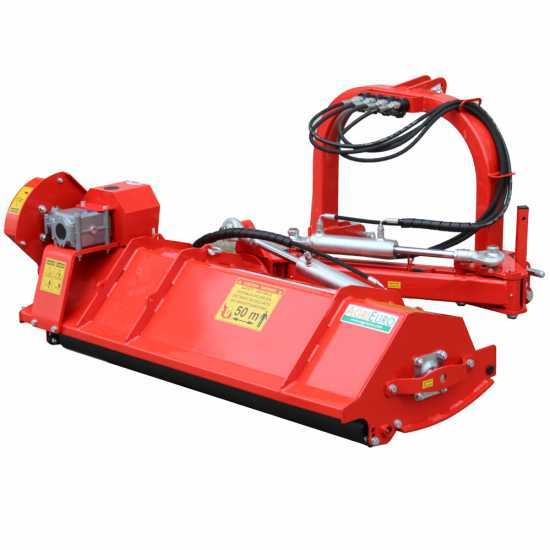

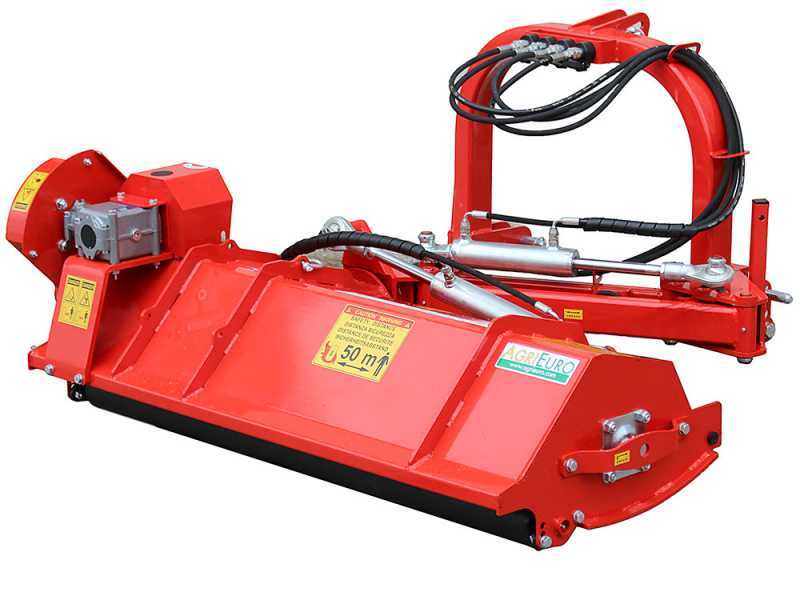

Tractor-mounted side flail mower with arm

The AgriEuro FU SPECIAL 138 tractor-mounted side arm flail mower belongs to the light series and it is completely Made in Italy.

This model ensures the highest flexibility of use among side flail mowers; indeed, the hydraulic shift is both horizontal and vertical. Its structure is lightweight and elastic and it is used for shredding light prunings, grass and small shrubs

It is suitable for different operations, such as:

  • Grass mowing
  • Stalks chopping
  • Pruning waste chopping
  • Hedge cutting
  • Ideal for ditches, embankments and sloping terrain

The hydraulic shift is operated by 2 sturdy pistons.

The flail mower is provided with a 2- sturdy belt drive transmission.

TECHNICAL SPECIFICATIONS (brief overview):

  • Real working width: 132 cm
  • Real width (side skids already assembled): 138 cm
  • Weight: 240 Kg

ON STANDARD EQUIPMENT:

  • Category 1° 3-point hitch.
  • 540 g/min aluminium gearbox with freewheel.
  • 2-belt drive with adjustable turnbuckle.
  • Rotor with toothed hammers
  • The rear roller is adjustable in 3 positions.
  • PTO
  • CE compliant safety equipment

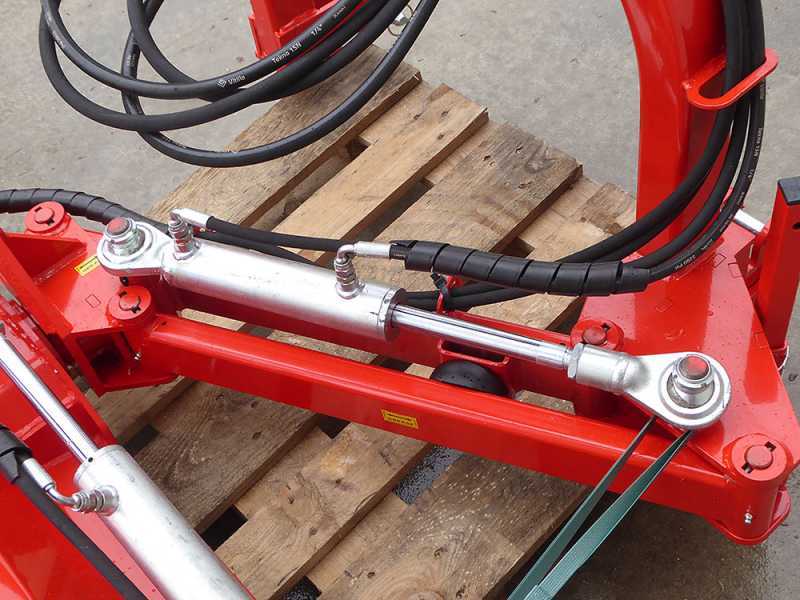

Hydraulic side and vertical shift

Vertical and side hydraulic shift is operated by 2 pistons. Equipped with 4 hoses with quick joints that must be connected to the hydraulic connections on the tractor.

This is a highly sturdy shifting system. It consists of articulated arms.

The flail mower can work up to 90° vertically upwards and - 50° downwards.

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 20

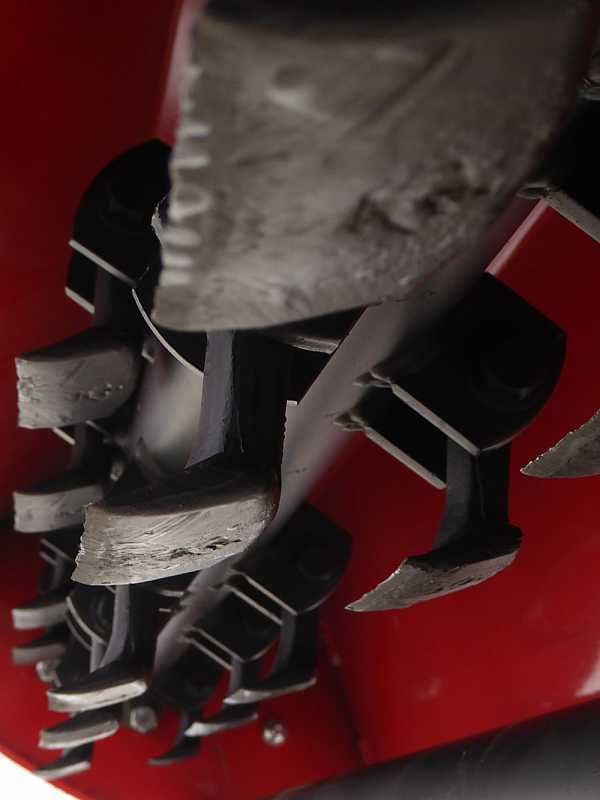

Focus on one of the the hammer flails (toothed hammers) mounted on supports welded to the rotor.

Focus on the side support with hammer flails rotor inner fixing bearing.

Focus on the outer rotor anchor plate, with central opening provided with greaser.

Lightweight series flail mower, suitable for hobby use.

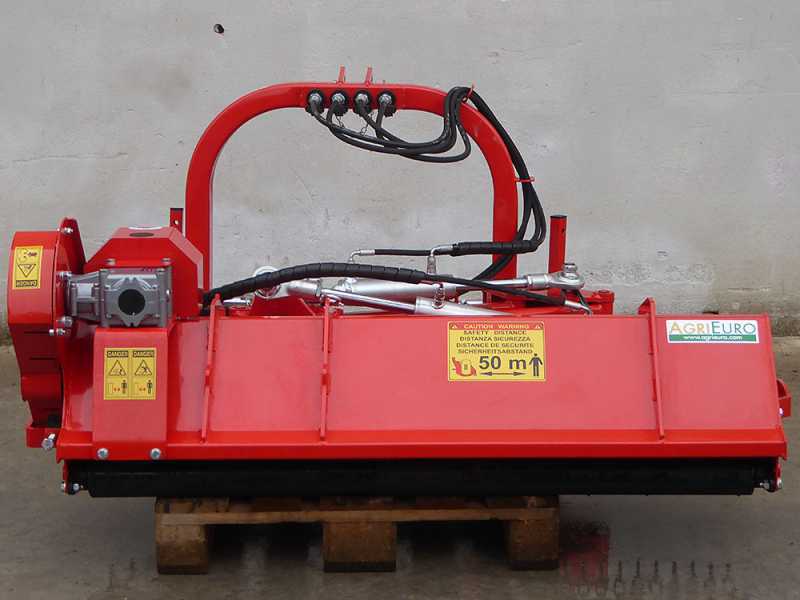

Rotor, hammer flails supports, side bearings

It finely shreds grass and twigs, while simultaneously rolling the turf.

Thanks to the high rotor speed and the large number of hammers (toothed hammers), this flail mower reduces the wave effect on the turf performing an excellent shredding.

Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Side belt transmission and reduction gearbox

Reduction gearbox in oil bath.

2-belt side transmission featuring large section with belts protective side covering, equipped with many vents (for proper cooling).

Easy tensioning of the side drive belts by means of a proper screw.

Simply tighten the screw a few turns to tension the belts.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position thanks to a specific opening.

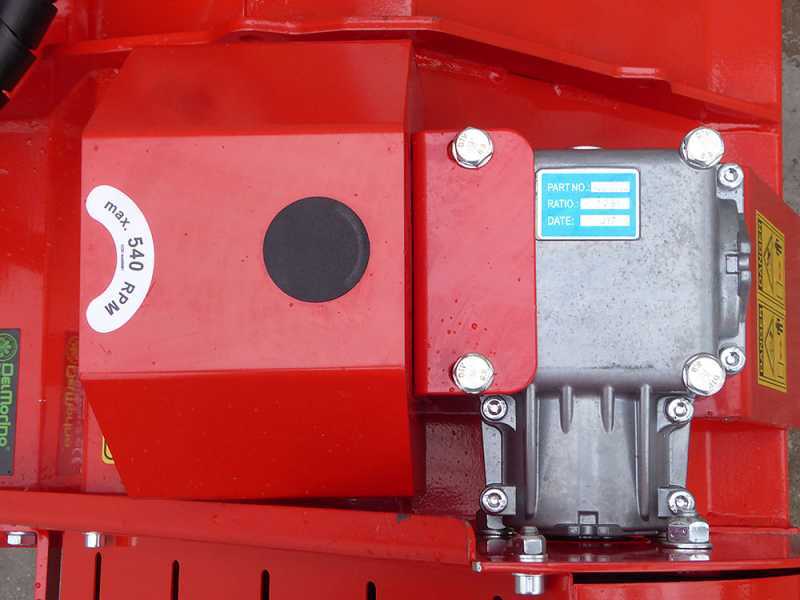

Focus on the gearbox in oil bath.
Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Stabilisers - rear roller - 3 point-hitch

Height-adjustable rear supporting roller provided on standard equipment.

Adjustable side skids supplied as standard.

Sturdy set of front protective chains

Support feet

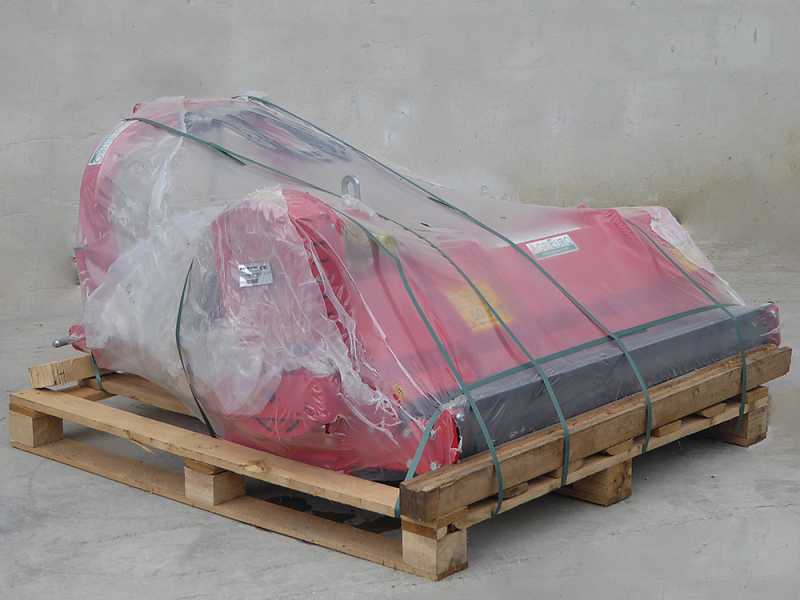

Free items & Standard equipment

Free items included

PTO
