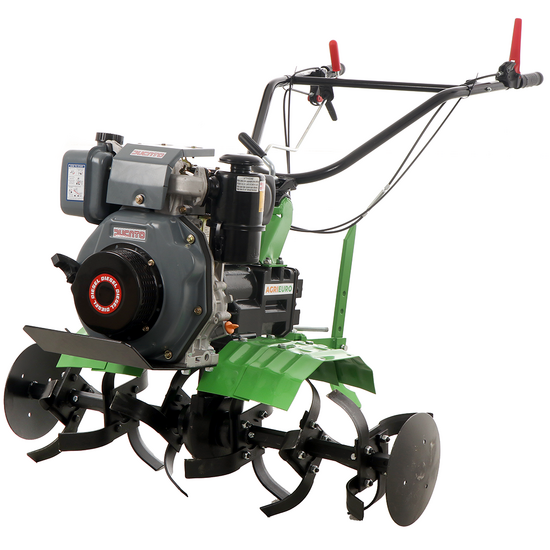

Name: Agri 102 Garden Tiller with 95 cm Tiller - Diesel 296cc Engine
Brand: AgriEuro Premium
SKU: K604107
Price: 1891.33 EUR
Availability: InStock
Rating: 3.38 (8 reviews)

Description

AgriEuro Premium-Line AGRI 102 Diesel Garden Tiller

AgriEuro Premium-Line AGRI 102 diesel garden tiller:

A top-quality machine, equipped with a heavy diesel engine and a sturdy oil-bath gearbox with three forward and one reverse gear.

Suitable for heavy and difficult work on hard, unploughed ground.

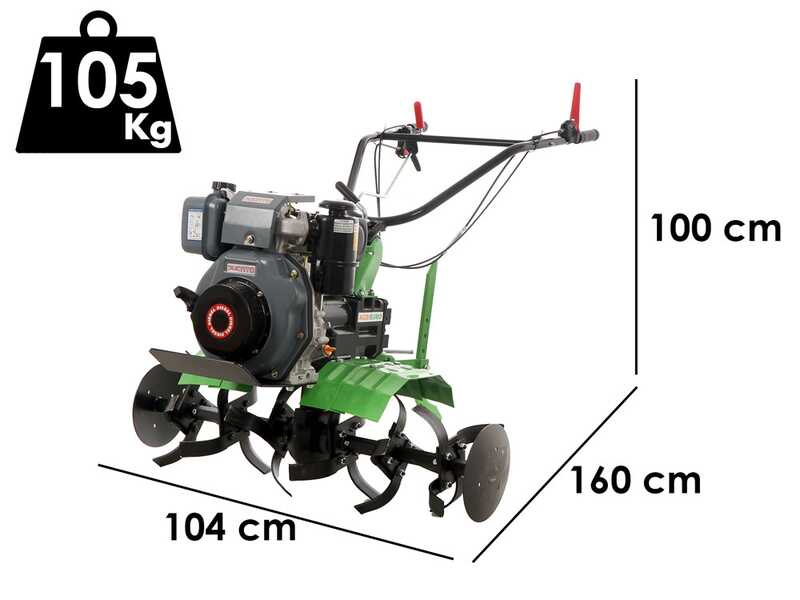

Its heavy weight of 105 kg is definitely a major strength that helps the machine penetrate deep into the ground.

It is renowned as a must-have model for those having large land to till, or soil of a certain hardness or with the presence of small stones (where a lighter rotary tiller or one with a less consistent drive such as a belt drive would not be able to work as effectively).

Thanks to the 296 cc and 7.7 HP diesel engine, the machine is equipped with considerable torque, allowing it to work smoothly even in high gears, thus enabling the cutters to rotate even at very high engine speeds without putting too much strain on the engine itself.

Additionally, it guarantees low fuel consumption, low maintenance and low operating costs.

Agri 102 Garden Tiller with 95 cm Tiller - Diesel 296cc Engine

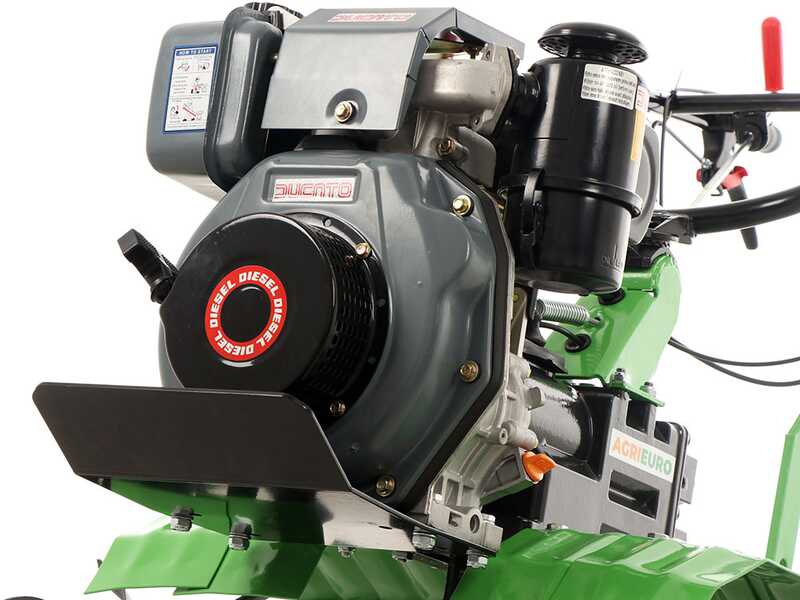

Diesel engine 296 cc

Features:

Engine type

4-Stroke, single cylinder

Cubic Capacity:

296 cm³

Power:

7.7 HP

The engine is also equipped with a front bumper.

Nominal Power: 7.7 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 5.5 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

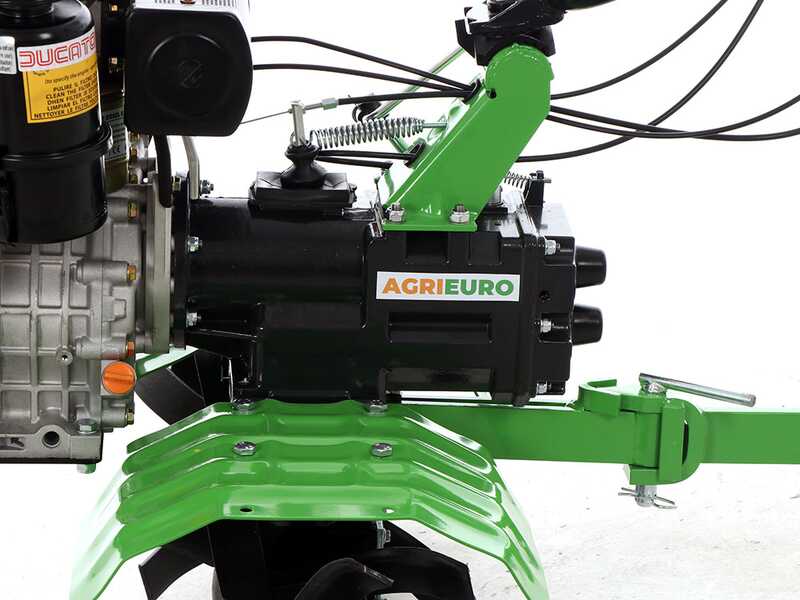

Upper transmission and gearbox

The gearbox fitted to this rotary tiller is undoubtedly one of the best 3+1 gearboxes on the market fitted to garden tillers of this category.

Here below the main features:

Overall size and sturdiness, which are two of the main characteristics of the this garden tiller model.
Upper gear tempering
Accuracy gear shifting engagement
Accuracy in the gear manufacturing

Equipped with 3 forward gears and 1 reverse gear that can be operated by means of the lever in the controls.

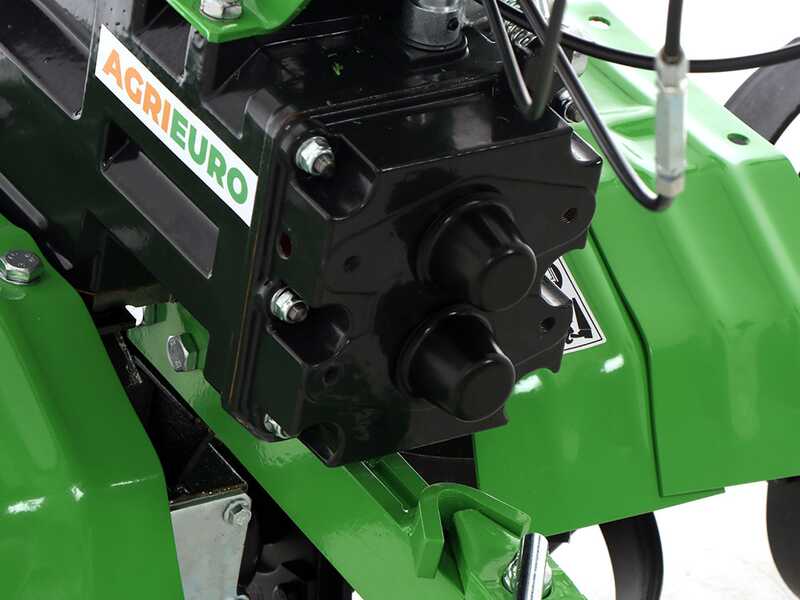

Two power take-offs

The power take-offs are easily accessible, located directly at the rear of the machine. Simply remove the rubber plugs and they are immediately available.

Normalised power take-off
(it rotates at all times, even when the gearbox is in neutral, useful for operating additional equipment that can be connected to the power take-off)

Power take-off synchronised with the gearbox
(it can be used for towing operations. For instance, integrating a trolley with traction wheels behind the rotary tiller, even though it can no longer be approved for road use)

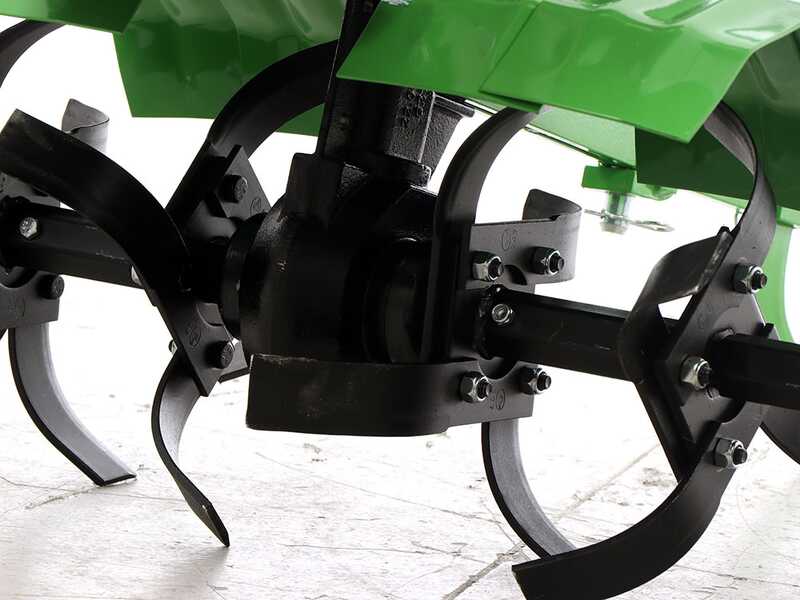

Transmission in oil bath

The transmission is among the sturdiest available on the market.

Made with a pinion and crown gear in an oil bath.

Truly large and outstanding robustness, suitable for withstanding even heavy-duty work.

Made entirely with gears in an oil bath, it requires absolutely no maintenance (just check the oil level at long intervals).

WARNING!

Check the gearbox oil level before starting the machine.

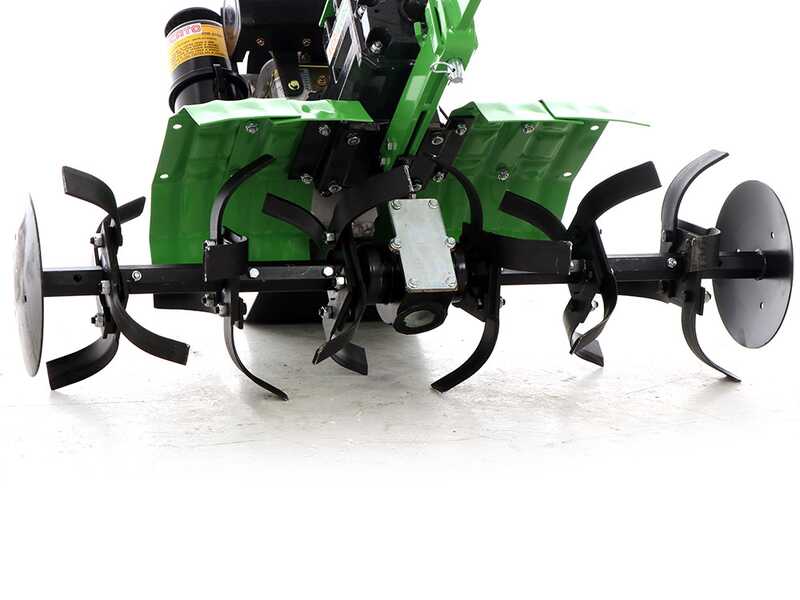

Adjustable tiller from 95 cm to 65 cm

Sturdy tiller mounted on an hexagonal-shaped central shaft, and provided with six elements with 4 steel hoes each.

Tiller effecting working width: 95 cm

Hexagonal shaft diameter of the hoes: 27 mm.

The tiller on this diesel rotary tiller is adjustable. You will just need to remove the two outermost elements and reinserting the outer protective discs: the working width is reduced to 65 cm.

It is also possible to purchase the relevant extensions, which allow the tiller to be enlarged even further than the basic configuration of 95 cm, to an exceptional width of
125 cm with the side plant protection discs fitted

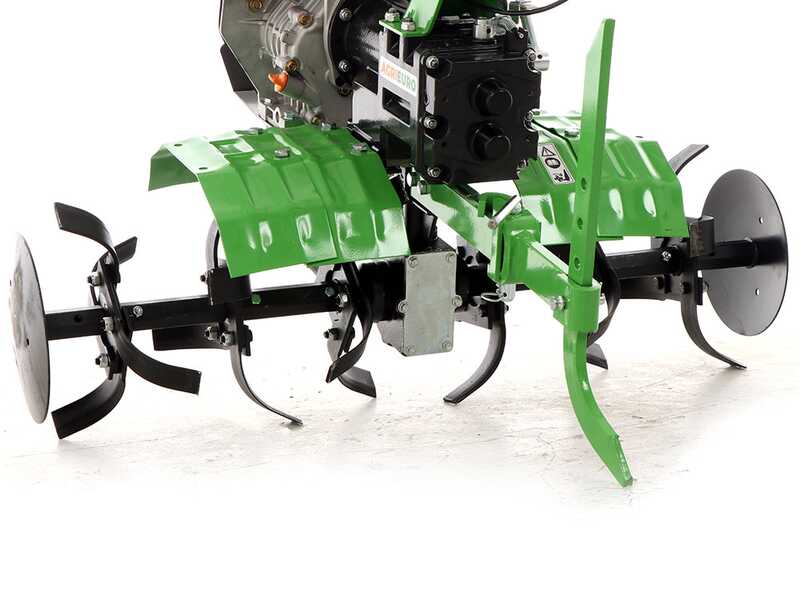

Adjustable spur

Rear spur adjustable in height and can be positioned in rotating or fixed configuration.

In the pictures, it is mounted in the standard position.

For instance, it can be mounted in the reverse position (with the bend turned to the front), to tackle harder or rough terrain.

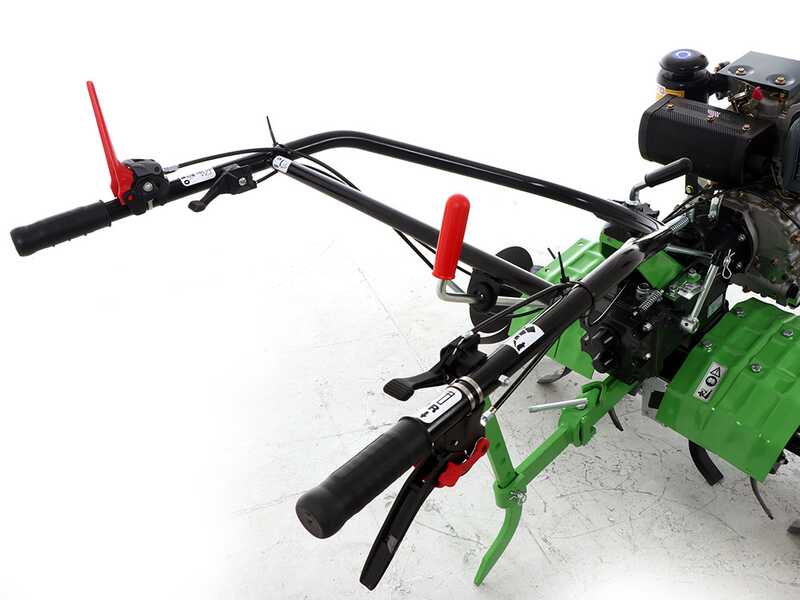

Adjustable handlebars and controls

The handlebars are height and side adjustable thanks to the double regulator made of cast steel.

Controls:

red upper lever: clutch that operates the machine based on the selected gear
lower lever on the right, which operates the reverse gear.
Throttle lever

Free items & Standard equipment

1° GIFT: Maintenance kit for diesel generator

Spare parts and accessories for the maintenance of diesel engines.

Kit composition:

NO. 01 specific fuel filter for diesel

NO. 01 engine oil filter

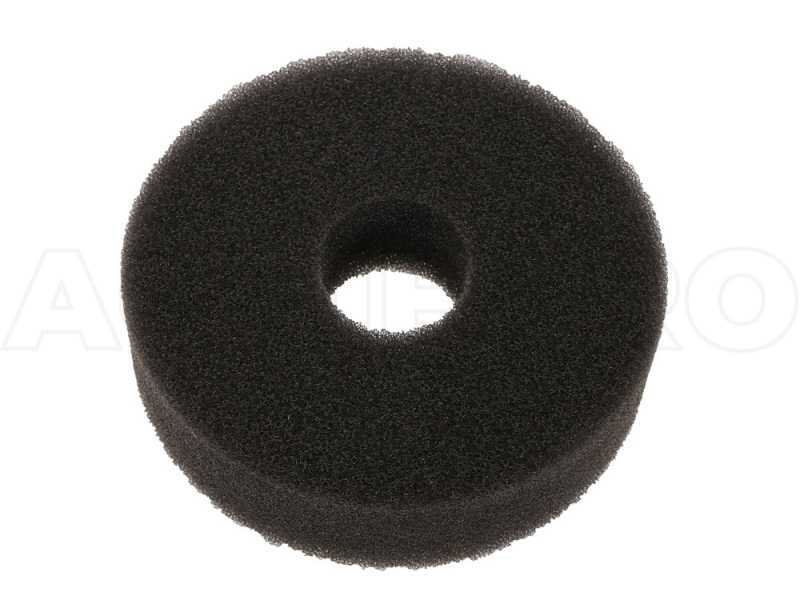

NO. 01 original sponge air filter

2° GIFT: Bottles of 1L Oil

2 Bottles of 1 L oil 10W 40 formulated for the highest performances designed for petrol engines. Suitable for all modern diesel engines requiring maximum performance from lubricant.

Free items included

The garden tiller is shipped in its original packaging

Instructions manual included in the package.

It comes complete with a standard-supplied kit, which includes: air filter - diesel filter - oil filter - head gasket
