16T petrol log splitter - Horizontal

Questions & Answers (6)
ID: K502676

EAN: 8050246353967

9,1/10
After-sales assistance & Spare parts
16T petrol log splitter - Horizontal
+70 sold
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Technical data
Max. trunk diameter
40 cm
Piston stroke
66 cm
Retractable piston for transport
Yes
Motor type
4-stroke
Cubic capacity
200 cm³
Nominal power
6.5 HP
Nominal splitting force
16 t
Pump type
Double hydraulic
Manufacturing country
Italy
Product Features
Model
Horizontal log splitter on cart
Type
Horizontal
Double speed
No
Operating mode
Spark ignition
Nominal splitting force
16 t
Piston stroke
66 cm
Adjustable piston stroke (for short logs)
No
Worktop log cutting
No
Ground splitting system
No
Manufacturing country
Italy
Motor data
Motor type
4-stroke
Cubic capacity
200 cm³
No. of cylinders
1
Nominal power
6.5 HP
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Manufacturing country
China
Pump data
Pump type
Double hydraulic
Oil tank
Yes
Manufacturing country
China
Cutting data
Max. trunk length
66 cm
Max. trunk diameter
40 cm
Equipment
Frame
Standard
Pump
Standard
Vertical log splitter safety lever
No
Retaining side supports
Yes
Trunk lifting system
No
Retractable piston for transport
Yes
Tractor three-point hitch
No
Replaceable wedge guides
No
Cartridge oil filter
No
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Recoil start system (with rope)
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
184x90x85
Net weight
160 Kg
Packaging
On pallet
Weight including packaging
170 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 01/09/2025 - 03/09/2025
€ 1.977,61
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

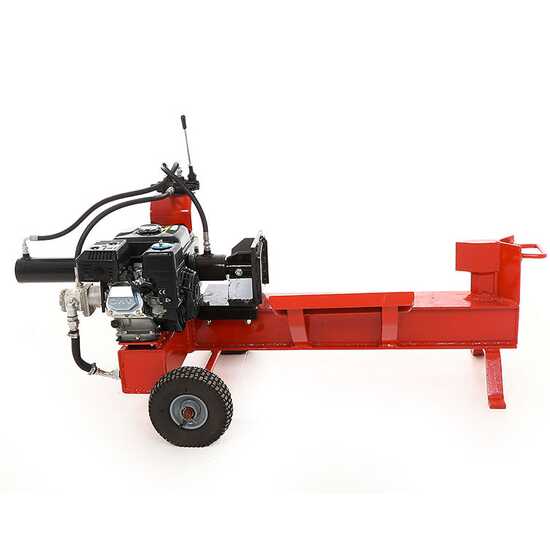

Wheeled horizontal petrol log splitter

Wheeled log splitter powered by a 4-stroke petrol engine featuring 16 tons splitting force.

SEMI PROFESSIONAL petrol log splitter that allows you to split logs efficiently, effortlessly and safely.

Powered by a petrol engine, which makes it suitable for the most difficult operations where an external power supply such as electricity or a tractor is not available.

Equipped with a handle and pneumatic wheels for easy transport.

HIGHLY-POWERFUL thanks to the 16 tons splitting force (that makes it one of the most powerful machines on the market).

HORIZONTAL STRUCTURE: it allows you to split even large-sized logs without having to lift them up (you can place them on the machine without any effort, given the low height of the support leg)

This log splitter is equipped with 16 tons splitting force.

Log diameter: up to 40 cm

Max. log length: 66 cm

Overall dimensions: 184 x 85 x 90 cm

Weight: 160 kg

Entirely made in Italy.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

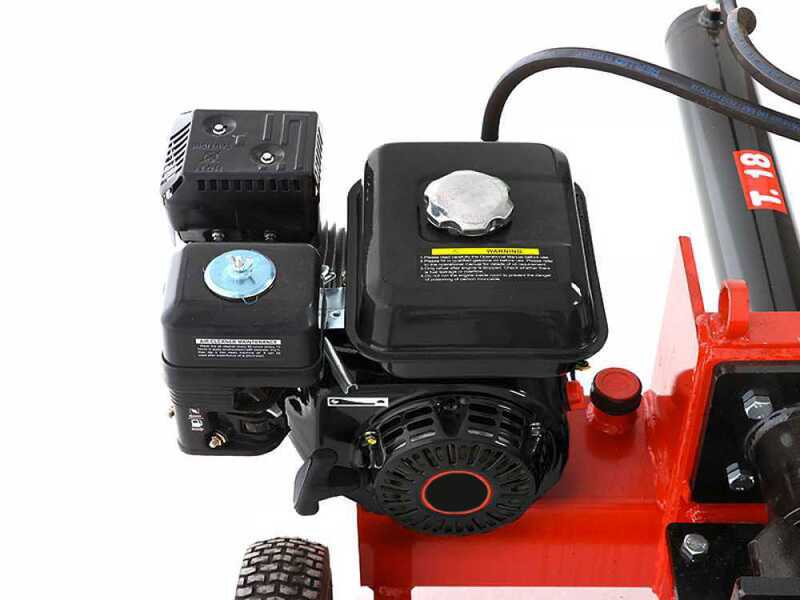

6.5 HP Loncin petrol engine

The Loncin engine features a OHV overhead valve technology with electric starting with key.


Features:

Engine type: 4 stroke 1 cylinder - OHV
Cylinder type: Aluminium
Cubic capacity: 200 cm³
Max. rpm: 3600 rpm

Focus on the recoil starter

Focus on the hydraulic pump


WARNING!

The engine is shipped WITHOUT OIL. Fill with oil before the first starting. Read the instructions manual carefully before starting the engine.

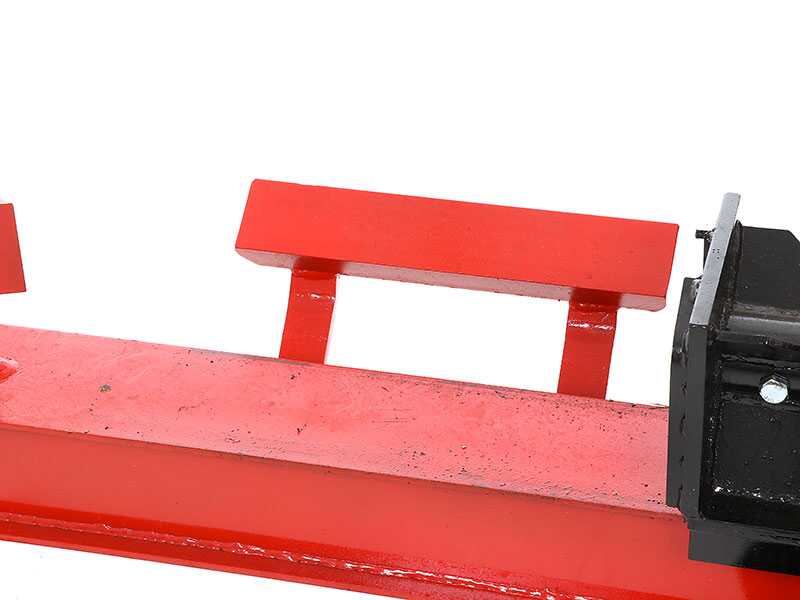

Piston and machine frame

Focus on the sturdy body

Focus on the piston head.

LARGE-SIZED PISTON: 105 mm outer diameter (80 mm bore). This is another feature that proves the great sturdiness and high power of this log splitter (16 tons).

Heavy-duty platform made of thick steel, mounted on sturdy steel guides.

LARGE-SIZED HYDRAULIC PUMP:

ADVANTAGES:

- It enables the machine to reach its high splitting power (16 T)

- It gives the piston high speed

General features

Sturdy double-blade wedge for splitting the log.

The upper one more protruding, the lower one more rearward. It allows you to split even the hardest, most twisted and gnarled logs, thanks to a first penetration of the smallest and more protruding upper blade;

Pair of pneumatic transport wheels

Focus on the hook for transport

Focus on the sturdy main frame with piston guide.

Large hydraulic oil tank mounted on the pump.

Single-lever hydraulic distributor for piston operation.

Focus on the support legs

Split length: 66 cm

Size:

Width: 184 cm

Depth: 85 cm

Height: 90 cm

WEIGHT: 160 kg

Possibility to retract the piston inside the machine, unscrewing the 4 proper bolts to reduce its size during storage.

The log splitter is shipped already assembled and ready for use.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Standard equipment

This log splitter is shipped in its original packaging.

Instructions manual included in the package.
