Wortex Tiger D420/120L - Petrol wood chipper with crawler base - Loncin D420 engine

Add a question
ID: K604499

EAN: 8054213020524

MPN: WP2421710

Wortex Tiger D420/120L - Petrol wood chipper with crawler base - Loncin D420 engine
FREE
Free items: 4 boattles of 600 ml engine oil eachFree items: 4 boattles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G420
Cubic capacity
420 cm³
Nominal power
15 HP
Cutting Rotor Type
Heavy roller
No. of blades
2
Max. Branch Diameter
90 mm
Wood Chip size
4 - 5 cm
N° of hoppers
1
Safety button
Yes
Upper discharge system
Discharge chute rotation
Manual with lever on the chute
Electric start
Yes
Self-propelling
Transmission type
Belt
Max. slope
20 %
Product Features
Model:
Tiger D420/120L
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
44 cm
Hopper opening size (width):
49 cm
Hopper opening size:
Self-propelling:
Self-propelling:
Yes
Max. slope:
20 %
Electric start:
Yes
Starting mode:
Recoil
Safety button:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin D420-E
Motor Model:
G420
Motor type:
4-stroke
Cubic capacity:
420 cm³
No. of cylinders:
1
Nominal power:
15 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
90 mm
Cutting Rotor Type:
Heavy roller
No. of blades:
2
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
4 - 5 cm
Equipment
Motor safety brake:
Yes
Track width:
180 mm
Track length on the ground:
940 mm
Total rollers no.:
3
Discharge chute rotation:
Manual with lever on the chute
Recoil start system (with rope):
Yes
Front handle:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Safety goggles:
Yes
Spark plug wrench:
Yes
Instructions manual:
Yes
Dimensions and logistics

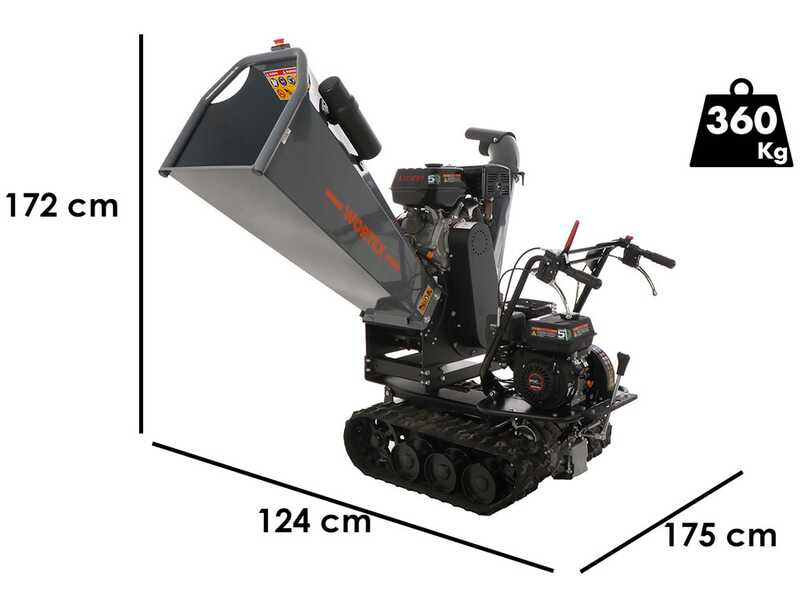

Product dimensions in cm (L x W x H):
170x65x172
Net weight:
360 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
220x102x153 cm
Gross weight (packaging included) :
390 Kg
Unloading with hydraulic tail lift:
Assembly time:
15 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 24/04/2024 - 26/04/2024
€ 4.794,00
VAT Included
You're viewing:
Customers also viewed:
Description

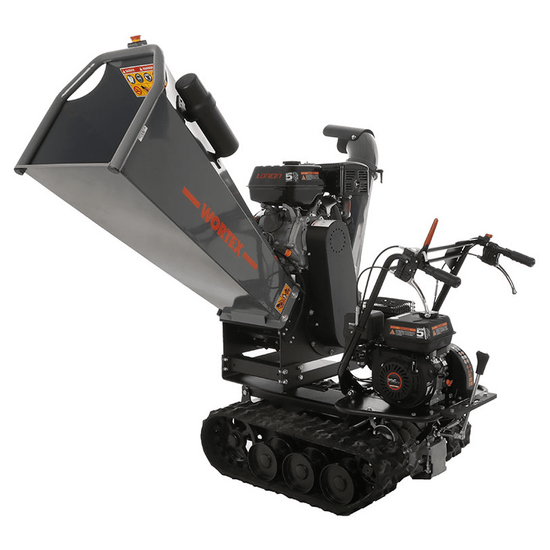

Wortex D420/120L Petrol Garden Shredder

The Tiger D420/120L tracked petrol shredder consists of the SFL 300 power barrow and the Drake D420/120L wood chipper.

Thanks to the tracked base, the machine can be easily moved so that it can be used anywhere.

Powered by a Loncin D420 engine of 420 cc with a rated power of 15 HP.

The base is equipped with a slewing ring rotating in 3 positions, so that the hopper can be directed in the desired direction.

The crawler base has tracks with 3 rollers with a total length of 94 cm and a width of 180 mm. It is powered by a Loncin G200F engine 196 cc, with a rated power of 6.5 HP.

The rotor can be easily inspected by simply removing the two fastening nuts on the hopper and then opening it. Any control and/or maintenance operations must be carried out with the machine switched off.

This chipper model allows cutting weeds and twigs with a maximum diameter of 90 mm, reducing them into small-sized pieces that are easy to handle and ideal for composting.

This garden shredder is equipped with a double safety system, one at the base of the hopper and the other placed immediately above. The first does not allow the rotation of the rotor unless the hopper is perfectly closed; by contrast, the second safety system is equipped with a button that, when pressed, immediately blocks the machine in case of emergency. It is built following the logic of large shredders, resulting in the highest performance in terms of cutting, speed and reliability. Thus, it complies with the CE regulations on safety at work.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Shredders intended use:
- The shredder must grind only green branches and not dried ones (which would limit its shredding capacity and lead to rapid deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwoods and can reduce the cutting capacity of the wood chipper)

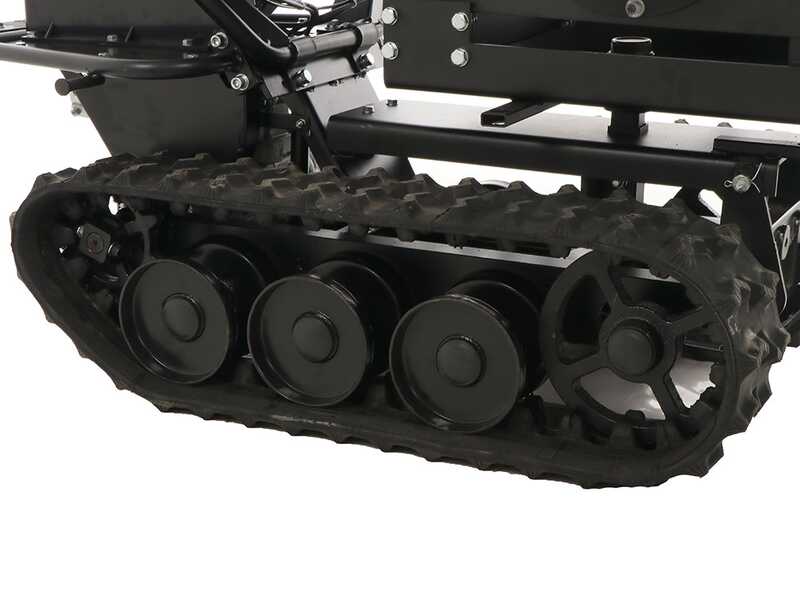

Tracked base

Its tracked base allows you to easily move the shredder.

Powered by a Loncin G200F engine 196 cc.

The 3-roller tracks, thanks to their width and tread profile, guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Focus on the rear part of the track with "tank shaped” sharp upper corner that allows the shredder to easily climb steps or other obstacles.

Total length: 94 cm

Width: 180 mm

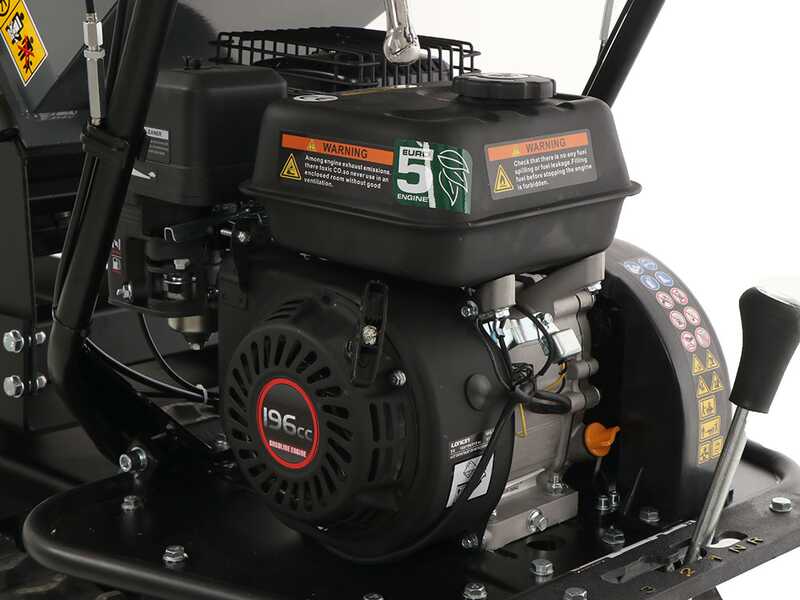

Loncin G200F Engine - Tracked Base

The powerful and professional standard Loncin G200F engine
with OHV overhead valve technology delivers 6.5 Hp power.

Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type:
Aluminium
Cubic Capacity:
196 cm³
Fuel tank capacity:
3.6 L

Focus on the filter

Focus on the recoil starter

Focus on the tank

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 5 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the speed of rotation provided.


WARNING!

The engine is PROVIDED WITHOUT OIL. Before using the machine, read the instruction manual carefully.

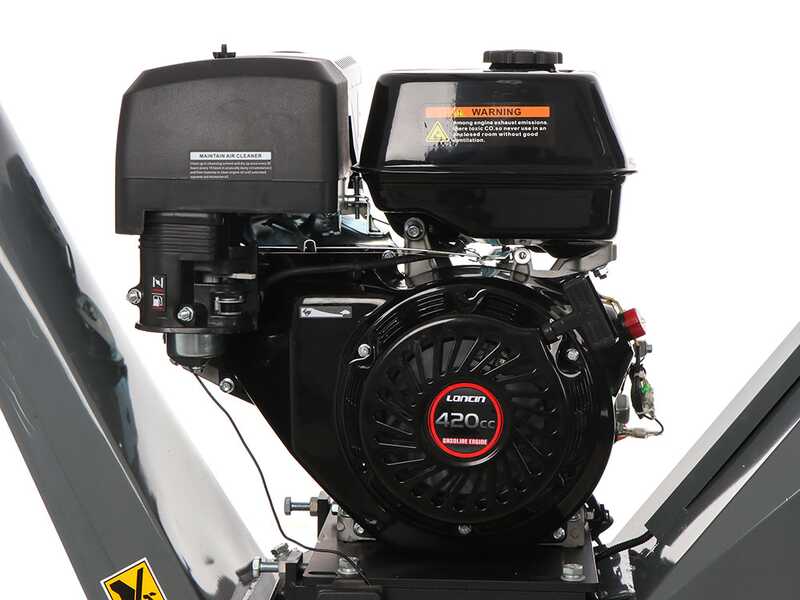

Loncin G420F Engine 15 hp

Features:
  • Engine brand and model: Loncin G 420 F
  • Single-cylinder engine type : 4-Stroke- OHV
  • Cylinder type: Aluminium
  • Displacement: 420 cm³
  • Power: 15 Hp
  • Type of ignition: Recoil starter

Rated Power: 15 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Real power: 12.2 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

The engine is PROVIDED WITHOUT OIL.
Read the instructions manual carefully before starting it.

The machine is equipped with centrifugal clutch. The engine needs always to run at high revolutions in order to ensure a proper functioning.

CAUTION: do not use it at maximum speed, in addition to not obtaining an efficient grinding of the branches and not be able to grind larger diameters, may involve a whole series of anomalies:
- lowering speed or stopping the engine during its use;
- rapid deterioration of the transmission belts between the motor and the rotor;
- damage to the centrifugal clutch which, if the engine is not at full speed, you do not get the full expansion of the same by determining the consumption of up to burn and need to be replaced

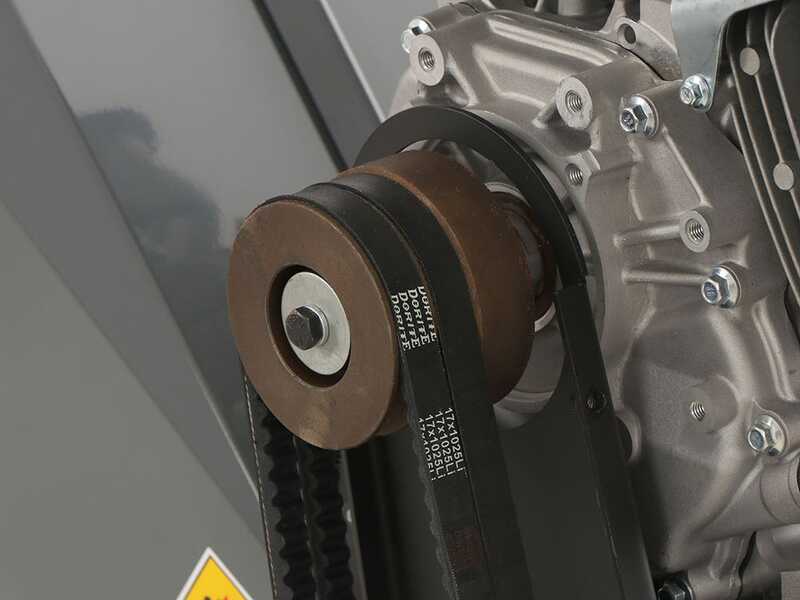

Belt Drive

This is the only machine of its category with intermediate double belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, the transmission is directly connected to the shredding cutting system.

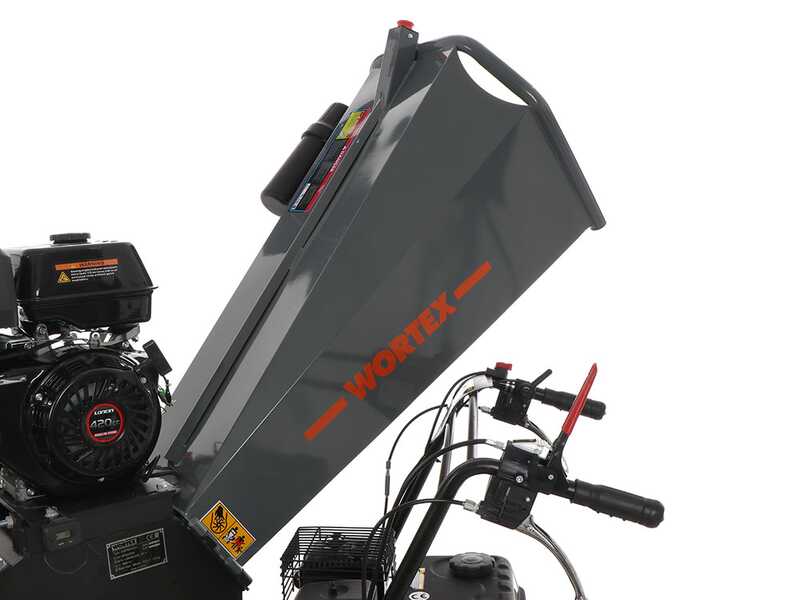

Unified Hopper

UNIFIED: considerably simplifies and speeds up the work.

The hopper is fully examinable thanks to the possibility of opening.

The single hopper considerably simplifies and speeds up the work. It eliminates the operation of separating (before grinding) the material between the major and woody sections and smaller and green sections, each of which is inserted in its special hopper (operation instead requested from all the classic wood chipper equipped with 2 hoppers)

SAFETY DEVICE : It is possible to use the device placed around the hopper. In an emergency it is possible to press the red button to immediately block the function of the wood chipper.

SECOND SAFETY SYSTEM: There is also an additional safety device at the base of the hopper that shuts down the machine or does not allow it to start if the hopper if it is not closed properly.

Hopper base dimensions: 30x15 cm

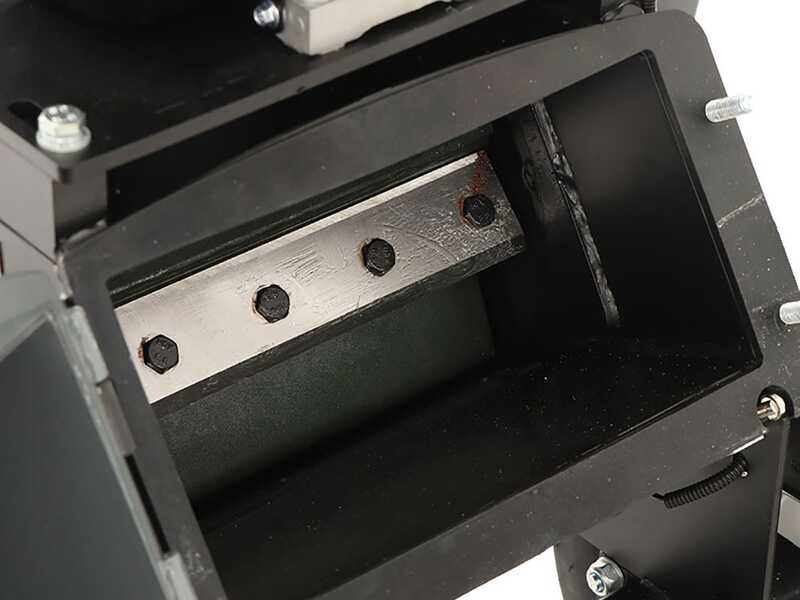

Shredding System with 2 Blades and Counter-Blade

2 cutting blades, of large dimensions and thickness are mounted on a large spinning steel plate

The double blade system is completed by the working counter-blade located on the shredding chamber.

The rotor is solid and robust, and made in steel.

Focus on the the counter- blade adjustment: this is deliberately assembled in a manner inclined with respect to the frame and to the direction of rotation of the rotor to increase the cutting capacity of the machine and have the best performance possible.

All wood chipper with roller system like this, carry out their work better by inserting branches already leafless and cleaned (not thick and with excessive branching);
And they are ideal for branches having a bit consistency and body, and not for thin and green branches, they are better thick or in high quantities; this is because the roller system is technically very suitable to grind small or minimum diameters, or green material in general, while really give the maximum with branches which have a bigger diameter and density.
This is related to their lower "centrifuging" power compared to the classical models and disc blades, and the "greater distance between the blade and counter-blade", designed for individual branches already well thinned but consistent diameter.

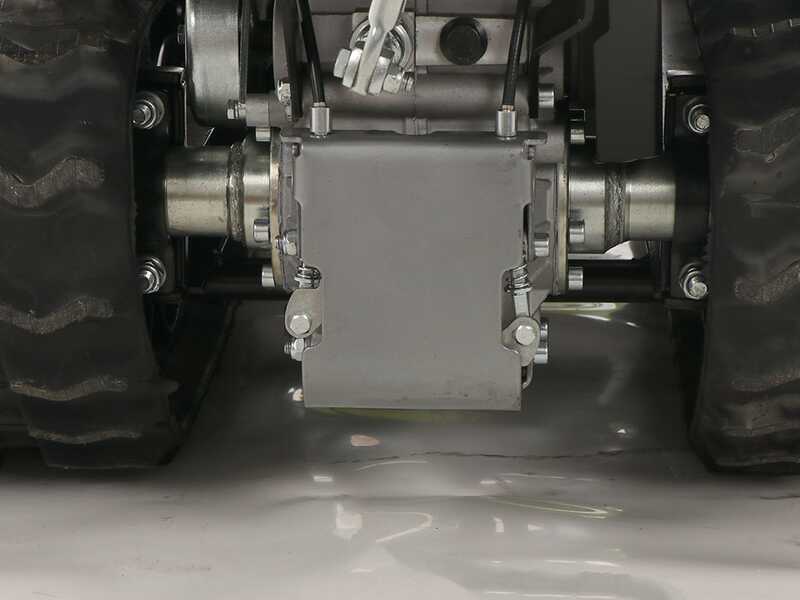

Gearbox, Parking Brake and Transmission

Gearbox: large, reliable and accurate.

Speed:
3 forward gears
1 reverse gear


Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked)..


Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

Controls

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The machine is provided with two lower levers for steering, respectively on the right and on the left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.

Safety brake that allows immediately stop the machine.

Accelerator handle and power switch.

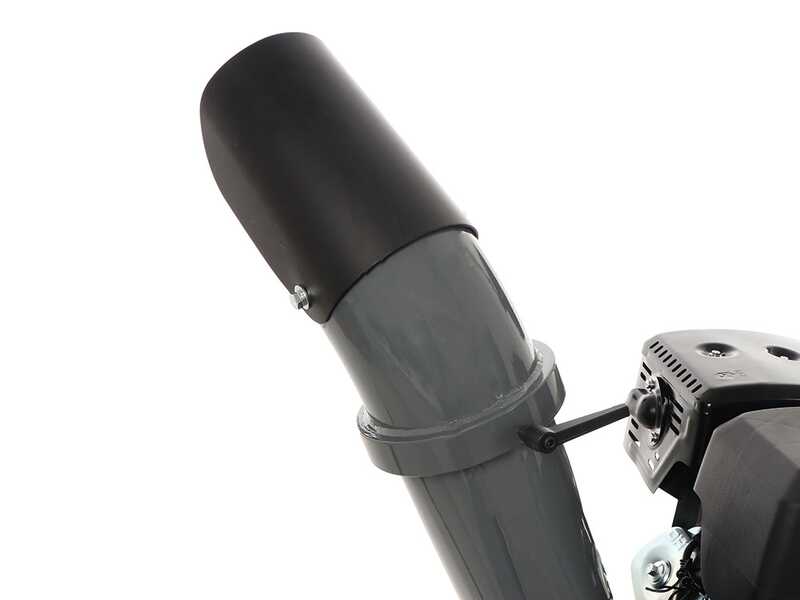

Adjustable Discharge Chute

Provided with 360° rotating discharge chute.

Some examples:

  • Position 1
  • Position 2
  • Position 3

You will just need to simply release the lever and rotate it in the desired position.

The discharge angle is also adjustable.

Some examples to control the distance of the discharged shredded material:

  • Position 1
  • Position 2
  • Position 3

Main Features

Adjustable discharge chute, located at 1.5 m from the ground, equipped with adjustable-tilting deflector .

It allows vegetable waste to be discharged into a box.

In the rear part of the hopper there is a comfortable compartment to always have at hand the instruction manual

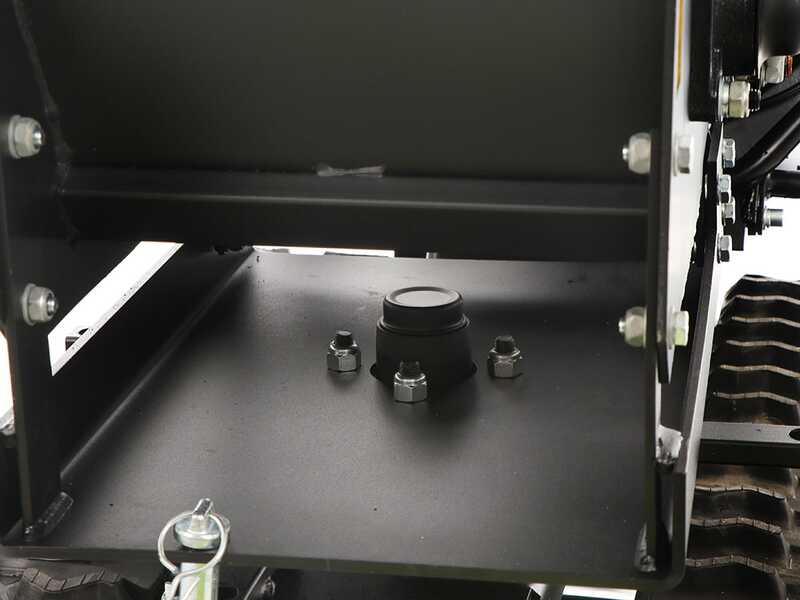

Focus on the rotating base fixing hook

Slewing ring that allows rotating the shredder.

The car is not approved for road transport.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

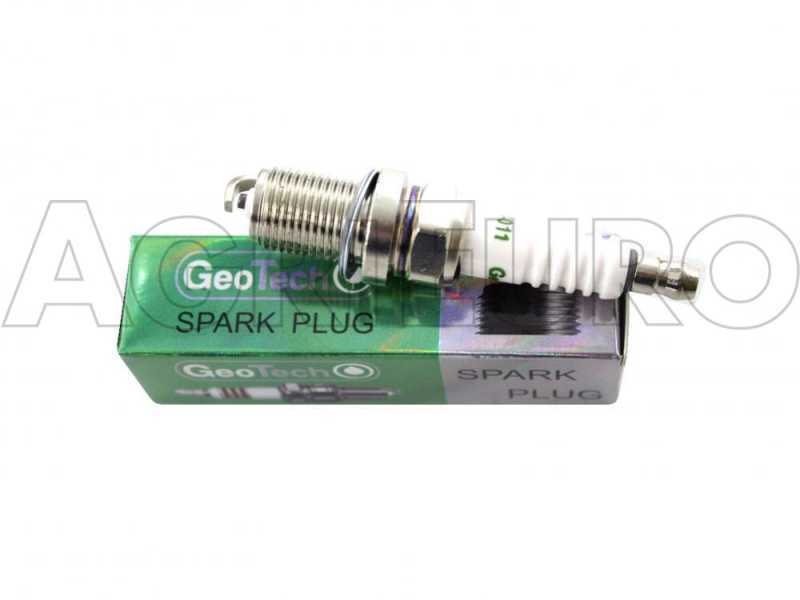

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

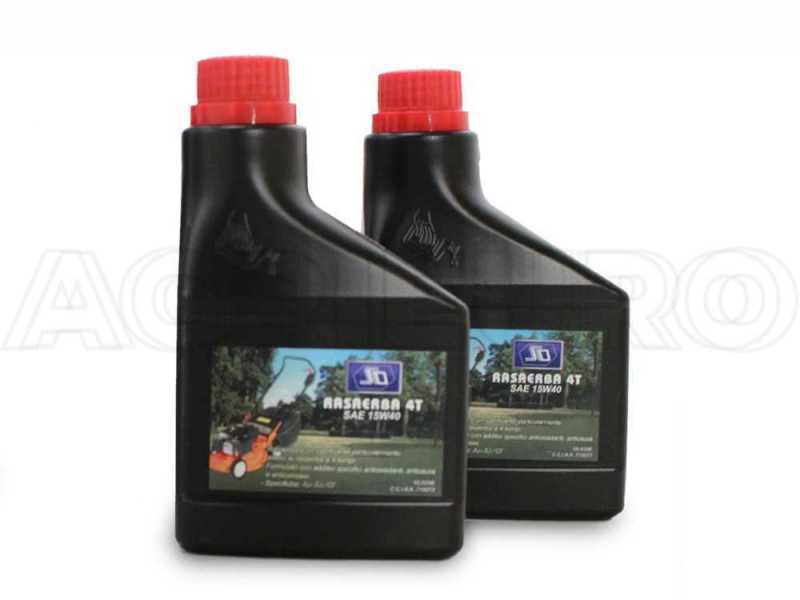

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

1° GIFT: SAFETY KIT

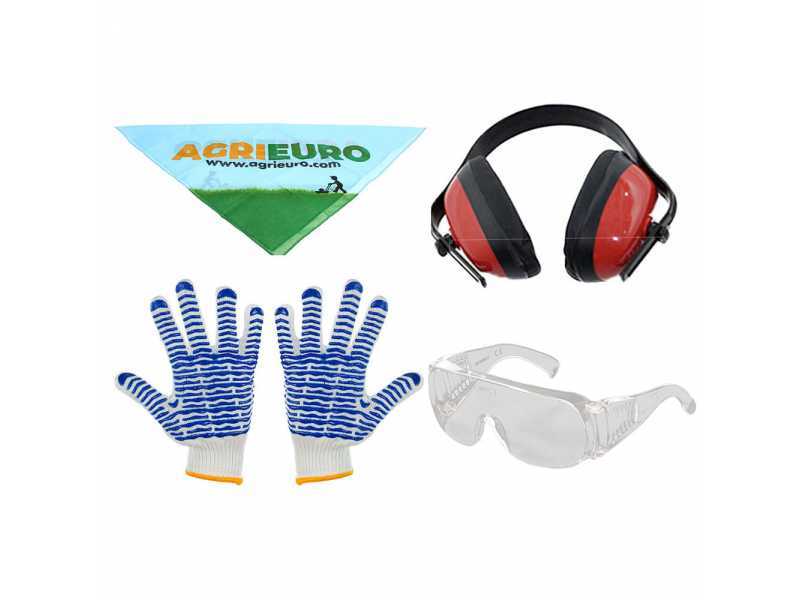

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Free Items Included

The wood chipper is shipped in its original wood packaging on pallet

Included in the packaging:

  • Safety goggles
  • Maintenance tools
  • Operation and maintenance instructions
