Name: Wortex T200 H - Petrol garden shredder - Honda GX 200 engine
Brand: Wortex
SKU: K502644
Price: 1678.28 EUR
Availability: InStock
Rating: 4 (1 reviews)

Description

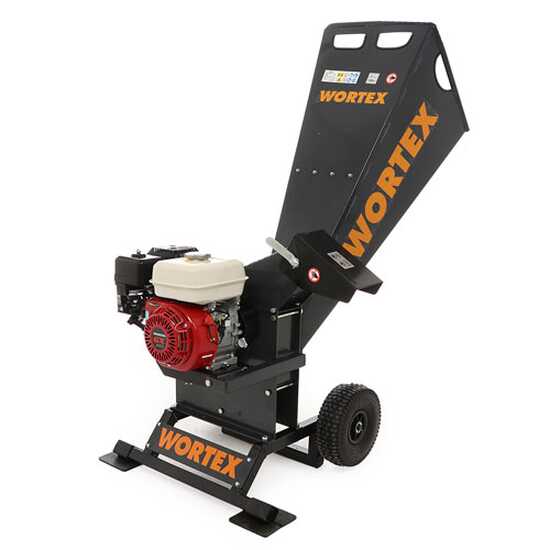

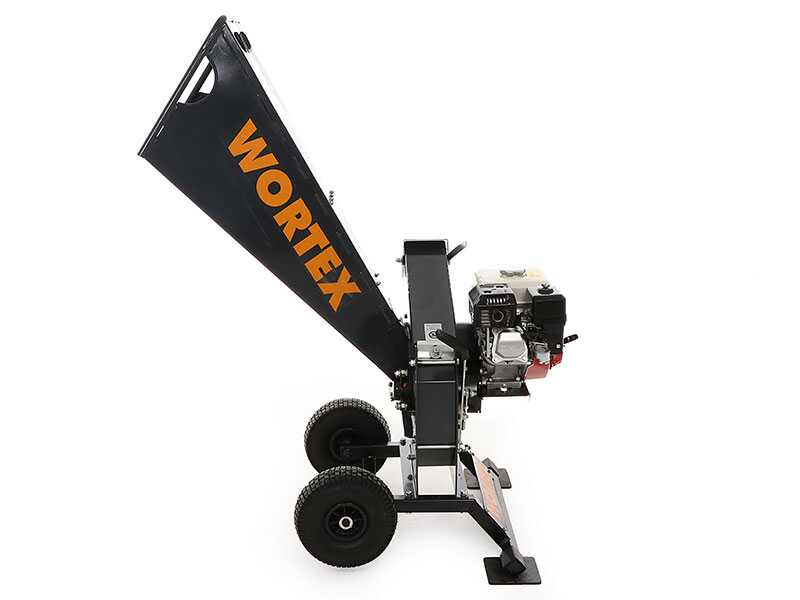

Wortex T200 H petrol garden shredder - Honda GX 200

The Wortex T200 H is a lightweight petrol garden shredder equipped with the 6.5 Hp Honda GX 200 engine.

The wood chipper shreds brushwood and twigs making them suitable for composting. Shredding operations also allow reducing the material decomposing time.

The large steel hopper can process even very bulky branches and leaves without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

Maximum cutting diameter: 70 mm

The overall weight of the unit is 90 Kg.

Wortex T200 H - Petrol garden shredder - Honda GX 200 engine

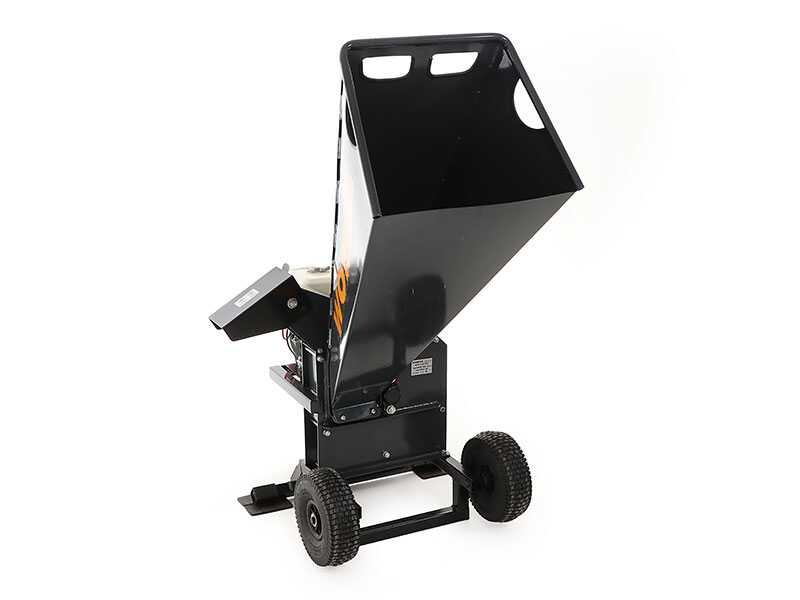

Unified hopper

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It eliminates the constant operation of dividing the material (before shredding) between the large, woody sections and the smaller, green sections, each of them must be placed in their own hopper (an operation required by all standard shredders equipped with 2 hoppers).

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Black rubber protective bulkheads placed on the hopper opening.

Hopper size: (Width x Height ) 52 x 41 cm

Shredding chamber and other features

The outer shredding chamber is essential and proportionate in size to the rotor it includes. It guarantees excellent productivity, as well as the durability of the system. The machine structure is 100% made of steel. No plastic has been used.

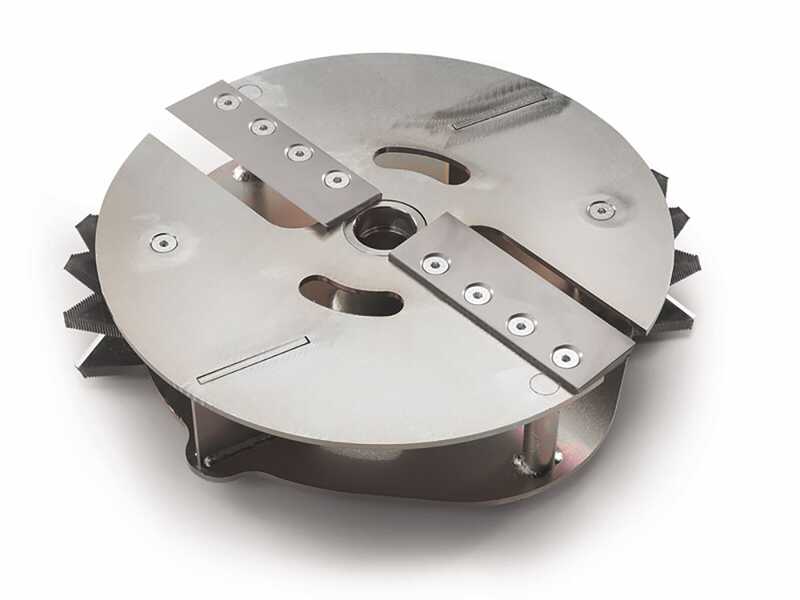

The central rotor is composed of 2 steel flywheels firmly assembled together.

The dual blade system also includes a counter-blade in the shredding chamber, which is tilted with respect to the frame and rotor rotation direction for increasing the wood chipper shredding capacity and performance.

Equipped with 2 large blades. They pre-shred the wood into the hopper reducing it in coarse wood chips.

Equipped with 8 hardened steel blades (or hammers) rotating at high speed. Thanks to their centrifugal motion they shred the branches in small wood chips.

The rotor can be checked in case of clogging or cleaning the machine; just unscrew 2 bolts to open the hopper connected to the rotor.

The garden shredder is equipped with two 10” pneumatic wheels and an anti-vibration rubber-coated front support.

The discharge chute deflector can be manually adjusted.

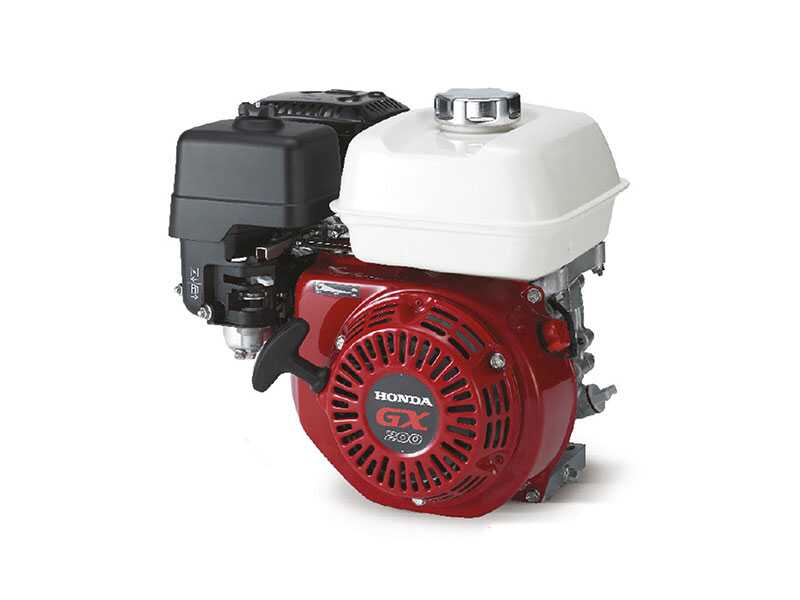

Honda GX 200 engine and intermediate belt drive with reinforced belt

The Honda GX 200 engine is powerful and heavy-duty, with the latest generation technology in OHV valve head.

Features:

Engine type: 4-Stroke - OHV - single cylinder

Cylinder type: aluminium

Cubic capacity: 196 cc

Compression ratio: 8.5 : 1

Max. rpm: 3600 rpm

Torque value: 12.4 Nm / 1.26.7 kgfm / 2500 rpm

Fuel tank capacity: 3.1 L

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

INTERMEDIATE REINFORCED BELT DRIVE.

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Much longer service life than the standard systems still used by all manufacturers on their petrol-powered models where the engine is directly connected to the shredding unit.

Focus on the air filter.

The engine is PROVIDED WITHOUT OIL. Please carefully read the instructions manual before starting the unit.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.
