Wortex Drake D420/120L - Petrol garden shredder - 15Hp Loncin G420F engine

Add a question
ID: K603940

EAN: 8054213015889

MPN: WP2422580

Wortex Drake D420/120L - Petrol garden shredder - 15Hp Loncin G420F engine
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
FREE SPARK PLUGFREE SPARK PLUG
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G420F
Cubic capacity
420 cm³
Nominal power
15 HP
Cutting Rotor Type
Heavy roller
No. of blades
2
Max. Branch Diameter
90 mm
Wood Chip size
4 - 5 cm
N° of hoppers
1
Safety button
Yes
Upper discharge system
Discharge chute rotation
Manual with lever on the chute
Transmission type
Belt
Tow hook
Yes
Product Features
Model:
Drake D420/120L
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
44 cm
Hopper opening size (width):
49 cm
Self-propelling:
Towed
Electric start:
No
Safety button:
Yes
Manufacturing country:
China
Tow hook:
Yes
Motor data
Motor brand:
Loncin
Motor Model:
G420F
Motor type:
4-stroke
Cubic capacity:
420 cm³
No. of cylinders:
1
Nominal power:
15 HP
Rated power (HP):
12.2 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
90 mm
Cutting Rotor Type:
Heavy roller
No. of blades:
2
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
4 - 5 cm
Equipment
Discharge chute rotation:
Manual with lever on the chute
Recoil start system (with rope):
Yes
Front handle:
Yes
Rear wheels size:
16x8.0-7
Free gifts/extra features
Engine oil bottle for free:
2
Spark plug wrench:
Yes
Instructions manual:
Yes
Dimensions and logistics

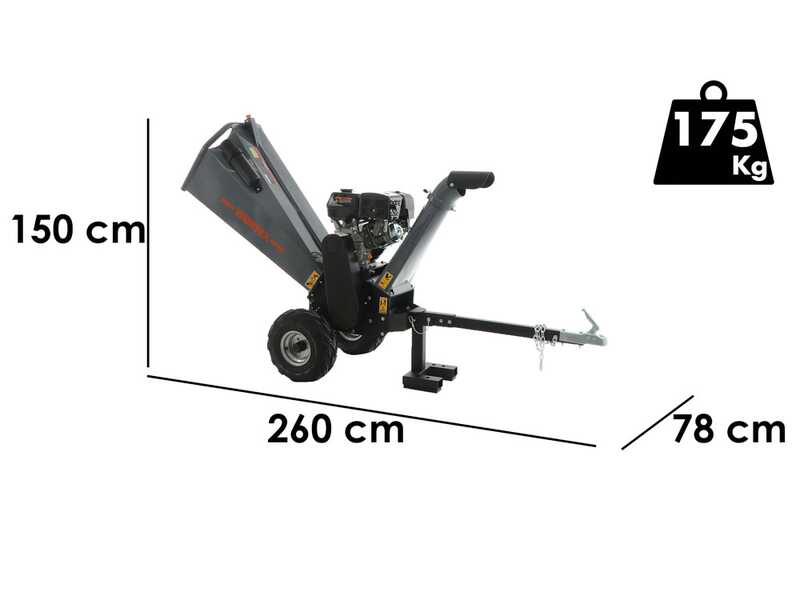

Product dimensions in cm (L x W x H):
260x78x150 cm
Net weight:
175 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
90x75x123 cm
Gross weight (packaging included) :
205 Kg
Assembly time:
60 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 29/04/2024 - 02/05/2024
€ 1.943,67
VAT Included
You're viewing:
Customers also viewed:
Description

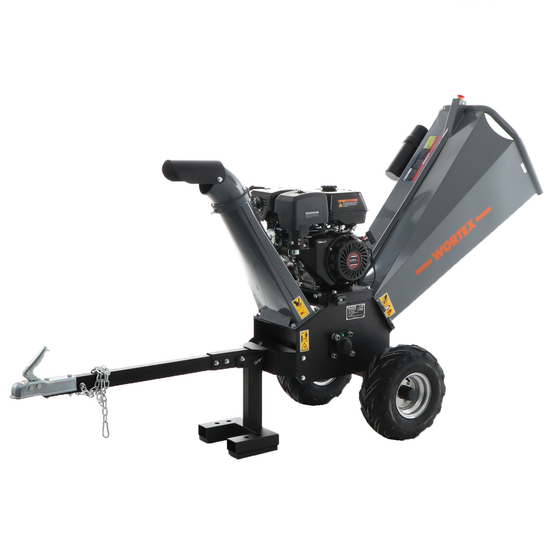

Wortex Drake D420/120L Petrol Garden Shredder

The Wortex Drake D420/120L petrol-driven garden shredder has a 420 cc Loncin G420F engine capable of delivering a rated power of 15 HP.

The rotor can be easily inspected by simply removing the two fastening nuts on the hopper and then opening it. Any control and/or maintenance operations must be carried out with the machine switched off.

Thanks to the wheels, it is extremely easy to move and transport the machine, and they allow reducing the effort for the user while manually moving the shredder. This garden shredder is not approved for the road trip.

This chipper model allows cutting weeds and twigs with a maximum diameter of 90 mm, reducing them into small-sized pieces that are easy to handle and ideal for composting.

This garden shredder is equipped with a double safety system, one at the base of the hopper and the other placed immediately above. The first does not allow the rotation of the rotor unless the hopper is perfectly closed; by contrast, the second safety system is equipped with a button that, when pressed, immediately blocks the machine in case of emergency. It is built following the logic of large shredders, resulting in the highest performance in terms of cutting, speed and reliability. Thus, it complies with the CE regulations on safety at work.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Shredders intended use:
- The shredder must grind only green branches and not dried ones (which would limit its shredding capacity and lead to rapid deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwoods and can reduce the cutting capacity of the wood chipper)

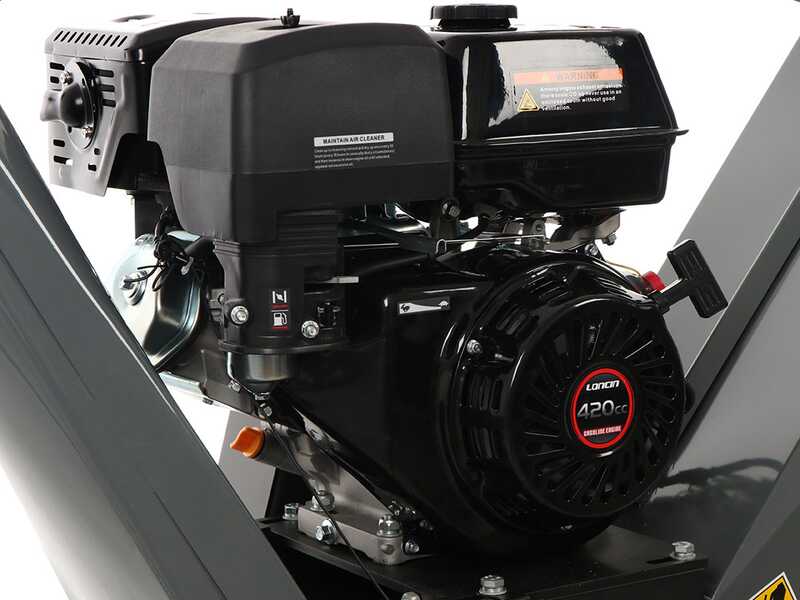

Loncin G420F Engine 15 hp

Features:
  • Engine brand and model: Loncin G 420 F
  • Single-cylinder engine type : 4-Stroke- OHV
  • Cylinder type: Aluminium
  • Displacement: 420cm³
  • Power: 15 Hp
  • Type of ignition: Recoil starter

Rated Power: 15 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Real power: 12.2 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

The engine is PROVIDED WITHOUT OIL.
Read the instructions manual carefully before starting it.

The machine is equipped with centrifugal clutch. The engine needs always to run at high revolutions in order to ensure a proper functioning.

CAUTION: do not use it at maximum speed, in addition to not obtaining an efficient grinding of the branches and not be able to grind larger diameters, may involve a whole series of anomalies:
- lowering speed or stopping the engine during its use;
- rapid deterioration of the transmission belts between the motor and the rotor;
- damage to the centrifugal clutch which, if the engine is not at full speed, you do not get the full expansion of the same by determining the consumption of up to burn and need to be replaced

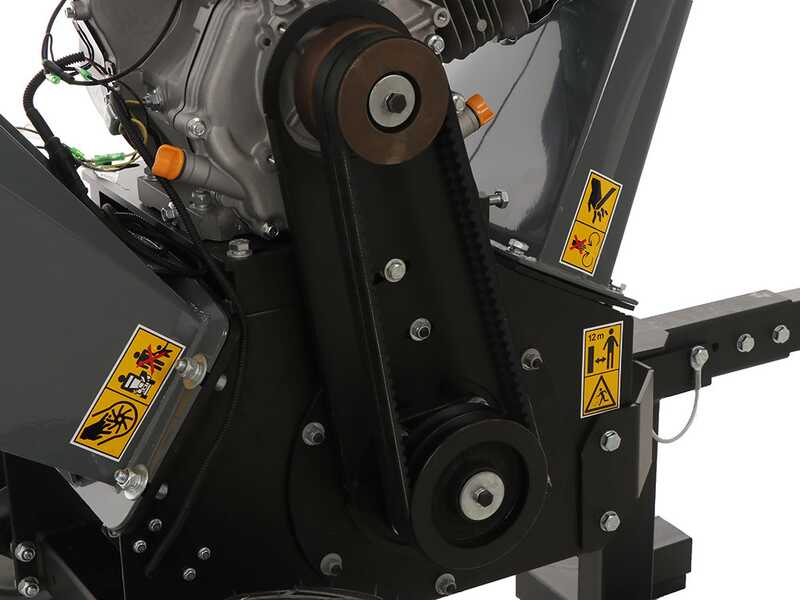

Belt Drive

This is the only machine of its category with intermediate double belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, the transmission is directly connected to the shredding cutting system.

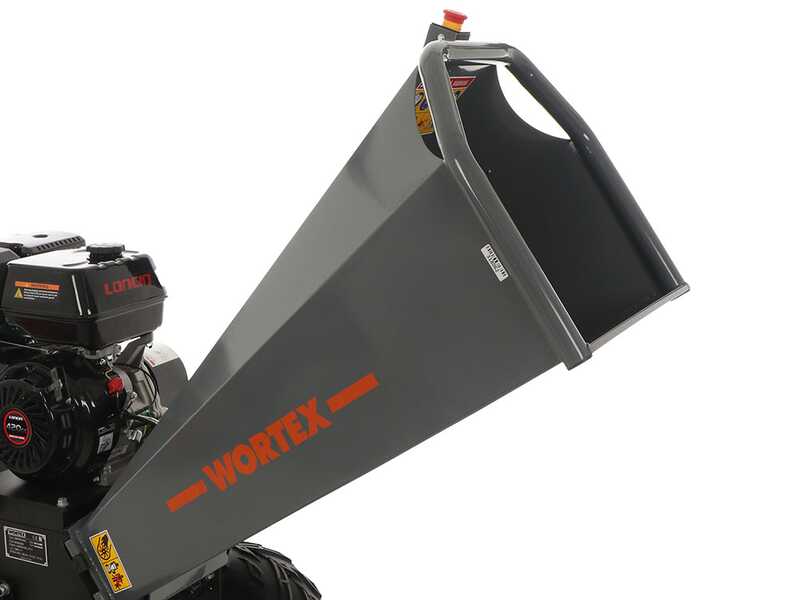

Unified Hopper

UNIFIED: considerably simplifies and speeds up the work.

The hopper is fully examinable thanks to the possibility of opening.

The single hopper considerably simplifies and speeds up the work. It eliminates the operation of separating (before grinding) the material between the major and woody sections and smaller and green sections, each of which is inserted in its special hopper (operation instead requested from all the classic wood chipper equipped with 2 hoppers)

SAFETY DEVICE : It is possible to use the device placed around the hopper. In an emergency it is possible to press the red button to immediately block the function of the wood chipper.

SECOND SAFETY SYSTEM: There is also an additional safety device at the base of the hopper that shuts down the machine or does not allow it to start if the hopper if it is not closed properly.

Hopper base dimensions: 30x15 cm

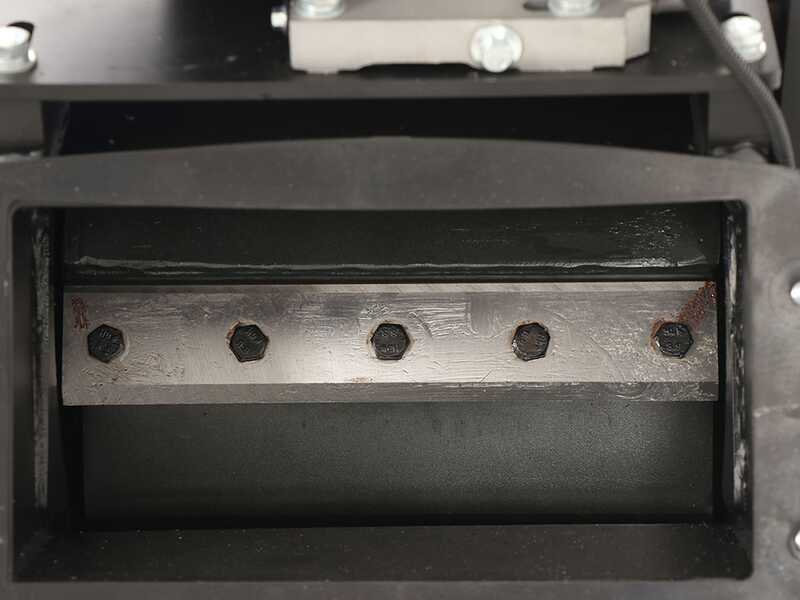

Shredding System with 2 Blades and Counter-Blade

2 cutting blades, of large dimensions and thickness are mounted on a large spinning steel plate

The double blade system is completed by the working counter-blade located on the shredding chamber.

The rotor is solid and robust, and made in steel.

Focus on the the counter- blade adjustment: this is deliberately assembled in a manner inclined with respect to the frame and to the direction of rotation of the rotor to increase the cutting capacity of the machine and have the best performance possible.

All wood chipper with roller system like this, carry out their work better by inserting branches already leafless and cleaned (not thick and with excessive branching);
And they are ideal for branches having a bit consistency and body, and not for thin and green branches, they are better thick or in high quantities; this is because the roller system is technically very suitable to grind small or minimum diameters, or green material in general, while really give the maximum with branches which have a bigger diameter and density.
This is related to their lower "centrifuging" power compared to the classical models and disc blades, and the "greater distance between the blade and counter-blade", designed for individual branches already well thinned but consistent diameter.

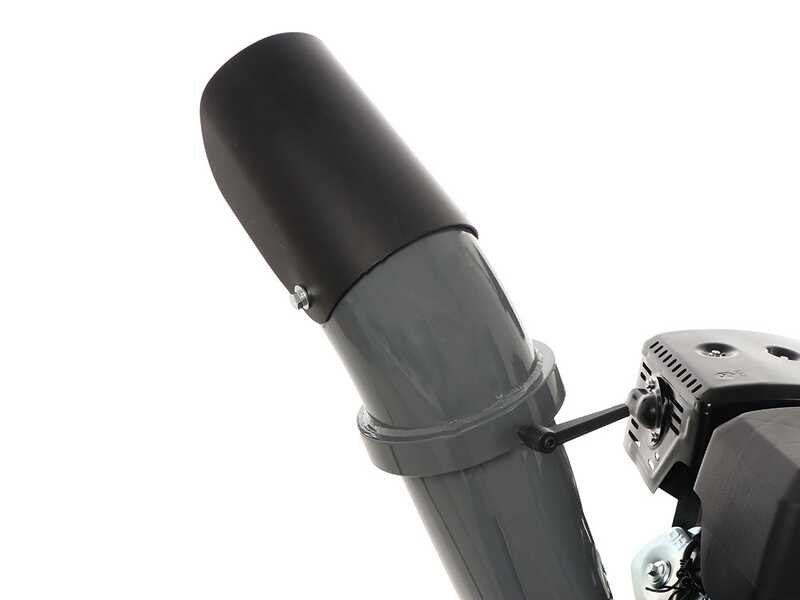

Adjustable Discharge Chute

Provided with 360° rotating discharge chute.

Some examples:

  • Position 1
  • Position 2
  • Position 3

You will just need to simply release the lever and rotate it in the desired position.

The discharge angle is also adjustable.

Some examples to control the distance of the discharged shredded material:

  • Position 1
  • Position 2
  • Position 3

Main Features

Adjustable discharge chute, located at 1.5 m from the ground, equipped with adjustable-tilting deflector .

It allows vegetable waste to be discharged into a box.

Front support

In the rear part of the hopper there is a comfortablecompartment to always have at hand the instruction manual

The wood chipper also has large pneumatic wheels 16x8.0-7 that allow easy transport.

It features a comfortable and practical tow hitch.

The car is not approved for road transport.

Free items & Standard equipment

COMPLIMENTARY: Spare parts and accessories kit for engine maintenance

Spare parts set and accessories for the maintenance of the following engines.

  • HONDA GX 330
  • HONDA GX 390
  • Loncin 330 cc
  • Loncin 390 cc
  • Axo 330 cc
  • Axo 390 cc

The set includes:

1 GeoTech spark plug

1 key professional jointed candle to use specifically for tractor engines, grass cutters and mowers professional mover

1 air filter elliptical and in sponge for the engine

WARNING: This kit can’t be used for other brands or models on market. We don’t provide different kit from the ones offered on our website. We do not guarantee the adaptability of products not purchased from our site.

COMPLIMENTARY: 1 lt Oil Bottles

COMPLIMENTARY: two 1 lt 10W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersion.

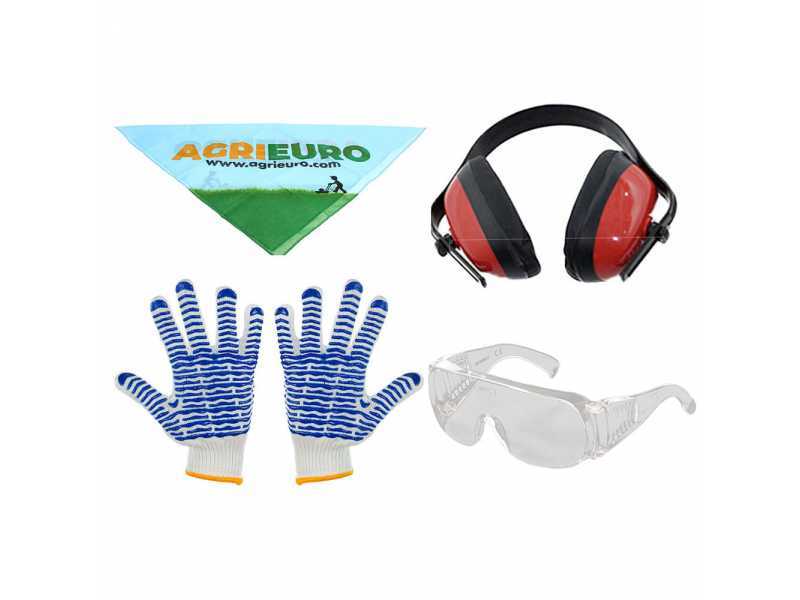

1° GIFT: SAFETY KIT

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

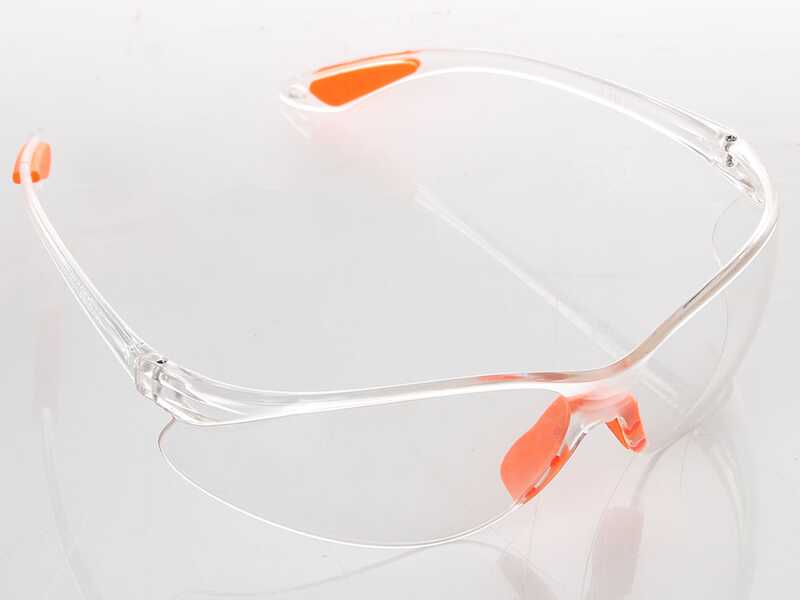

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Free items included

The shredder comes with a wooden box fixed on a pallet.

The Instructions Manual is included in the package.

Standard-supplied assembly tools and comfortable protection goggles provided on standard kit.
