Wortex Drake D300/70E - Electric garden Shredder - Single Phase 3 HP

Add a question
ID: 109558

EAN: 8054213015902

MPN: WP2422560

Wortex Drake D300/70E - Electric garden Shredder - Single Phase 3 HP
Operating mode
Single-phase 230 V
Nominal power
3 HP
Cutting Rotor Type
Heavy roller
No. of blades
2
Max. Branch Diameter
60 mm
Wood Chip size
4 - 5 cm
N° of hoppers
1
Transmission type
Belt
Nominal power (W)
2200 W
Product Features
Model:
Drake D300/70E
Operating mode:
Single-phase 230 V
Hydraulic self-dragging:
No
Discharge chute:
Medium - rotating
N° of hoppers :
1
Hopper opening size (height):
40 cm
Hopper opening size (width):
45 cm
Electric start:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
3 HP
Nominal power (W):
2200 W
Power supply:
220 V electric
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
60 mm
Cutting Rotor Type:
Heavy roller
No. of blades:
2
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
4 - 5 cm
Equipment
Front handle:
Yes
Rear wheels size:
10"
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

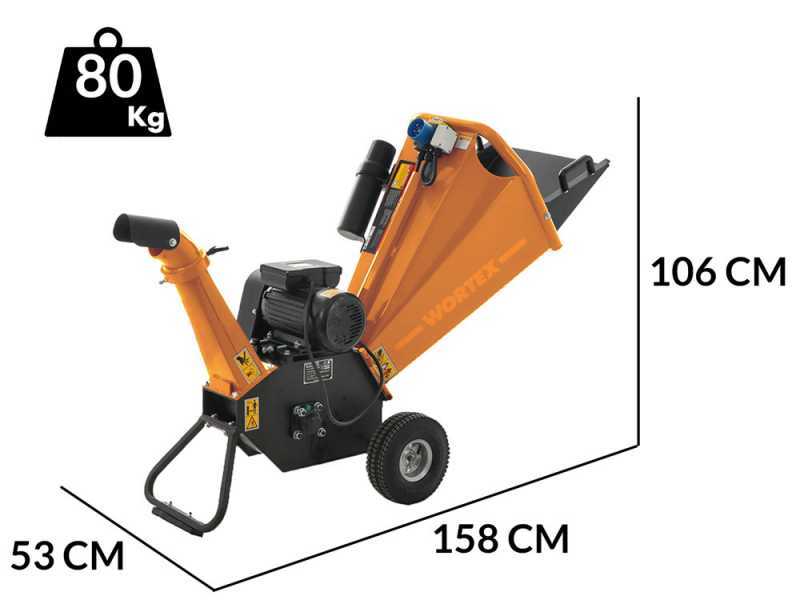

Product dimensions in cm (L x W x H):
158x53x106 cm
Net weight:
80 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
89x57x86 cm
Gross weight (packaging included) :
115 Kg
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 29/04/2024 - 02/05/2024
€ 1.189,64
VAT Included
You're viewing:
Customers also viewed:
Description

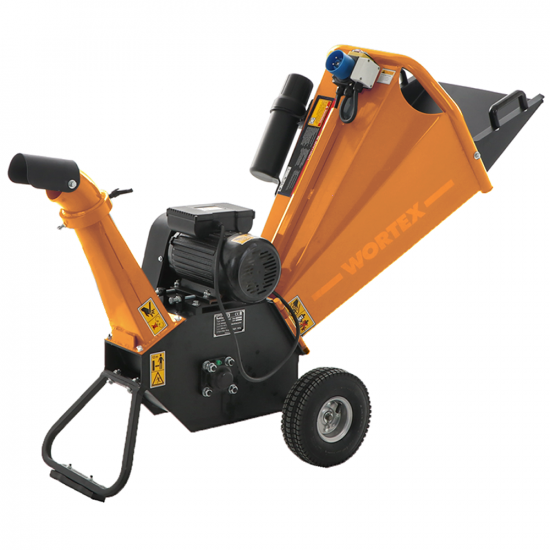

Wortex Drake D300/70E wood chipper with electric motor

The Wortex Drake D300/70E garden shredder is equipped with a single-phase electric motor featuring 3 Hp of power.

It allows cutting branches with a 60 mm max. diameter. The cutting system consists of a roller equipped with two 150 mm blades and a counter-blade.

Specifically intended for shredding branches and medium-sized diameter logs. Ideal for all those who need to maintain green spaces and who need to quickly remove and grind biodegradable waste from the ground.

Major strengths of this machine:

  • Sturdiness, thanks to the system with steel rotor which ensures a long service life.
  • Cutting diameter (up to 60 mm on green wood, not dry).
  • Single hopper: the only electric shredder equipped with a hopper that can be opened, allowing easy removal of clogs and making inspections much easier.

Limitations: the final size of the wood chips is larger than average due to the lack of centrifugal hammers.


Warning: Like all wood chippers and garden shredders, it is not suitable for shredding grass, leaves, pine needles, etc.… (it is designed to shred branches, but it can also grind the leaves, needles and other vegetation that may be attached to them).

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

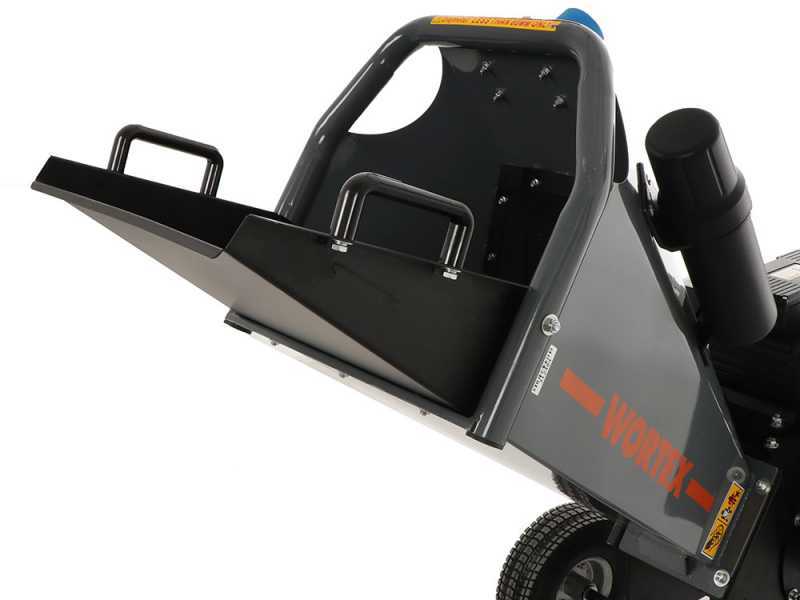

Unified hopper

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

  • UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It eliminates the constant operation of dividing the material (before shredding) between the large, woody sections and the smaller, green sections, each of them must be placed in their own hopper (an operation required by all standard shredders equipped with 2 hoppers).

  • SELF-FEEDING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Focus on the rubber bulkheads placed on hopper mouth.

Hopper size: (Width x Height ) 45 x 40 cm

Focus on the wood chipper handle for easy transport.

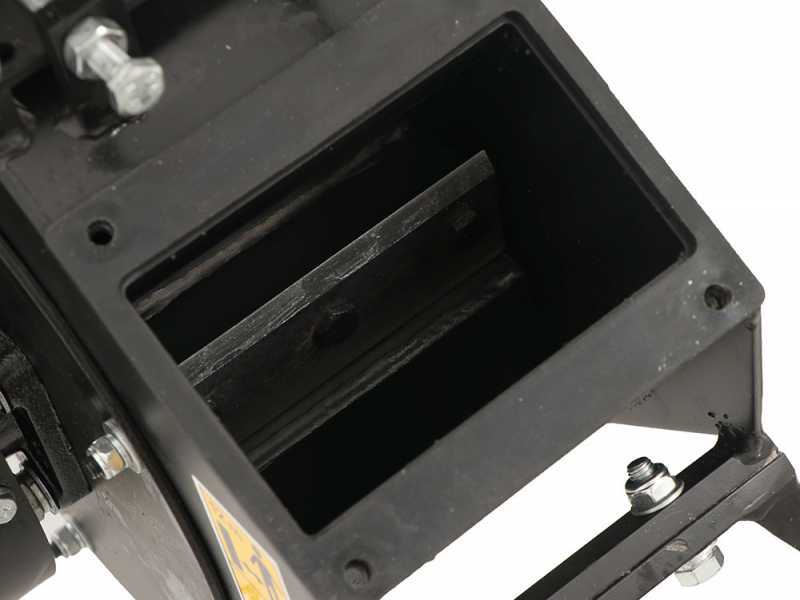

Shredding system with 2 blades and counter-blade

2 Large, thick blades (150 mm) mounted on a rotating steel roller.

The dual blade system also includes a counter-blade placed in the shredding chamber.

This ensures high-quality wood chips with a hourly output varying from 2.5 to 4 mc/h.

The sturdy rotor is entirely made of steel.

Focus on the counter-blade adjustment system: the counter-blade is tilted with respect to the frame and rotor rotation direction for increasing the wood chipper shredding capacity and performance.

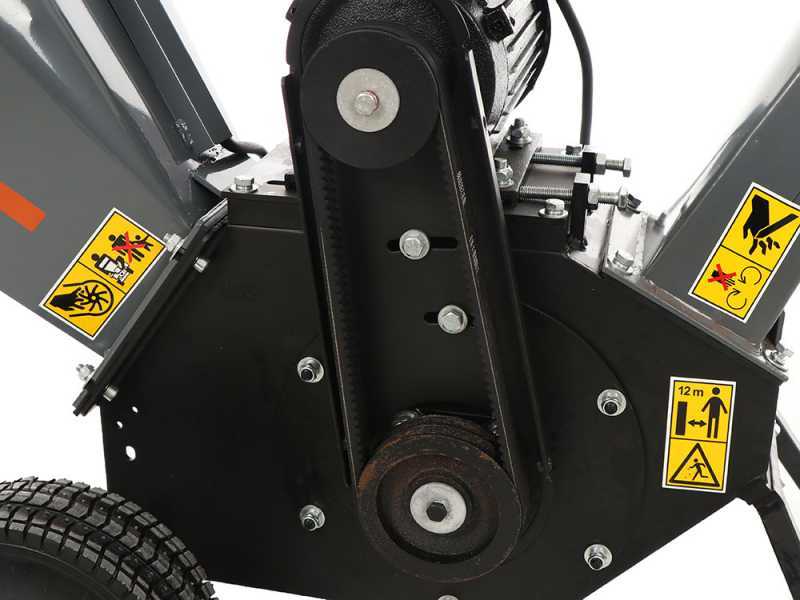

Intermediate belt drive with reinforced belt

INTERMEDIATE REINFORCED BELT DRIVE.

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

High-quality single-phase electric motor featuring 3 Hp of power that guarantees perfect shredding results.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

Additional features

Other features of the wood chipper:

Starter socket

Direction and height-adjustable discharge chute.

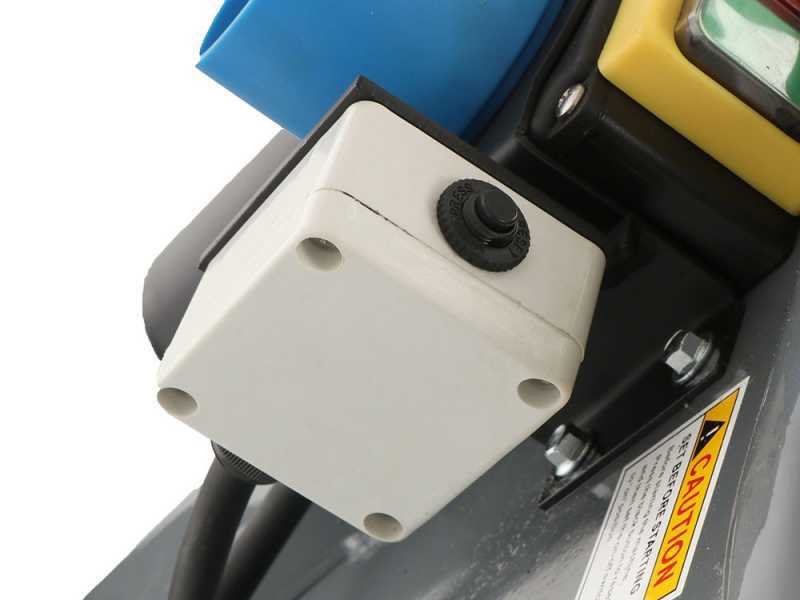

Focus on the power button

10” pneumatic wheels for easy transport

Free items & Standard equipment

Free items included

The garden shredder comes with a wooden box fixed on a pallet.

The instructions manual is included in the package.

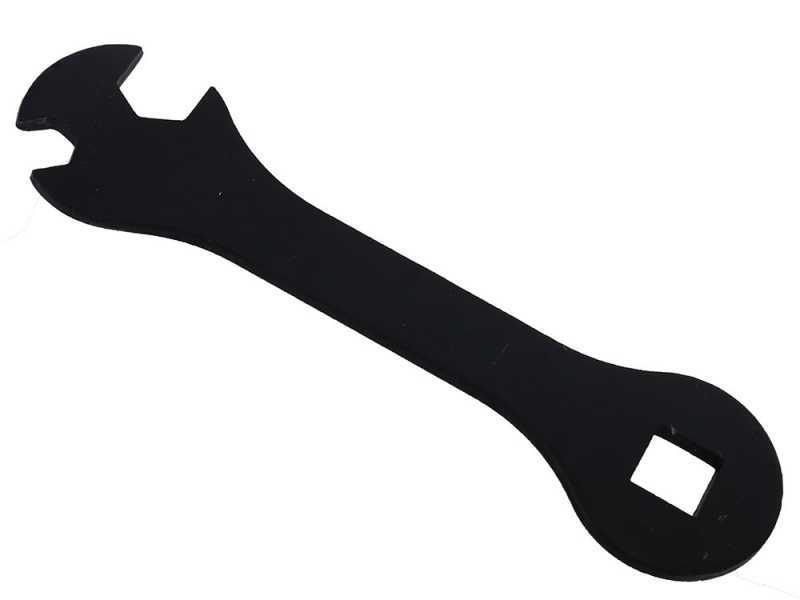

Two assembly keys are also included.
