Weibang WBMWB537SC - Petrol Trailed Lawn Mower - 2in1 - 196 cc Engine

Add a question
ID: K607705

EAN: 6976122930836

MPN: WBMWB537SC

7,7/10
After-sales assistance & Spare parts
Weibang WBMWB537SC -  Petrol Trailed Lawn Mower - 2in1 - 196 cc Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Replacement sprak plugReplacement sprak plug
Grass collector
Rear discharge
Body material
Enamelled steel
Motor brand
Loncin
Motor Model
1P70FC
Cubic capacity
196 cm³
Nominal power
6.5 HP
Max. recommended area
1600 m²
Cutting width
53 cm
Self-propelling
Rear-wheel drive
Cutting adjustment
1 lever
Product Features
Model:
WBMWB537SC
Body material:
Enamelled steel
Operating mode:
Spark ignition
Self-propelling:
Rear-wheel drive
Housing width:
55 cm
Grass collection system:
Standard equipment
Cut with rear discharge:
Standard equipment
Cutting system:
2 in 1 - Collection + Rear discharge
Collection bag capacity:
70 L
Max. recommended area :
1600 m²
Recoil start:
Yes
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
1P70FC
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Rated power (HP):
4.15 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
1 L
Oil tank capacity:
0.6 L
Noise level:
98 dB(A)
Manufacturing country:
China
Transmission data
Throttle lever:
Yes
Wheel drive:
Rear-wheel
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Enamelled steel
Cutting width:
53 cm
Finned-shape blade:
Yes
Blade type:
Multifunction
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
80 mm
Min. cutting height:
25 mm
No. of cutting positions:
8
Cutting width:
53 cm
Equipment
Collection bag:
Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
230 mm
Front wheels size:
200 mm
Wheels mounted on ball bearings:
Yes
Wheel Type:
Plastic
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics

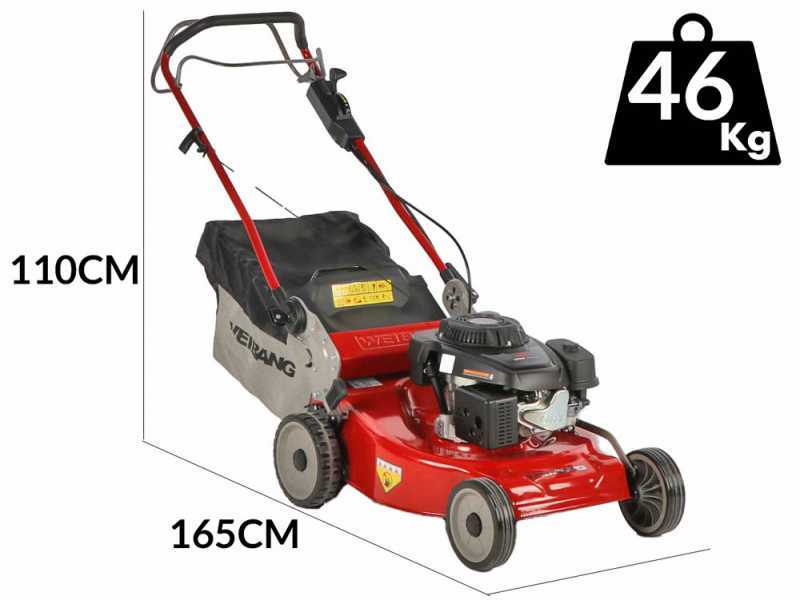

Product dimensions in cm (L x W x H):
165x63x110cm
Net weight:
46 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
104,5x63x46,5cm
Gross weight (packaging included) :
50 Kg
Assembly time:
15 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 21/10/2024 - 23/10/2024
€ 693,39
VAT Included
You're viewing:
Customers also viewed:
Description

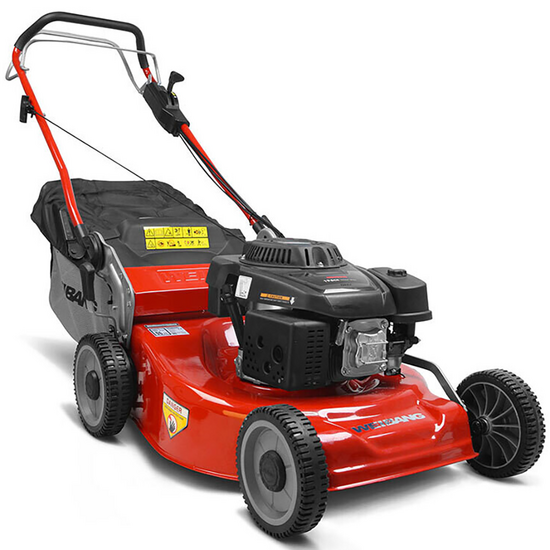

WEIBANG WB537SC Lawn Mower

The Weibang WB537SC mower stands out as an ideal solution for excellent maintenance of green spaces, offering a 53 cm cutting width that ensures superior performance while minimising effort thanks to rear-wheel drive support.

Made of high-quality, durable materials and with an attractive design, this model is characterised by its high efficiency, being particularly suitable for intensive and prolonged use, noticeably improving the effectiveness of the work performed and significantly decreasing any form of discomfort.

The versatility of this 2in1 machine meets all needs thanks to its various cutting functions:

  • Collection in the large 70L basket
  • Rear discharge

Handy centralised cutting adjustment. With a single command, you can easily select one of the 8 available cutting heights, varying between 25 mm and 80 mm, adapting perfectly to any type of grass.

Powerful, reliable and extremely versatile, the Weibang WB537SC is equipped with a robust Loncin 1P70FCengine, which offers 6.5HP of rated power and a displacement of 196cc, guaranteeing a high level of performance.

The care taken in the selection of the components and the refinement of the finish distinguish this model, placing it clearly ahead of the competition.

The rubber-covered handlebar provides a comfortable and secure grip, while the large 70L collection basket and the 200mm front and 230mm rear rubber-covered wheels offer excellent manoeuvrability on various types of terrain.

Recommended for areas up to 1,600 square metres, the Weibang WB537SC mower is an excellent choice for those looking for efficiency, durability and versatility in a single lawn care tool.

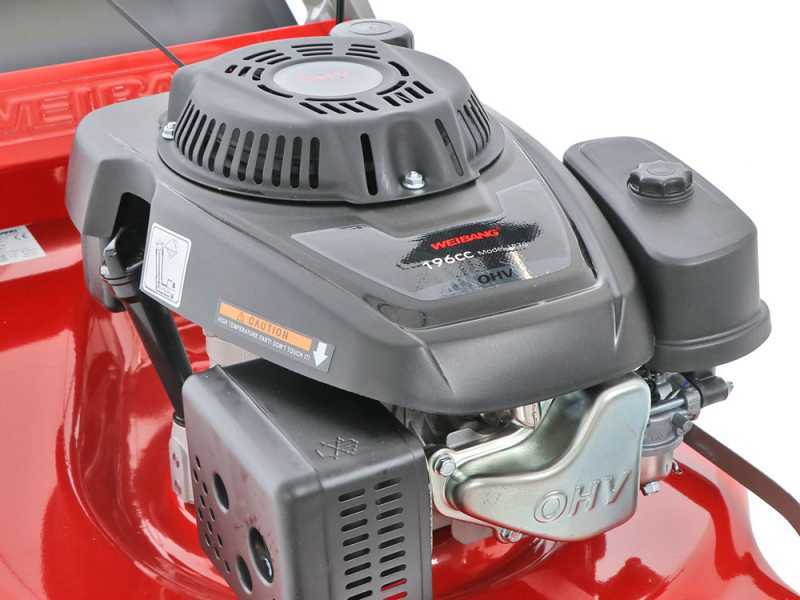

196cc Loncin 1P70FC Engine

The 1P70FC is an air cooled 4-stroke petrol engine with aluminium cylinder.

It features 196 cc and develops a high power.

Features Values
Engine type: 4-Stroke, single cylinder
Cylinder type: Aluminium
Cubic capacity: 196 cm³
Power supply: Petrol
Starting: Recoil start
Recommended working area: 1600 s.q. m.
Max. rpm: 3600 rpm

ATTENTION!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Focus on air filter

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 4.15 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

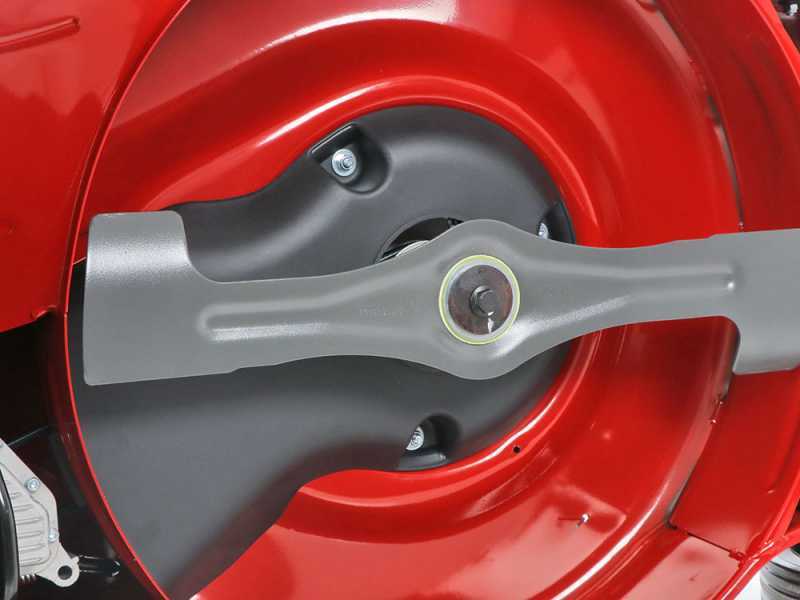

Steel shell and blade

53 cm useful blade cutting width.

The blade is made of hardened steel and it is suitable for 2 cutting systems: rear discharge and grass collection system into the canvas grass collector.

The steel shell gives this machine a high degree of robustness.

Optimized profile blade

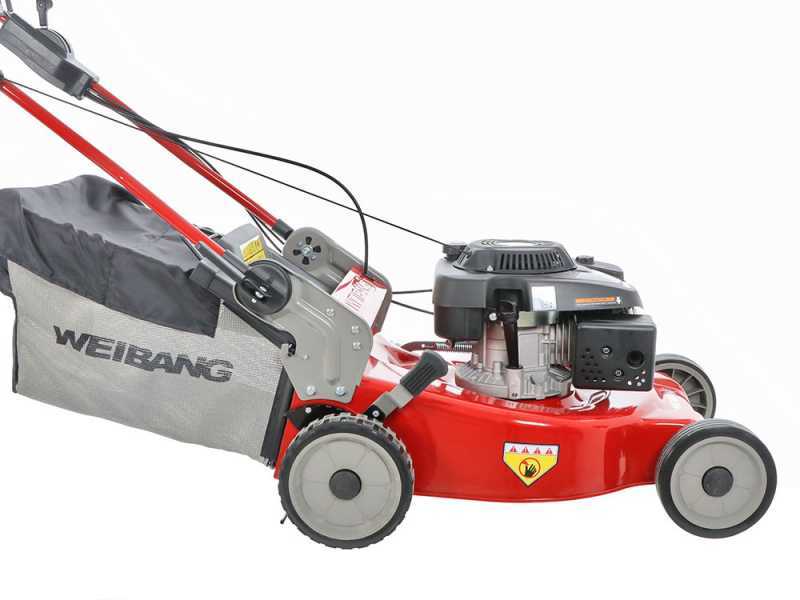

Centralised cutting height adjustment

Centralised adjustment: it is possible to adjust the height of the lawn mower through a single lever.

This system allows you to vary the cutting height very quickly.

The cutting height is adjustable in 8 different positions.

Lowest cutting position: 25 mm

Highest cutting position: 80 mm

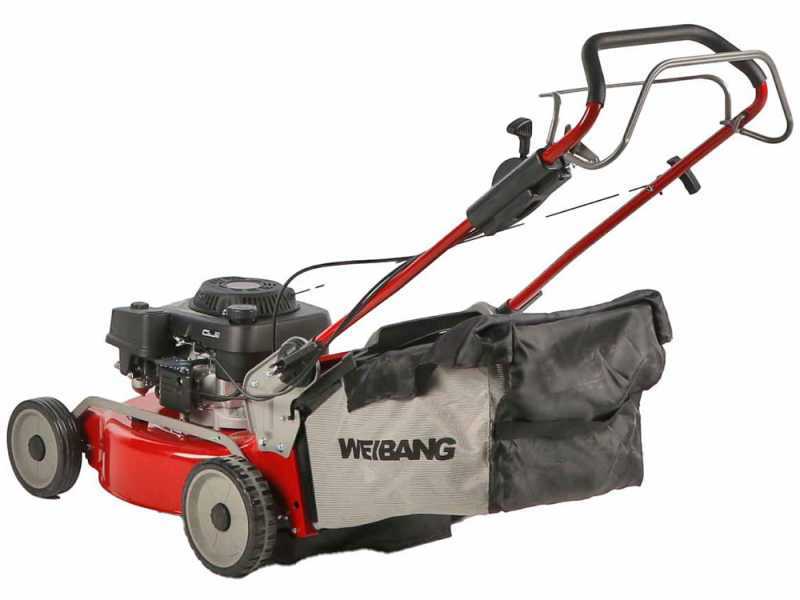

Cutting systems: grass collection

GRASS COLLECTION SYSTEM: the lawn mower is equipped with a large 70 L grass collector, easy to remove and empty.

The lower part is made of mesh. Its flexibility ensures the possibility to easily empty the grass collector when full.

The bag lets air pass through it, but is very durable.

Full bag dust reduction system.

Practical handle at the top of the basket to facilitate its removal.

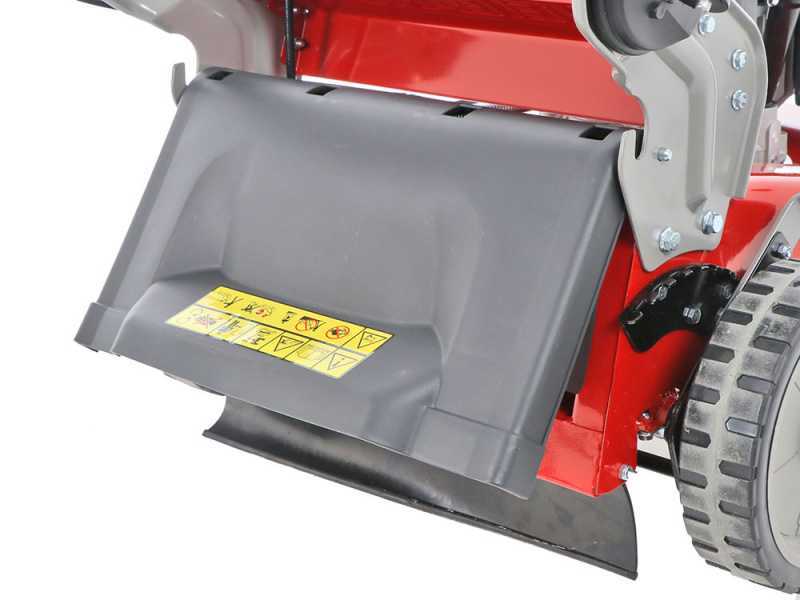

Cutting systems: rear discharge

REAR DISCHARGE SYSTEM

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

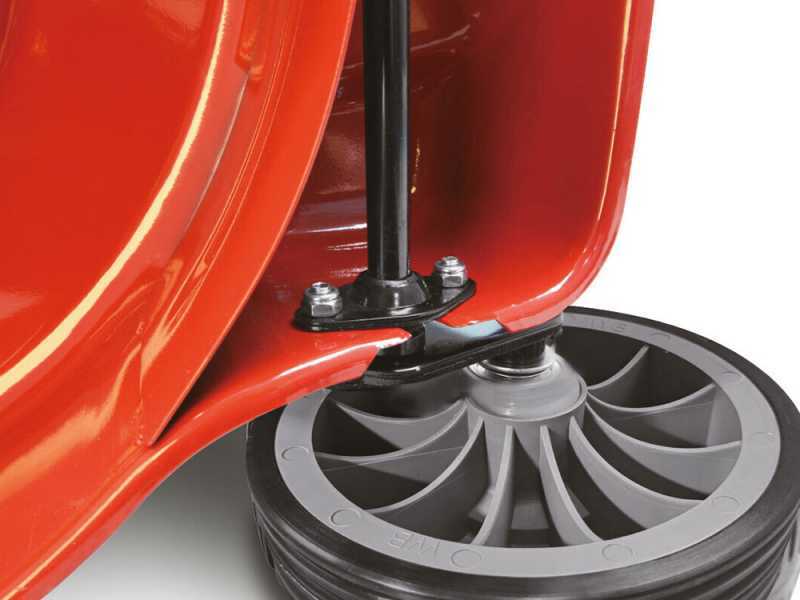

Controls, adjustments and other features

Easy and user-friendly controls, placed on the handlebar.

Safety blade brake lever (lever in front of the handlebar).

Rear-wheel drive lever (behind the handlebar)

Engine speed throttle

Millimetre adjustment of the handlebar for easy storage

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

  • No. 01 original GeoTech spark plug

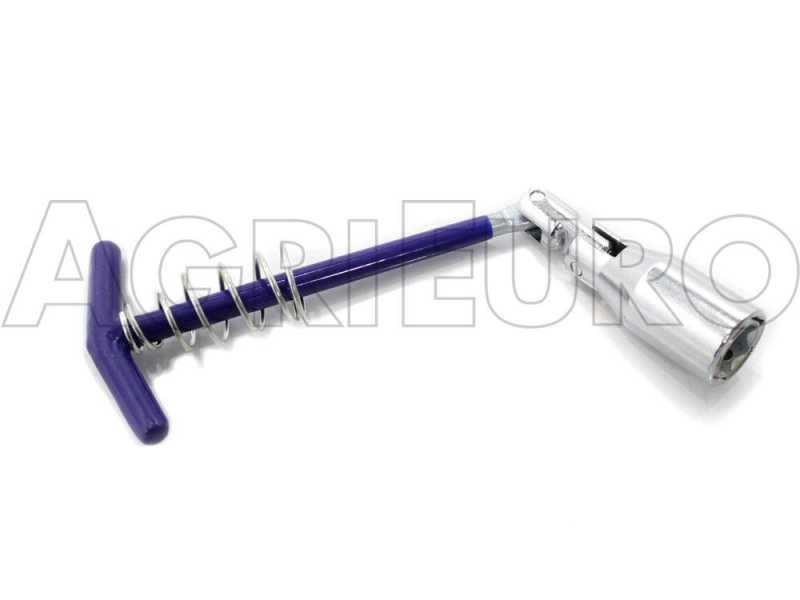

  • No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

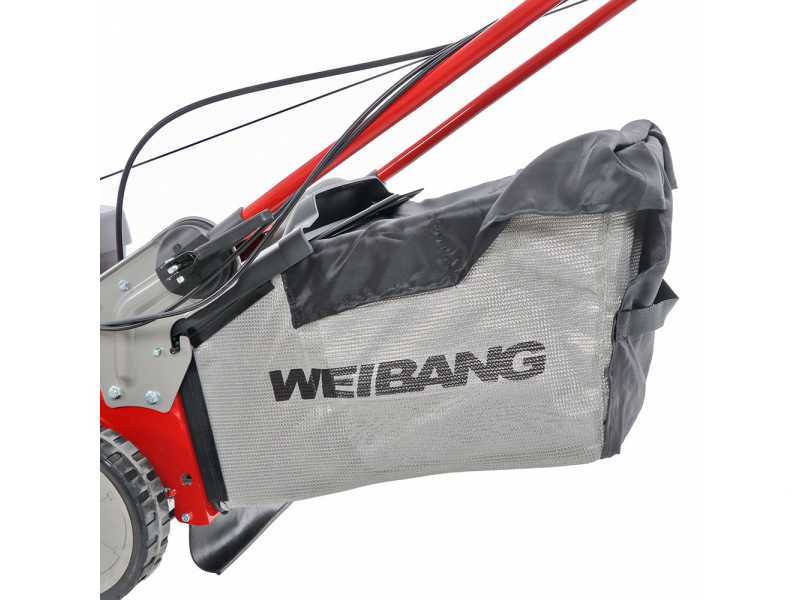

Free items included

The lawn mower is shipped in its original packaging.

Grass collector 70L

The Instructions manual is included in the package.
