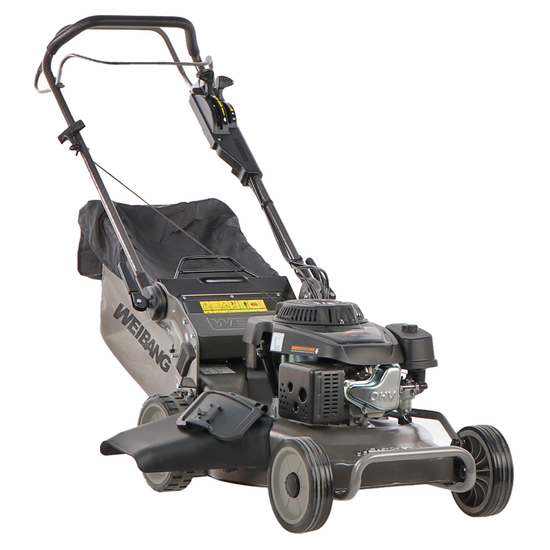

Weibang WBMWB507SCV3 - Petrol Trailed Lawn Mower - 4in1 - 196cc Engine

Add a question
ID: K607713

EAN: 6976122930621

MPN: WBMWB507SCV3

Weibang WBMWB507SCV3 - Petrol Trailed Lawn Mower - 4in1 - 196cc Engine
FREE
Air filter for replacement engine and bladeAir filter for replacement engine and blade
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Replacement sprak plugReplacement sprak plug
Grass collector
Side discharge
Mulching cutting system
Standard equipment
Rear discharge
Body material
Enamelled steel
Motor brand
Loncin
Motor Model
1P70FC
Cubic capacity
196 cm³
Nominal power
6.5 HP
Max. recommended area
1400 m²
Cutting width
50 cm
Self-propelling
Rear-wheel drive
Cutting adjustment
1 lever
Gear shifting system
Mechanical gearbox
Gears
3
Speed variator
Yes
Product Features
Model:
WBMWB507SCV3
Body material:
Enamelled steel
Operating mode:
Spark ignition
Self-propelling:
Rear-wheel drive
Housing width:
53 cm
Grass collection system:
Standard equipment
Side discharge cutting system:
Standard equipment
Mulching cutting system:
Standard equipment
Cut with rear discharge:
Standard equipment
Cutting system:
4 in 1 - Collection + Rear discharge + Side discharge + Mulching
Collection bag capacity:
60 L
Max. recommended area :
1400 m²
Recoil start:
Yes
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
1P70FC
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Rated power (HP):
4.15 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
1 L
Oil tank capacity:
0.6 L
Noise level:
96 dB(A)
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Speed variator:
Yes
Throttle lever:
Yes
Transmission type:
Cardanic
Gearbox:
Steel gears
No. of forward speeds:
3
Gears:
3
Wheel drive:
Rear-wheel
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Enamelled steel
Cutting width:
50 cm
Finned-shape blade:
Yes
Blade type:
Multifunction
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
70 mm
Min. cutting height:
25 mm
No. of cutting positions:
8
Cutting width:
50 cm
Equipment
Collection bag:
Standard equipment
Grass discharge side deflector:
Yes
Front Bull Bar:
On Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
230 mm
Front wheels size:
200 mm
Wheels mounted on ball bearings:
Yes
Wheel Type:
Plastic
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine oil bottle for free:
2
Instructions manual:
Yes

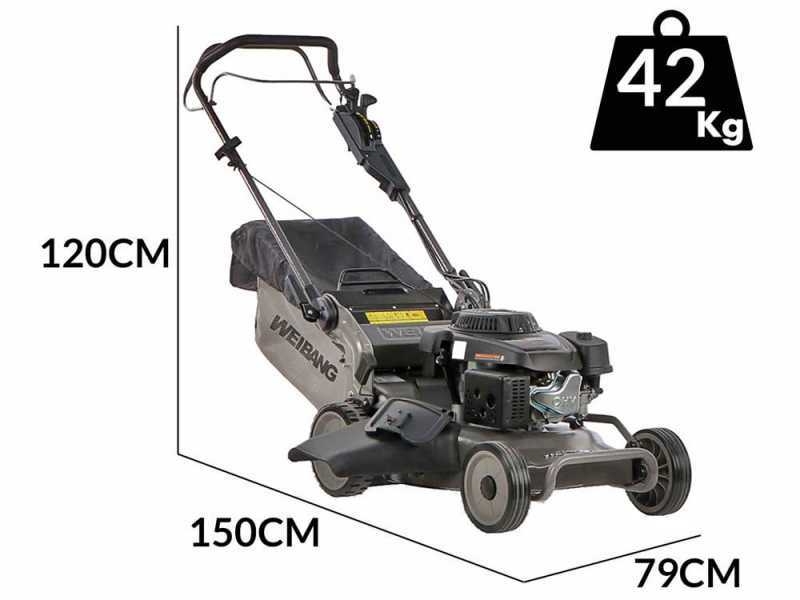

Dimensions and logistics
Product dimensions in cm (L x W x H):
150x79x120cm
Net weight:
42 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
98x57,5x79,6cm
Gross weight (packaging included) :
48 Kg
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 878,65
VAT Included
You're viewing:
Customers also viewed:
Description

WEIBANG WBMWB507SCV3 lawn mower

High-quality Weibang WBMWB507SCV3 lawn mower with an optimum cutting width of 50 cm is designed to deliver excellent performance while minimising exertion thanks to its rear-wheel drive. Constructed from good quality material that makes it ideal for intensive and prolonged use, thus improving work efficiency.

Tree-gear cardan drive, which allows the feed speed to adapt to different ground requirements:

  • First gear: 0.8 m/s
  • Second gear: 1 m/s
  • Third gear: 1.2 m/s

4in1 makes it extremely versatile, thanks to the different cutting modes available:

  1. Collection in the large 60L basket
  2. Rear discharge
  3. Side discharge
  4. Mulching

The centralised cutting height adjustment with 8 different positions, varying between 25 mm and 70 mm, allows perfect adaptation to all types of grass, making work easier and more precise with a simple gesture.

Equipped with a powerful Loncin 1P70FC engine, offering 6.5HP of rated power and a displacement of 196cc, the Weibang WBMWB507SCV3 delivers a high level of performance, distinguished by reliability and power.

Lawn mowers designed for comfort and superiority: from the ergonomic, rubber-coated handlebar, which provides a comfortable and secure grip, to the large (200 mm front and 230 mm rear) rubber-coated wheels, which guarantee excellent manoeuvrability on different types of terrain.

Ideal for areas up to 1400 square metres, the Weibang WBMWB507SCV3 is an excellent choice for those looking for high efficiency, durability and versatility in a single lawn care tool.

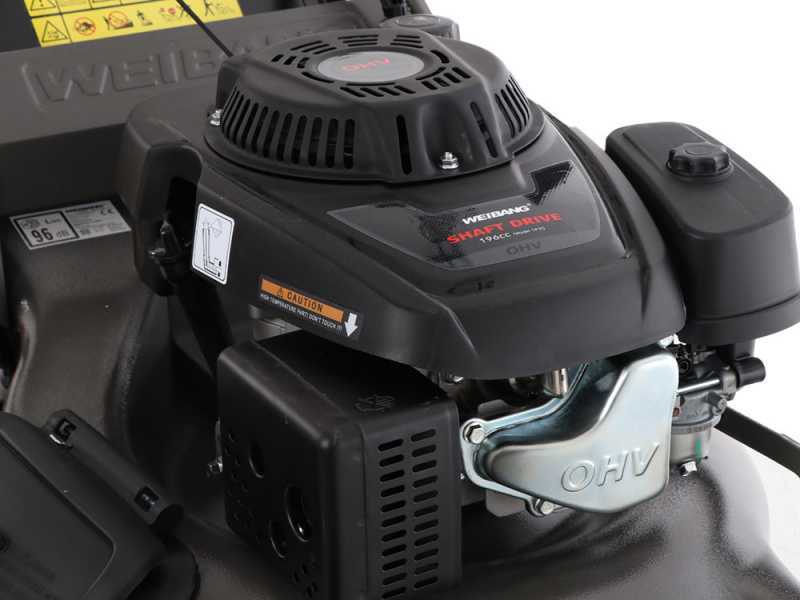

196cc Loncin 1P70FC Engine

The 1P70FC is an air cooled 4-stroke petrol engine with aluminium cylinder.

It features 196 cc and develops a high power.

Features: Values
Engine type: 4-Stroke, single cylinder
Cylinder type: Aluminium
Cubic Capacity: 196 cm³
Power supply: Petrol
Starting: Recoil start
Recommended working area: 1400 s.q. m.
Max rpm 3600 rpm

ATTENTION!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Focus on air filter

Focus on the spark plug

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 4.15 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

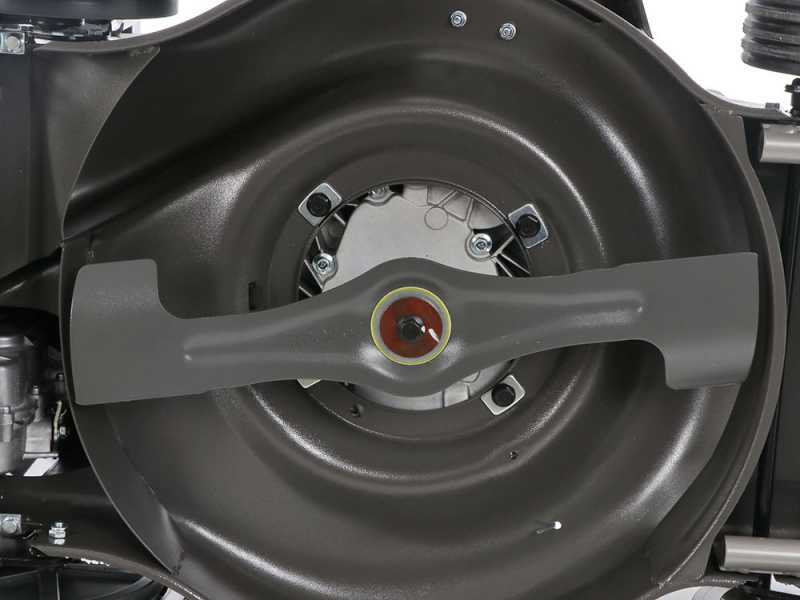

Steel housing and blade

50 cm useful blade cutting width.

The blade is made of hardened steel and it is suitable for 4 cutting systems with which the mower is equipped: canvas grass collection system, lateral discharge, mulching and rear discharge.

The steel galvanised shell gives this machine a high degree of robustness.

Optimized profile blade

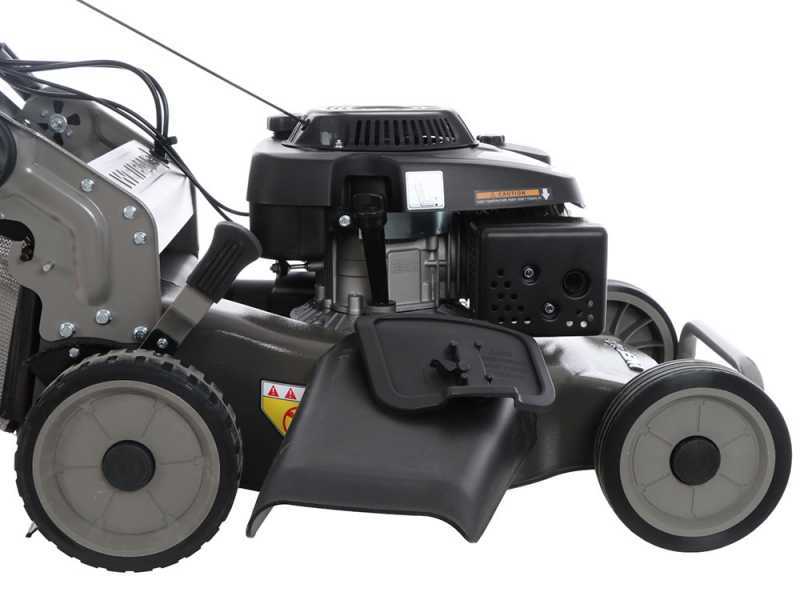

Centralised cutting height adjustment

Centralised adjustment so it is possible to adjust the height of the lawn mower through a single lever.

This system allows you to vary the cutting height very quickly.

The cutting height is adjustable in 8 different positions.

Lowest cutting position: 25 mm

Highest cutting position: 70 mm

Cutting systems: grass collection

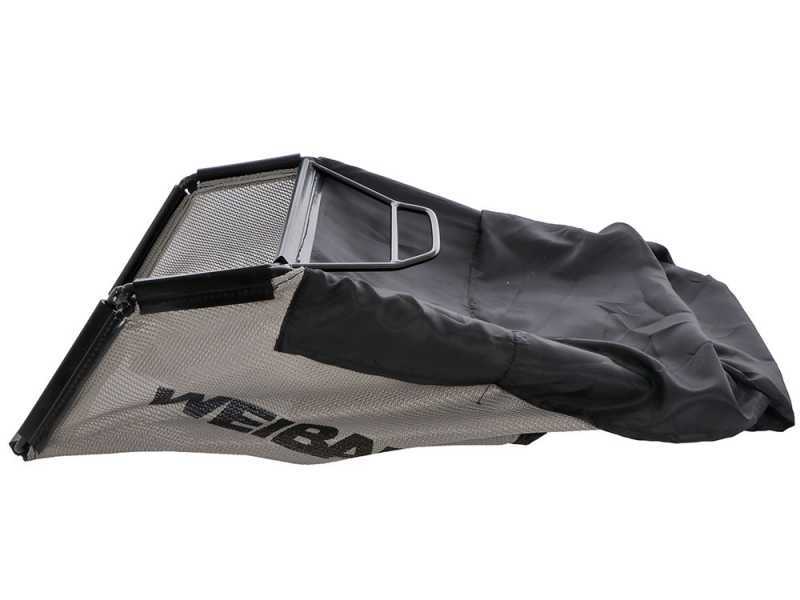

GRASS COLLECTION SYSTEM
The lawn mower is equipped with a large 60 L canvas grass collector, which is easy to remove and empty.

The lower part is made of mesh. Its flexibility ensures the possibility to easily empty the grass collector when full.

The bag lets air pass through it, but is very durable.

Full bag dust reduction system.

Practical handle at the top of the basket to facilitate its removal.

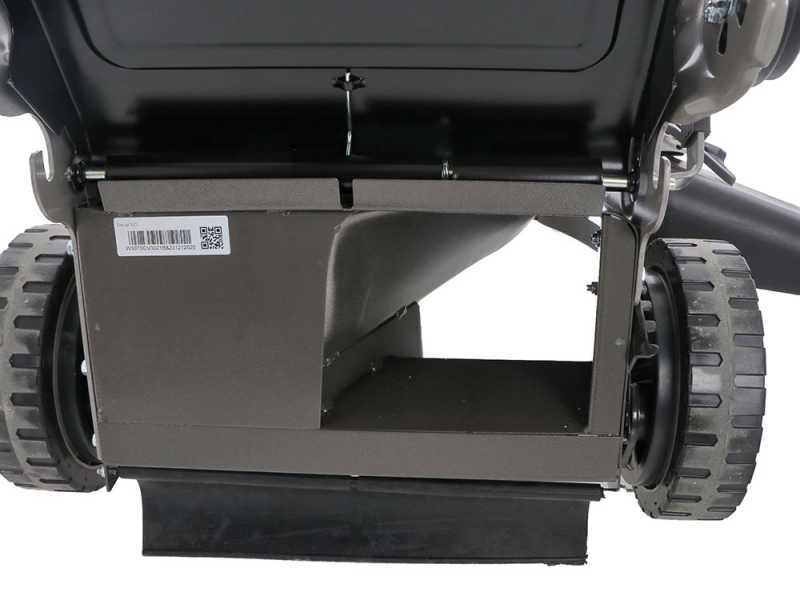

Cutting systems: rear discharge

REAR DISCHARGE SYSTEM

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

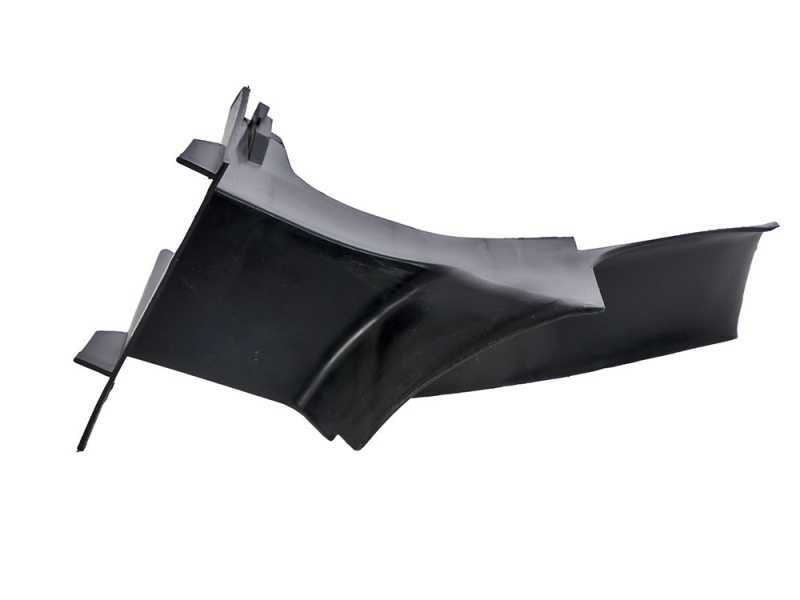

Cutting systems: mulching

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

How to convert the lawn mower for the mulching cutting system:

  • Remove the grass collector
  • Enter the mulching plug supplied
  • Lower the rear deflector to operate the mulching cutting system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

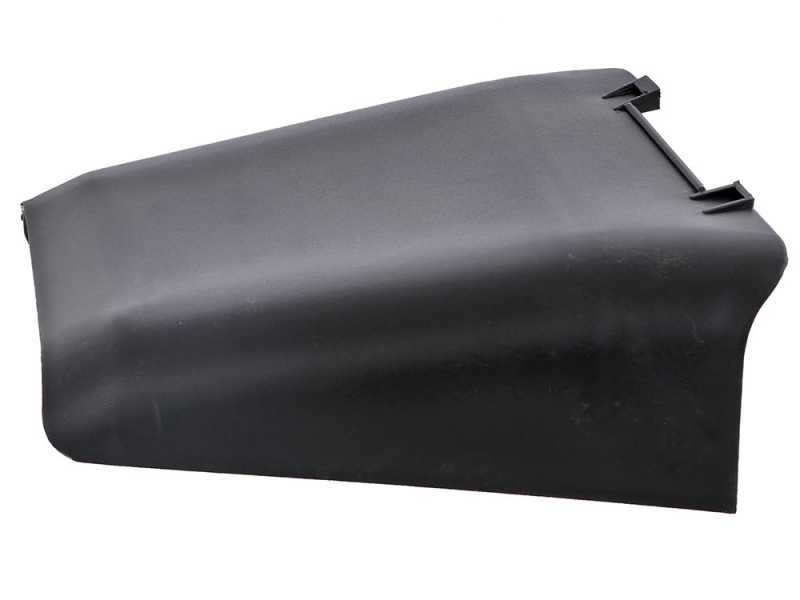

Cutting systems: side discharge

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

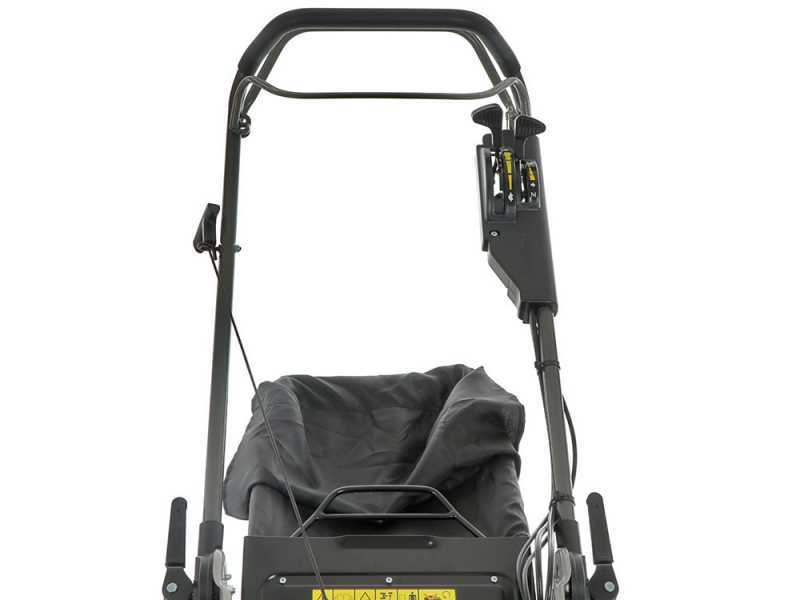

Controls, adjustments and other features

The mower has easy and user-friendly controls, mostly placed on the handlebar.

Safety blade brake lever (lever in front of the handlebar).

Rear-wheel drive lever (behind the handlebar)

Engine speed throttle and lever for changing 3 gears:

  1. First gear: 0.8 m/s
  2. Second gear: 1 m/s
  3. Third gear: 1.2 m/s

Millimetre adjustment of the handlebar for easy storage

Protection-supplied bull bar

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

  • No. 01 original GeoTech spark plug
  • No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

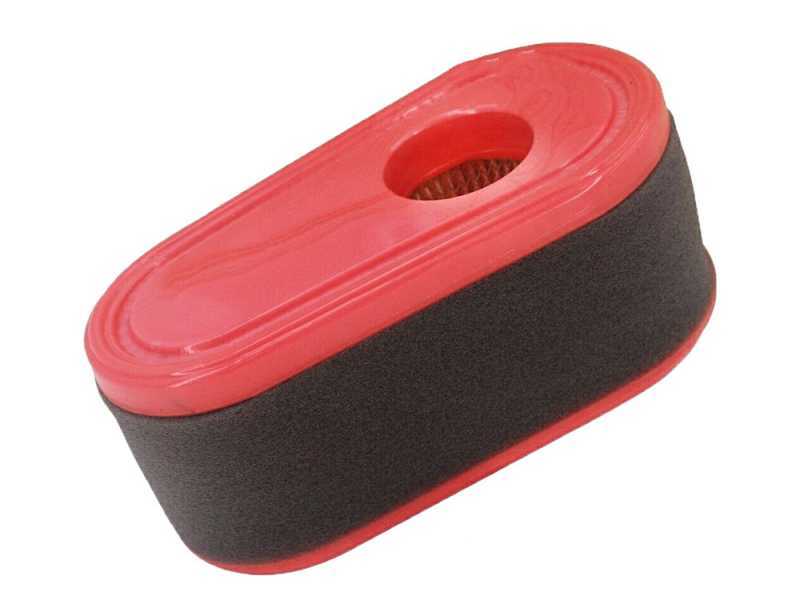

FOR FREE: Additional air filter and blade

You will receive a spare air filter and an additional cutting blade free of charge.

Free items included

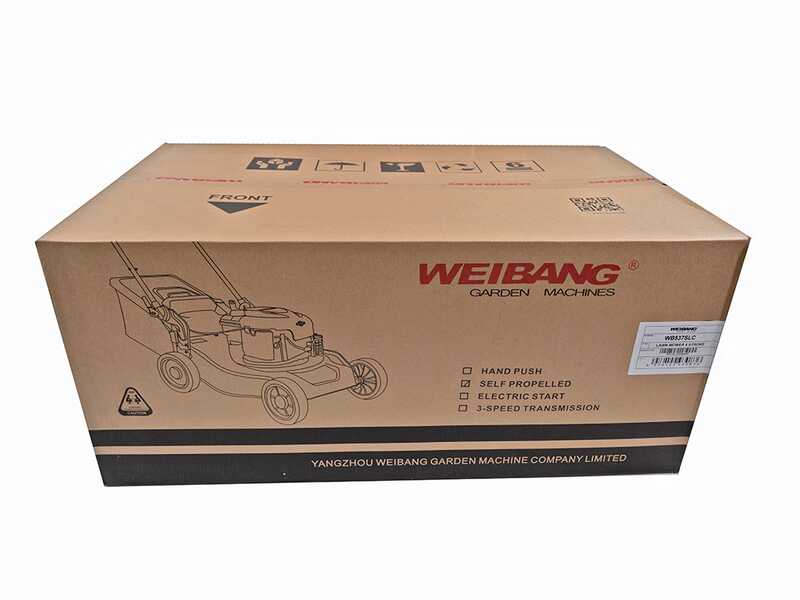

The lawn mower is shipped in its original packaging.

Grass collector 60L

Mulching plug

Side discharge deflector

The Instructions manual is included in the package.
