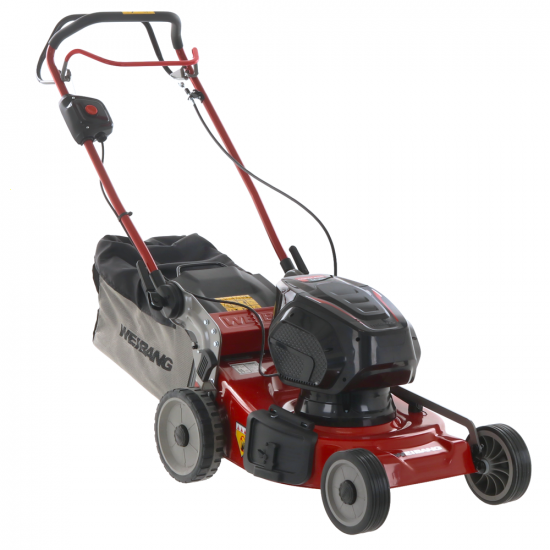

WEIBANG WB502SE3 Self-propelled Battery-powered Lawn Mower - 120 V/4Ah Motor - 4 in 1

The WEIBANG WB502SE3 is a self-propelled battery-powered lawn mower.

Voltage: 120 V
Amperage: 4.0Ah

1 Weibang quick battery charger and lithium-ion battery are included with the lawn mower.
Thanks to its high quality, reliability and power, we can consider this motor as one of the top-quality battery-powered motor for machineries in this category. This 800W brushless motor represents all the quality of Weibang brand products.

Ideal for mowing lawns without the bulk and weight of a petrol engine and without a power cable. Very useful if you don't have a power socket near the cutting area.

The Weibang lawn mower is equipped with a powerful 120 V battery and powered by a 800W brushless motor, thus resulting among the most powerful cordless lawn mowers on the market.

Wheels size:

• Rear wheels: 23 cm (9")
• Front wheels: 20 cm (8")

The Weibang lawn mower is provided with a sturdy 53 cm steel housing and a multifunction 49 cm cutting blade.

This 4 in 1 machine is equipped with the following cutting systems:

• Grass collection system (60 L grass collector)
• Mulching (mulching plug included)
• Rear discharge
• Side discharge (deflector included)

The machine is equipped with a centralised cutting height adjustment by means a single lever in 8 different positions: 21mm / 25.4mm / 30.7mm / 37.4mm / 44.3mm / 52.2mm / 60.5mm / 70mm

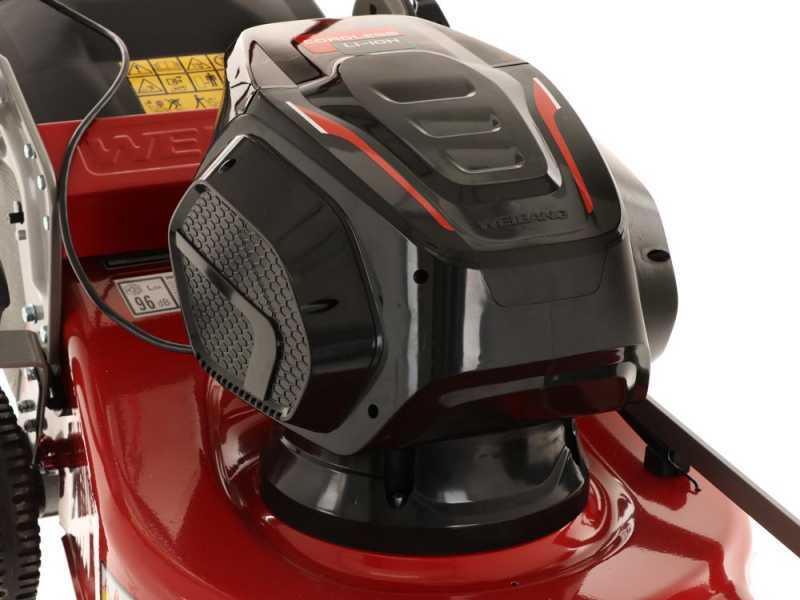

The lawn mower is powered by an 800W brushless motor.

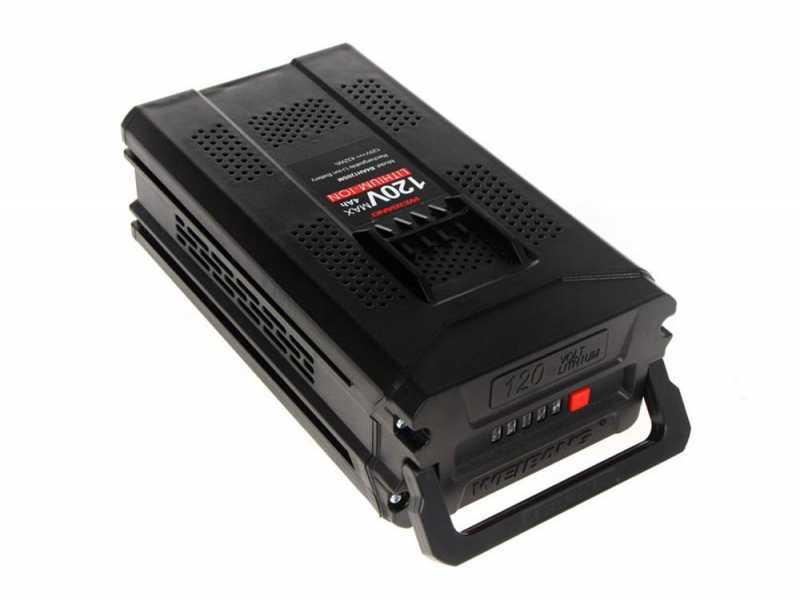

The housing of the 120 V 4.0Ah battery is placed in the front part of the machine.

Weibang battery-powered motor.

Simply lift the cover and enter the battery to start the machine. Focus on the battery housing

Focus on the safety key

The 120 V lithium-ion battery can be recharged at any time (just like the batteries of modern smartphones, no memory effect) so it is always ready to use. It lasts approx. 3 times longer than a standard battery. The battery is equipped with a convenient charging indicator and an start button to prevent unwanted switching on of the unit. The charging time is approx. 1/2 h. The Weibang vertical quick battery charger is included.

Main advantages of the battery-powered electric motor

• This lawn mower is more reliable than a petrol one, thanks to its electric motor. No spark plug, filters, oil dipstick, carburettors, etc. or components which can cause problems.
• Much lighter
• Zero maintenance
• Lower consumption and drastically reduced operating costs compared to petrol engine models (great cutting results with minimal power required). Moreover, the Operator won’t have to refuel (the fuel should always be fresh).
• Zero vibrations thanks to the electric motor. Instead, almost all engine-powered machines, which are not equipped with an anti-vibration system on steel springs, have a very high degree of vibrations, making the work quite unpleasant.
• Zero smoke emission, zero impact on the environment and, above all, on the Operator’s health.
• Much quieter and therefore pleasant to use than a petrol lawn mower.

The machine is equipped with:

* The batteries can be used

• In series
• The voltages (V) are summed up
• The capacity (Ah) IS NOT summed up
• In parallel
• The voltages (V) ARE NOT summed up
• The capacity (Ah) is summed up

The machine is a traditional 4 in 1 lawn mower, provided with rear discharge, side discharge, grass collection and mulching cutting system.

Traditional grass collection system: 60 L grass collector.

REAR DISCHARGE SYSTEM

This system allows mowing without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

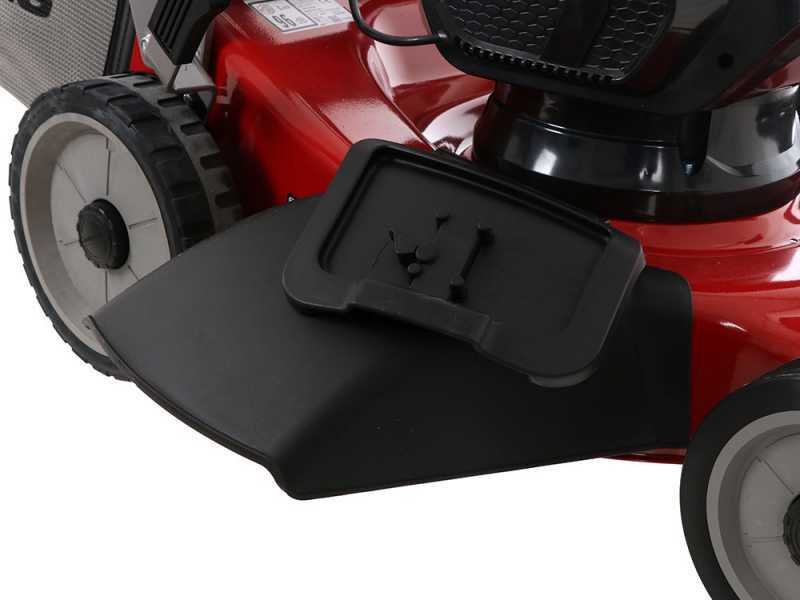

MULCHING CUTTING SYSTEM

To convert the machine for the mulching cut, simply remove the grass collector and enter the mulching plug supplied, which automatically activate the mulching cutting system.

WHAT IS MULCHING

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

SIDE DISCHARGE SYSTEM

Simply fit the proper deflector to operate with this cutting system.

Centralised cutting height adjustment: it is possible to adjust simultaneously the 4 wheels by means a single lever.

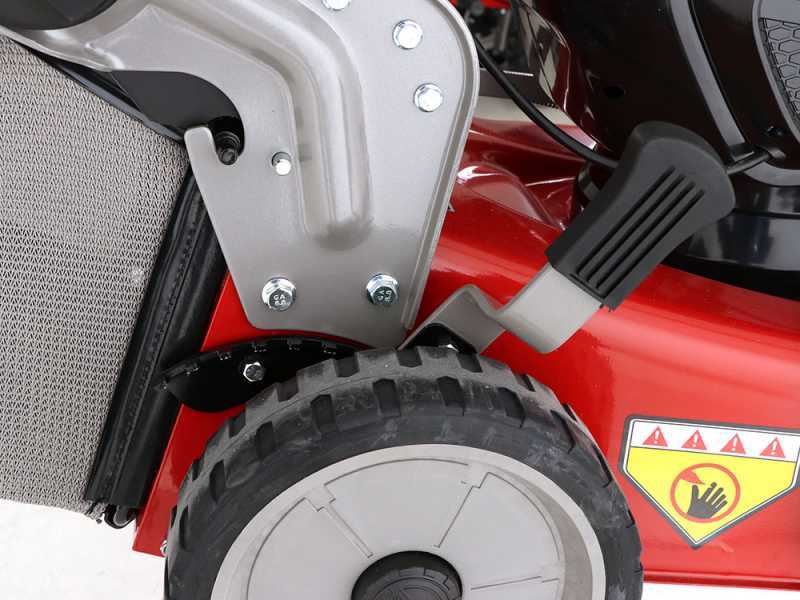

Adjustable cutting height in 8 different positions from 21 mm to 70 mm thanks to the proper lever placed near the right rear wheel.

The machine is provided with rear-wheel drive.

Sturdy steel housing.

The machine has a net weight of 40 Kg.

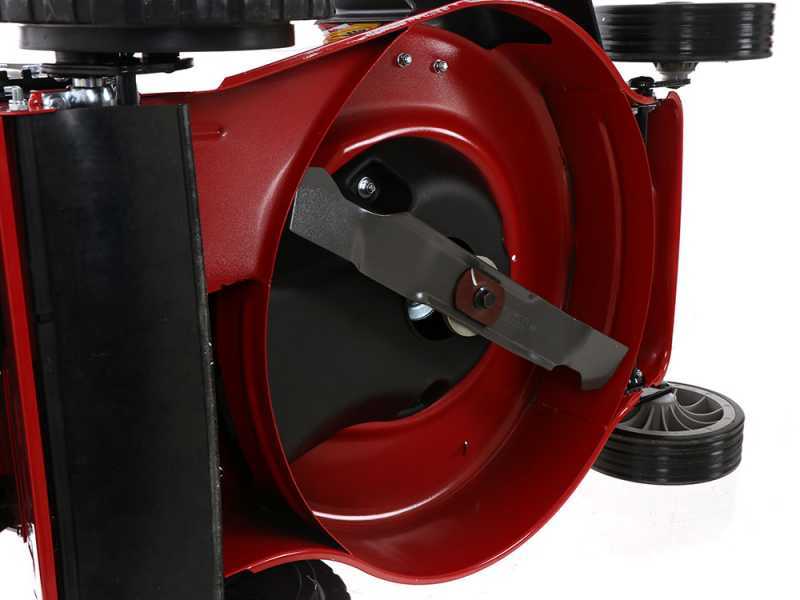

The blade is entirely made of steel, featuring a 53 cm cutting width and a shaped profile.

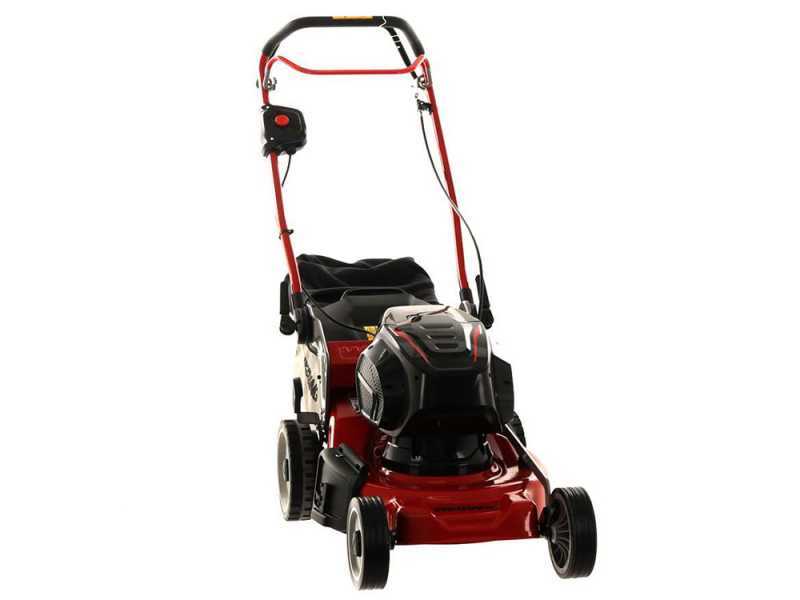

The safety system of this lawn mower is particularly well-finished. Focus on the controls:

Blade engagement lever (in front of the handlebar)

Self-propelling engagement lever (behind the handlebar)

Safety button for starting the machine

Millimetric handlebar tilt adjustment thanks to the handy knobs.

Plastic handlebar with soft-grip which ensures a high comfort during use.

The handlebar can be folded for storage.

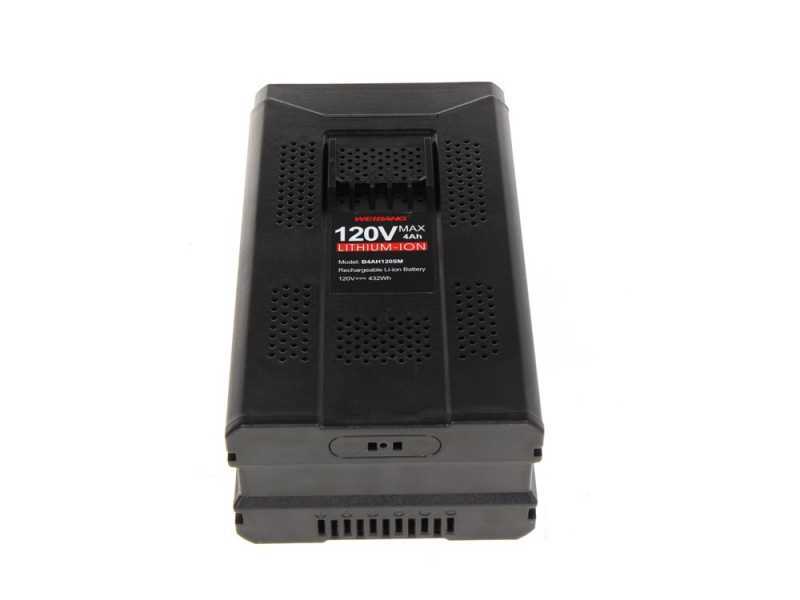

LONGER LIFE: up to 3 times higher than the nickel–cadmium batteries, reducing the need to recharge during long periods of use.
Ideal for medium-large gardens.

FULL CHARGE FOR THE ENTIRE BATTERY LIFE: the charge of the lithium-ion batteries does not fade. Unlike nickel-cadmium batteries, which power gradually decreases, lithium-ion batteries’ cells maintain constant power throughout the entire cycle. The same charge for the entire cycle without reducing the motor speed. The battery is running at full power until the charge is depleted.

LONGER CHARGE LIFE: lithium-Ion batteries last 3-4 times longer than traditional Nickel-Cadmium batteries and their power storage lasts longer so they lose less power. Lithium-ion batteries can be recharged up to 2000 times!

LIGHTWEIGHT: lithium-ion batteries have the best power-to-weight ratio. They weigh 1/3 of nickel-cadmium ones.

ENVIRONMENTALLY-FRIENDLY: lithium battery-powered tools are recyclable and are produced without heavy metals.

NO MEMORY EFFECT: lithium-ion batteries can be recharged at any time without negative memory effect. Indeed, they don't fail to provide maximum power even after hundreds of charge cycles.
Few minutes of charge are enough to complete the work.

LOW DISCHARGE RATE: low run down rate (up to 5 times lower than nickel-cadmium batteries) so your lawn mower will be ready to use even after months of storage.

BATTERY CHARGER: lithium-ion batteries chargers reduce energy consumption by an average of 35%.
