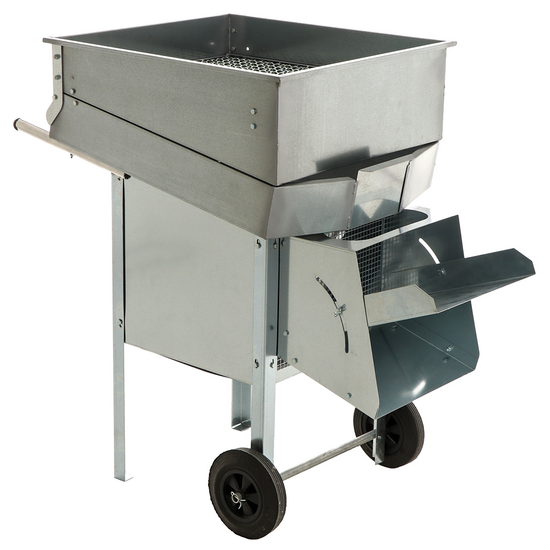

Turbo 11-S Vibra - Electric vibrating olive leaf remover - With pre-filtering grid and speed variator

The AgriEuro Turbo 11-S electric leaf remover is a machine designed to clean olives before the crushing stage.

This model uses an electric motor that generates forced ventilation combined with vibration, which facilitates the movement of the olives on the work surface. Thanks to this dual action, the device removes leaves, twigs and impurities from the olives, resulting in a cleaner raw material that is suitable for the production of high-quality extra virgin olive oil.

The structure of the AgriEuro Turbo 11-S olive leaf remover is made of galvanised metal, with a functional and sturdy design. Its compact size allows it to be used even in small spaces.

The machine is equipped with a first-stage grid that retains the largest residues, preventing them from compromising the subsequent extraction process. Two other protective grids safeguard the fan and air conveyor, improving safety during use.

The two front handles and rear wheels make transport easy, allowing the leaf remover to be moved easily within the working area.

The 0.35 kW electric motor, powered by 220 V - 50 Hz, ensures operation at an adjustable speed starting from a minimum of 2600 rpm.

Production capacity ranges from 2000 to 4000 Kg/h, making the machine suitable for both small farms and professional contexts.

Here are some of the machine's distinctive features:

• Electric motor: forced ventilation and vibration to move the olives, promoting more effective separation of impurities.
• High production: processing capacity between 2000 and 4000 Kg/h, also suitable for intensive processing in the countryside or oil mill.
• Galvanised structure: sturdy and resistant, designed to withstand long-term use without deformation or corrosion.
• Easy transport: two wheels and handles allow for quick and effortless movement.

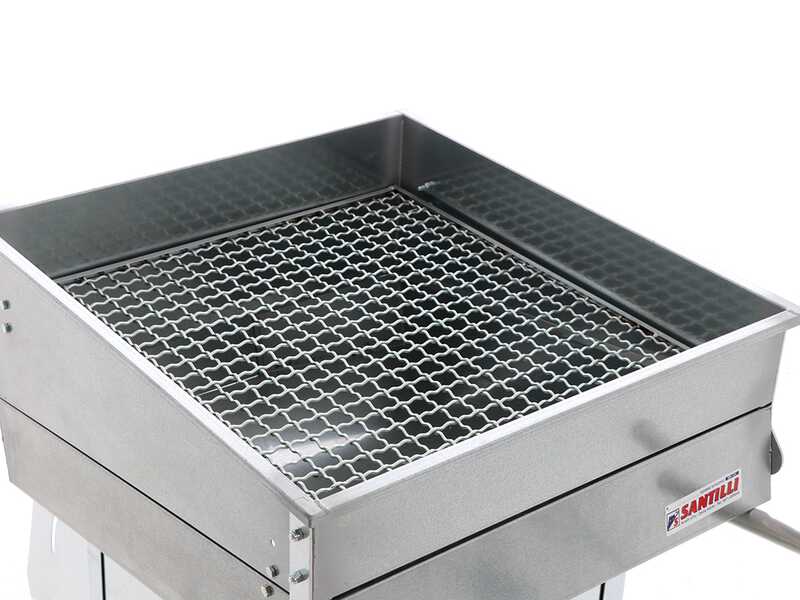

• Filter grid: pre-filtering system that retains leaves and twigs, ensuring clean olives ready for crushing.

The operation of the leaf remover, as simple as it is effective, uses the ventilation produced by the electric motor to quickly clean the olive harvest of any type of superfluous material such as leaves and other impurities.

At the heart of the system is a blade fan connected to an eccentric: this element generates a slight mechanical vibration that keeps the olives in constant motion on the separation grid. Thanks to this oscillatory motion, the olives never accumulate in one place, but are moved and distributed evenly.

At the same time, the fan produces a powerful air flow that blows away lighter materials such as leaves and small residues, leaving the olives perfectly clean.

The bulkhead located directly on the hopper allows the flow of product to be controlled by adjusting its opening.

One way to adjust the cleaning efficiency is to manage the angle of the front support using the wing screws on the sides.

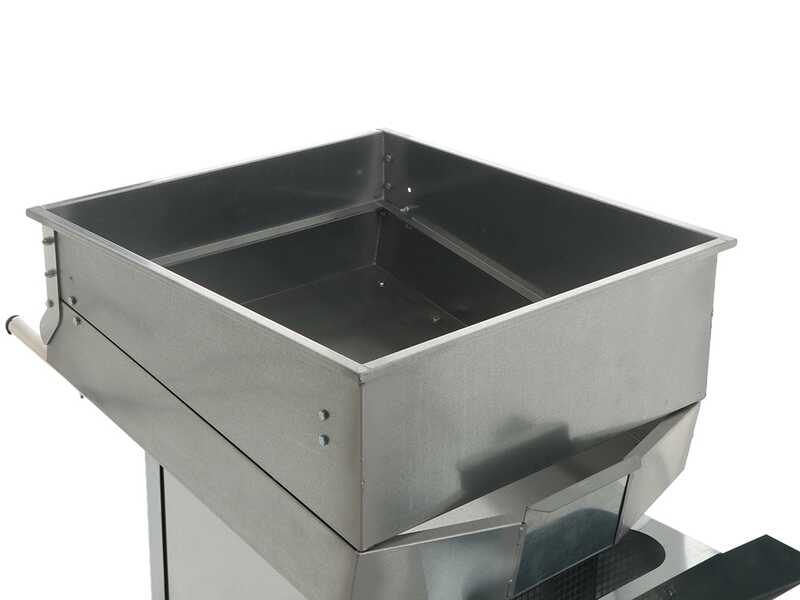

The product to be cleaned is placed in the large 64 x 60 cm tank.

The cleaned product will fall directly under the lower part of the front support.

The vibration system is a key element in the defoliation phase.

The vibrating grid keeps the crop in constant motion, generating a shaking action that helps detach leaves and small twigs. This prevents accumulation and ensures a regular flow of product along the work surface.

The vibration works in synergy with the ventilation:

• The grid moves the material
• The air flow expels light parts, such as leaves, and allows the clean olives to fall.

The combination of vibration and ventilation effectively reduces the presence of impurities in the harvest. It also offers continuous operation and consistent results, simplifying the cleaning process and significantly reducing processing times.

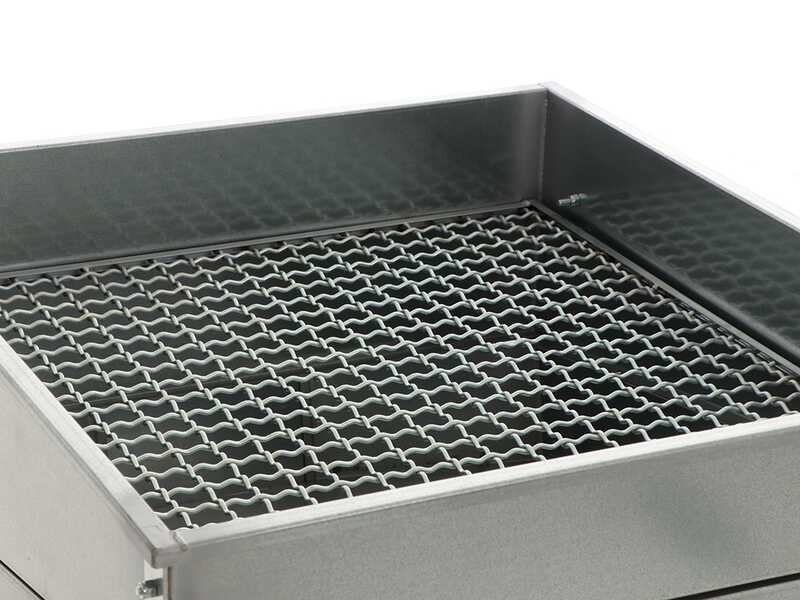

The pre-filtering grid of this AgriEuro leaf remover can be opened for easy cleaning.

The frame containing the grid lifts to a vertical position. In this position, any residue remaining after filtering the olives can be dropped. It is then returned to a horizontal position for work.

The grid, which is locked between two guides, can be removed from its housing with a simple movement for more thorough cleaning.

The leaf remover is equipped with a powerful electric motor with the following characteristics:

• Power output: 0.35 kW
• Voltage: single-phase 220 V - 50 Hz
• Minimum speed: 2600 rpm

The motor drives a 5-blade fan located under the hopper and positioned to channel the air flow extremely efficiently, optimising performance.

The machine is equipped with a protective grid for the fan and air conveyor.

The leaf remover operates thanks to a system that combines air flow with mechanical vibration induced by an eccentric mounted on the fan shaft.

The leaf remover is made of galvanised steel.

Detail of the large wheels for moving the machine

Start button with speed and vibration regulator

Carrying handles

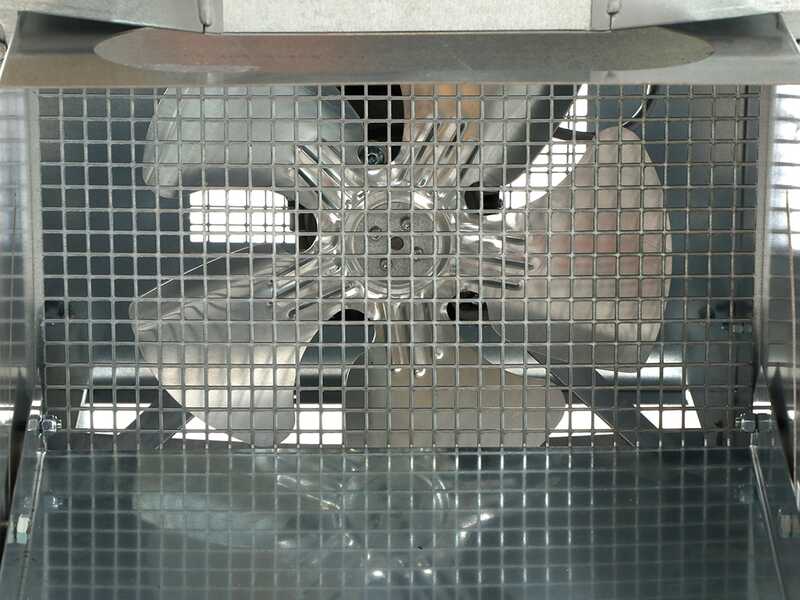

Fan protective grid

The first stage grid can be removed from its housing for more thorough cleaning.

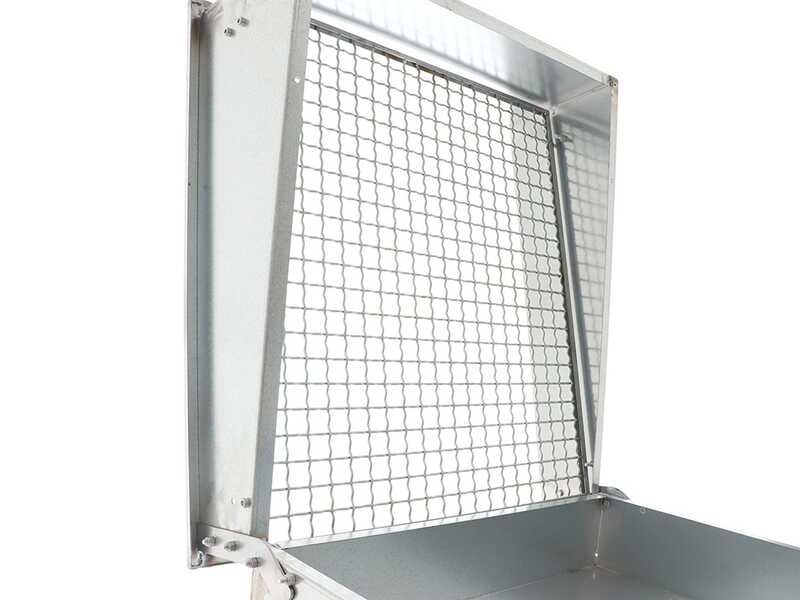

The grid can be opened to facilitate cleaning.

Adjust the deflector angle using the wing screws on the sides:

• Fully open
• Fully closed
