Tre Spade TC-32 INOX/2HP - Electric Meat Mincer - 1500W - N.32

Add a question
ID: 111122

EAN: 8024779002937

MPN: F03300EF/I

8,0/10
After-sales assistance & Spare parts
Tre Spade TC-32 INOX/2HP - Electric Meat Mincer - 1500W - N.32
Motor type
Induction
Rated power
2 Hp
Certifications
CE professional
Attachment dimensions
No.32
Accessory material
Stainless steel
Engine cover
Engine cover
Hourly output
320 Kg/h
Transmission type
Gears
Funnel material
Stainless steel
Weight
28 Kg
Manufacturing country
Italy
Product Features
Model:
TC-32 INOX/2HP
Machine body material:
Stainless steel
Certifications:
CE professional
Power output:
1500 W
Hourly output:
320 Kg/h
Die plate material:
Stainless steel
Engine cover:
Engine cover
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
2 Hp
Power supply:
220 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears
Gear unit type :
With gears
Gear material:
High-strength steel
Transmission protective cover:
Die-cast aluminium
Cutting data
Accessory material:
Stainless steel
Attachment dimensions:
No.32
No.32 Accessory:
Funnel material:
Stainless steel
Meat grinder die plate dimensions:
N. 32
Blade material:
Stainless Steel
Equipment
Anti-vibrating system:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
28x56x43 cm
Net weight:
28 Kg
Packaging:
Original packaging
Gross weight (packaging included) :
30 Kg
Assembly time:
5 minutes
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 26/03/2025 - 01/04/2025
€ 1.407,12
Vat included

You're viewing:
Customers also viewed:
Description

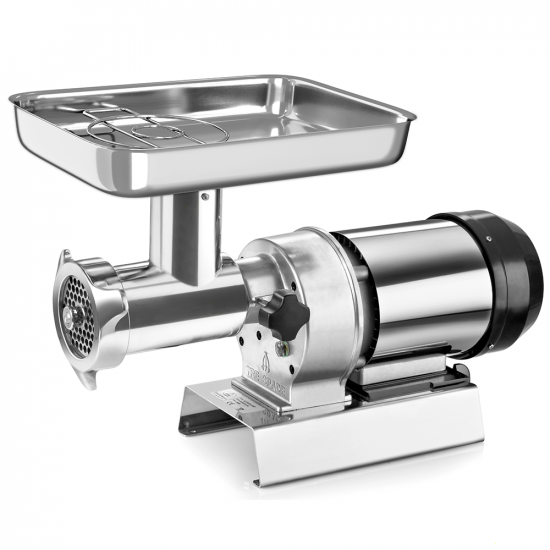

Tre Spade TC-32 INOX/2HP - Electric Meat Mincer - 1500W - N.32

The Tre Spade TC-32 Inox/2HP meat mincer is mainly made of stainless steel, a material that lends durability and solidity to components such as the body, propeller, ring nut, hopper and motor housing.

The use of stainless steel not only makes the device strong and durable, but also makes cleaning easier.

The machine is equipped with a plate and knife, also made of stainless steel, built in with a self-sharpening system.

Stainless steel is also used for the base of the mincer, thus ensuring excellent stability.

A distinctive feature of the device is the three-position switch, which allows the machine to operate in reverse mode.

The mincer operates via a single-phase asynchronous induction motor, designed for uninterrupted use, operating at a 220V voltage and 50Hz frequency, providing a power of 1500W, equivalent to 2 HP.

In use, the propeller can reach 120 rpm, with an output of approximately 320 kg/h.

The unit features oil-bathed gears and non-skid rubber feet, resulting in greater stability.

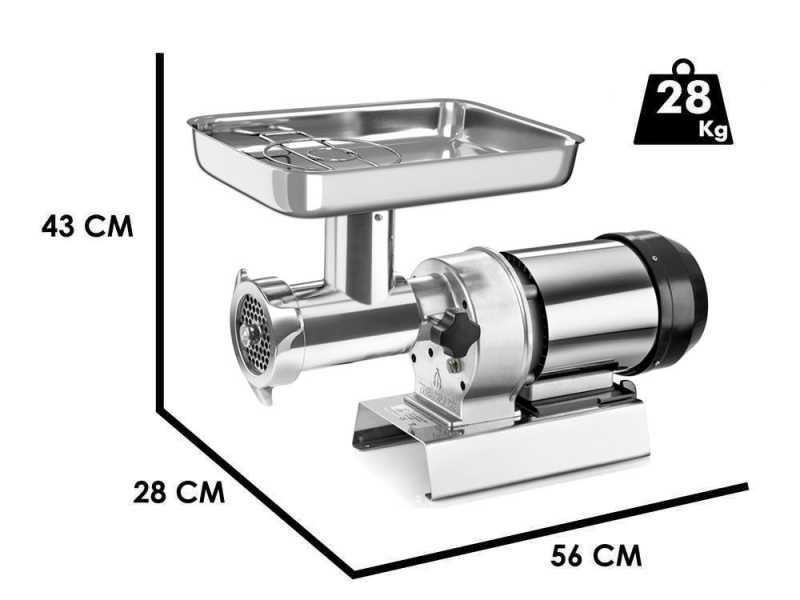

Its structure can be easily disassembled, thus simplifying cleaning and maintenance. Weighing 28 kg and measuring 28x56x43 cm, the mincer combines power and compactness.

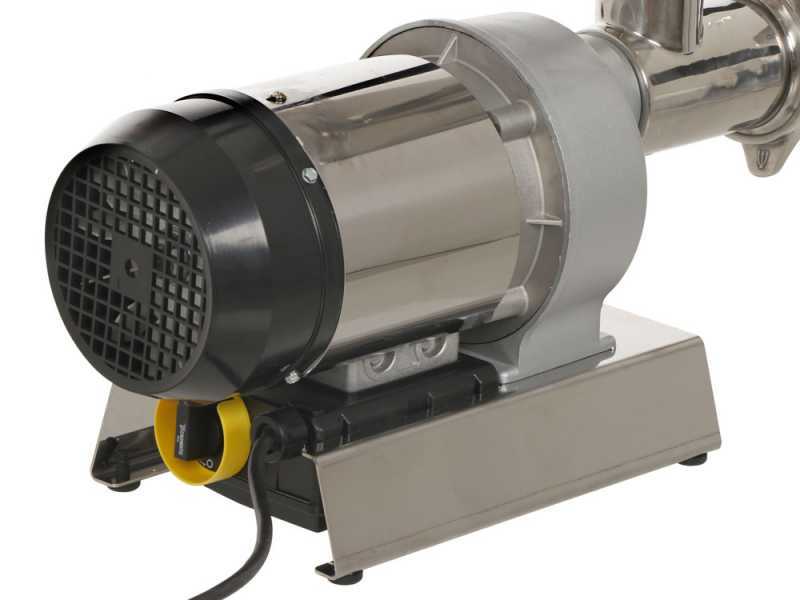

Motor and Transmission - Machine Body

This machine is equipped with a 1500W, 220 V, continuous duty, electric induction motor.

The asynchronous induction motor is one of the most popular electric motors, operating on the principle of electromagnetic induction.

It is called "asynchronous" because the speed of the rotor is not synchronous with that of the stationary magnetic field. These motors are known for their simple design and reliability.

Main Features:

  • Stainless steel body, propeller, ring nut, hopper and motor housing
  • Stainless steel base
  • 220V / 50Hz single-phase asynchronous induction motor approved for uninterrupted use
  • Quick and handy disassembly for easy and quick cleaning
  • Output power: 1500 W (2 HP)
  • Propeller revolution: 120 rpm
  • Weight: 28 Kg
  • Footprint: 28X56X43 cm
  • Non-skid rubber feet
  • Oil-bath steel gears

Meat Mincer

The Tre Spade TC-32 INOX/2HP meat mincer features a food-grade stainless steel body, propeller and ring nut, while elements such as the pestle are made of food-grade plastic.

The supplied 8 mm hole die is made of hardened steel, as is the self-sharpening knife.

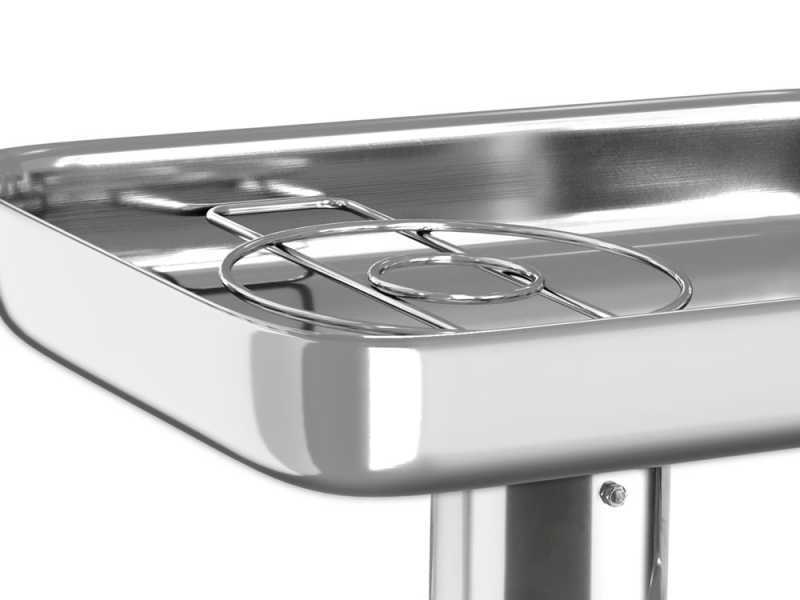

Large stainless steel funnel.

Machine operation is extremely simple and intuitive.

Thanks to the numerous die plates (sold separately) users can grind the meat with different grains.

Stainless steel wire on the hopper, preventing the hand from slipping through and ensuring greater safety

The meat mincer can be disassembled for an easy cleaning of all its components.

Free items & Standard equipment

Standard Equipment

The machine is shipped in its original packaging along with the instructions manual
