Tre Spade TC-22 Inox/80 - Electric Meat Mincer - 600W - n.22

Questions & Answers (1)
ID: 111120

EAN: 8024779003064

MPN: F02200/E

8,0/10
After-sales assistance & Spare parts
Tre Spade TC-22 Inox/80 - Electric Meat Mincer - 600W - n.22
Motor type
Induction
Rated power
0.8 Hp
Certifications
CE professional
Attachment dimensions
No.22
Accessory material
Stainless steel
Engine cover
Engine cover
Hourly output
160 Kg/h
Transmission type
Gears
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model:
TC-22 Inox/80
Machine body material:
Stainless steel
Certifications:
CE professional
Power output:
600 W
Hourly output:
160 Kg/h
Die plate material:
Stainless steel
Engine cover:
Engine cover
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
0.8 Hp
Power supply:
220 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears
Gear unit type :
With gears
Transmission protective cover:
Die-cast aluminium
Cutting data
Accessory material:
Stainless steel
Attachment dimensions:
No.22
No.22 Accessory:
Funnel material:
Stainless steel
Meat grinder die plate dimensions:
N. 22
Blade material:
Stainless steel
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

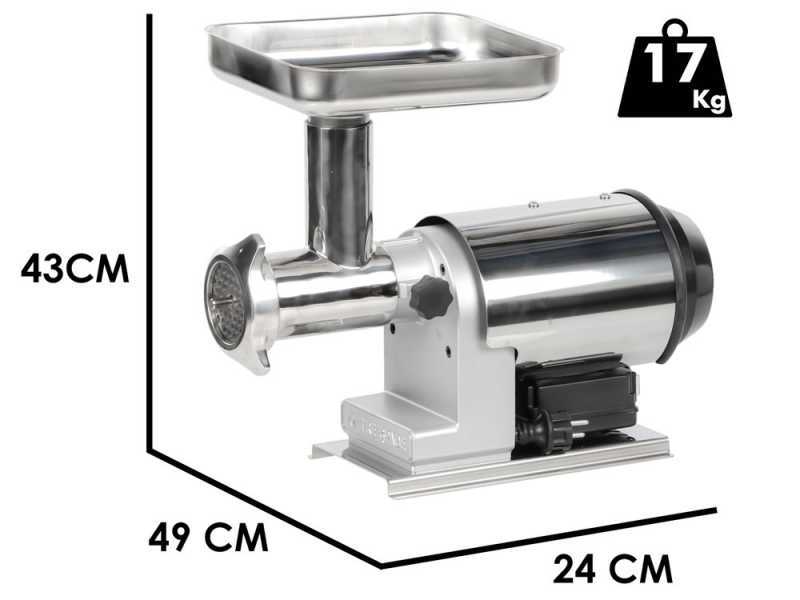

Product dimensions in cm (L x W x H):
24x49x43 cm
Net weight:
17 Kg
Packaging:
Original packaging
Gross weight (packaging included) :
19 Kg
Assembly time:
5 minutes
Arriving on 07/04/25
Free Shipping
Estimated delivery: 11/04/2025 - 17/04/2025
€ 749,60
Vat included

You're viewing:
Customers also viewed:
Description

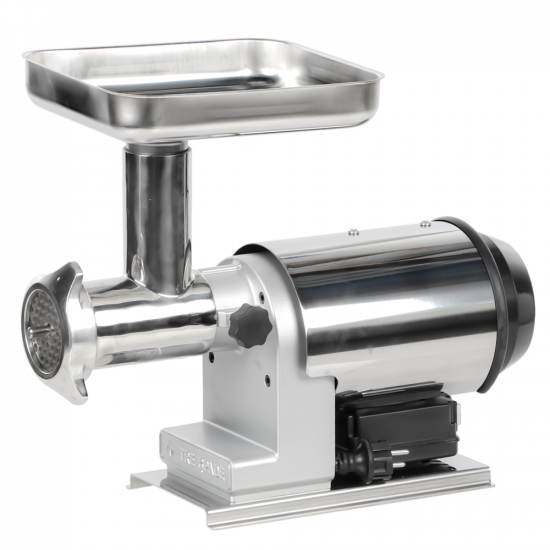

Tre Spade TC-22 Inox/80 - Electric Meat Mincer - 600W

The Tre Spade TC-22 Inox/80 meat mincer is mainly made of stainless steel, making parts such as the body, propeller, ring nut, hopper and motor housing robust and durable.

Using stainless steel not only provides durability, but also makes cleaning the appliance remarkably easy.

It boasts a plate and a knife, both made of stainless steel and equipped with a self-sharpening mechanism.

Its base is also made of stainless steel, further emphasizing consistency in material choice.

One of the distinctive features is the three-position switch functionality, which allows the mincer to operate in reverse direction.

From a technical point of view, the device is powered by a single-phase asynchronous induction motor, certified for uninterrupted use. With a 220V voltage and 50Hz frequency, the motor provides a power of 600W, equivalent to 0.80 HP.

During operation, the propeller reaches a speed of 80 rpm, ensuring an output of approximately 160 kg/h.

A further advantage is the simplicity with which it can be disassembled, making cleaning and maintenance easier. Lastly, with a 17 kg weight and dimensions of 23x49x43 cm, it is a robust yet compact unit.

There may be differences in position, colour or shape of the components depending on supply. However, these differences in no way affect the performance or quality of the product.

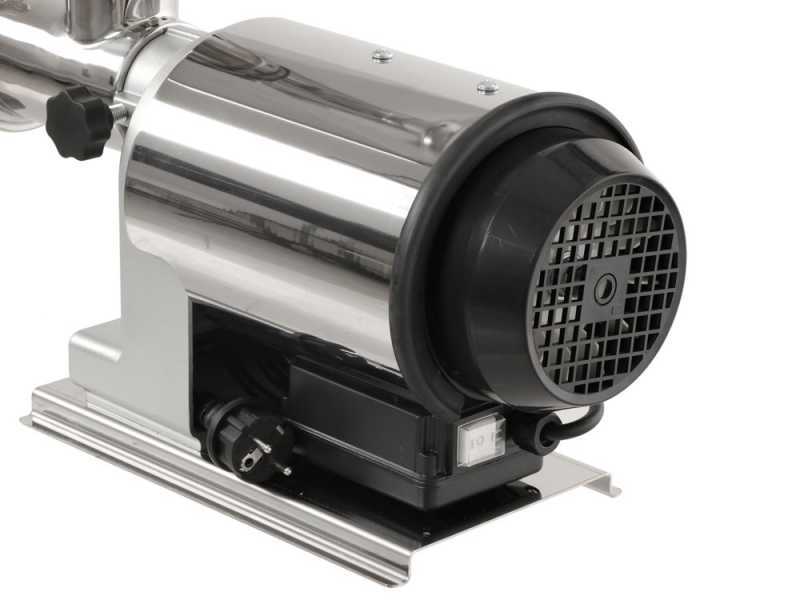

Motor and Transmission - Machine Body

This machine is equipped with a 600W, 220 V, continuous duty, electric induction motor.

The asynchronous induction motor is one of the most popular electric motors, operating on the principle of electromagnetic induction.

It is called "asynchronous" because the speed of the rotor is not synchronous with that of the stationary magnetic field. These motors are known for their simple design and reliability.

Main Features:

  • Stainless steel body, propeller, ring nut, hopper and motor housing
  • Stainless steel base
  • 220V / 50Hz single-phase asynchronous induction motor approved for uninterrupted use
  • Quick and handy disassembly for easy and quick cleaning
  • Output power: 600 W (0.80 HP)
  • Propeller revolution: 80 rpm
  • Weight: 17 Kg
  • Footprint: 24x49x43 cm

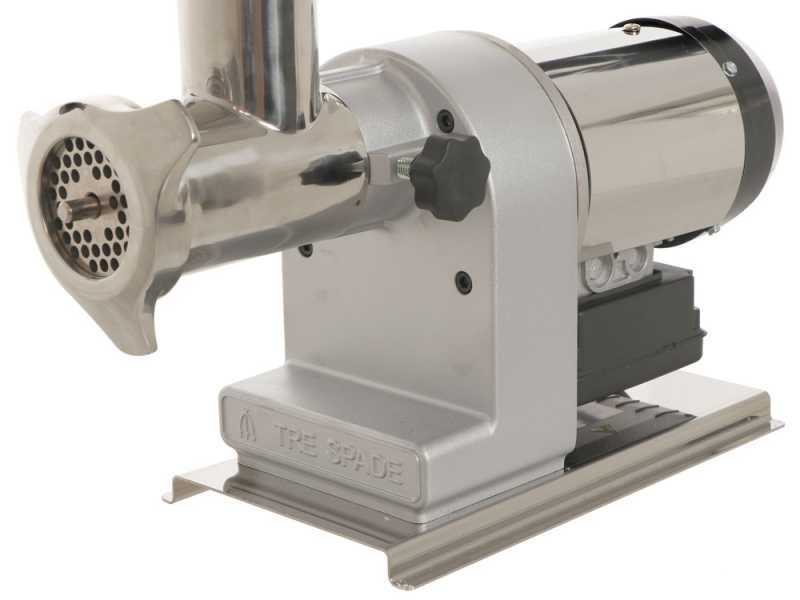

Meat Mincer

The Tre Spade TC-22 INOX/80 meat mincer features a food-grade stainless steel body, propeller and ring nut, while elements such as the pestle are made of food-grade plastic.

The supplied 8 mm hole die is made of hardened steel, as is the self-sharpening knife.

Large stainless steel funnel.

Machine operation is extremely simple and intuitive.

Thanks to the numerous die plates (sold separately) users can grind the meat with different grains.

The meat mincer can be disassembled for an easy cleaning of all its components.

Free items & Standard equipment

Free Items and Standard Equipment

The machine is shipped in its original packaging along with the instructions manual
