Tre Spade TC-22 Elegant Plus - Electric Meat Mincer - 600W - n.22

Add a question
ID: 111128

EAN: 8024779001435

MPN: F19500

8,0/10
After-sales assistance & Spare parts
Tre Spade TC-22 Elegant Plus - Electric Meat Mincer - 600W - n.22
Motor type
Induction
Rated power
0.8 Hp
Certifications
CE professional
Attachment dimensions
No.22
Accessory material
Stainless steel
Engine cover
Engine cover
Hourly output
160 Kg/h
Transmission type
Gears
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model:
TC-22 Elegant Plus
Machine body material:
Cast iron
Certifications:
CE professional
Power output:
600 W
Hourly output:
160 Kg/h
Die plate material:
Stainless steel
Engine cover:
Engine cover
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
0.8 Hp
Power supply:
220 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears
Gear unit type :
With gears
Transmission protective cover:
Die-cast aluminium
Cutting data
Accessory material:
Stainless steel
Attachment dimensions:
No.22
No.22 Accessory:
Funnel material:
Stainless steel
Meat grinder die plate dimensions:
N. 22
Blade material:
Stainless steel
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

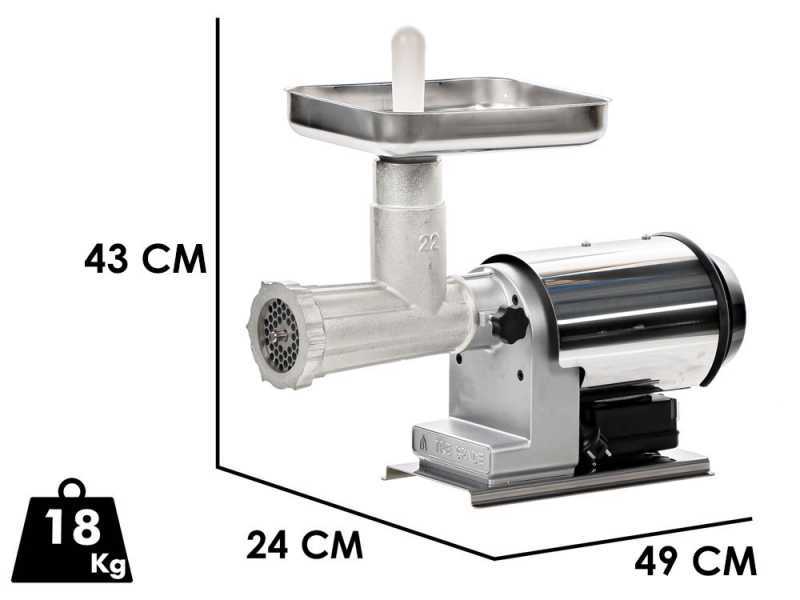

Product dimensions in cm (L x W x H):
24x49x43 cm
Net weight:
18 Kg
Packaging:
Original packaging
Gross weight (packaging included) :
19 Kg
Assembly time:
5 minutes
Prompt Delivery
16 items in stock
Free Shipping
Estimated delivery: 20/03/2025 - 26/03/2025
€ 617,46
Vat included
You're viewing:
Customers also viewed:
Description

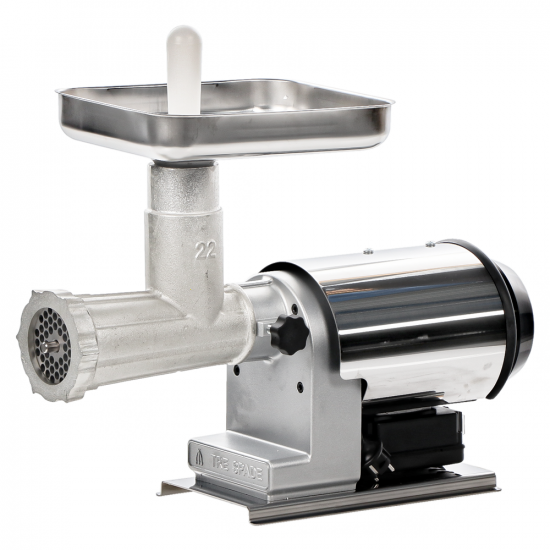

Tre Spade TC-22 Elegant Plus - Electric Meat Mincer - 600W

The Tre Spade TC-22 Elegant Plus is a great option in the professional meat mincer industry.

The meat mincer includes a mincer module made of tin-plated cast iron, a material known for its strength and durability.

The hopper and motor housing are made of stainless steel, which not only ensures durability, but also allows easy cleaning, helping to keep the device clean and shiny over time.

An additional advantage of the Tre Spade TC-22 Elegant Plus is the stainless steel plate and knife.

These components are self-sharpening, ensuring long-lasting performance. The rugged base of the device, also made of stainless steel, ensures stability during use.

It has a single-phase asynchronous induction motor, with technical specifications of 220V and a frequency of 50Hz.

This motor, with a power output of 600W equivalent to 0.80 HP, is approved for continuous use and the propeller turns at 80 rpm, offering an output capacity of approximately 160 kg/h.

All in all, a distinctive feature of the Tre Spade TC-22 Elegant Plus is its modular design that facilitates disassembly, making cleaning and maintenance processes easy and straightforward. Despite its excellent performance, the device weighs 18 kg and measures 24x54x43 cm.

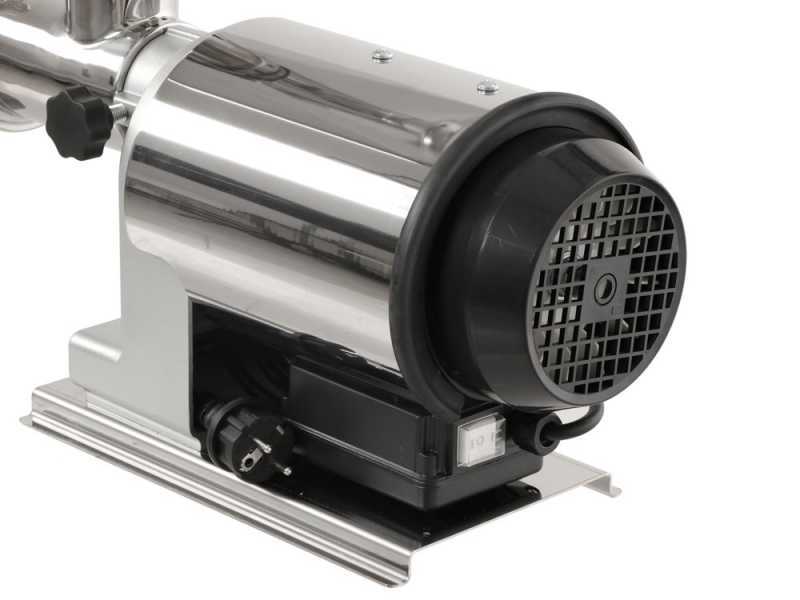

Motor and Transmission - Machine Body

This machine is equipped with a 600W, 220 V, continuous duty, electric induction motor.

The asynchronous induction motor is one of the most popular electric motors, operating on the principle of electromagnetic induction.

It is called "asynchronous" because the speed of the rotor is not synchronous with that of the stationary magnetic field. These motors are known for their simple design and reliability.

Main Features:

  • Tin-plated cast iron body, propeller and ring nut
  • Stainless steel hopper and base
  • Stainless steel base
  • 220V / 50Hz single-phase asynchronous induction motor approved for uninterrupted use
  • Quick and handy disassembly for easy and quick cleaning
  • Output power: 600 W (0.80 HP)
  • Propeller revolution: 80 rpm
  • Weight: 17 Kg
  • Footprint: 24x49x43 cm

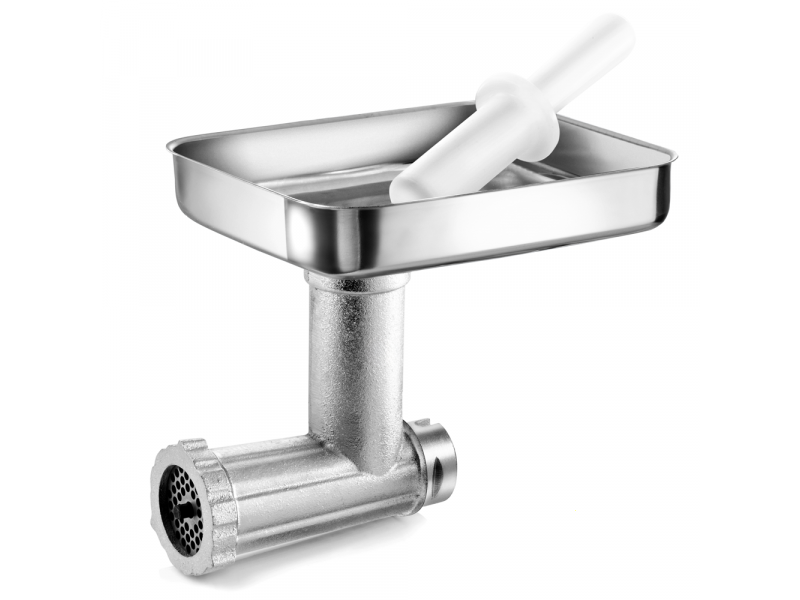

Meat Mincer

The Tre Spade TC-22 Elegant Plus meat mincer features a food-grade stainless steel body, propeller and ring nut, while elements such as the pestle are made of food-grade plastic.

The supplied 8 mm hole die is made of hardened steel, as is the self-sharpening knife.

Large stainless steel funnel.

Machine operation is extremely simple and intuitive.

Thanks to the numerous die plates (sold separately) users can grind the meat with different grains.

The meat mincer can be disassembled for an easy cleaning of all its components.

Free items & Standard equipment

Free Items and Standard Equipment

The machine is shipped in its original packaging along with the instructions manual
