Tre Spade TC-12 EL ECO - Electric Meat Mincer - 480W - N.12

Add a question
ID: 111125

EAN: 8024779004047

MPN: F19000EC

8,0/10
After-sales assistance & Spare parts
Tre Spade TC-12 EL ECO - Electric Meat Mincer - 480W - N.12
Technical data
Motor type
Induction
Rated power
0.65 Hp
Certifications
CE domestic
Attachment dimensions
No.12
Accessory material
Cast iron - long
Engine cover
Without carter
Hourly output
100 Kg/h
Transmission type
Gears
Weight
11.5 Kg
Manufacturing country
Italy
Product Features
Model
TC-12 EL ECO
Machine body material
Cast iron
Certifications
CE domestic
Power output
480 W
Hourly output
100 Kg/h
Die plate material
Stainless steel
Engine cover
Without carter
Manufacturing country
Italy
Motor data
Motor type
Induction motor
Motor type
Induction
Rated power
0.65 Hp
Power supply
220 V electric
Manufacturing country
Italy
Transmission data
Transmission type
Gears
Gear unit type
With gears
Transmission protective cover
Die-cast aluminium
Cutting data
Accessory material
Cast iron - long
Attachment dimensions
No.12
No.12 Accessory
Funnel material
Plastic
Meat grinder die plate dimensions
N. 12
Blade material
Stainless steel
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
21x47x41 cm
Net weight
11.5 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
36x38x27 cm
Weight including packaging
12 Kg
Assembly time
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/09/2025 - 29/09/2025
€ 380,07
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

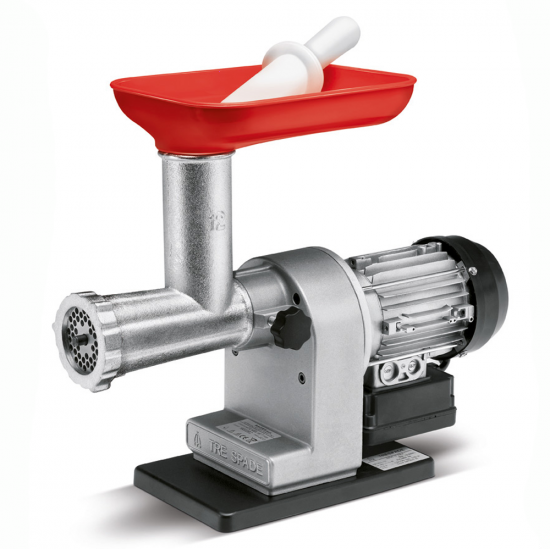

Tre Spade TC-12 EL ECO - Electric Meat Mincer - 480W - N.12

The Tre Spade TC-12 EL ECO meat mincer is a device designed with attention to detail and efficiency.

Most of its components, such as the body, propeller and ring nut, are made of tin-plated cast iron, a solid and durable material. This choice ensures durability and long service life of the appliance.

The hopper is made from moplen, a particularly strong but lightweight plastic. This material mix not only provides an optimal balance between robustness and lightness, but also makes the unit easy to clean.

Among the most important components of the meat mincer are a stainless steel plate and knife. These components are self-sharpening, ensuring consistent performance over time.

The base features anti-vibration dampers.

The meat mincer is powered by a single-phase asynchronous induction motor. This engine operates with a 220V voltage and 50Hz frequency, and is approved for continuous use, making it suitable for professional applications. With a power of 480W, equivalent to 0.65 HP, the mincer propeller reaches a speed of 160 rpm. This capacity allows an hourly output of about 100 kg.

Another noteworthy feature is the ease with which the meat mincer can be disassembled, which makes cleaning and maintenance very easy.

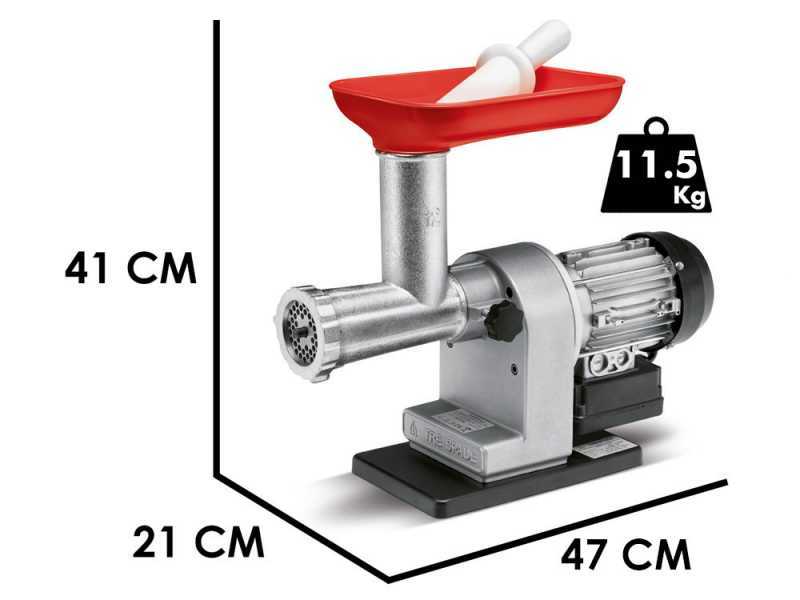

In terms of size, the device weighs a total of 11.5 kg and measures 21x47x41 cm, making it handy and compact.

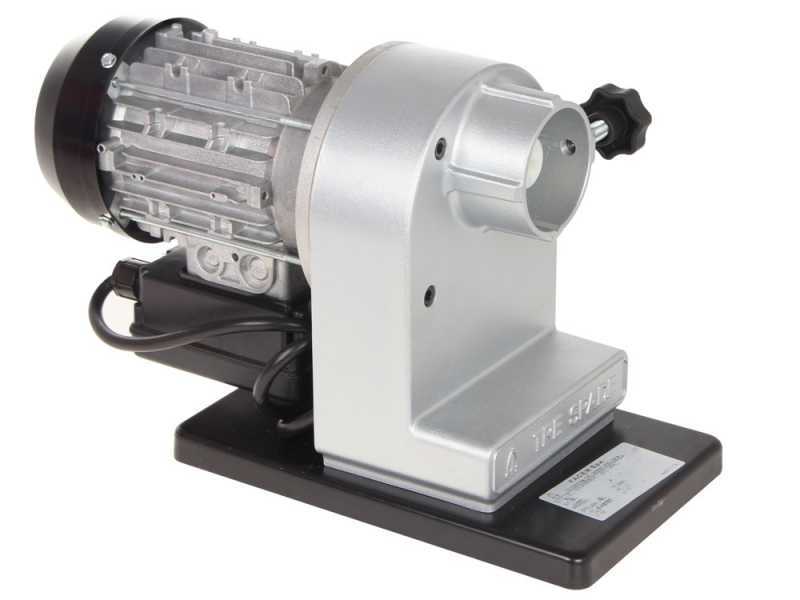

Motor and Transmission - Machine Body

This machine is equipped with a 480W, 220 V, continuous duty, electric induction motor.

The asynchronous induction motor is one of the most popular electric motors, operating on the principle of electromagnetic induction.

It is called "asynchronous" because the speed of the rotor is not synchronous with that of the stationary magnetic field. These motors are known for their simple design and reliability.

Main features:

  • Stainless steel base
  • 220V / 50Hz single-phase asynchronous induction motor approved for uninterrupted use
  • Quick and handy disassembly for easy and quick cleaning
  • Output power: 480 W (0,65 HP)
  • Stainless steel plate and self-sharpening knife
  • Propeller revolution: 160 rpm
  • Weight: 11.5 Kg
  • Footprint: 21x41x47 cm

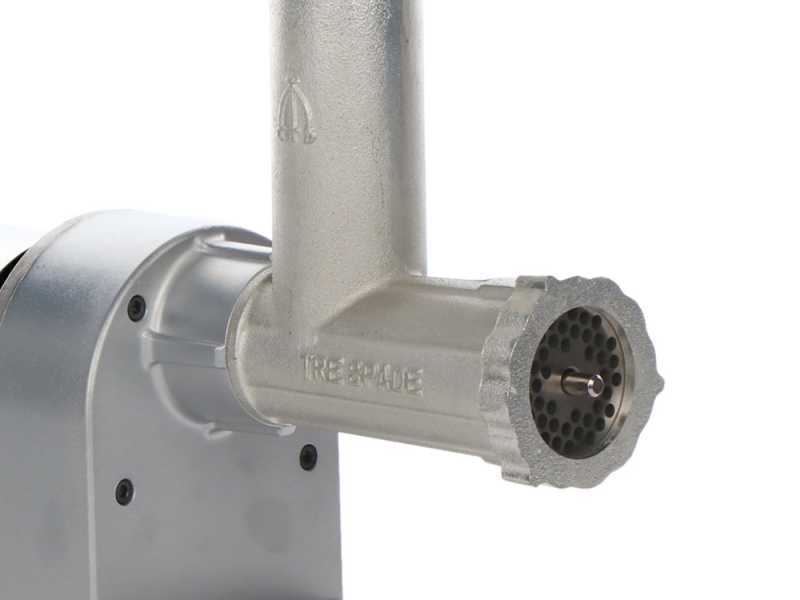

Meat Mincer

The Tre Spade TC-22 EL ELCO meat mincer features a food-grade tin-plated cast iron body, propeller and ring nut, while elements such as the pestle are made of food-grade plastic.

The supplied 6 mm hole die is made of hardened steel, as is the self-sharpening knife.

The large moplen funnel.

Machine operation is extremely simple and intuitive.

Thanks to the numerous die plates (sold separately) users can grind the meat with different grains.

The meat mincer can be disassembled for an easy cleaning of all its components.

Free items & Standard equipment

Free Items and Standard Equipment

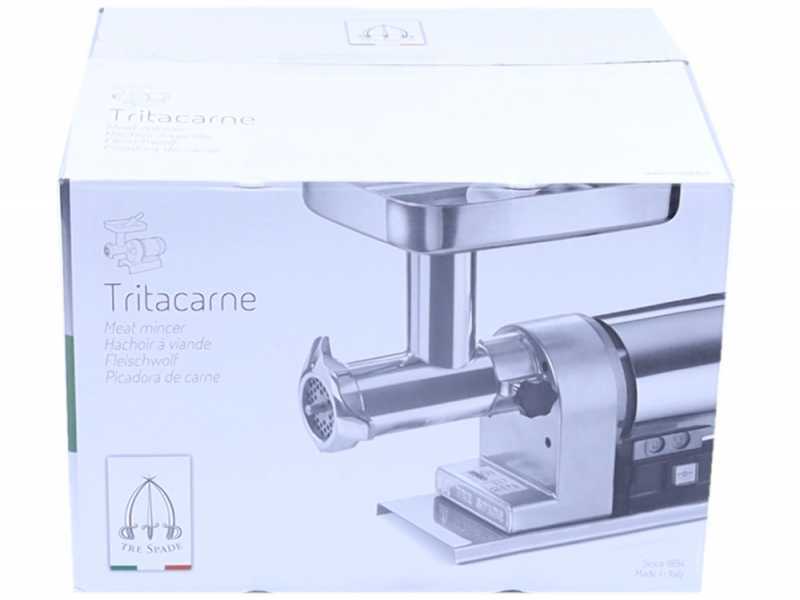

The machine is shipped in its original packaging along with the instructions manual
