Transport Box for Tractor Blackstone B-TB 140 - Tipping transporter - 3 openable side panels

Questions & Answers (2)
ID: 107671

EAN: 8054141543003

MPN: B-TB 140

8,9/10
After-sales assistance & Spare parts
Transport Box for Tractor Blackstone B-TB 140 - Tipping transporter - 3 openable side panels
Body material
Enamelled steel
Sturdiness/Series
Heavy
Load capacity
500 Kg
Body tipping
Manual
Bucket width
133 cm
Bucket depth
83 cm
Product Features
Model:
B-TB 140
Type:
Transporter - Transport Box
Body material:
Enamelled steel
Sturdiness/Series:
Heavy
Operating mode:
Tractor-driven PTO
Load capacity:
500 Kg
Body tipping:
Manual
Bucket width:
133 cm
Bucket depth:
83 cm
Manufacturing country:
China
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
150x96x96 cm
Net weight:
150 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
158x96x62 cm
Weight including packaging:
165 Kg
Assembly time:
15 minutes
Prompt Delivery
16 items in stock
Free Shipping
Estimated delivery: 12/06/2025 - 16/06/2025
Suggested price:
€ 1.152,40
€ 864,30
Vat included
You're viewing:
Customers also viewed:
Description

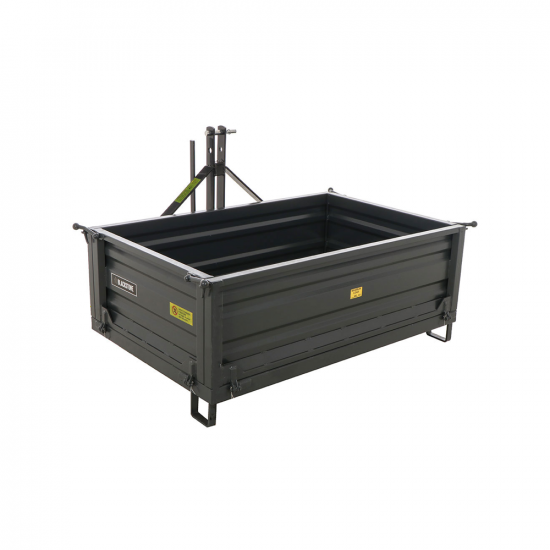

Blackstone B-TB 140 Tipping Transport Box

The Blackstone B-TB 140 tipping transport box is ideal for transporting goods such as machineries, grain, wood, manure, compost, and many others.

The box is equipped with 3 swinging opening side panels, both in the rear and in the sides.

Main features:

  • 3 x 40 cm high sides that can be opened and removed
  • quick-release overturning lever
  • easy to store
  • sturdy construction

Capacity: 410 L

Maximum load capacity: 500 Kg

Box width: approx. 140 cm

Weight: 150 Kg

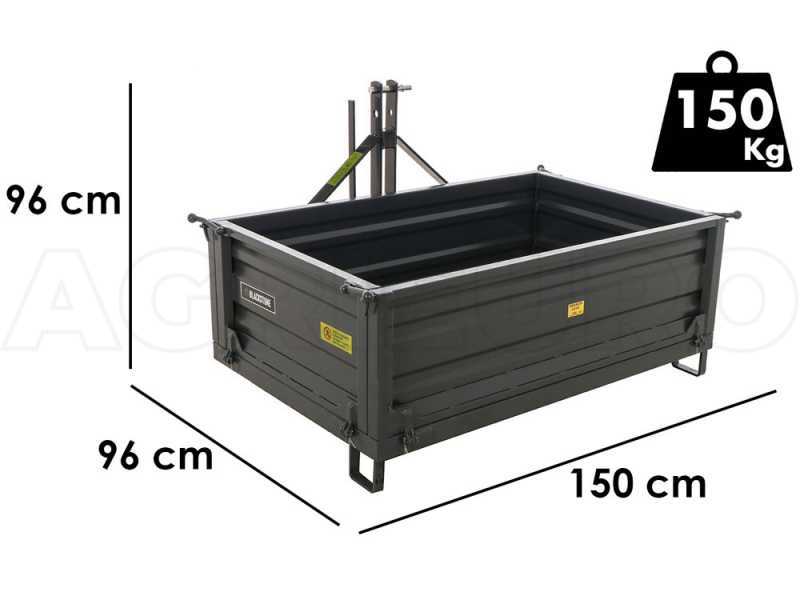

TRP Transport Box overall dimensions:

  • Useful inside box: 133x83x40 cm
  • Maximum overall space required: 150x96x960 cm
  • Sheet metal thickness: 2 mm
  • 3-Point linkage 1-2 (ø 19.0-22.0 mm / 25.0-28.0 mm)
  • Three-point hitch frame thickness: 11 mm
  • Gap between the 2 lower hitches: 500 - 765 mm
  • Loading volume: 0.41 m3

Manual tipping

This Blackstone tractor transport box is equipped with a quick-release tipping lever.

The quick release system is managed by a manual lever:

  • The box is released by simply pulling the lever
  • This allows overturning the box
  • Focus on the pin that locks the tilting mechanism

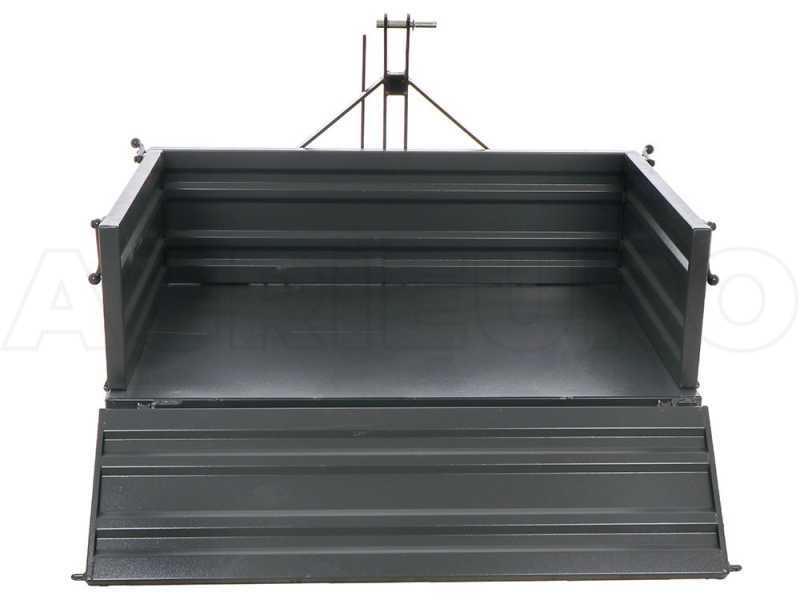

3 Removable side panels

Removable rear and side panels.

By removing the side panels, this transport box can also be used in various configurations. It is also intended for loading soil, sand, grain, and many others.

  • Focus on the side panel engagement / disengagement
  • Focus on the hinges that allow removing the side panels

Possibility to lower or remove only one or even all three sides, transforming the box according to your needs.

Free items & Standard equipment

Standard equipment

The transport box is shipped on pallet.

The instructions manual is included in the package
