Transformer MIG Stanley VIP M165 - MIG-MAG-MOG(GAS-NO GAS) Wire Feed Welding Machine - 120 A - 230V

Questions & Answers (1)
ID: K604225

EAN: 8004386111314

MPN: 11131awelco

7,0/10
After-sales assistance & Spare parts
Transformer MIG Stanley VIP M165 - MIG-MAG-MOG(GAS-NO GAS) Wire Feed Welding Machine - 120 A - 230V
Special offer
FREE
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Wire transformer
Gas / no gas wire (MIG-MAG)
Welding current range (A)
30 - 120
Open circuit voltage
20 Volt
40°C duty cycle
15 %
Wire welding type
MIG - MAG - NO GAS
Generator +/- 15%
Manufacturing country
Italy
Product Features
Model:
VIP M165
Type:
Wire transformer
Gas / no gas wire (MIG-MAG):
Power supply:
Single-phase electric
IP:
21S
Open circuit voltage:
20 Volt
220 V max absorbed power:
3.6 KW
Min. required generator power:
7.2 KW
40°C duty cycle:
15 %
40°C duty cycle:
15%@120A - 60%@60A - 100%@46A
Welding current range (A):
30 - 120
Suitable cored wire:
0.8 - 0.9
Suitable stainless steel wire:
0.8
Suitable aluminium wire:
0.8
Suitable SG2 wire:
0,6 - 0,8
Wire welding type:
MIG - MAG - NO GAS
Generator +/- 15%:
Aluminium Welding (optional):
Yes
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
48 x 34 x 30 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
57 x 29 x 36 cm
Gross weight (packaging included) :
28 Kg
Assembly time:
5 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 11/10/2024 - 15/10/2024
Suggested price:
€ 404,71
-7 %
€ 375,09
VAT Included

You're viewing:
Customers also viewed:
Description

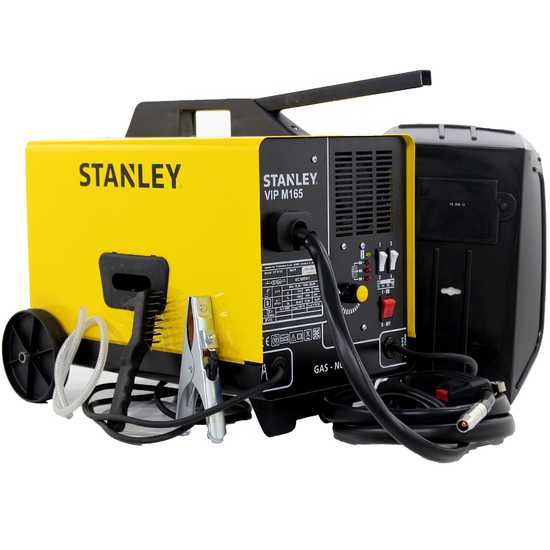

Stanley VIP M165

The transformers MIG Stanley VIP M165 is a MIG-MAG-MOG (GAS e NO GAS) wire feed welding machine. This means that it is suitable for welding operations with gas protection.

MIG/MAG/MOG GAS or NO GAS welding for high product versatility.

User-friendly and reliable product, which is also renowned for the great comfortability and high performance ensured. Its ease of use makes the unit also suitable for less expert operators.

The welding machine is provided with cored wire, which ensures comfortability and convenience to the unit.

It allows welding with cored wire of 0.8 - 0.9 mm diameter, SG2 wire of 0.6-0.8 mm, aluminium wire of 0.8 mm and stainless steel wire of 0.8 mm diameter.

This welding equipment is provided with wheel kit, which makes it a comfortable and easy to transport unit. The machine easy carriage and transport are facilitated due to the handle already assembled to the machine.

This welding equipment can be connected to a power generator with minimum 7.2 KW suggested power output.

Equipped with transport handle for easy carriage and transport.

The machine comes complete with cored wire of 0.9 mm diameter.

Optimum quality and reliability ensured by Made in Italy manufacturing product.

Technical specifications

Input voltage: 230 Volt

Input power: 3.6 kW

Open circuit voltage: 20-32 Volt

Welding current range: 30 - 120 A

Duty Cycle: 15%@120A - 60%@60A - 100%@46A

Cored wire: 0.8 - 0.9 mm Ø

SG2 wire: 0.6 - 0.8 mm Ø

Stainless steel wire: 0.8 mm Ø

Aluminium wire: 0.8 mm Ø

The welding equipment can be connected to a power generator with a minimum suggested power output of 7.2 kW.

According to the CEI EN 60974-1 standard, the technical tests on the welding equipment are carried out at 40°C room temperature and the power source is at thermal power, that is once the machine has worked for a certain time. At lower temperatures or when the welding machine is cold, the useful welding cycle is normally increased.

On/Off switch

Control panel with adjustable parameters

Handle with extendable handle grip for easy transport

Wire and accessories compartment handle

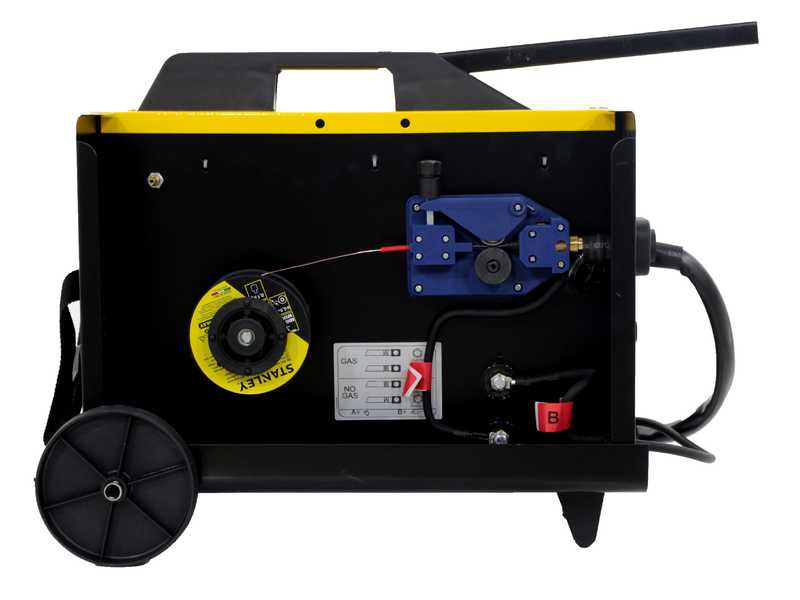

Wire and accessories compartment

Cored wire of 0.9 mm diameter included

Supporting feet

Wheel kit for easy transport

Operator's strap provided on standard kit

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free items provided on standard kit

The welding equiment is shipped in its original packaging.

The unit comes complete with accessories equipment, which includes:

- Face mask

- Earth clamp with cable

- Welding torch

- Brush/hammer

- Cored wire of 0.9 mm diameter

- Handle with extendable handle grip

- Wheel kit

- Instructions manual
