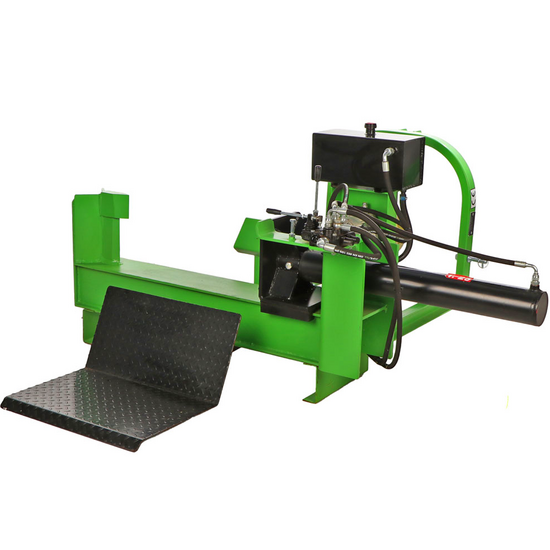

Name: Tractor-mounted log splitter 25T - Horizontal - Hydraulic loading platform
Brand: AgriEuro Premium
SKU: 114879
Price: 3198.49 EUR
Availability: OutOfStock

Description

Agrieuro Premium Line 25T - Tractor-mounted log splitter

The Agrieuro Premium Line 25T tractor log splitter is a professional tool designed to split stumps efficiently and safely. Thanks to its thrust force of 25 tons, it is one of the most powerful models available on the market.

This log splitter has a horizontal structure that allows it to work even with large logs, minimising the physical effort required for lifting.

The loading platform makes it easier to insert logs further, improving productivity.

The large hydraulic pump provides constant power, allowing the piston to work at high speeds, ensuring quick splitting operations.

The system is supported by a robust push platform, constructed of thick steel and mounted on equally solid rails, ensuring stability and durability.

A distinctive feature of this model is the double-blade wedge: The upper, more advanced, blade penetrates first, while the lower one follows, allowing to easily split even hard and knotty logs. The high-strength steel frame guarantees long life and impact resistance.

Technical specifications include:

100 mm bore
Logs diameter up to 100 cm
Maximum length of logs: 70 cm

This log splitter, entirely manufactured in Italy, offers a combination of power, efficiency and reliability, ideal for intensive use in professional settings.

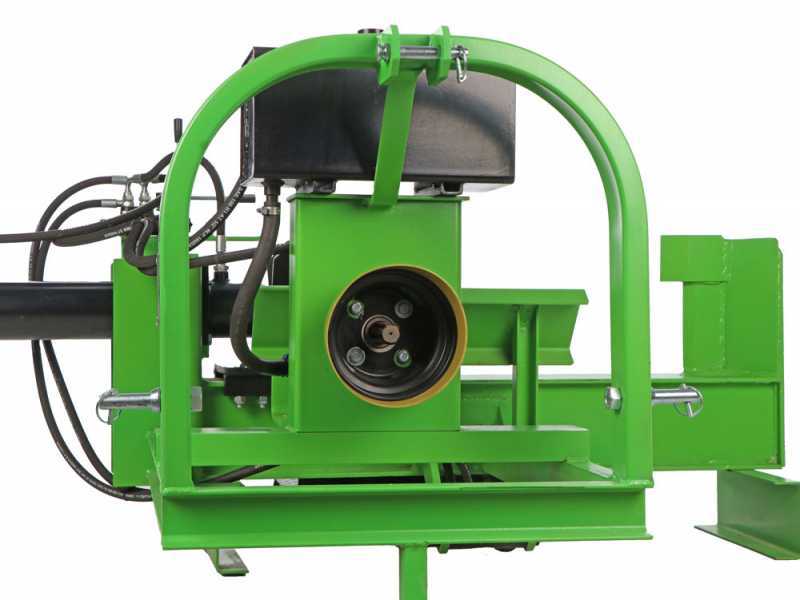

PTO drive with tractor

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

The log splitter can be connected to the tractor by means of the three-point linkage on the sturdy machine frame.

The log splitter uses the action of a hydraulic pump that draws oil from the tank, and moves the hydraulic cylinder.

Equipped with gear multiplier.

The multiplier gearbox transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

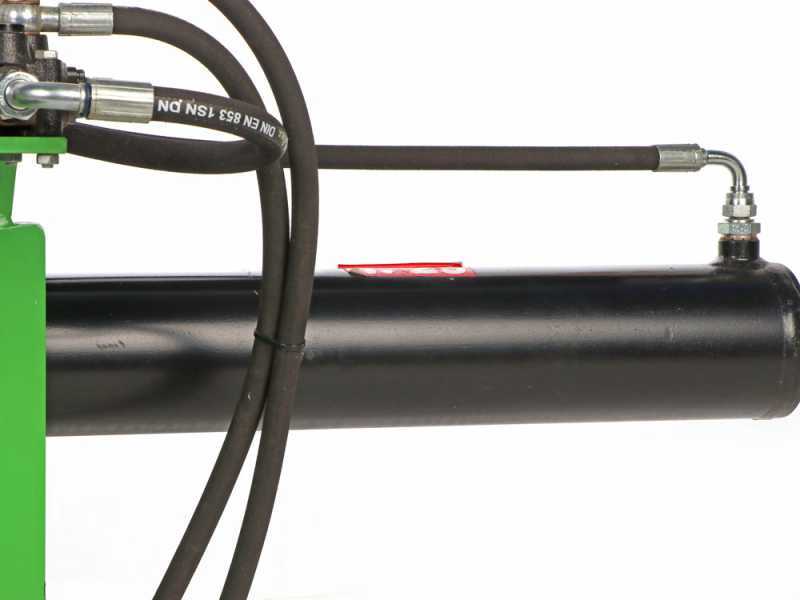

Piston and machine frame

The large piston, with a diameter of 117 mm (100 mm bore), is an essential component that contributes to the overall strength of the machine.

Thanks to this feature, the log splitter is able to develop a thrust force of 25 tonnes, guaranteeing high performance even on large logs.

The thrust platform is made of thick steel, mounted on robust steel rails. This ensures strength and stability during operations, making the device reliable even in the harshest working conditions.

The large hydraulic pump has several advantages.

Firstly, it allows the machine to express its full power, up to 25 tons.

In addition, with this pump, the piston can operate at a high speed, improving efficiency and reducing working time.

General features

The double blade wedge is a robust element designed to ensure efficient splitting. The upper, more protruding blade initially penetrates the wood, while the lower blade follows, allowing easy work even on particularly hard, twisted or knotty logs.

The loading platform makes loading logs easier and faster. It is equipped with a lever for operation that improves convenience during use.

The model includes a three-point hitch and a PTO assembly for universal joint attachment to the tractor (not included).

The supporting frame is very strong and has guides that ensure the piston slides smoothly. The structure is designed to ensure stability and durability even under high loads.

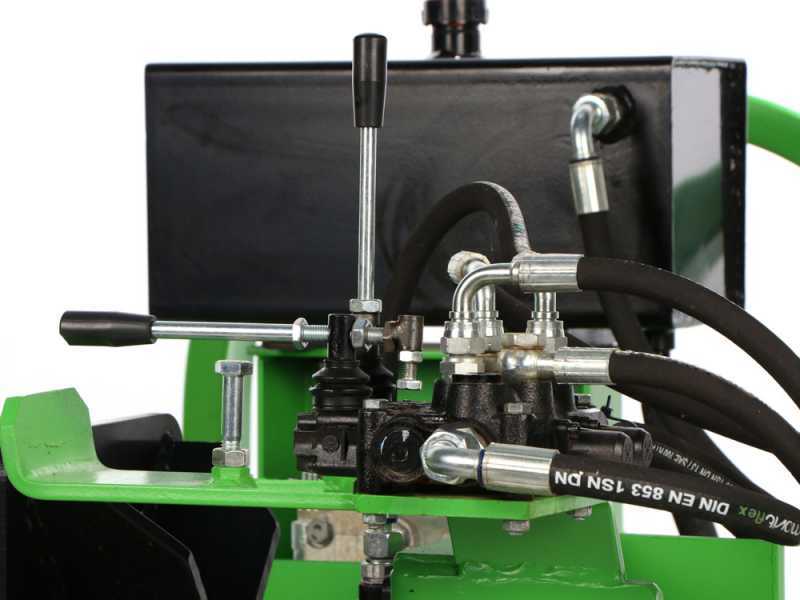

The large hydraulic oil reservoir is located above the pump, maximizing the efficiency of the hydraulic system. The lever type distributor allows precise control of the piston movement, ensuring a fast and safe action.

The machine is equipped with sturdy standing feet for greater stability during operation.

The high cutting capacity of up to 70 cm allows working with large logs. In addition, it is possible to reduce the size of the piston during storage by unscrewing four special bolts, thus facilitating storage.
