Top Line FC44 - Heavy-duty Wine Filter with 40 Filter Sheets 40x40 - Stainless Steel Frame and Pump

Questions & Answers (2)
ID: 3878

EAN: 9993089185670

MPN: 3878

Top Line FC44 - Heavy-duty Wine Filter with 40 Filter Sheets 40x40 - Stainless Steel Frame and Pump
+20 sold
Body material
Stainless steel
Type of filter sheets
40x40 cm
No. of filter sheets
40
Motor type
Induction
Nominal power
0.8 HP
Nominal power (W)
600 W
Pump material
AISI 304 stainless steel
Fittings diameter
40 mm
Garolla fitting
Yes
Manufacturing country
Italy
Product Features
Model:
FC 44
Type:
Filter plates and sheets
Body material:
Stainless steel
Operating mode:
Electric 230 V
Type of filter sheets:
40x40 cm
No. of filter sheets :
40
Filtering capacity:
5300 L/h
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.8 HP
Nominal power (W):
600 W
Motor speed:
2800 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
EBARA
Pump material:
AISI 304 stainless steel
Fittings diameter:
40 mm
Manufacturing country:
Italy
Equipment
On wheeled frame (with wheels and handles):
Yes
Drain liquid recovery tray:
Yes
By-pass valve:
Integrated
Double filtration kit:
On request (to be purchased separately)
Pressure gauge:
At the inlet/outlet
Sight glass:
Yes
Free gifts/extra features
Garolla fitting:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
201.5x70x95 cm
Net weight:
300 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
160x80x110 cm
Gross weight (packaging included) :
340 Kg
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 25/10/2024 - 29/10/2024
€ 5.147,83
VAT Included
You're viewing:
Customers also viewed:
Description

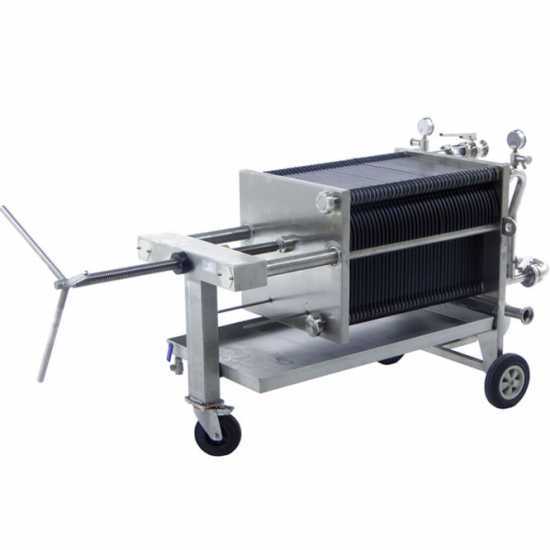

FC 44 Plate and Sheet Filter for Wine

The FC44 plate and sheet filter for wine comes with a 100% Aisi 304 stainless steel structure which guarantee durability and high hygiene.

This filter is intended for HEAVY-DUTY APPLICATIONS and is a practical and safe machine, which grants even to the small producer the quality and safety of a high product filtration.

The filter is designed for extremely intensive use, as is evident from its large filtering capacity of 5300 L/h and the sturdy frame and components entirely built in stainless steel, for a total machine weight of 280 Kg.

It features 41 40x40 thick filter plates made of food-grade polypropylene and is equipped with an built-in by-pass valve, pressure gauges, flow control valve and liquid control sight glasses.

The assembly is fast and easy, the replacement of the filter sheets is immediate and most importantly, liquid leakage that can occur during filtering operations has been drastically reduced by the built-in drain liquid recovery tray with drain valve.

The machine is mounted on a wheeled frame, the front wheel is pivoting, and is very easy to move

It can house up to 40 filter sheets: the type of sheet mounted on the filter plates allows a different level of filtering depending on the need.

The FC series filter sheets are entirely manufactured in Italy and maintain high quality standards; they are suitable for filtering wine, beer and distilled beverages.

NOT suitable for filtering oil.

Self-priming pump made of AISI 304 stainless steel

EBARA pump body in Aisi 304 stainless steel: this is a state-of-the-art pump, characterised by great durability and designed specifically to be compatible with liquid foods.

Aisi 304 stainless steel is one of the austenitic stainless alloys (also called high performance alloys or superalloys) produced with high percentages of binders (over 50% by weight) and which have a much higher resistance to corrosion than standard stainless steels.

The pump is self-priming, designed specifically for the operation of this wine filter and is equipped with DIN 32 hose connector.

Other technical features:

  • maximum flow rate: 4200 L/h
  • minimum flow rate: 1200 L/h
  • maximum liquid temperature: 45 degrees
  • maximum liquid pressure: 3.5 bar

0.8 Hp electric motor

The FC INOX series wine filters mount an electric induction motor which guarantees a long service life.

In addition, the motor is built in stainless steel which preserves and protects it over time, unlike most other electric motors on the market, which instead feature sheet metal or enamelled alloys casings.

This motor is capable of delivering a power of 0.8 Hp

Additional technical features:

  • power supply: 230 V - 50 Hz
  • motor rpm: 2800 rpm
  • protection: IP 44
  • industrial power socket
  • Heavy-duty start/stop control panel with emergency stop button.



Filtering system with 41 filter plates

Filtering system with no.: 41 filter plates in food-grade polypropylene

It can house up to 40 40x40 cm filter sheets

Hourly filtering capacity: 5300 L/h


Heavy-duty wine filter designed to meet the needs of medium-large-sized companies.

Depending on the types of filter layers used, it can be used to roughen, polish and sterilise white and red wines, sparkling wines, vinegars, herbal products, liqueurs, etc.

The filter unit is closed by a central stainless steel screw.

It does not require any special maintenance other than normal cleaning.

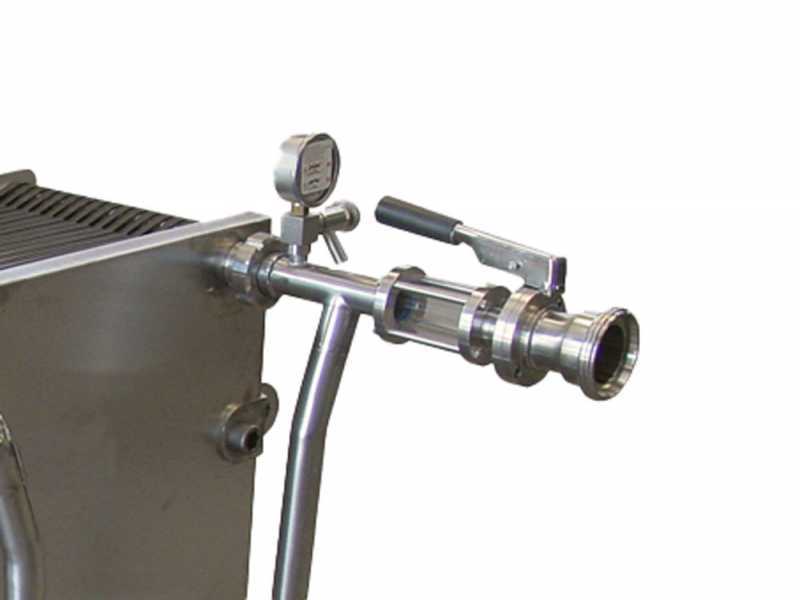

AISI 304 stainless steel hose circuit

All FC series wine filters fittings and hoses are made of 100% AISI 304 stainless steel.

Inlet flow regulator fitted with pressure gauge: this is used to check the state of saturation of the filters, allowing the pressure of the liquid in the pump to be lowered several times as they become saturated, thus using them up to their complete state of saturation without causing problems for the pump.

Built-in pressure gauge for the outlet flow for liquid pressure control.

Electric pump inlet with Garolla fitting

Focus of the inlet sight glass for liquid control

Focus of the outlet hose equipped with sight glass, Garolla fitting and shut-off valve.

Focus on the by-pass valves integrated in the hose circuit.

Other features

Particularly sturdy frame made of AISI 304 stainless steel

Focus on the removable drain liquid recovery tray built in stainless steel.

Focus on the drain liquid recovery tray valve

Focus on the wheels for easy movement

Focus on the front pivoting wheel with locking brake

Focus on the closure of the filter unit by means of a central stainless steel screw.

Focus on the outlet and inlet pressure gauges

Focus on the by-pass integrated valves

Focus on the Garolla fitting with sight glass for liquid control and shut-off valve.

Focus on the industrial power socket

Free items & Standard equipment

Standard equipment

The wine filter is shipped in its original packaging on pallet.

Instructions manual included in the packaging
