Top Line BIO 600 3 P - Tractor-mounted garden shredder - 3-point hitch

Questions & Answers (9)
ID: 102208

EAN: 8033424491545

9,0/10
After-sales assistance & Spare parts
Top Line BIO 600 3 P - Tractor-mounted garden shredder - 3-point hitch
+100 sold
Operating mode
Tractor-driven PTO
Tractor power
From 20 to 40 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
6
Max. Branch Diameter
60 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Discharge chute rotation
Remote chute lever on the panel
Transmission type
Belt
Cardan shaft
Standard
Manufacturing country
Italy
Product Features
Model:
BIO 600 3P
Operating mode:
Tractor-driven PTO
Hydraulic self-dragging:
No
Discharge chute:
Medium
N° of hoppers :
1
Hopper opening size (height):
25 cm
Hopper opening size (width):
24 cm
Chip size reducing sieve:
Yes (removable)
Electric start:
No
Min. power:
20 Hp
Max. power:
40 HP
Tractor power:
From 20 to 40 HP
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
60 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
6
Blade movement:
Rotating
N° of chopper blades:
6
Counter blades:
1
Wood Chip size:
2 - 3 cm
Equipment
Discharge chute rotation:
Remote chute lever on the panel
Rear wheels size:
210x10
Free gifts/extra features
Cardan shaft:
Standard
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
170x62x117 cm
Net weight:
80 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
110x55x105 cm
Gross weight (packaging included) :
100 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
€ 1.695,46
VAT Included
You're viewing:
Customers also viewed:
Description

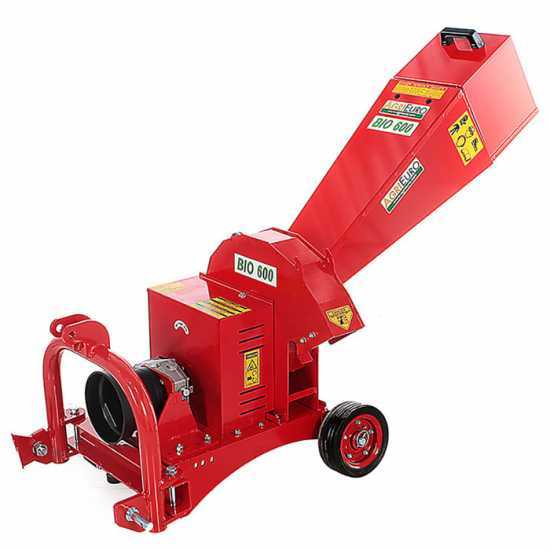

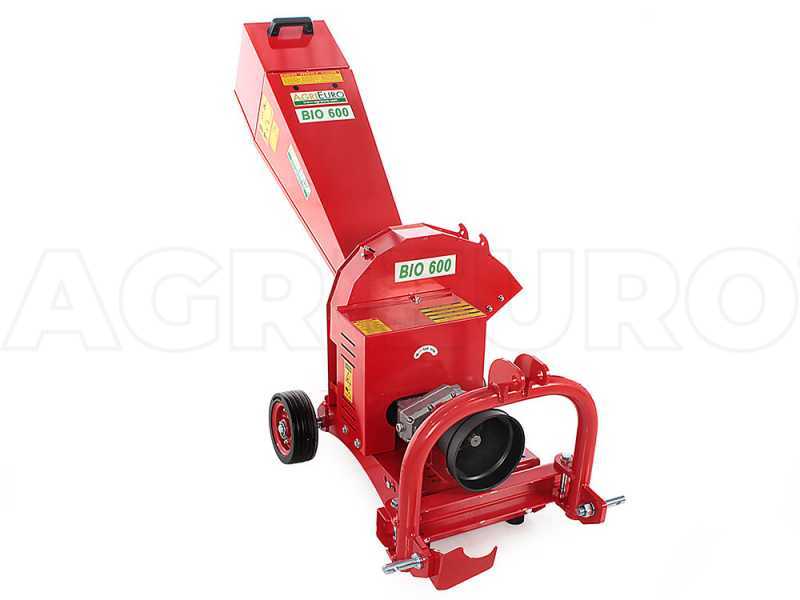

AgriEuro BIO 600 3P tractor-mounted garden shredder

The AgriEuro BIO 600 3P is a lightweight heavy-duty tractor-mounted garden shredder intended for professional use.

The wood chipper shreds brushwood and twigs making them suitable for composting. Shredding operations also allows reducing the material decomposing time.

The large steel hopper can process even very bulky branches and leaves without pre-shredding them. Thus, it also features a higher capacity that allows entering large volumes of material at a time.

Cutting diameter: 50/60 mm

This tractor-mounted wood chipper is MADE IN ITALY and built according to the logic of large-scale shredders, thus ensuring maximum results in terms of cutting, speed and reliability.

The machine is compliant with the CE standards.

The overall weight of the unit is 80 Kg.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to rapid deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper)

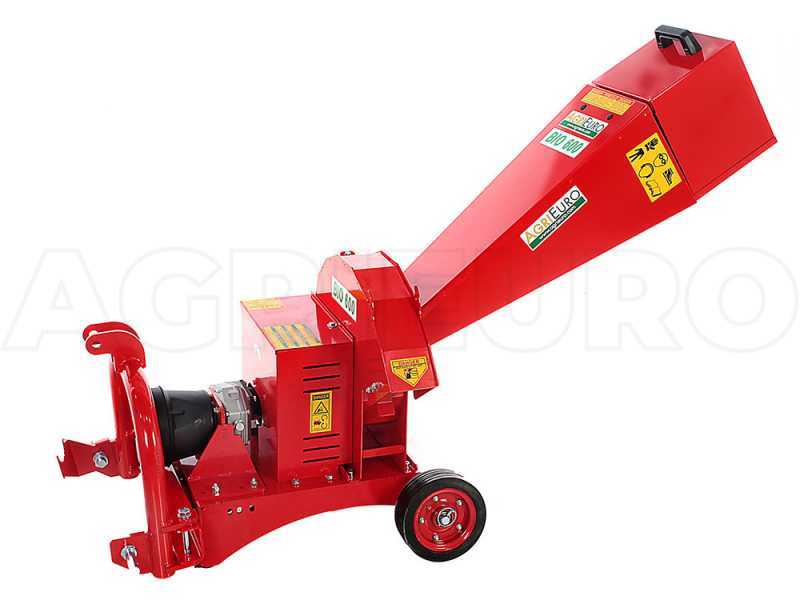

Unified hopper

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

  • UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It eliminates the constant operation of dividing the material (before shredding) between the large, woody sections and the smaller, green sections, each of them must be placed in their own hopper (an operation required by all standard shredders equipped with 2 hoppers).

  • SELF-OPERATING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously Thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded. WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Focus on the rubber bulkheads placed on hopper mouth.

Hopper size: (Width x Height ) 24 x 25 cm

The hopper comes disassembled in 2 parts, easy to assembly.

Focus on the wood chipper handle for easy transport.

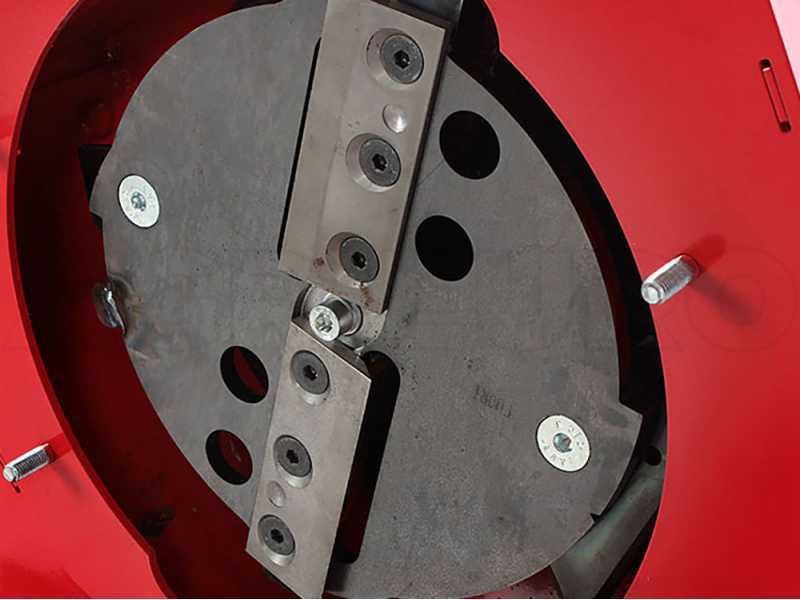

Shredding chamber and central rotor

The outer shredding chamber is proportionate to the rotor it includes. It guarantees excellent productivity, as well as the durability of the system.

The machine structure is 100% made of steel. No plastic has been used.

Reinforced shredding blades: 2 large shredding blades. These blades pre-shred the material into the hopper creating a coarse wood chip (the blades are highly thick and fixed with 3 stainless steel bolts).

Focus on the hammer: 6 hardened steel shredding blades (or hammers) rotating at high speed. Thanks to their centrifugal motion they reduce the material in small wood chips.

Focus on the counter blades: Once assembled the hopper, they’ll be placed near the 2 rotating cutting blades fixed on the rotor. Thus, the "Blade + Counter blade" system makes shredding operations easier and more efficient, reducing motor effort at the same time.

The central rotor is composed of 2 steel flywheels firmly assembled together.

These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance.

Focus on the sieve: This model of garden shredder is almost the only machinery equipped with the removable SELF-CLEANING SIEVE, which allows the wood chips to be discharged exclusively once perfectly shredded by the hammers. The sieve is equipped with 1 support bolt that allows it to be assembled or disassembled from the discharge chute opening. By removing the sieve, the garden shredder will produce coarser wood chips, maximising the hourly output. By assembling the sieve, on the other hand, will maximise the shredding capacity of the machine, producing smaller wood chips. The grid, equipped with 3 slotted openings, holds the wood chip inside the shredding chamber until finely shredded. As the rotor rotates, the 6 moving hammers pass through the slots, protrude from the opposite side and ensure constant cleaning.

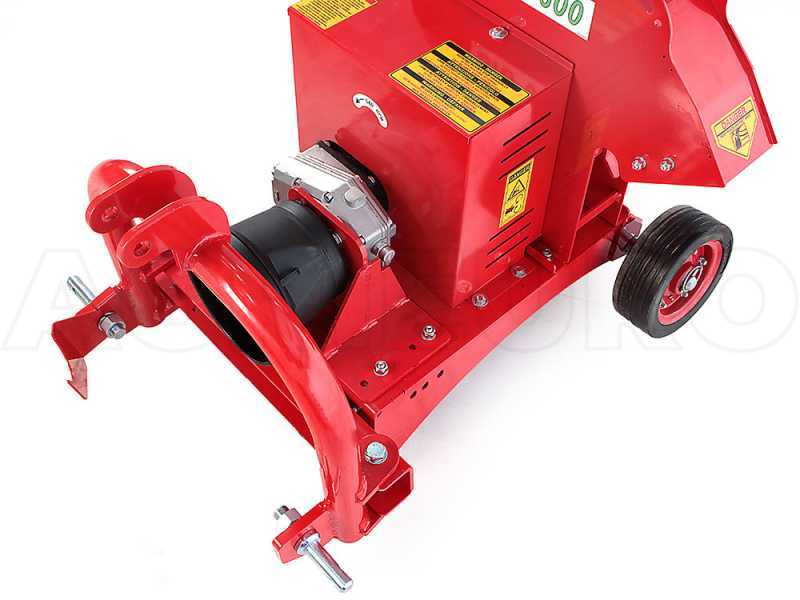

Drive belt with reinforced belt and 3-point hitch

INTERMEDIATE DRIVE BELT WITH 2 REINFORCED BELTS.

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor blockage caused, for example, by a too large branch, stones, etc... there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

This ensures a higher durability over time compared to the standard system of all petrol-powered machineries, where the transmission is directly connected to the shredding cutting system.

Focus on the connection between tractor PTO and garden shredder with cardan shaft protection

Equipped with anti-vibration rubbers and 210x80 cm diameter rubber wheels for easy transport.

Universal joints suitable for all tractors on the market.

Focus on the sturdy 3-point hitch.

Cardan supplied for free.

Focus on the cardan support.

Free items & Standard equipment

Free items included

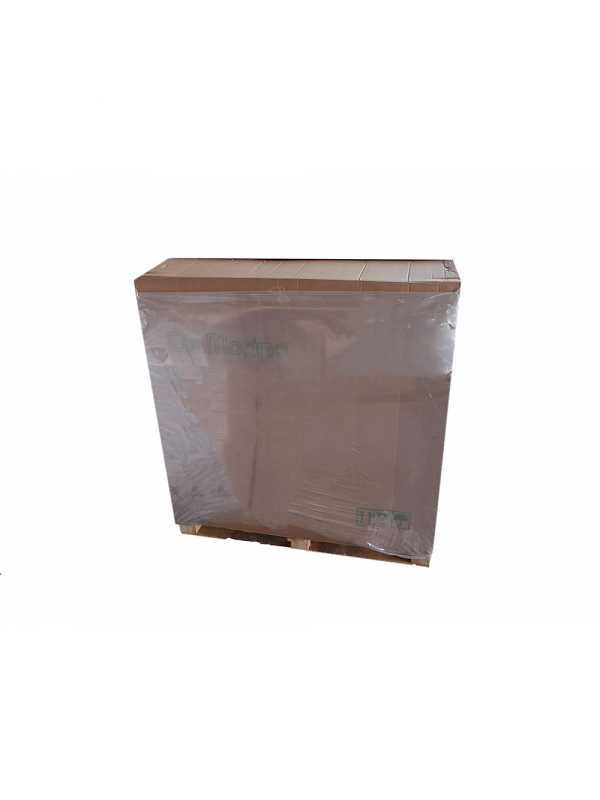

The garden shredder is shipped on pallet.

The instructions manual is included in the package.

Cardan supplied for free.
