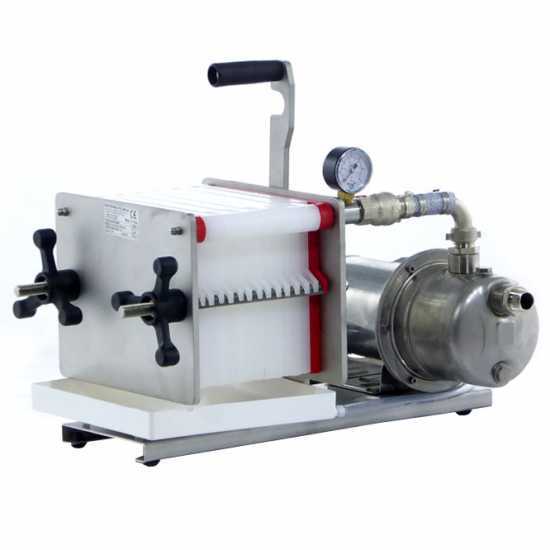

Top Line AF14 - Plate and Sheet Filter for Wine 20x20 - Stainless Steel Frame and Pump

Questions & Answers (9)
ID: 3870

EAN: 9993089185502

MPN: 3870

Top Line AF14 - Plate and Sheet Filter for Wine 20x20 - Stainless Steel Frame and Pump
+300 sold
Body material
Stainless steel
Type of filter sheets
20x20 cm
No. of filter sheets
14
Portable
Motor type
Induction
Nominal power
0.5 HP
Material
Stainless steel
Fittings diameter
20 mm
Max. suction height
5 m
Manufacturing country
Italy
Product Features
Model:
AF 14 INOX
Type:
Filter plates and sheets
Body material:
Stainless steel
Portable:
Operating mode:
Electric 230 V
Type of filter sheets:
20x20 cm
No. of filter sheets :
14
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Motor speed:
2800 RPM
Power supply:
Electric
Manufacturing country:
Italy
Pump data
Pump brand:
Ebara
Material:
Stainless steel
Fittings diameter:
20 mm
Flow rate:
500 - 900 L/h
Max. suction height:
5 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Drain liquid recovery tray:
Yes
Free gifts/extra features
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
310 x 470 x 340 mm
Net weight:
21 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
340 x 500 x 300 mm
Gross weight (packaging included) :
21.5 Kg
Assembly time:
Assembled
Prompt Delivery
11 items in stock
Free Shipping
Estimated delivery: 03/05/2024 - 07/05/2024
€ 611,68
VAT Included
You're viewing:
Customers also viewed:
Description

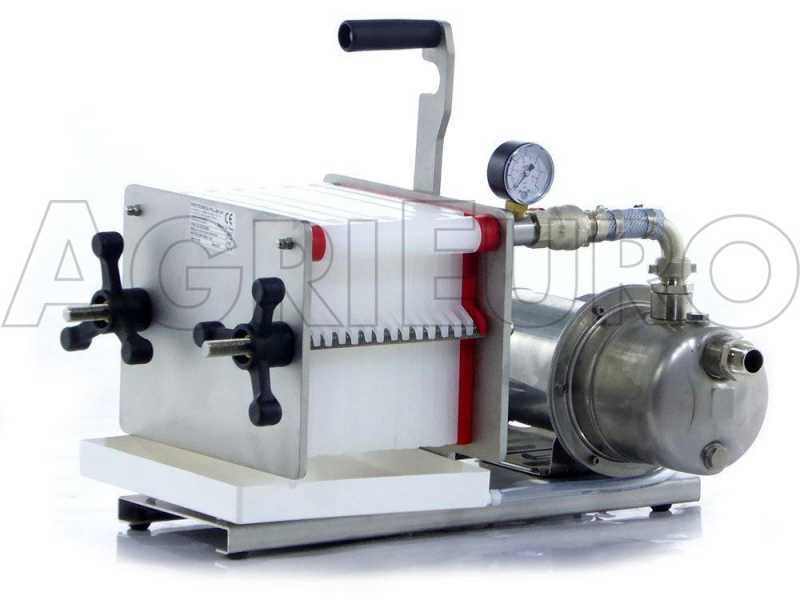

AF14 Plate and Sheet Filter for Wine with 20 x 20 cm Filter Sheets

The AF14 plate and sheet filter with 20x20 filter sheets comes with a 100% Aisi 304 stainless steel frame and filtering pump, which guarantee long service life and high hygiene, suitable for intensive use.

This filter is intended for HEAVY-DUTY APPLICATIONS and is a practical and safe machine, which grants even to the small producer the quality and safety of a high product filtration.

This heavy-duty filter mounts 14 20x 20 thick filter plates made of top-quality non-toxic moplen and is equipped with pressure gauge and flow control valve.

The assembly is fast and easy, the replacement of the filter sheets is immediate and most importantly, liquid leakage that can occur during filtering operations has been drastically reduced, thanks to the large-sized gaskets where the filter plates are mounted.

The machine can house up to 14 filter sheets. It is also possible to mount various types of filter sheets to obtain different types of productions.

The pump can also operate with fewer than the 14 filter sheets for which it is designed. Any smaller number of filter sheets can be fitted: simply slide the chosen plates off. The filtering quality remains the same, only the amount filtered per hour will decrease.

For example, if only 8 plates (i.e. 7 filter sheets) are used, the hourly production of filtered litres will be equal to half. But in some cases this can allow to save money in the use of filter sheets.

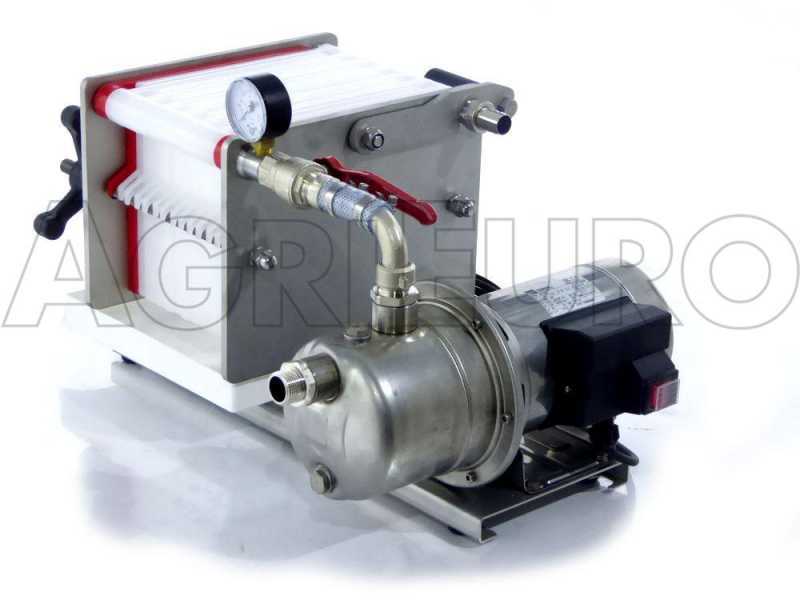

Self-priming pump made of AISI 304 stainless steel

EBARA pump body in Aisi 304 stainless steel: this is a state-of-the-art pump, characterised by great durability and designed specifically to be compatible with liquid foods.

Aisi 304 stainless steel is one of the austenitic stainless alloys (also called high performance alloys or superalloys) produced with high percentages of binders (over 50% by weight) and which have a much higher resistance to corrosion than standard stainless steels.

The pump is self-priming, designed specifically for the operation of this wine filter.

Other technical features:

  • maximum flow rate: 45 L/min
  • minimum flow rate: 5 L/min
  • maximum liquid temperature: 45 degrees

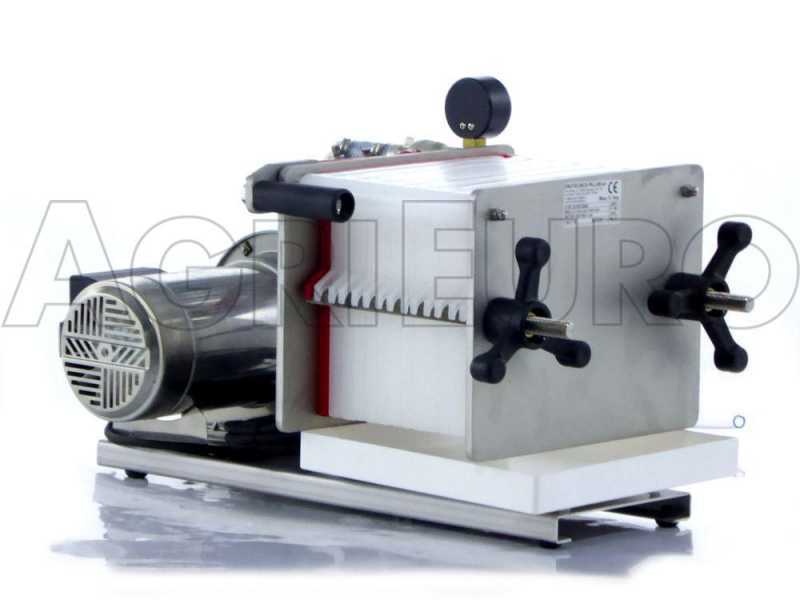

0,5 Hp electric motor

The AF14 INOX wine filtering pump mounts an electric induction motor which guarantees a long service life.

In addition, the motor is built in stainless steel which preserves and protects it over time, unlike most other electric motors on the market, which instead feature painted sheet metal casings.

This motor is capable of delivering a power of 0.5 Hp

Additional technical features:

  • power supply: 230 V - 50 Hz
  • motor rpm: 2800 rpm
  • protection: IP 44



Filtering system with 15 filter plates

No. 15 filter plates.

It can house up to 14 20x20 cm filter sheets

Hourly filtering capacity: from 500 to 900 L/h


Heavy-duty wine filter designed to meet the needs of medium-sized companies.

Depending on the types of filter layers used, it can be used to roughen, polish and sterilise white and red wines, sparkling wines, vinegars, herbal products, liqueurs, etc.

Flow regulator with pressure gauge: this is used to check the state of saturation of the filters, allowing the pressure of the liquid in the pump to be lowered several times as they become saturated, thus using them up to their complete state of saturation without causing problems for the pump.

It does not require any special maintenance other than normal cleaning.

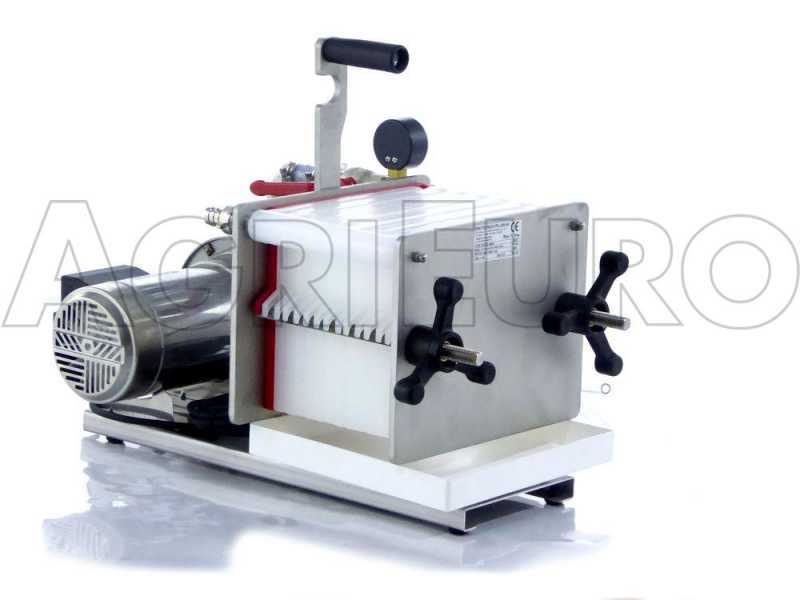

Other features

Particularly sturdy frame made of thick stainless steel

Focus on the stainless steel base

Focus on the thick front plate made of stainless steel

Focus on the power switch to turn the electric motor on

Focus on the filters clamping knobs

Drain liquid recovery tray with hose to immediately reintroduce the liquid to the main container.

Focus on the pressure gauge between the filtering stage and the pumping stage

Focus on the flow valve between the filtering stage and the pumping stage

Focus on the lifting handle

Focus on the folding lifting handle

Free items & Standard equipment

Free items included

The plate filter for wine is shipped in its original packaging. Included in the packaging are:

Instructions manual

Drain liquid recovery tray

Suction filter

Gaskets

Stainless steel fitting
