Description

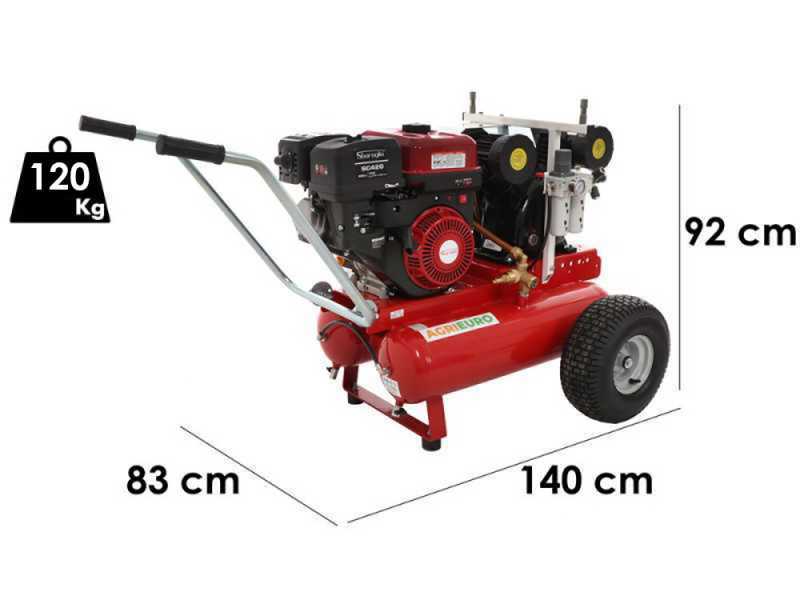

Texas 900 Petrol Engine-driven Air Compressor

The AgriEuro Texas 900 petrol engine-driven air compressor mounts a powerful Sbaraglia SC420 14HP engine with a Sbaraglia V-shaped cast iron cylinder head.

It is petrol air compressor designed to power and operate pneumatic tools for pruning and harvesting in the agricultural sector.

It has two practical tanks of 37 L each. The filter with pressure regulator and the controls panel are made by Camozzi, one of the most reliable brands on the market. This air compressor can reach a maximum pressure of 12 bar.

The AgriEuro petrol engine-driven air compressor comes with large pneumatic wheels and a practical handlebar to facilitate transport and movement during working phases. Practical and easy to move around thanks to its extremely compact dimensions.

This petrol engine-driven air compressor can simultaneously operate 3 olive harvesters, up to 8 pneumatic shears and 1/2 pneumatic chainsaws.

Texas 900 Petrol Engine-driven Air Compressor - Sbaraglia SC420 Engine - 14 HP

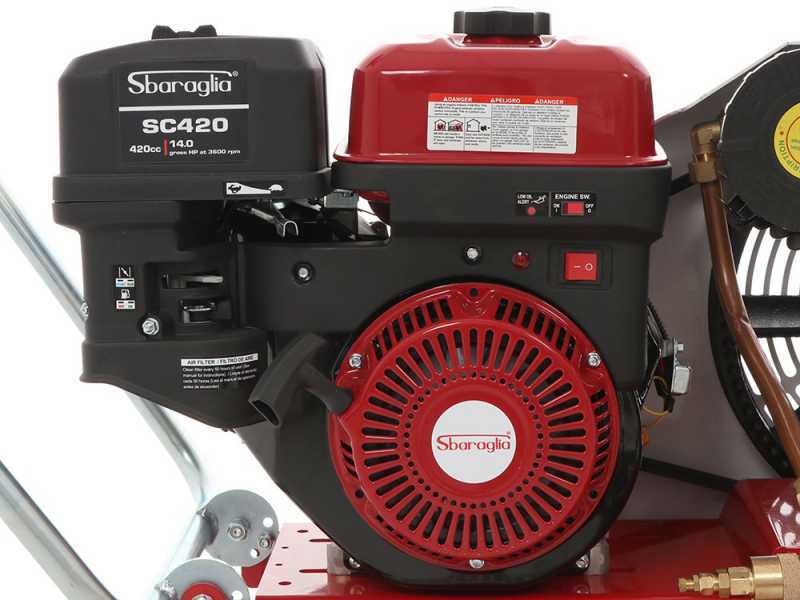

Sbaraglia SC420 14 HP engine

The Texas 900 petrol engine-driven air compressor is equipped with a 14 HP Sbaraglia engine

Recoil start

Focus on the air filter

Focus on the power button

In addition, the engine is also equipped with an indicator light that signals the lack of oil.

Features:

Engine type:

Single cylinder 4-Stroke - OHV

Cylinder type:

Aluminium

Cubic capacity:

420 cm³

Max. rpm:

3600 rpm

Fuel tank capacity:

6 L

Compression:

8.5: 1

Power:

9.2 kW

Nominal Power: 14 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine. Rated power:

Rated power: 12.3 Hp
It corresponds to the real power delivered by the motor shaft. This is the power indicated as official in the engine instructions manual.

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

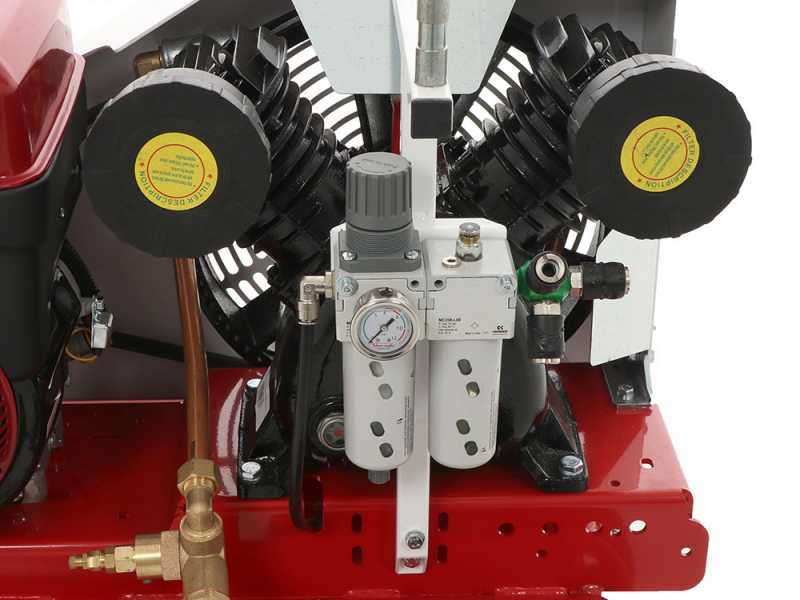

Sbaraglia 900 V-shaped cylinder head

Air intake flow: 900 L/min
Cylinder head: V-shaped in cast iron and aluminium
Lubrication: oil

The pumping unit by Sbaraglia 900 fitted on the AgriEuro Texas 900 is the result of high technology and years of experience in the field.

This petrol engine-driven air compressor belongs to a professional line and stands out for its exceptional durability and reliability, thanks to the use of components made with top-quality materials:

- Finned head-cylinder system to dissipate heat faster

- Flywheel in aluminium

- Concentrated air flow

- High performance suction filter

- Stainless steel valves

Focus on the oil level indicator in the pumping unit

The cylinder head is also equipped with two paper filters

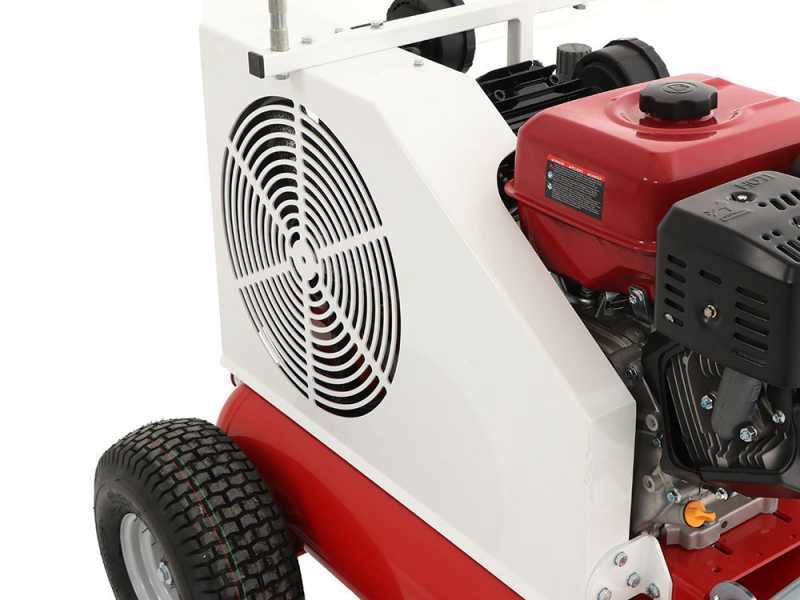

Belt drive

This AgriEuro petrol engine-driven air compressor features a belt drive.

The use of the transmission belt guarantees a very high level of safety. Combined with the Sbaraglia 14 HP petrol engine, the belt drive contributes to the durability of this compressor, by drastically reducing the number of revolutions of the cylinder head and reducing wear.

The closed protective housing is made of metal, very solid and sturdy, machined from a single piece. It allows excellent cooling because, thanks to its particular shape, it is able to convey a high amount of air on the head.

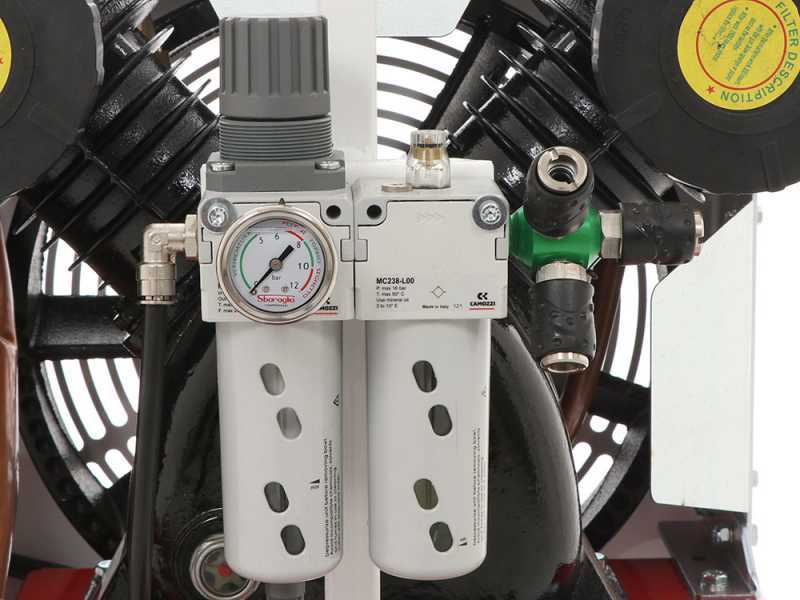

Tank and controls

The petrol engine-driven air compressor is mounted on two self-supporting tanks with a capacity of 37 L each.

Maximum pressure: 12 bar

Equipped with glycerine filled pressure gauge directly connected to the tank

3-outlet air divider that allows to use of 3 pneumatic olive harvesters at the same time

A direct drive relief valve is installed on the tanks to prevent the maximum pressure from exceeding a certain threshold and to avoid breakage.

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, lubricator, that atomizes oil in the outlet air to lubricate tools (adjustable lubrication intensity), and drain valves which allow the discharge of condensate. These tools are all included in the Camozzi control panel

No load operation system and maximum pressure control by means of professional pilot check valve
