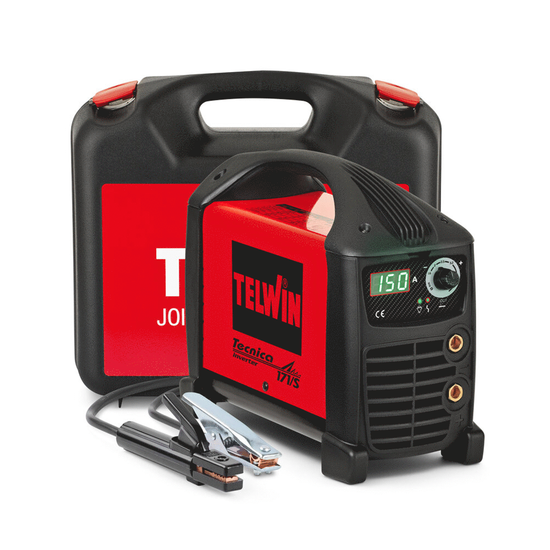

Telwin Tecnica 171/S - Inverter Welding Machine (MMA, TIG) + Case, Direct Current (DC)

Questions & Answers (2)
ID: K608814

EAN: 8056151819604

MPN: 816235

7,9/10
After-sales assistance & Spare parts
Telwin Tecnica 171/S - Inverter Welding Machine (MMA, TIG) + Case, Direct Current (DC)
FREE
Pack of 230 2.0 mm AWS electrodesPack of 230 2.0 mm AWS electrodes
Pack of 140 AWS 2.5 mm electrodesPack of 140 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA + TIG
MMA electrode
TIG
Welding current range (A)
10 - 150
Open circuit voltage
75 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
25 %
Generator +/- 15%
TIG lift
LCD display
Yes
Welding machine equipment
Case + accessories
Manufacturing country
Italy
Product Features
Model:
Telwin Tecnica 171/S
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 4
IP:
23
Open circuit voltage:
75 Volt
220 V max absorbed power:
4.2 KW
Min. required generator power:
6.3 KW
40°C duty cycle:
25 %
40°C duty cycle:
25%@140A
20°C duty cycle:
88%@150A
Welding current range (A):
10 - 150
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Equipment
LCD display:
Yes
Free gifts/extra features
Welding machine equipment:
Case + accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
30 x 13 x 23 cm
Net weight:
6,6 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
43 x 17,5 x 38 cm
Gross weight (packaging included) :
5.71 Kg
Assembly time:
5 minutes
Prompt Delivery
72 items in stock
Free Shipping
Estimated delivery: 21/02/2025 - 25/02/2025
€ 339,37
Vat included

You're viewing:
Customers also viewed:
Description

Telwin Tecnica 171/S Inverter Welder + case and accessori

TheTelwin Tecnica 171/s MMA and TIG electrode inverter welding machine is a direct current welding machine that represents a best seller in its category, entirely made in Italy. Allows both electrode and smear primed TIG welding.

Lightweight and compact welder offering high handling, thanks to its small size and weight. The great performance is underlined by a maximum power of 150A and a duty cycle of 25% at 150A.

This welder model guarantees high stability of the welding current in case of variations of the supply voltage.

Equipped with multiple Security Systems :

  • thermostatic protection
  • Overvoltage
  • Undervoltage
  • Over current
  • Motor generator (+/-15%): All Telwin inverters ensure correct operation for supply voltage variations up to 15%, generators should be properly stabilized.

It is one of the most popular hobby products. Makes user convenience, performance and safety its strengths.
We're talking about a high-quality inverter.

The machine is equipped with important features like:Hot Start and Arc Force: improved performance of arc welding and welding seam.
Anti-Stick: system that eliminates the problem of electrode sticking.

Electrodes with a diameter of 1.6 - 4 mm.
Usable electrodes: rutile, basic, stainless steel, cast iron etc.

Very practical for carrying thanks to the handle and plastic case that can hold the welding machine and accessories.

Equipped with display to show the set welding current

The quality of the product is guaranteed by the TELWIN brand: a leading Italian company.

Technical Features

Technical specifications:

Weld type: MMA and TIG

  • Power supply: 230 Volts
  • Max. power consumption: 2.6-4.2 KW
  • Electrodes to be used: 1.6- 4 Ø mm
  • Usable electrodes: rutile, basic, stainless steel, cast iron
  • Open circuit voltage: 75 Volts
  • Power: 10 - 150 A
  • Duty cycle at 40°: 25% at 140A
  • Duty cycle at 20°: 88% at 150A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. At lower temperatures or when the machine is cold, the welding cycle naturally increases.

Equipped with display to show the set welding current

Minimum power of 6 kW of the generatorto which the welder can be connected.

Power switch

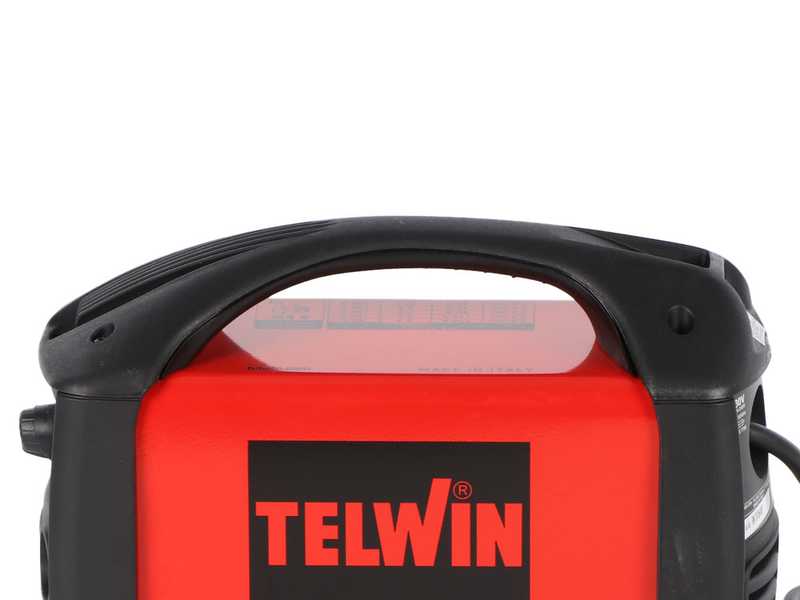

Handle for easy transport

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

Equipped with light indicators which light up to signal the welding machine operating status and the maximum temperature reached. In this case, the welder will stop thanks to the thermostatic protection until it cools down and activates again.

Free items & Standard equipment

COMPLIMENTARY: 230 2.0 AWS Electrodes + 140 2.5 AWS Electrodes + Welding Gloves

Free items included:

400 AWS ELECTRODES:

- Package of 230 AWS rutile electrodes, 2.0 mm

- Package of 140 AWS rutile electrodes, 2.5mm

Excellent electrodes, perfect for many types of welding.



GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

The product is shipped in its original packaging along with the instruction manual.

Wide range of accessories provided on standard equipment:

Ground clamp

Electrode holder

2 mt cables

Plastic case to carry the welding machine and all its accessories
