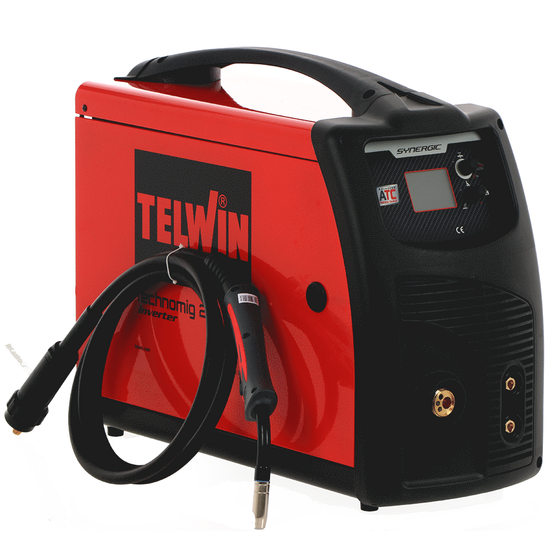

The Telwin Technomig 220 Dual Synergic continuous wire welding machine is a microprocessor-controlled multiprocess inverter welding machine with synergic regulation.
Professional level welding machine MADE IN ITALY capable of operating with current up to 220A, allows all types of welding: MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT.
The welding machine is designed for NO GAS/flux welding and can be easily converted for MIG-MAG and brazing use via optional kit. It also offers the possibility of welding with an electrode or with TIG DC-Lift functionality.
This welding machine is powered by a simple 230V single-phase connection and stands out for its great flexibility of use.
It is suitable for machining steel, stainless steel, aluminium and galvanized sheets, and supports wire coils up to 15 kg (Ø 200 and 300mm).
Equipped with SYNERGISTIC adjustment with ONE TOUCH Synergy system that provides 27 pre-set synergistic curves: by setting the thickness of the material, you can start welding immediately.
Intelligent automatic arc control ensures optimal performance in all working conditions thanks to ATC Technology for excellent welding on thin surfaces.
Wire welding with wires from 0.6 to 1.2 mm is possible, and the operator can manually intervene to change the arc length.

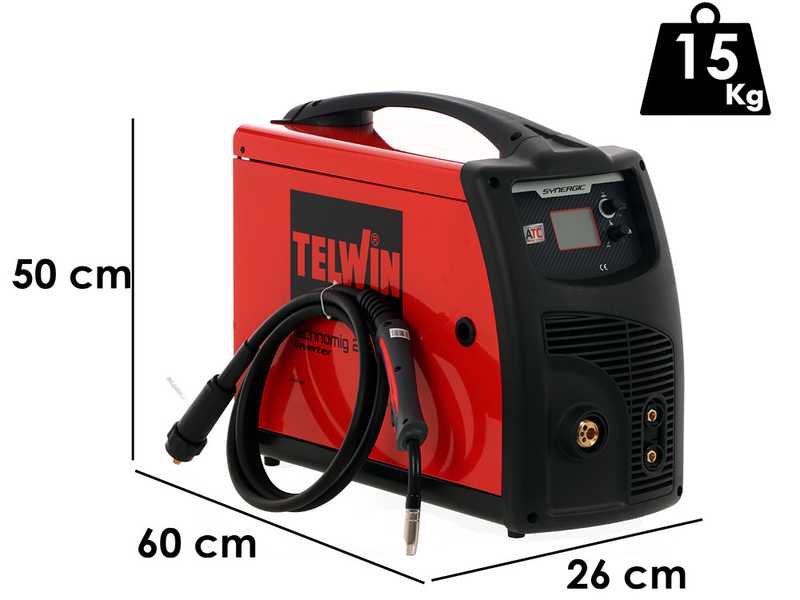

The compact and sturdy design, together with the handle, make the welding machine easily transportable despite its light weight.
Safety is guaranteed by multiple systems such as thermostatic protection, overvoltage, undervoltage, overcurrent and motor generator (+/-15%). There is also a VRD device in MMA mode.

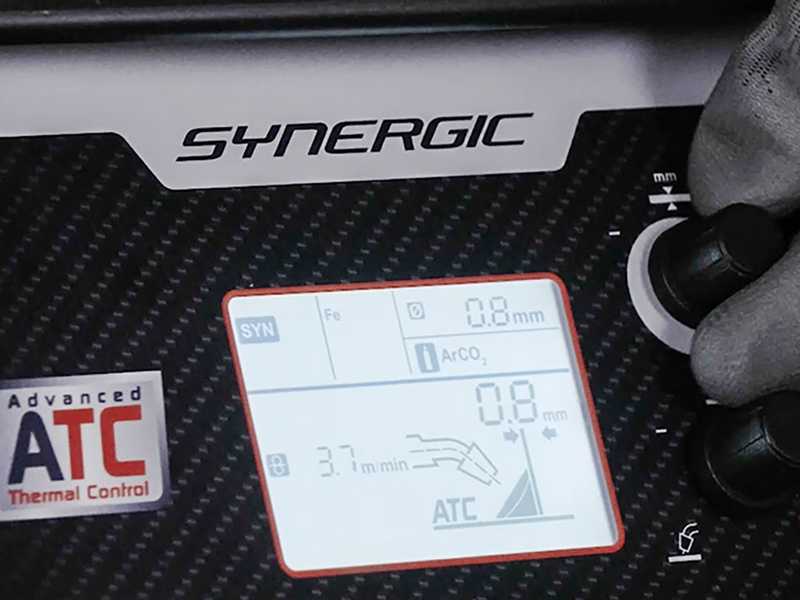

The LCD allows easy display of voltage, current and welding speed. Available adjustments include wire ramp up, electronic reactance, wire (burn back) time and post-gas. In addition, you can select 2-stroke or 4-stroke operation and spot mode.

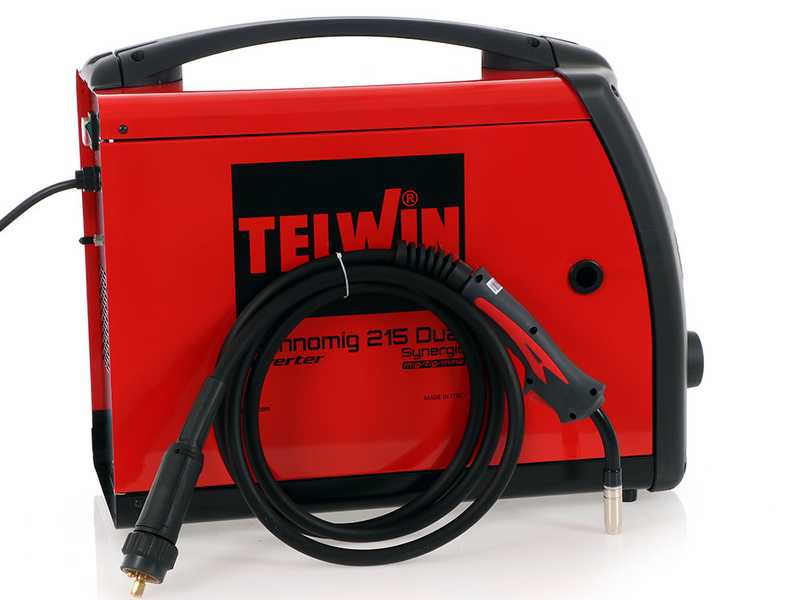

The welding machine is complete with MIG-MAG torch with EURO connection, ground clamp, cable and gas pipe.
