Telwin Technomig 215 Dual Synergic Inverter Wire Welder - GAS/NO GAS-MIG-MAG, MMA and TIG

Questions & Answers (7)
ID: K601139

EAN: 8004897917634

MPN: 816053

7,9/10
After-sales assistance & Spare parts
Telwin Technomig 215 Dual Synergic Inverter Wire Welder - GAS/NO GAS-MIG-MAG, MMA and TIG
+100 sold
Free gifts from AgriEuro
Complimentary Soges start kit with a value of 38€ for welding machine!Complimentary Soges start kit with a value of 38€ for welding machine!
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Out of stock
Free Shipping
€ 1.096,31
Vat included
Technical data
Type
Multifunction inverter
MMA electrode
yes
TIG
yes
Gas-free wire (MOG)
yes
Gas / no gas wire (MIG-MAG)
yes
Welding current range (A)
20 - 220
Open circuit voltage
78 Volt
Suitable MMA electrodes
1.6 - 3.2
40°C duty cycle
20 %
Aluminium Welding (optional)
Yes
Wire welding type
MIG - MAG - NO GAS
Generator +/- 15%
yes
Synergic welding
Yes
LCD display
Yes
Manufacturing country
Italy
Product Features
Model
Technomig 215 Dual Synergic EURO
Type
Multifunction inverter
MMA electrode
yes
TIG
yes
Gas-free wire (MOG)
yes
Gas / no gas wire (MIG-MAG)
yes
Power supply
Single-phase electric
Fuse
16 Amp
Suitable MMA electrodes
1.6 - 3.2
IP
23
Open circuit voltage
78 Volt
220 V max absorbed power
5 KW
Min. required generator power
7.5 KW
40°C duty cycle
20 %
Welding current range (A)
20 - 220
Suitable cored wire
0.8 - 1.2
Suitable steel wire
0.6 - 1.0
Suitable stainless steel wire
0.8 - 1.0
Suitable aluminium wire
0.8 - 1.0
Wire welding type
MIG - MAG - NO GAS
Generator +/- 15%
yes
Aluminium Welding (optional)
Yes
Synergic welding
Yes
Manufacturing country
Italy
Equipment
LCD display
Yes
Free gifts/extra features
Welding machine equipment
Standard supplied accessories
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
57 x 26 x 50 cm
Net weight
22 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
70 x 33 x 55 cm
Weight including packaging
23,5 Kg
Assembly time
5 minutes

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

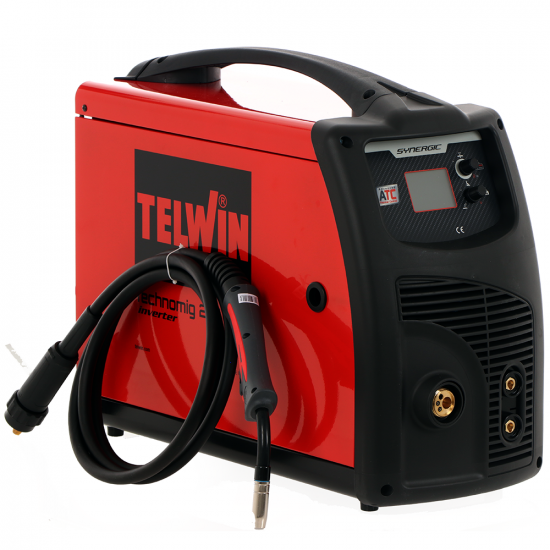

Telwin Technomig 215 Dual Synergic EURO Inverter Welder

The Telwin Technomig 215 Dual Synergic continuous wire welder is an inverter machine controlled through microprocessor with synergy adjustment. Heavy-duty welder, MADE IN ITALY which allows all types of welding: MIG-MAG-NO GAS-BRAZIN, MMA and TIG (lift striking)

The welding machine is designed for NO GAS / Flux welding, but it can be transformed through optional kit for MIG-MAG and BRAZING, and it can also perform electrode welding or with TIG DC-Lift functionality.

This welder is powered by a simple 230V single-phase power supply. Great flexibility of use. Wire welding is suitable for materials such as steel, stainless steel, aluminium and brazed such as galvanized sheets.

Equipped with SYNERGIC adjustment with ONE TOUCH system: just set the thickness of the material to start welding; moreover, the smart and automatic arc control will maintain maximum performance of the welding phases in all working conditions. User-friendly controls and convenient machine.

It allows wire welding with 0.6 to 1.2 mm wires .

Furthermore, the welder can manually modify the length of the arc.

Practical to transport thanks to its handle and low weight. Compact and robust machine body.

Equipped with multiple security systems: thermostatic, overvoltage, undervoltage, overcurrent protection, motor generator (+/- 15%).

17 synergic curves and polarity change for GAS MIG-MAG/BRAZING welding.

LCD display to check voltage, current, welding speed.

Adjustments: wire up slope, electronic reactance, wire burn back time, post gas

2/4-stroke operation selection, spot

Included: torch with EURO connection, ground clamp, cable and gas hose

Main Features

Focus on the

Welding type: wire

Also suitable for: MMA and TIG-lift

Power supply: 230 Volts

Fuse: 16 A

Maximum power absorption: 2.2 - 5 KW

Steel wire: 0.6 - 1 mm

Inox wire: 0.8 - 1 mm

Aluminium wire: 0.8 - 1 mm

Flux cored wire: 0.8 - 1.2 mm

Brazing wire: 0.8 - 1 mm

Open circuit voltage: 78 Volts

Power: 20 - 220 A

Duty cycle at 40°: 20% at 180A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

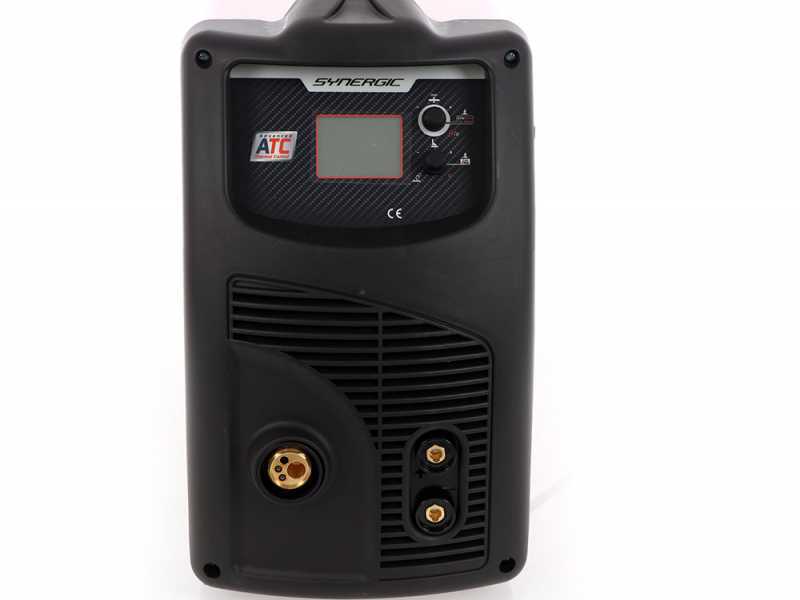

Control panel

LCD display for welding current and speed checking

Adjustment knob

Potentiometer

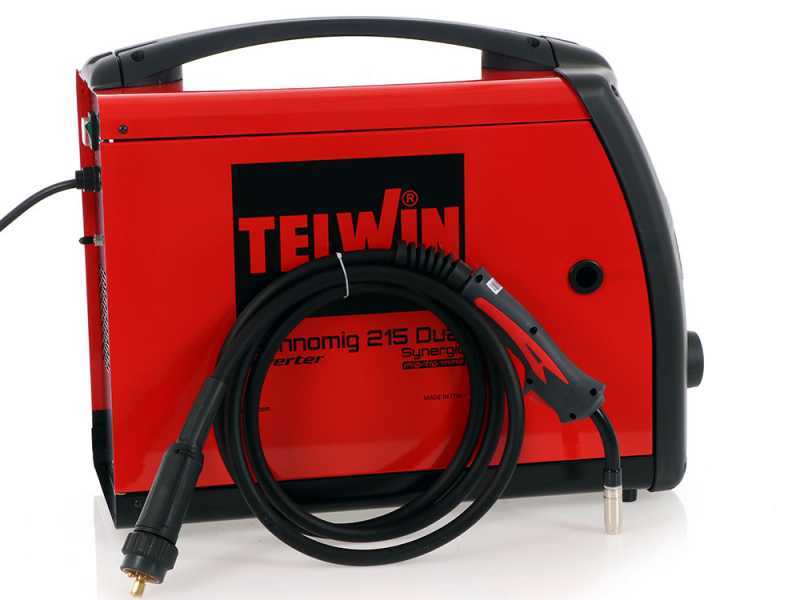

Further Features

Power switch

Gas connection

Handle for easy transport

Handle for wire compartment

Wire compartment

EURO connection for torch

Focus on the torch featuring cable with Euro socket

Support feet

Glove box

Free items & Standard equipment

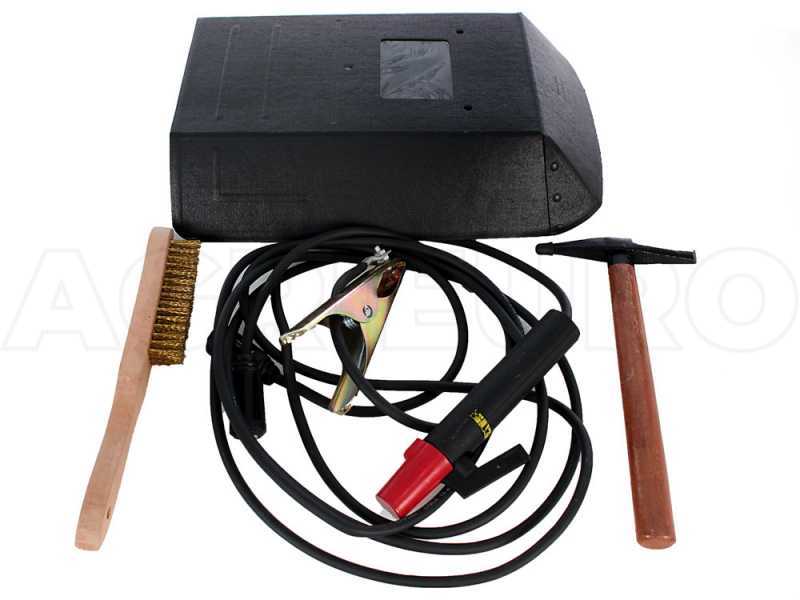

COMPLIMENTARY: Start Kit SOGES

Included in the price: SOGES Start Kit, Made in Italy, with every welding accessory, consisting of:

  • 1 Soges 200 A electrode holder
  • 1 Soges 200 A ground clamp
  • Soges ground cable and clamp, 2,9 mt/16 mm2 equipped with connector
  • 1 hammer
  • 1 brush with 4 rows
  • 1 Soges SD1 helmet with transparent glass and inactive glass

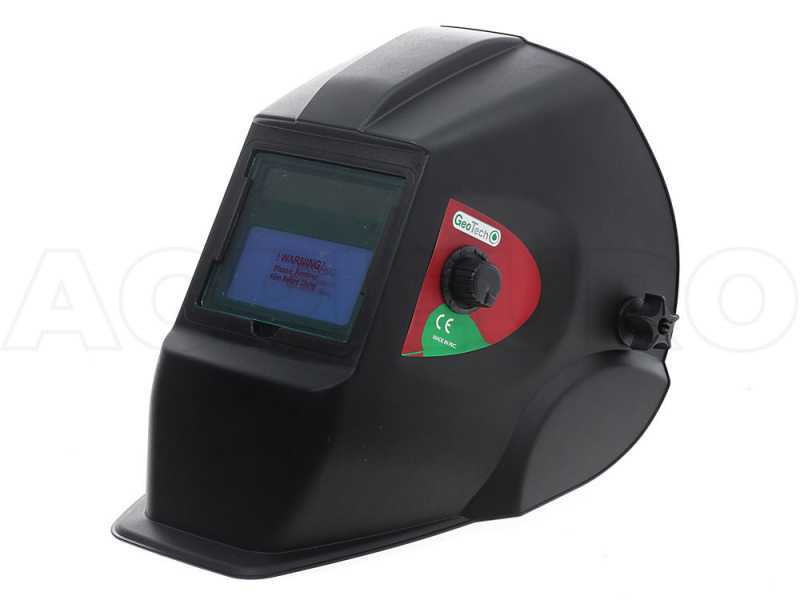

COMPLIMENTARY: heavy-duty welding helmet

Heavy-duty welding helmet, new and innovative product. It is one of the most efficient welding helmets in this category. GeoTech CHARM-380S auto darkening welding helmet features unparalleled value for money. There are no other helmets with such technical features at this price on the whole market.

Light and comfortable, equipped with adjustment system to be comfortably worn via a knob on the back. Suitable for MMA, TIG and MIG-MAG welding. Its shape allows you to operate with your hands free, ensuring maximum safety and ease of use.

SAFETY The auto darkening welding helmet is suitable for most welding operations. This helmet automatically darkens in 1/25,000 seconds the very moment you start welding. No matter what shade the filter is set to, the UV/IR protection is always present.

SHADE ADJUSTMENT You can select the 9-13 shade according to the welding process. The helmet can also be used to protect yourself during grinding (DIN 4). Grinding mode prevents filter from auto darkening.


Viewing area: 92x42 mm
Filter cartridge size: 110x90 mm
Arc sensor: 2
UV/R protection: up to DIN 16 at all times
Clearer filter: DIN 4 (grinding)
Darker filter: Variable external shadow, DIN 9-13
Darkening (from light to dark): 1/25,000 S
Delay (dark to light): 0.1-1-0
Power supply: Solar cell and 2 CR2032 lithium batteries
TIG AMP: DC>10, AC>10

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

The product is shipped in its original packaging along with the instruction manual.

Included in the packaging:

- TW 180 torch

- ground clamp with cable

- wire feeder roller

- gas hose

- storage compartment
