Name: Telwin Maxima 270 Synergic Inverter Wire Welding Machine - for MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT - GAS/NO GAS
Brand: Telwin
SKU: K601167
Price: 1120.06 EUR
Availability: InStock
Rating: 3 (2 reviews)

Description

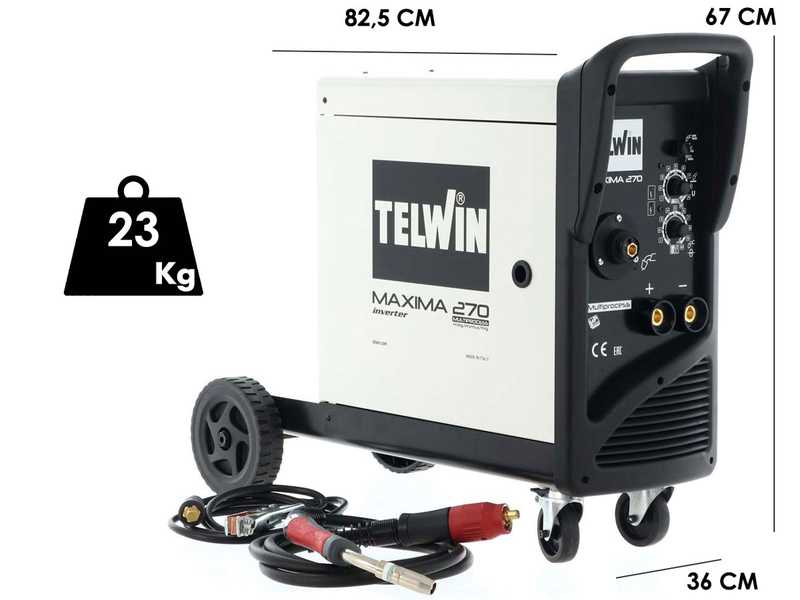

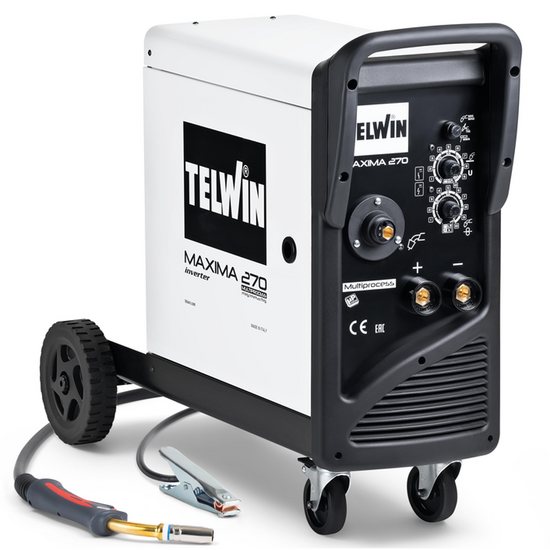

Telwin MAXIMA 270 Inverter Welding Machine

The Telwin Maxima 270 is a microprocessor-controlled inverter wire welding machine. It is a heavy-duty product that can meet every need while working on the most various welded and brazed materials. Featuring high power and performance, especially thanks to its 250A, this welding machine is the perfect tool for professional use, from small carpentry work to car bodywork.

This welding machine is part of the Elements line, a new range of products created by Telwin for DIY experts, the most demanding DIYers, professionals looking for products that are user-friendly, safe and high-quality. A series of articles with the guarantee of the Italian brand Telwin, which for over 50 years has been one of the world leaders in welding, plasma cutting, charging and starting.

Thanks to synergic adjustment, the operator is guided in setting the welding parameters, adapting the machine to different materials (steel, stainless steel, aluminium) and in its possible applications, from maintenance to installation.

This machine should be used for MIG-MAG (GAS) welding but it is also suitable for all types of welding: FLUX/BRAZING/MMA/TIG DC- LIFT.

MMA Arc-Force adjustment is an important feature of this welding machine. Briefly, it is a device that facilitates transferring the drops of molten material from the electrode to the material to be welded, preventing the arc from extinguishing when contact occurs between the electrode and the weld pool through the drops themselves.

Allows welding with wires from 0.6 to 1.2 mm and a coil of maximum 15 kg.

Thanks to the wheels and the gas cylinder housing, this particular model can be easily transported to any workplace.

Equipped with multiple safety systems:

thermostatic protection
overvoltage
undervoltage
overcurrent
Motor generator (+/-15%)

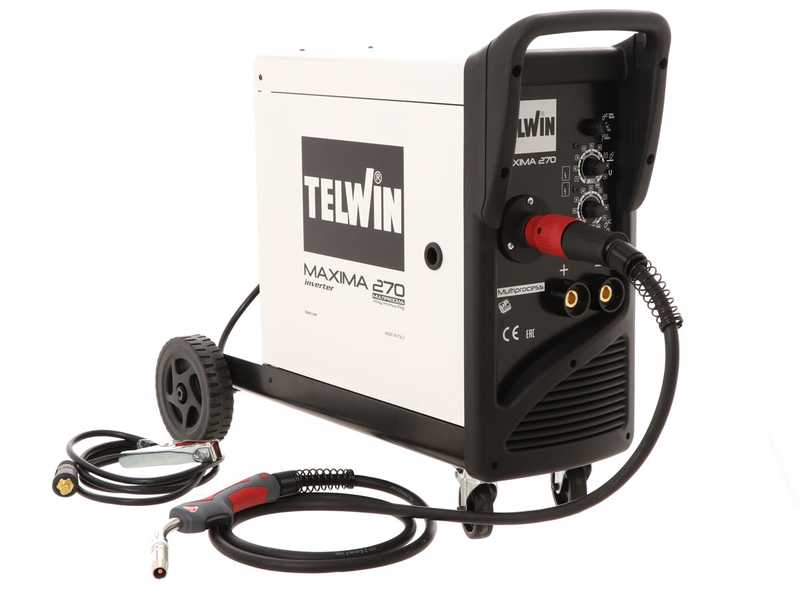

Included: MT25 torch and ground cable with clamp for NO GAS welding

Telwin Maxima 270 Synergic Inverter Wire Welding Machine - for MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT - GAS/NO GAS

Technical Features and Details

Focus on the data sheet:

Welding type: wire
Other welding types: MMA and TIG-LIFT
Power supply: 230 Volts
Fuse: 18 A
Maximum power absorption: 6.3 KW
Diameter of DC suitable electrodes: 1.6 - 4 mm
Steel wire: 0.6 - 1.2 mm
Inox wire: 0.8 mm - 1 mm
Aluminium wire: 0.8 - 1 mm
Flux cored wire: 0.8 - 1.2 mm
Brazing wire: 0.8 - 1 mm
Open circuit voltage: 50 Volts
Power: 20 - 250 A
Duty cycle at 40°: 20% at 220A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Focus on the control panel, where you can find 3 knobs for:

Welding type;
Welding arc width;
Amperage;

Equipped with two indicator lights which light up to signal the welding machine operating status and the maximum temperature reached. In this case, the welding machine will stop thanks to the thermostatic protection until it cools down and activates again.

Focus on the power switch

Handle for easy transport
