Telwin Maxima 230 Synergic Inverter Wire Welding Machine - for MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT - GAS/NO GAS

Questions & Answers (7)
ID: K601158

EAN: 8056151819550

MPN: 816234

7,9/10
After-sales assistance & Spare parts
Telwin Maxima 230 Synergic Inverter Wire Welding Machine - for MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT - GAS/NO GAS
+100 sold
FREE
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Multifunction inverter
MMA electrode
TIG
Gas / no gas wire (MIG-MAG)
Welding current range (A)
20 - 220
Open circuit voltage
52 Volt
Suitable MMA electrodes
1.6 - 3.2
40°C duty cycle
20 %
Aluminium Welding (optional)
Yes
Wire welding type
MIG - MAG - NO GAS
Generator +/- 15%
Synergic welding
Yes
Manufacturing country
Italy
Product Features
Model:
Maxima 230 Synergic
Type:
Multifunction inverter
MMA electrode:
TIG:
Gas / no gas wire (MIG-MAG):
Power supply:
Single-phase electric
Fuse:
18 Amp
Suitable MMA electrodes:
1.6 - 3.2
IP:
23
Open circuit voltage:
52 Volt
220 V max absorbed power:
4.8 KW
Min. required generator power:
6.75 KW
40°C duty cycle:
20 %
40°C duty cycle:
20%@180
Welding current range (A):
20 - 220
Suitable cored wire:
0.8 - 1.2
Suitable steel wire:
0.6 - 1.0
Suitable stainless steel wire:
0.8 - 1.0
Suitable aluminium wire:
0.8 - 1.0
Wire welding type:
MIG - MAG - NO GAS
Generator +/- 15%:
Aluminium Welding (optional):
Yes
Synergic welding:
Yes
Manufacturing country:
Italy
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics

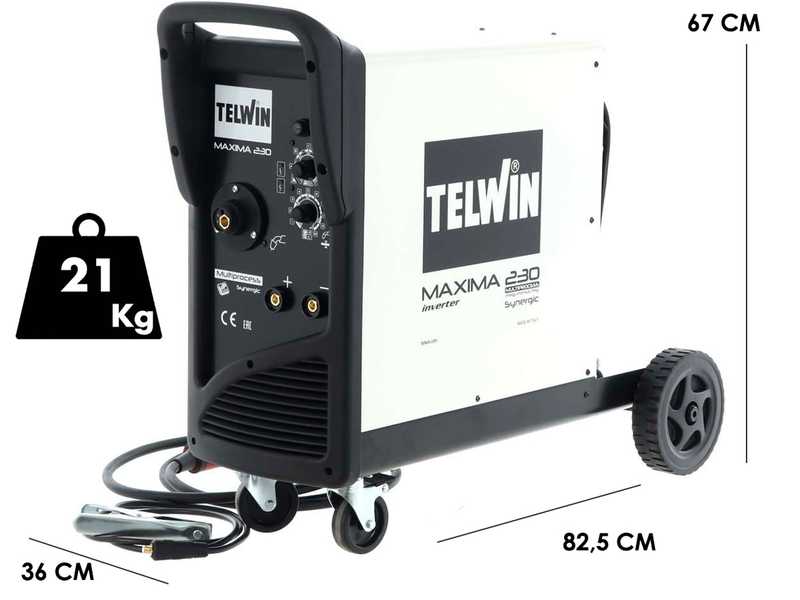

Product dimensions in cm (L x W x H):
82,5x36x67 cm
Net weight:
21 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
79,5x28x59,5 cm
Weight including packaging:
25.3 Kg
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 13/05/2025 - 15/05/2025
€ 929,59
Vat included

You're viewing:
Customers also viewed:
Description

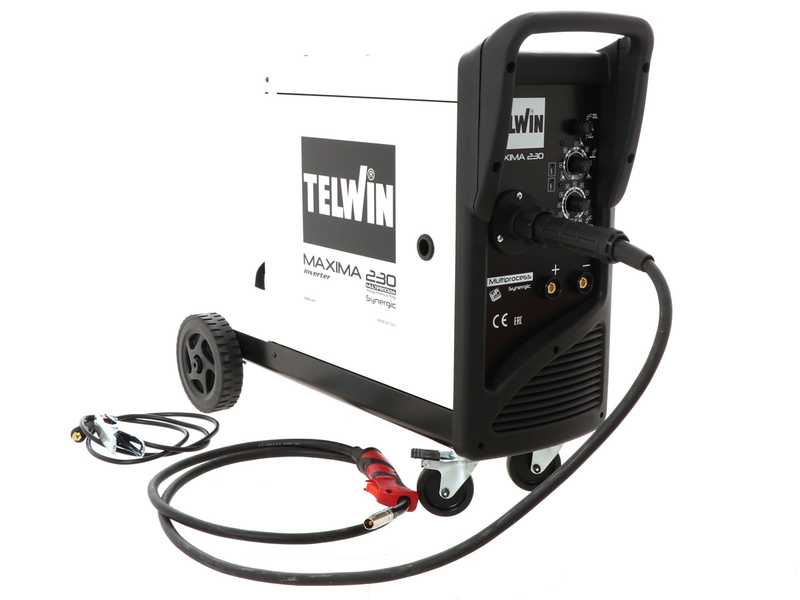

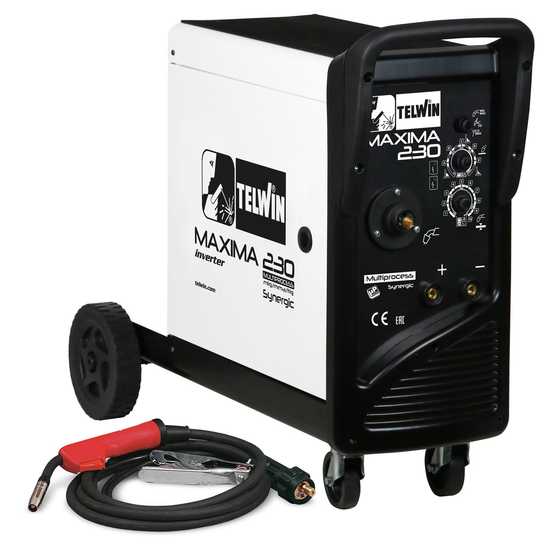

Telwin MAXIMA 230 Synergic Inverter Welding Machine

The Telwin Maxima 230 Synergic is an inverter wire welding machine, microprocessor-controlled. It is a professional product equipped with synergic adjustment of the welding settings, which guarantees great adaptability using different materials (steel, stainless steel, aluminium) and in its possible applications, from maintenance to installation.

This welding machine is part of the Elements line, a new range of products created by Telwin for DIY experts, the most demanding DIYers, professionals looking for products that are user-friendly, safe and high-quality. A series of articles with the guarantee of the Italian brand Telwin, which for over 50 years has been one of the world leaders in welding, plasma cutting, charging and starting.

The machine is already suitable for all types of welding: MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT. It is a high-level product, suitable for both amateurs and professionals for its versatility and practicality. MADE IN ITALY quality

Another special feature of this welding machine is the possibility of MMA Arc-Force adjustment. Briefly, it is a device that facilitates transferring the drops of molten material from the electrode to the material to be welded, preventing the arc from extinguishing when contact occurs between the electrode and the weld pool through the drops themselves.

Allows welding with wires from 0.6 to 1.2 mm and a coil of maximum 15 kg.

Its low weight and the handle on the top of the machine make it easy to transport in any workplace.

Equipped with multiple safety systems:

  • thermostatic protection
  • overvoltage
  • undervoltage
  • overcurrent
  • Motor generator (+/-15%)

Included: MT15 torch, the ground cable with NO GAS welding gun

Technical Features and Details

Focus on the data sheet:

  • Welding type: wire
  • Other welding types: MMA and TIG-LIFT
  • Power supply: 230 Volts
  • Fuse: 18 A
  • Maximum power absorption: 4.8 KW
  • Diameter of DC suitable electrodes: 1.6 - 3.2 mm
  • Steel wire: 0.6 - 1 mm
  • Inox wire: 0.8 mm - 1 mm
  • Aluminium wire: 0.8 - 1 mm
  • Flux cored wire: 0.8 - 1.2 mm
  • Brazing wire: 0.8 - 1 mm
  • Open circuit voltage: 50 Volts
  • Power: 20 - 220 A
  • Duty cycle at 40°: 20% at 180A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Focus on the control panel, where you can find 3 knobs for:

  • Welding type;
  • Welding arc width;
  • Amperage;

Equipped with two indicator lights which light up to signal the welding machine operating status and the maximum temperature reached. In this case, the welding machine will stop thanks to the thermostatic protection until it cools down and activates again.

Focus on the power switch

Handle for easy transport

Free items & Standard equipment

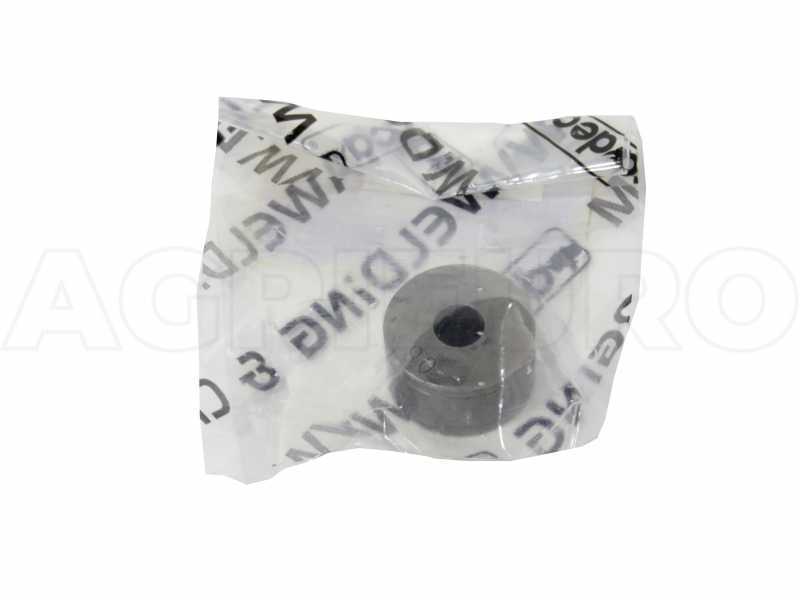

COMPLIMENTARY: wire feeder roller

Wire feeder roller

Iron - aluminium, diameter 0.8/1.0

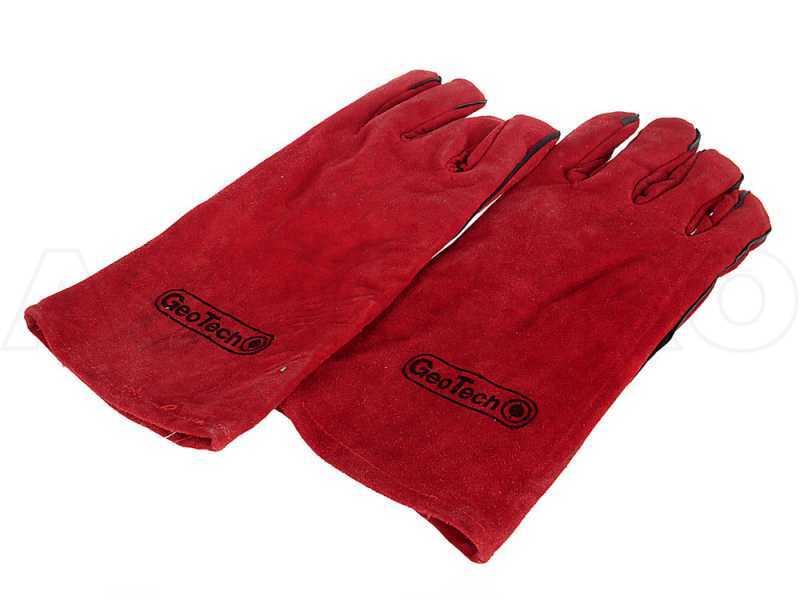

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

The product is shipped in its original packaging along with the instruction manual.

Included in the packaging:

  • MT15 torch
  • Ground clamp with cable
