Telwin Infinity 228 CE Direct Current TIG and Electrode Inverter Welding Machine - 200A Kit

Questions & Answers (1)
ID: K502536

EAN: 8004897987118

MPN: 816084

7,9/10
After-sales assistance & Spare parts
Telwin Infinity 228 CE Direct Current TIG and Electrode Inverter Welding Machine - 200A Kit
+100 sold
FREE
Pack of 230 2.0 mm AWS electrodesPack of 230 2.0 mm AWS electrodes
Pack of 140 AWS 2.5 mm electrodesPack of 140 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA + TIG
MMA electrode
TIG
Welding current range (A)
20 - 200
Open circuit voltage
60 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
35 %
Generator +/- 15%
TIG lift
Manufacturing country
Italy
Product Features
Model:
Infinity 228 CE
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 4
IP:
23
Open circuit voltage:
60 Volt
220 V max absorbed power:
6 KW
Min. required generator power:
9 KW
40°C duty cycle:
35 %
40°C duty cycle:
35%@200A
Welding current range (A):
20 - 200
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
38 x 14 x 25 cm
Net weight:
6,6 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48 x 15 x 29 cm
Gross weight (packaging included) :
7,2 Kg
Assembly time:
5 minutes
Prompt Delivery
13 items in stock
Free Shipping
Estimated delivery: 18/10/2024 - 22/10/2024
€ 451,48
VAT Included

You're viewing:
Customers also viewed:
Description

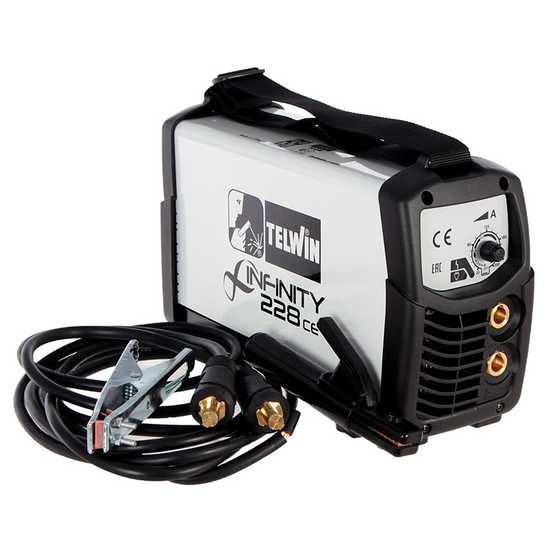

Telwin Infinity 228 CE Inverter Welding Machine with accessories

The Telwin Infinity 228 CE welding machine is a direct current MMA and TIG electrode machine, part of the new Elements series. The whole series includes innovative, reliable and practical products, ideal for both amateurs and professionals.

MADE IN ITALY professional welding machine.
Infinity 228 CE is one of the most powerful welding machines of its category. Top model for quality, innovation and versatility.

It can also use CELLULOSE electrodes MMA welding

It also allows excellent results in TIG welding with scratch striking.

It ensures very high performance with 200 A of maximum power and a 35% duty cycle for longer work sessions. You can connect it to the home current or to a generator with 10 KW min. power.

The Telwin Infinity 228 CE ensures high stability of the welding current.

  • thermostatic protection
  • overvoltage
  • undervoltage
  • overcurrent
  • Motor generator (+/-15%)

Hot Start and Arc Force: better arc and weld seam striking. Anti-Stick: to easily detach the electrode if it remains glued to the piece. Automatic current adjustment

1,6 - 4 mm electrodes.
Suitable electrodes: rutile, basic, stainless steel, cast iron, CELLULOSE

Equipped with adjustable belt for transport.
Wide range of accessories: electrode holder, ground clamp, 2 and 3 m cables, brush and shoulder strap.

High product quality guaranteed by TELWIN, historical Italian company, leader in this sector.

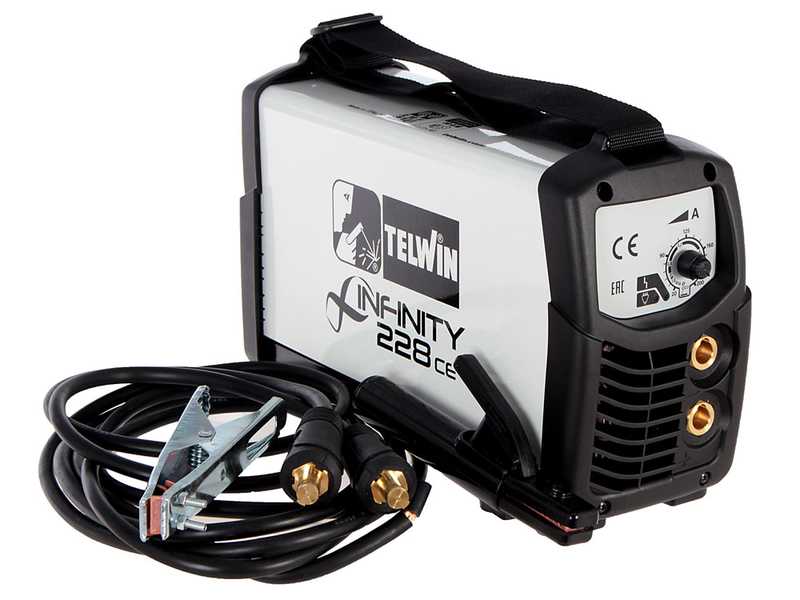

Technical Features

Focus on the data sheet

Power supply: 230 Volts

Maximum power absorption: 4 - 6 KW

Usable electrodes 1.6 - 4 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 60 Volts

Power: 20 - 200 A

Duty cycle at 40°: 35% at 200A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

The generator to which the welding machine can be connected has a minimum power of 10 Kw.

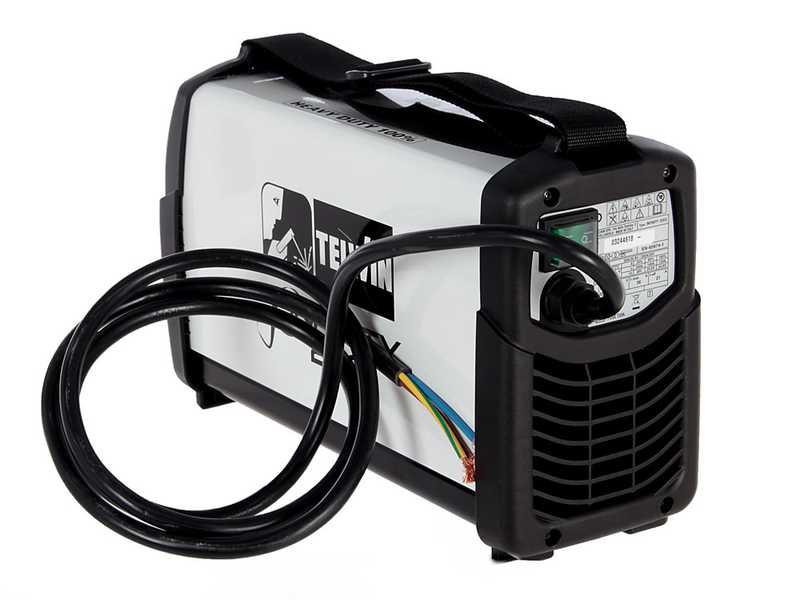

Power switch

Adjustable shoulder strap for easy transport

Brass sockets

Support feet

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

Equipped with two indicator lights which light up to indicate machine operation and maximum temperature reached, then the welding machine stops thanks to the thermostatic protection until it cools down, to continue working.

PLUG NOT INCLUDED.

Free items & Standard equipment

COMPLIMENTARY: 230 2.0 AWS Electrodes + 140 2.5 AWS Electrodes + Welding Gloves

Free items included:

400 AWS ELECTRODES:

- Package of 230 AWS rutile electrodes, 2.0 mm

- Package of 140 AWS rutile electrodes, 2.5mm

Excellent electrodes, perfect for many types of welding.



GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

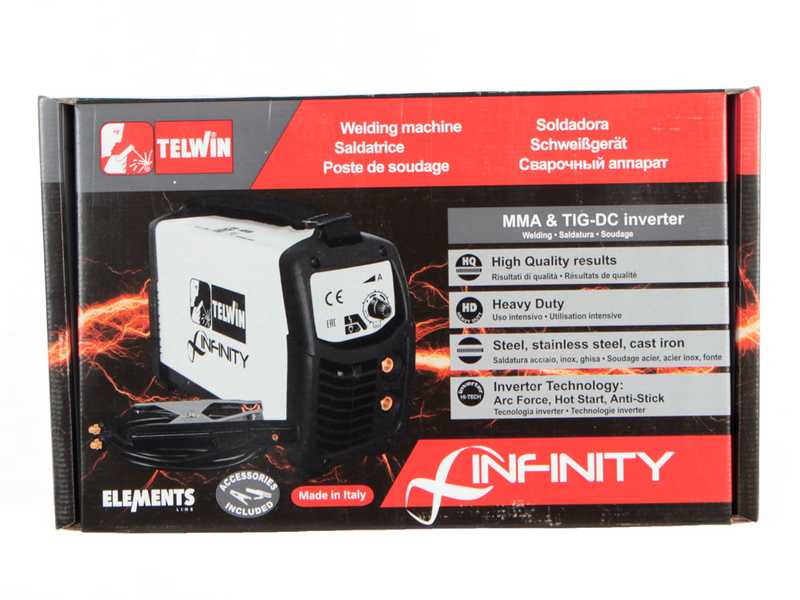

The product is shipped in its original packaging along with the instruction manual.

Wide range of accessories provided on standard equipment:

Ground clamp

Electrode holder

2 mt cables

Welding brush/hammer for debris removal

Shoulder strap/support belt
