Telwin FORCE 165 Direc Current Electrode Inverter Welding Machine - 150 A Power - Kit

Add a question
ID: K604066

EAN: 8004897789552

MPN: 815857

7,9/10
After-sales assistance & Spare parts
Telwin FORCE 165 Direc Current Electrode Inverter Welding Machine - 150 A Power - Kit
+200 sold
FREE
Pack of 230 2.0 mm AWS electrodesPack of 230 2.0 mm AWS electrodes
Pack of 140 AWS 2.5 mm electrodesPack of 140 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA
MMA electrode
Welding current range (A)
10 - 150
Open circuit voltage
72 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
7 %
Generator +/- 15%
Welding equipment
Suitcase + accessories
Manufacturing country
Italy
Product Features
Model:
FORCE 165
Type:
Inverter MMA
MMA electrode:
Power supply:
Single-phase electric
Fuse:
16 Amp
Suitable MMA electrodes:
1.6 - 4
IP:
21
Open circuit voltage:
72 Volt
220 V max absorbed power:
4,1 KW
Min. required generator power:
6 KW
40°C duty cycle:
7 %
40°C duty cycle:
7%@140A
20°C duty cycle:
60%@150A
Welding current range (A):
10 - 150
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Suitcase + accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
29 x 13 x 21 cm
Net weight:
5,5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
42 x 17,5 x 38,5 cm
Gross weight (packaging included) :
5,9 Kg
Assembly time:
5 minutes
Available in 17 days
Free Shipping
Estimated delivery: 04/11/2024 - 06/11/2024
€ 302,48
VAT Included

You're viewing:
Customers also viewed:
Description

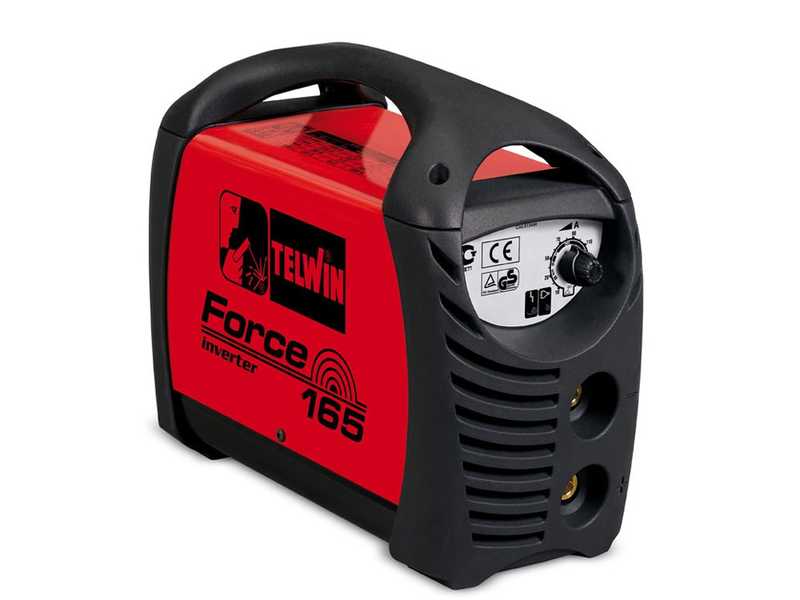

Telwin Force 165 Inverter Welding Machine

The Telwin Force 165 MMA electrode inverter welding machine is a direct current top selling machine that features all the quality of Made in Italy
It is an extremely light and compact welding machine, easy to handle thanks to its weight and small size, and offering great performance provided by a maximum power of 150A.

The Telwin Force 165 guarantees high stability of the welding current in case of variations in supply voltage.

Equipped with multiple safety systems:

  • thermostatic protection
  • overvoltage
  • undervoltage
  • overcurrent
  • motor generator (+/-15%): all Telwin inverters guarantee correct operation for variations in supply voltage up to 15%, we recommend that the generators are adequately stabilized.

It is one of the most known and popular products ever of the amateur range. It makes practicality, performance and user safety its strengths.

Hot Start and Arc Force: improved arc and weld seam striking.
Anti-Stick: it eliminates electrode sticking.

1,6 - 4 mm electrodes.
Suitable electrodes: rutile, basic, inox, cast iron...

This welding machine is equipped with a handle that makes it very practical for transport thanks to its plastic case to store the machine and all its accessories.

High product quality guaranteed by TELWIN, historical Italian company, leader in this sector.

Technical Features

Focus on the data sheet

Power supply: 230 Volts

Maximum power absorption: 4.1 KW

Fuse: 16 A

Usable electrodes 1.6 - 4 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 72 Volts

Power: 10 - 150 A

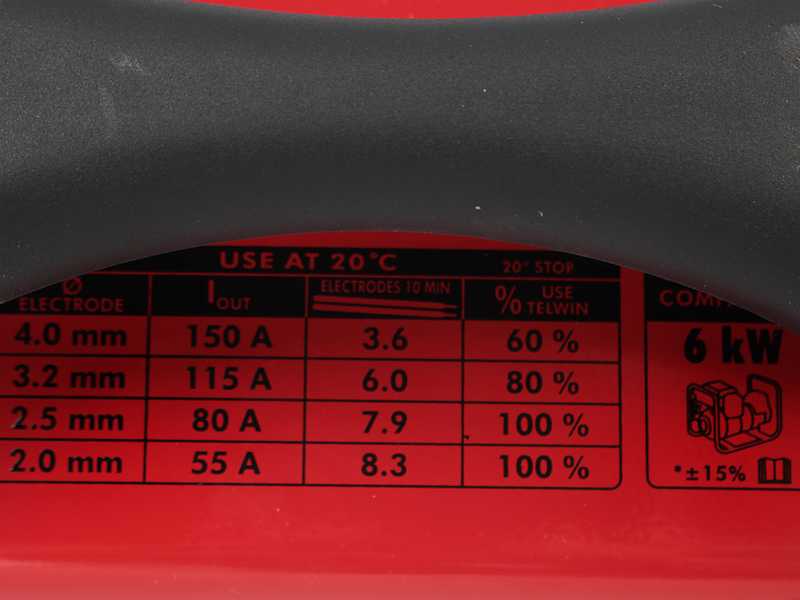

Duty cycle at 40°: 7% at 140A

Duty cycle at 20°: 60% at 150A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Power switch

Handle for easy transport

Male/female brass sockets

Voltage regulator

The Force has two indicator lights which light up to indicate machine operation and maximum temperature reached, then the welding machine stops thanks to the thermostatic protection until it cools down, to continue working.

Free items & Standard equipment

COMPLIMENTARY: 230 2.0 AWS Electrodes + 140 2.5 AWS Electrodes + Welding Gloves

Free items included:

400 AWS ELECTRODES:

- Package of 230 AWS rutile electrodes, 2.0 mm

- Package of 140 AWS rutile electrodes, 2.5mm

Excellent electrodes, perfect for many types of welding.



GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

The product is shipped in its original packaging along with the instruction manual.

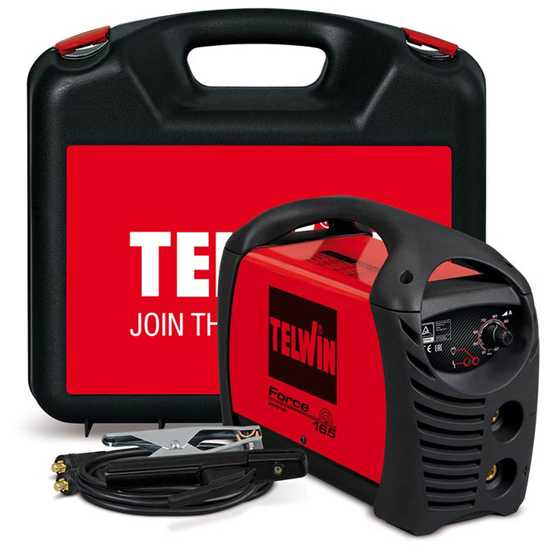

Wide range of accessories provided on standard equipment:

Ground clamp

Electrode holder

2 mt cables

Plastic case to carry the welding machine and all its accessories
