Name: Telwin FORCE 125 Direct Current Electrode Inverter Welding Machine - 80 A Power - Kit
Brand: Telwin
Price: 299.56 EUR
Availability: InStock
Rating: 4.73 (15 reviews)

Description

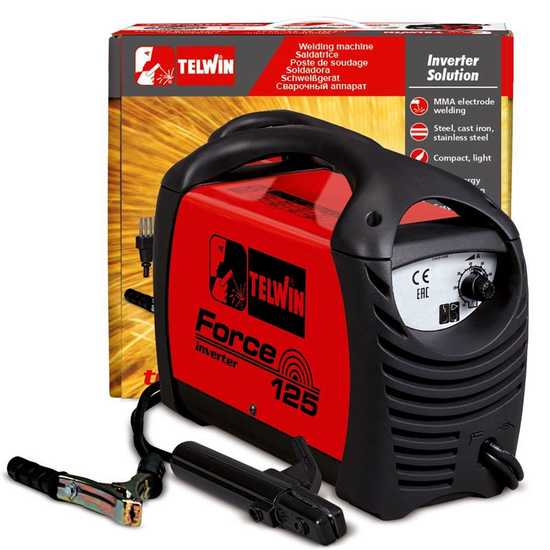

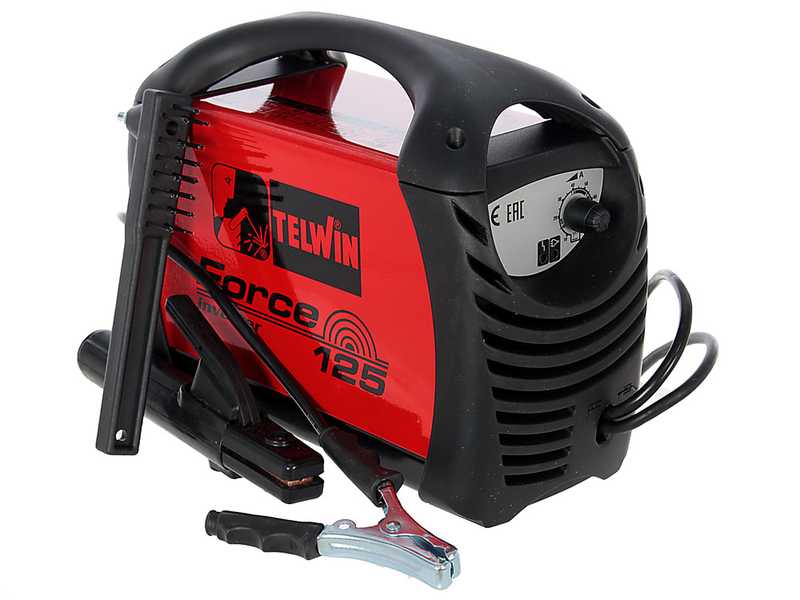

Telwin Force 125 Inverter Welding Machine with accessories

The Telwin Force 125 MMA electrode inverter welding machine is a direct current machine, top seller of its category.
This model is one of the top-selling and most popular on the market, featuring all the quality of Made in Italy.

It is an extremely light and compact welding machine, easy to handle thanks to its low weight, small size and remarkable performances at the same time.
Since it is a very versatile model, it can work with many types of electrodes on a maximum thickness of 0.5 mm.

The Telwin Force 125 guarantees high stability of the welding current in case of variations in supply voltage.

Equipped with multiple safety systems:

thermostatic protection, which activates in case of overheating
overvoltage
undervoltage
overcurrent

It is one of the most known and popular products ever of the amateur range. It makes practicality, performance and user safety its strengths.

Hot Start and Arc Force: improved arc and weld seam striking.
Anti-Stick: it eliminates electrode sticking.

1,6 - 2.5 mm electrodes.
Suitable electrodes: rutile, basic, inox, cast iron...

This welding machine is equipped with a handle that makes it very practical to transport thanks to its cardboard case to store the machine and all its accessories.

Wide set of accessories: electrode holder, ground clamp, 2 m cables, brush/hammer for debris removal.

High product quality guaranteed by TELWIN, historical Italian company, leader in this sector.

Telwin FORCE 125 Direct Current Electrode Inverter Welding Machine - 80 A Power - Kit

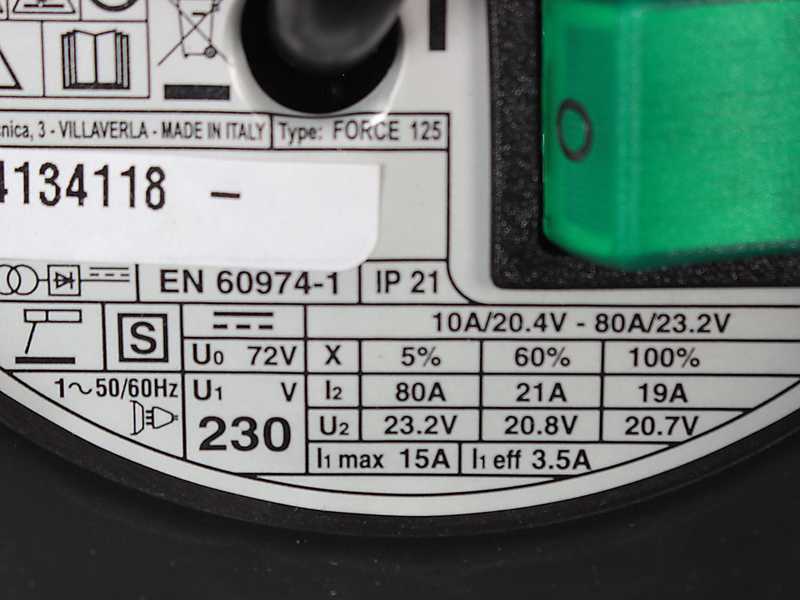

Technical Features

Focus on the data sheet

Power supply: 230 Volts

Maximum power absorption: 2.3 KW

Fuse: 10 A

Usable electrodes 1.6 - 2.5 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 72 Volts

Power: 10 - 80 A

Duty cycle at 40°: 5% at 80A

Duty cycle at 20°: 50% at 80A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Power switch

Handle for easy transport

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

The Force is equipped with two indicator lights which light up to indicate machine operation and maximum temperature reached, then the welding machine stops thanks to the thermostatic protection until it cools down, to continue working.
