Telwin Bimax 140i Synergic - FLUX wire inverter welding machine (no GAS), direct current (DC)

Questions & Answers (1)
ID: K608809

EAN: 8056590373354

MPN: 816168

7,9/10
After-sales assistance & Spare parts
Telwin Bimax 140i Synergic - FLUX wire inverter welding machine (no GAS), direct current (DC)
Type
Wire feel welder
Gas-free wire (MOG)
Welding current range (A)
20-150 A
Open circuit voltage
55 Volt
40°C duty cycle
15 %
Wire welding type
NO GAS
Generator +/- 15%
Manufacturing country
Italy
Product Features
Model:
Bimax 140i Synergic
Type:
Wire feel welder
Gas-free wire (MOG):
Power supply:
Single-phase electric
Fuse:
10 Amp
IP:
21
Open circuit voltage:
55 Volt
220 V max absorbed power:
3.6 KW
40°C duty cycle:
15 %
40°C duty cycle:
20%@115
Welding current range (A):
20-150 A
Suitable cored wire:
0.9
Wire welding type:
NO GAS
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
37.9X25.2X17.2
Net weight:
6.25 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
43X32X23 cm
Gross weight (packaging included) :
7 Kg
Assembly time:
5 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 21/02/2025 - 25/02/2025
€ 396,52
Vat included

You're viewing:
Customers also viewed:
Description

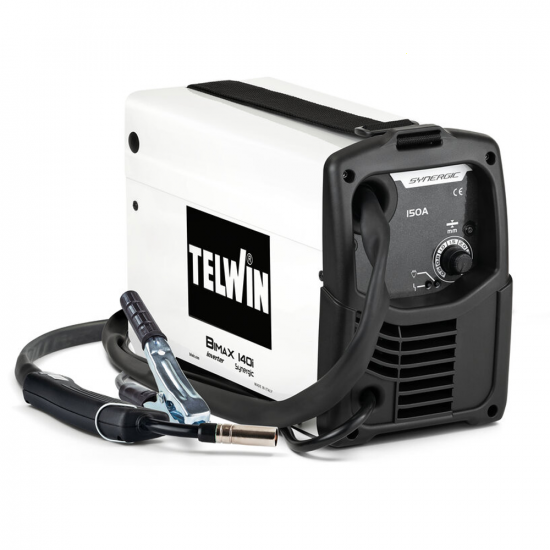

Telwin BIMAX 140i SYNERGIC wire welder

The Telwin BIMAX 140i SYNERGIC wire welding machine, part of the gas-free wire welding machine (MOG) category, is a versatile, high-quality device. This model, designed for use with flux cored wire, offers a practical and efficient solution for welding work in various environments, both indoors and outdoors. Thanks to synergy technology, adjusting settings is simple and straightforward, guaranteeing excellent results even for less experienced operators.

The BIMAX 140i SYNERGIC stands out for its lightness and compactness. Weighing only 6.25 kg and measuring 37.9 x 17.2 x 25.2 cm, it can be easily transported thanks to the adjustable shoulder strap. This makes the product ideal for operations in a wide range of situations.

Technical features

  • Use of flux-cored wire: compatible with 0.8 and 0.9 mm diameters.
  • Thickness adjustment: enables precise and flexible welding.
  • Low energy consumption: thanks to its inverter technology, it offers high energy efficiency with 85% efficiency and a power factor of 0.64.
  • Advanced protection: includes thermostat protection, over-voltage, under-voltage, over-current and motor protections (+/- 15%).
  • Welding current: adjustment range between 20 and 150 A, with a maximum current of 115 A at 20 % and 65 A direct current.
  • Power consumption: maximum of 2.65 kW and 1.3 kW at 60%, with a maximum current consumption of 18 A and 9 A at 60%.
  • No-load voltage: 55 V, guaranteeing stable, quality welding.

The Telwin BIMAX 140i SYNERGIC is easy to use, thanks to the synergic adjustment, which makes it suitable even for the inexperienced. It is light and compact, easily transportable thanks to the adjustable strap. Inverter technology ensures low consumption, guaranteeing energy efficiency. The welding machine is equipped with multiple protections, offering safe use in any situation. It also includes a torch, cable and ground clamp, ready to use.

With these features, the Telwin BIMAX 140i SYNERGIC is an excellent choice for anyone looking for a reliable, easy-to-use device suitable for various welding applications.

Technical Features and Details

Focus on the data sheet:

  • Single-phase mains voltage: 230 V
  • Mains frequency: 50 / 60 Hz
  • Current setting range: 20–150 A
  • Maximum DC current (EN 60974-1): 115A @ 20%
  • DC current: 65 A
  • Maximum open circuit voltage: 55 V
  • Maximum absorbed current: 18 A
  • Current consumption at 60% 9 A
  • Maximum power consumption: 2.65 kW
  • Power consumption at 60% 1.3 kW
  • Performance: 85%
  • Power factor (cos φ): 0.64
  • Flux-cored welding rod diameter: 0.8–0.9 mm

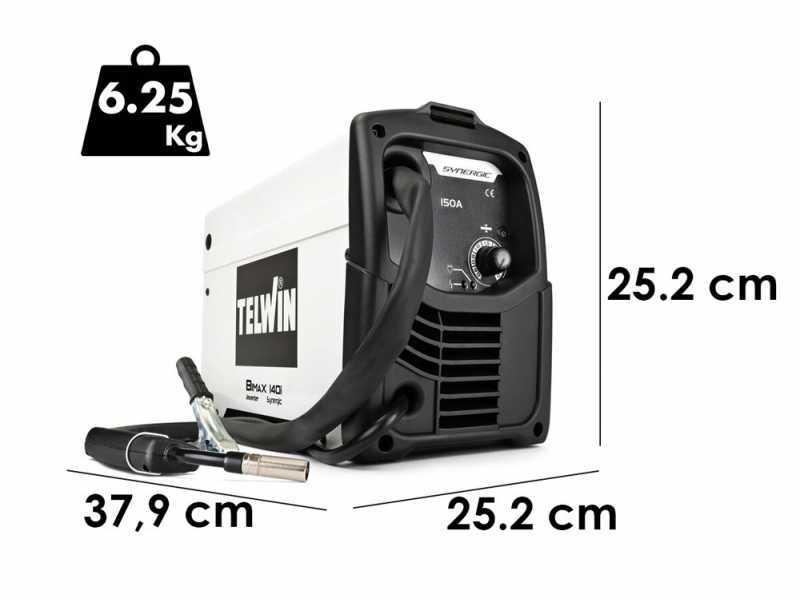

  • Size: 37,9 x 17,2 x 25.2 cm
  • Weight: 6.25 kg

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. At lower temperatures or when the machine is cold, the useful welding cycle naturally increases.

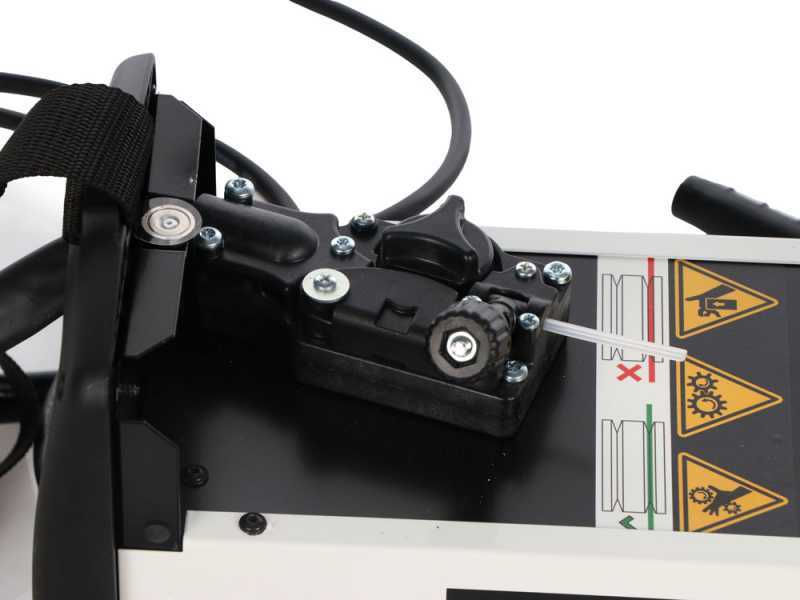

Detail of the control panel

Strap for easy transfer from one place to another.

Free items & Standard equipment

COMPLIMENTARY: wire feeder roller

Wire feeder roller

Iron - aluminium, diameter 0.8/1.0

Standard Equipment

The product is shipped in its original packaging along with the instruction manual.

Standard equipment:

    • TW160 torch
    • Ground clamp with cable

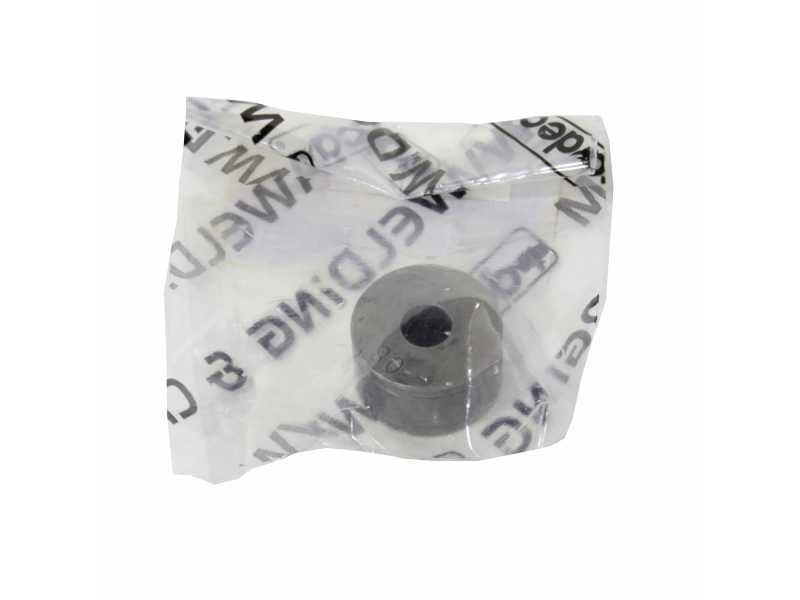

Deca Wire Feeder Roller

  • Wire feeder roller - Cored, 0.9 diameter
