Telwin 211/S - Direct Current TIG and Electrode Inverter Welding Machine - 230V 180 A

Questions & Answers (2)
ID: K607150

EAN: 8056590371688

MPN: 816240

7,9/10
After-sales assistance & Spare parts
Telwin 211/S - Direct Current TIG and Electrode Inverter Welding Machine - 230V 180 A
FREE
Pack of 230 2.0 mm AWS electrodesPack of 230 2.0 mm AWS electrodes
Pack of 140 AWS 2.5 mm electrodesPack of 140 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA + TIG
MMA electrode
TIG
Welding current range (A)
15 - 180
Open circuit voltage
75 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
18 %
Generator +/- 15%
TIG lift
Manufacturing country
Italy
Product Features
Model:
Tecnica 211/S
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 4
IP:
23
Open circuit voltage:
75 Volt
220 V max absorbed power:
5.3 KW
Min. required generator power:
7.9 KW
40°C duty cycle:
18 %
40°C duty cycle:
18%@170A
20°C duty cycle:
65%@180A
Welding current range (A):
15 - 180
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Machine only
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
30 x 13 x 23 cm
Net weight:
4,1 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
34 x 13,5 x 24,5 cm
Gross weight (packaging included) :
4,3 Kg
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 20/12/2024 - 24/12/2024
€ 358,18
Vat included

You're viewing:
Customers also viewed:
Description

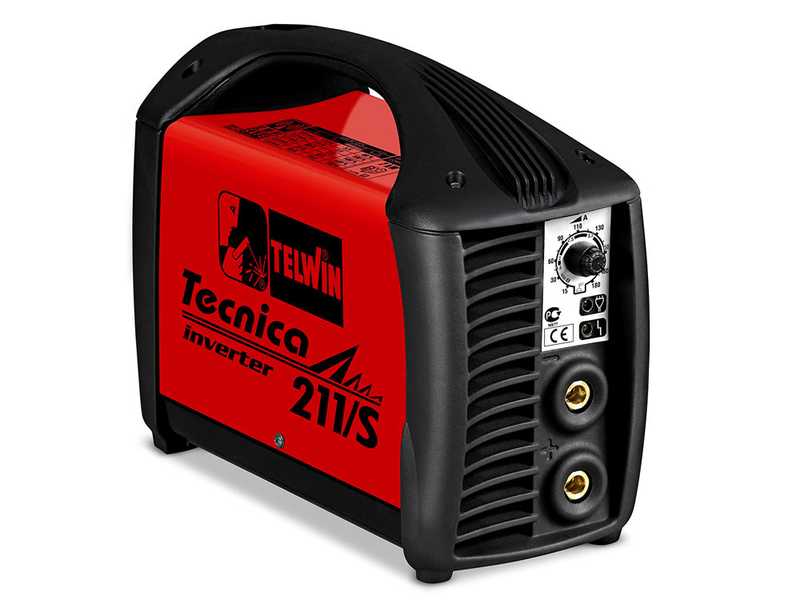

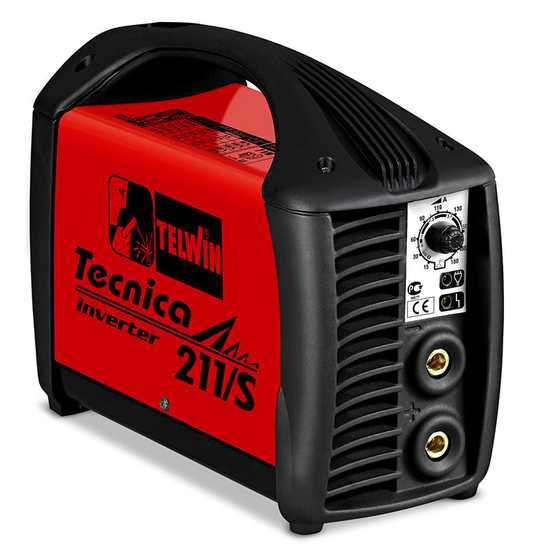

Telwin Tecnica 211/S Inverter Welding Machine

The Inverter Electrode Telwin Tecnica 211/S MMA and TIG Welding Machine is a DC welding machine, is one of the most appreciated models in its ­category.
A made-in-Italy product that allows both electrode and TIG welding with smear initiation.

It is extremely light and compact offering high manoeuvrability due , to their light weight and small size, and at the same time, high performance. The great performance is emphasised above all by a maximum power of no less than 180A.

This Telwin Tecnica 211/S model guarantees high stability of the welding current in case of variations of the supply voltage.

Equipped with a Multiple safety system:

  • thermostatic protection
  • overvoltage
  • undervoltage
  • overcurrent
  • motor generator (+/-15%): all Telwin inverters guarantee correct operation for supply voltage variations of up to 15%. Generators should be properly stabilized.

At hobby level, it is among the most popular products. Practicality, performance and user safety are its strong points. We are talking about a high-quality inverter.

Hot Start and Arc Force: improved performance of arc welding and welding seam.
Anti-Stick: system that eliminates the problem of electrode sticking.

Electrodes with a diameter of 1.6 - 4 mm.
Usable electrodes: rutile, basic, stainless steel, cast iron etc.

Practical for transport thanks to the handle with which the pump is equipped.

The welding machine is provided WITHOUT accessories

The high quality of the equipment is guaranteed by its TELWIN brand: historic Italian leading company for the production of this type of machineries.

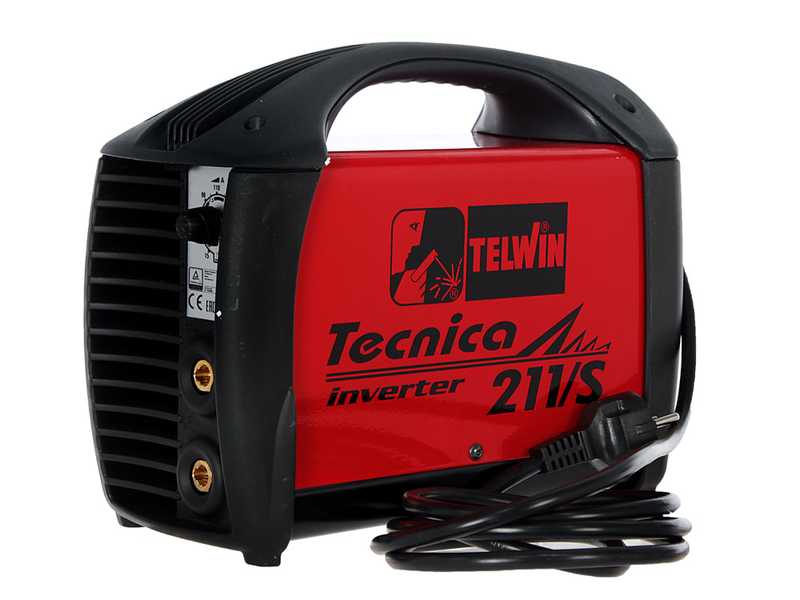

Technical Features

Focus on the data sheet

Welding type: MMA and TIG

Power supply: 230 Volts

Maximum power absorption: 2.9-5.3 KW

Electrodes to be used: 1,6 - 4 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 75 Volts

Power: 15 - 180 A

Service cycle at 40°: 18% at 170A

Service cycle at 20°: 65% at 180A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Minimum power of 7 kW of the generator to which the welding machine can be connected.

Power switch

Handle for easy transport

Male/female brass sockets

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

Equipped with light indicators which light up to signal the welding machine operating status and the maximum temperature reached. In this case, the welding machine will stop thanks to the thermostatic protection until it cools down and activates again.

Free items & Standard equipment

COMPLIMENTARY: 230 2.0 AWS Electrodes + 140 2.5 AWS Electrodes + Welding Gloves

Free items included:

400 AWS ELECTRODES:

- Package of 230 AWS rutile electrodes, 2.0 mm

- Package of 140 AWS rutile electrodes, 2.5mm

Excellent electrodes, perfect for many types of welding.



GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Standard equipment

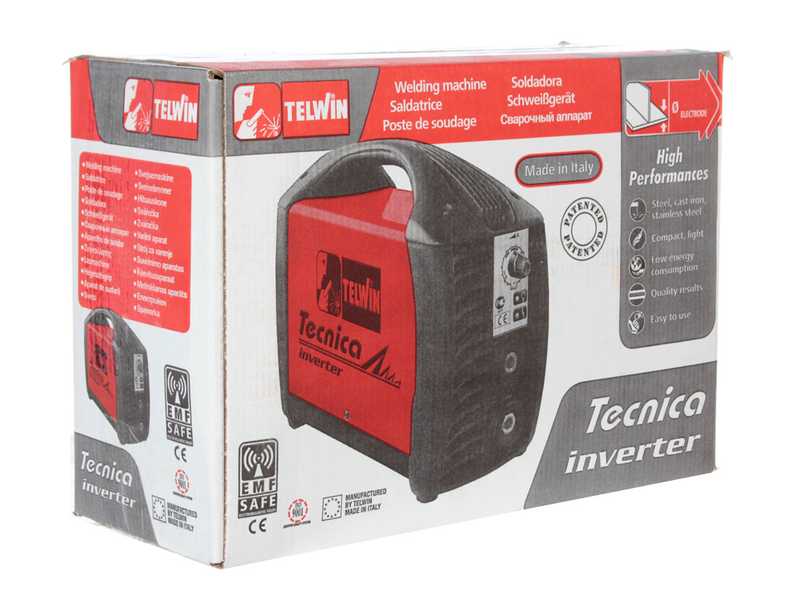

The product is shipped in its original packaging along with the instruction manual.

The welder does not have accessories (cables with ground clamp and electrode holder)
