Tellarini EEM 25 MS - Brass electric transfer pump - Single-phase - 230V

Add a question
ID: 113989

EAN: 8051566390069

MPN: 501M E

Tellarini EEM 25 MS - Brass electric transfer pump - Single-phase - 230V
Technical data
Use for water
yes
Use For diesel
yes
Operating mode
Electric 230 V
Flow rate
56 L/min
Engine speed
2800 RPM
Nominal power
1.2 HP
Pump material
Brass
Fittings diameter
25 mm
Maximum draught
6 m
Max. head lift
32 m
Manufacturing country
Italy
Product Features
Model
EEM 25 MS
Use for water
yes
Use For diesel
yes
Type
autoadescante
Body material
Ottone
Operating mode
elettrica - 220 V
Operating mode
Electric 230 V
Rotation
Double direction
Flow rate
56 L/min
Manufacturing country
Italy
Motor data
Motor type
Electric single-phase
Nominal power
1.2 HP
Motor speed
2800 RPM
Power supply
220 V electric
Protection rating
IPX4
Manufacturing country
Italy
Pump data
Pump material
Brass
Engine speed
2800 RPM
Fittings diameter
25 mm
Flow rate
56 lt/min
Max. head lift
32 m
Maximum draught
6 m
Manufacturing country
Italy
Equipment
Lifting handle
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

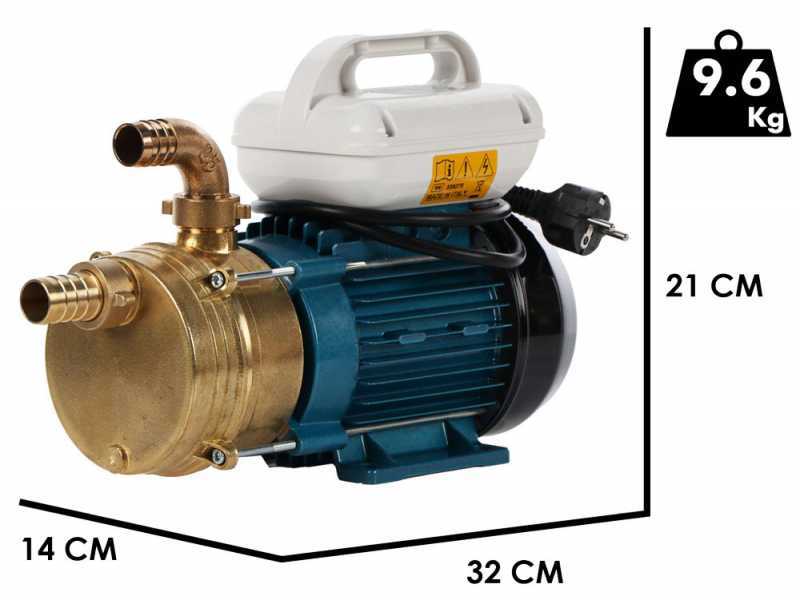

Product dimensions in cm (L x W x H)
32x14x21 cm
Net weight
9.6 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
48x34x26 cm
Weight including packaging
11.2 Kg
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 10/11/2025 - 12/11/2025
€ 209,26
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

General Features

The EEM series pump is the ideal solution for suction and transfer of liquids, thanks to its excellent self-priming capacity, its ability to operate even when the liquid being sucked is discontinuous, and its flow reversibility.

Made of CB754S brass, the EEM series combines affordability and quality, being equipped with a high-quality two-phase electric motor and a practical rocker switch.

This makes it extremely versatile and reliable for a variety of applications.

The EEM series pumps are truly multifunctional devices, capable of tackling and solving a wide range of pumping problems.

Their design allows them to be used in various situations, always guaranteeing optimal performance.

However, it is essential to check the suitability of the pump for each specific application and to choose the appropriate seals to ensure maximum efficiency and durability.

These pumps are particularly suitable for domestic use.

They can be used for water treatment, diesel fuel transfer, water systems and irrigation.

Their versatility makes them suitable for a variety of domestic uses, ensuring continuous and reliable operation even in the most demanding conditions.

In conclusion, the EEM series is the perfect choice for those looking for an economical but high-quality pump capable of delivering excellent performance in a wide range of domestic applications.

With the EEM series, you can count on a sturdy, efficient and versatile product that can handle the challenges of pumping liquids with ease and confidence.

bronze pumps do not have a self-declaration of conformity in accordance with Regulation (CE) No. 1935/2004 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 October 2004 and Regulation (CE) No. 2023/2006 OF THE COMMISSION of 22 December 2006.

For applications requiring compliance with the above Regulations, please refer to the STAINLESS STEEL range of pumps."

Technical Features and Details

The EEM series pump is a versatile, high-quality hydraulic device, ideal for a wide range of applications. Below is a detailed description of its hydraulic and technical specifications.

Hydraulic specifications

This pump is designed to deliver a maximum flow rate of 56 litres per minute and a maximum head of 32 metres. It is equipped with a shaft seal system with oil seal, which ensures long life and optimum efficiency. The maximum suction height is 6 metres, making it suitable for a wide range of operating conditions. The threaded ports are 1 inch, and the pump can handle liquids with a maximum density of 1.1 g/cm³, provided they are free of hard suspended particles, such as sand.

Features and Limitations

  • Maximum temperature: 90°C (up to 130°C with seals on request)
  • Limitations: Not suitable for aggressive liquids, petrol, solvents, or environments with a risk of explosion and fire.
  • Functionality: Possibility of reversing the pumping flow, coupling with free impeller on the shaft.

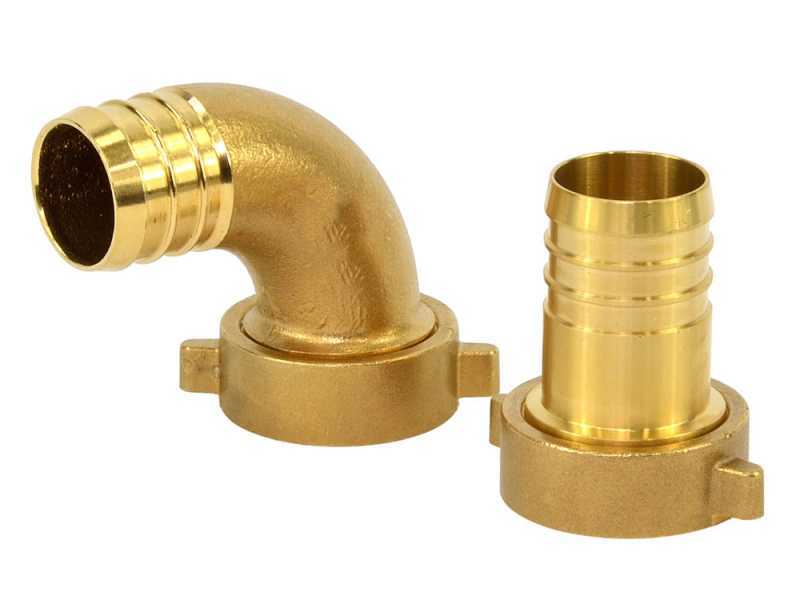

  • Accessories: Supplied with a pair of brass hose connectors for 25 mm pipes (one straight and one 90° curved).
  • Operation: Can operate for short periods with closed pipes. Upon installation, the pump must be filled with liquid, but this operation is not required thereafter.

Technical Specifications

The pump is made of high-quality materials:

  • Pump body: Brass
  • Shaft: AISI 316
  • Impeller: Brass
  • Seals: NBR

Motor

The pump is powered by a single-phase 230V 50Hz asynchronous motor, equipped with a MEC 71 motor operating at 2800 rpm, with a power of 1.2 HP (0.9 kW). The motor protective rating is IP X4 and the insulation class is F. The power connection is provided by a 1-metre cable with a Schuko plug. The pump is switched on, and the flow reversed using a convenient switch inverter.

In summary, the EEM series pump offers an ideal combination of performance, reliability and versatility, making it suitable for numerous domestic and professional applications.

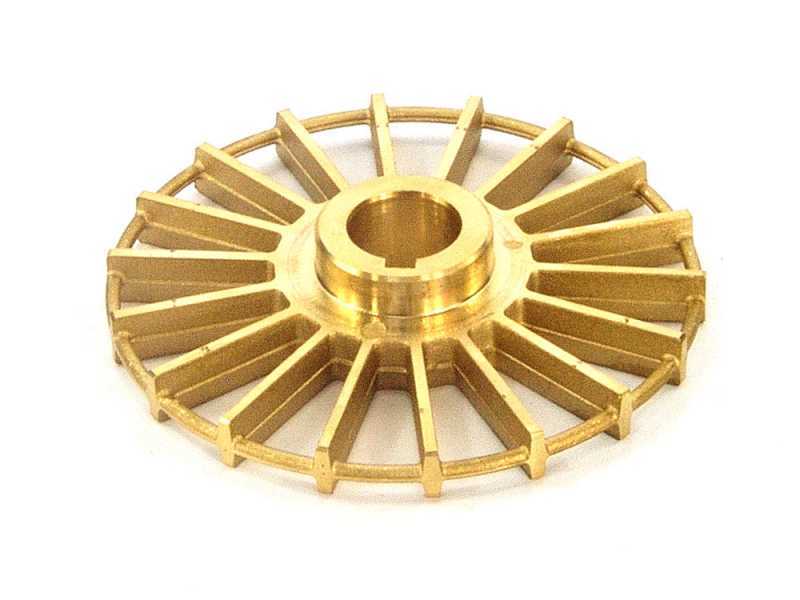

Impeller detail

bronze pumps do not have a self-declaration of conformity in accordance with Regulation (CE) No. 1935/2004 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 October 2004 and Regulation (CE) No. 2023/2006 OF THE COMMISSION of 22 December 2006.

For applications requiring compliance with the above Regulations, please refer to the STAINLESS STEEL range of pumps."

Types of suitable liquids

Transfer pumps are designed to make it quick and easy to move different liquids from one container to another. They are practical tools that can be used at home, in the cellar or in agriculture, saving time and effort in everyday tasks.

This model is suitable for transferring liquids in domestic environments:

  • water
  • diesel fuel
  • irrigation
  • water systems
Free items & Standard equipment

Free items included

The product will be shipped in its original packaging, including:

Instruction manual

Connectors
