Tellarini EEM 25 - Brass electric transfer pump - Single-phase - 230V

Add a question
ID: 113988

EAN: 8051566390021

MPN: 501 E

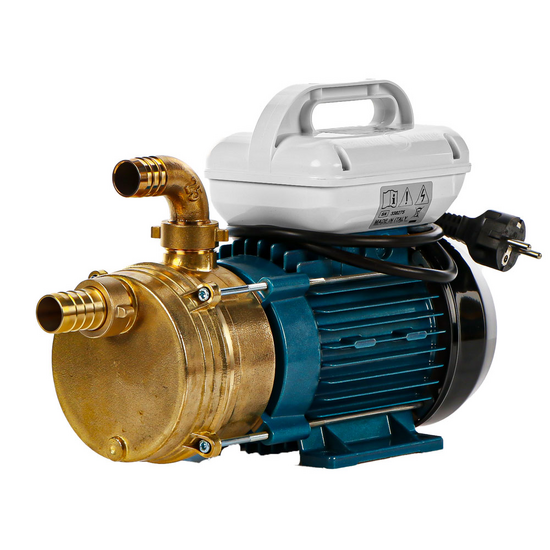

Tellarini EEM 25 - Brass electric transfer pump - Single-phase - 230V
Technical data
Use for water
yes
Use For diesel
yes
Operating mode
Electric 230 V
Flow rate
50 L/min
Engine speed
1400 RPM
Nominal power
0.6 HP
Pump material
Brass
Fittings diameter
25 mm
Maximum draught
6 m
Max. head lift
13 m
Manufacturing country
Italy
Product Features
Model
EEM 25
Use for water
yes
Use For diesel
yes
Type
autoadescante
Body material
Ottone
Operating mode
elettrica - 220 V
Operating mode
Electric 230 V
Rotation
Double direction
Flow rate
50 L/min
Manufacturing country
Italy
Motor data
Motor type
Electric single-phase
Nominal power
0.6 HP
Motor speed
1400 RPM
Power supply
220 V electric
Protection rating
IPX4
Manufacturing country
Italy
Pump data
Pump material
Brass
Engine speed
1400 RPM
Fittings diameter
25 mm
Flow rate
50 lt/min
Max. head lift
13 m
Maximum draught
6 m
Manufacturing country
Italy
Equipment
Lifting handle
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

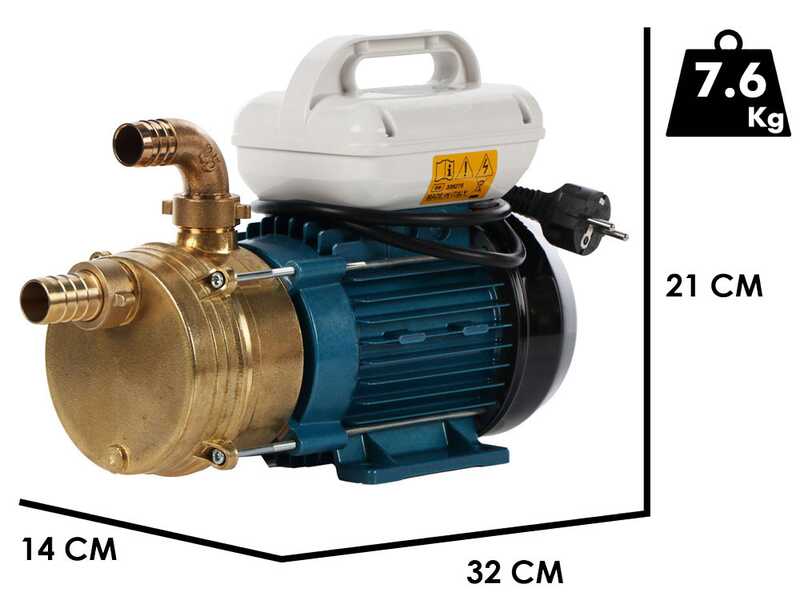

Product dimensions in cm (L x W x H)
32x14x21 cm
Net weight
7.6 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
48x34x26 cm
Weight including packaging
9.1 Kg
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 17/11/2025 - 19/11/2025
€ 194,01
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Tellarini EEM 25 - Brass electric transfer pump

The EEM series pump is the ideal solution for suction and transfer of liquids, thanks to its excellent self-priming capacity and the possibility of operating even in the presence of discontinuous suction liquid. Its main feature is the reversibility of the flow, which further expands its potential, making it suitable for multiple applications.

Made of CB754S brass, the EEM series combines affordability and quality. It is equipped with a high-quality two-phase electric motor and a practical rocker switch, which guarantee high performance and long life. These features make the EEM series pumps extremely versatile and reliable, ideal for solving a wide range of pumping problems.

Thanks to their design, EEM pumps can be used in a variety of situations, always ensuring optimal results. However, it is important to carefully assess the suitability of the pump for each specific application, selecting the most suitable seals to optimise the efficiency and durability of the device.

EEM series pumps are particularly suitable for domestic use, such as water treatment, diesel fuel transfer, integration into water systems and irrigation. Their versatility makes them ideal for a wide range of domestic needs, ensuring continuous and reliable operation even in the most difficult conditions.

In summary, the EEM series is an excellent choice for those looking for an economical but high-quality pump capable of delivering superior performance in a wide range of domestic applications. Reliable, sturdy and efficient, the EEM series can successfully tackle the challenges of pumping liquids, offering safety and ease of use.

bronze pumps do not have a self-declaration of compliance in accordance with Regulation (CE) No. 1935/2004 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 October 2004 and Regulation (CE) No. 2023/2006 OF THE COMMISSION of 22 December 2006.

For uses requiring compliance with the above Regulations, please refer to the STAINLESS STEEL range of pumps."

Technical Features and Details

This hydraulic pump is designed to offer high performance in applications that require reliability and versatility. Thanks to its maximum flow rate of 50 litres per minute and a maximum head of 13 metres, it is able to meet the needs of a variety of uses, ensuring efficient and safe operation. The high-quality materials used in its construction, such as brass for the pump body and AISI 316 stainless steel for the shaft, ensure strength and durability, even in demanding conditions.

This pump is not suitable for use with aggressive liquids or in environments with explosion and fire hazards, such as when transferring petrol or solvents. However, it offers the possibility of reversing the pumping flow and operating for short periods with closed pipes, making it extremely versatile for specific applications.

Installation is simple, requiring only the initial filling of the pump with liquid; once this has been done, the pump will be ready for operation without the need for further priming. The 230V 50Hz single-phase asynchronous motor, equipped with a 0.6 HP MEC 71 motor, guarantees adequate power for the required performance, while the IP X4 protective rating and F insulation class offer safety and reliability over time.

Material

  • Pump body: Brass
  • Shaft: AISI 316
  • Impeller: Brass
  • Seals: NBR

MOTOR

  • Powered by a single-phase 230V 50Hz asynchronous motor
  • Equipped with MEC 71 motor at 1400 rpm, 0.6 HP/0.4 kW
  • Protective rating IP X4
  • Insulation class F
  • Power connection via cable with 1m Schuko plug
  • Start-up and reversal of the pumping flow via switch inverter

Impeller detail

bronze pumps do not have a self-declaration of conformity in accordance with Regulation (CE) No. 1935/2004 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 October 2004 and Regulation (CE) No. 2023/2006 OF THE COMMISSION of 22 December 2006.

For applications requiring compliance with the above Regulations, please refer to the STAINLESS STEEL range of pumps."

Types of suitable liquids

Transfer pumps are designed to make it quick and easy to move different liquids from one container to another. They are practical tools that can be used at home, in the cellar or in agriculture, saving time and effort in everyday tasks.

This model is suitable for transferring liquids in domestic environments:

  • water
  • diesel fuel
  • irrigation
  • water systems
Free items & Standard equipment

Free items included

The product will be shipped in its original packaging, including:

Instruction manual

Connectors
