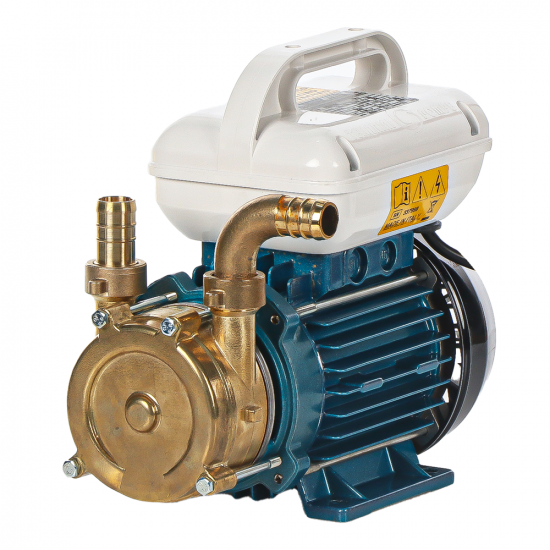

Tellarini EEM 20L - brass transfer pump

Hobby
Add a question
ID: 113987

EAN: 8051566390014

MPN: 500L E

16Pictures
1Videos
Tellarini EEM 20L - brass transfer pump
Tellarini EEM 20L - brass transfer pump
Tellarini EEM 20L - brass transfer pump
Tellarini EEM 20L - brass transfer pump
Tellarini EEM 20L - brass transfer pump
Tellarini EEM 20L - brass transfer pump
Operating mode
Electric 230 V
Flow rate
13 L/min
Nominal power
0.2 HP
Pump material
Brass
Fittings diameter
20 mm
Max. head lift
6 m
Max. suction height
6 m
Manufacturing country
Italy
Product Features
Model:
EEM 20L
Type:
autoadescante
Body material:
Ottone
Operating mode:
elettrica - 220 V
Operating mode:
Electric 230 V
Rotation:
Double direction
Flow rate:
13 L/min
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Nominal power:
0.2 HP
Motor speed:
1400 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump material:
Brass
Fittings diameter:
20 mm
Flow rate:
13 lt/min
Max. head lift:
6 m
Max. suction height:
6 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

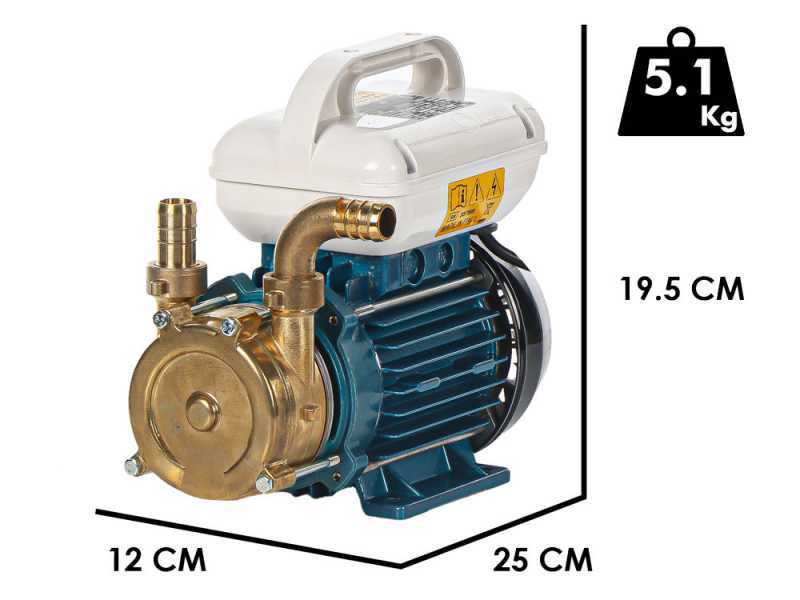

Product dimensions in cm (L x W x H):
25x12x19.5 cm
Net weight:
5.1 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
40x32x29
Gross weight (packaging included) :
6.5 Kg
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Free returns (up to 30 days after receipt) *
€ 162,13
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

Tellarini EEM 20L - Brass electric transfer pump

The EEM series is an excellent solution for the suction and transfer of liquids, distinguishing itself with a number of advanced technical features.
Thanks to its strong self-priming capacity , the EEM series guarantees effective operation even in discontinuous suction conditions , allowing the liquid to pass through efficiently and safely.

In addition, the flow invertibility offers operational flexibility to adapt the pump to different application needs.

Made from CB754S brass, the EEM series pumps combine economy with top-notch performance, making them a cost-effective option without compromising on quality.

Equipped with a high-quality two-phase electric motor and equipped with a convenient rocker inverter, these multi-function pumps are designed to solve a wide range of pumping problems in different contexts.

Before each application, it is essential to check the suitability of the pump for the specific situation and to select the most appropriate seals to ensure optimum operation over a long period of time.

The EEM series is particularly suitable for use in domestic environments , such as pumping water, diesel oil, water management and irrigation operations .

Due to its versatility and reliability, this series is an ideal choice for those looking for an effective and durable solution for pumping liquids.

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

Tellarini EEM 20L - brass transfer pump
Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump

Technical Features and Details

The pump offers a maximum flow rate of 13 liters per minute and a maximum head of 6 meters, ideal for various applications.

Fitted with oil seals for a secure seal, it can prime up to 6 meters in height.

The 3/4" threaded spouts are compatible with many connections, and the pump handles liquids with a maximum density of 1.1 g/cm3 without any hard particles in suspension.

The maximum fluid temperature is 90°C (up to 130°C with special seals on request).

It is not suitable for aggressive liquids, gasoline, solvents, or explosion and fire hazardous environments.

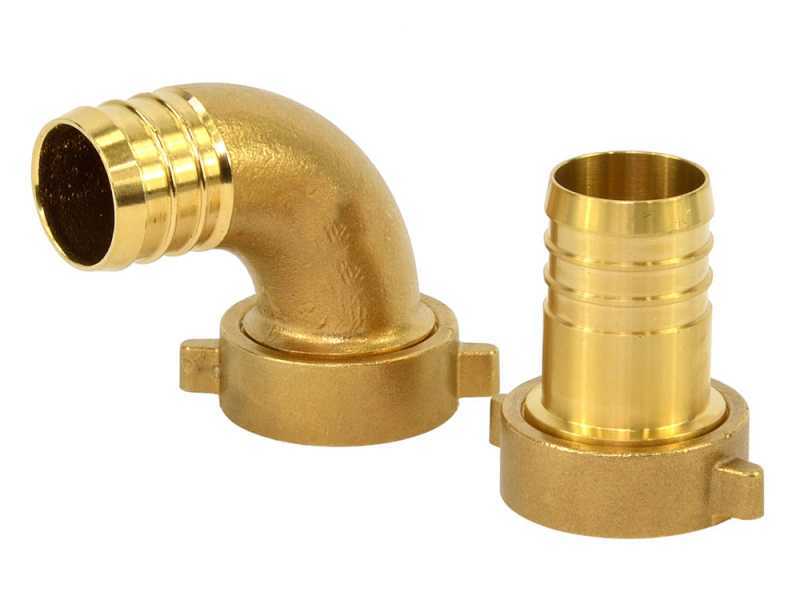

The pump allows the pumping flow to be reversed and includes brass hose barbs for 20 mm piping (one straight and one 90° curved).

During installation, the pump must be filled with liquid; after that, this operation will no longer be required.

It also works with closed pipes for short periods, offering versatility.

Material:

  • Pump body Brass
  • Counter flange: AISI 304
  • Shaft: AISI 316

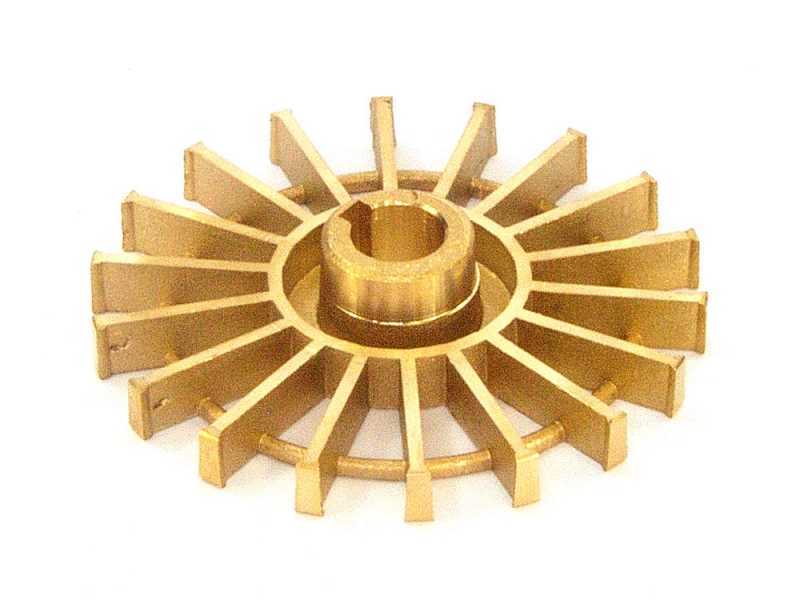

  • Impeller: Brass
  • Gaskets NBR

Engine:

  • Powered by a 230V 50Hz single phase asynchronous motor
  • Equipped with MEC 63 1400 rpm engine with 0.2 HP/0.1 KW
  • IP X4 rated
  • Insulation class F:
  • Power connection via cable with 1m Schuko plug
  • Switching on and reversing the pumping flow via switch inverter

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

Tellarini EEM 20L - brass transfer pump
Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump
Free items & Standard equipment

Standard Equipment

The product is shipped in its original packaging, together with:

Instruction manual

Fittings

Tellarini EEM 20L - brass transfer pump
Tellarini EEM 20L - brass transfer pump Tellarini EEM 20L - brass transfer pump
