Tellarini EEM 20 - brass transfer pump - Single-phase - 230V

Hobby
Add a question
ID: 113952

EAN: 8051566390007

MPN: 500 E

18Pictures
360° View
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Technical data
Use for water
yes
Use For diesel
yes
Operating mode
Electric 230 V
Flow rate
28 L/min
Engine speed
2800 RPM
Nominal power
0.5 HP
Pump material
Brass
Fittings diameter
20 mm
Maximum draught
6 m
Max. head lift
22 m
Manufacturing country
Italy
Product Features
Model
EEM 20
Use for water
yes
Use For diesel
yes
Type
autoadescante
Body material
Ottone
Operating mode
elettrica - 220 V
Operating mode
Electric 230 V
Rotation
Double direction
Flow rate
28 L/min
Manufacturing country
Italy
Motor data
Motor type
Electric single-phase
Nominal power
0.5 HP
Motor speed
2800 RPM
Power supply
220 V electric
Protection rating
IPX4
Manufacturing country
Italy
Pump data
Pump material
Brass
Engine speed
2800 RPM
Fittings diameter
20 mm
Flow rate
28 lt/min
Max. head lift
22 m
Maximum draught
6 m
Manufacturing country
Italy
Equipment
Lifting handle
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

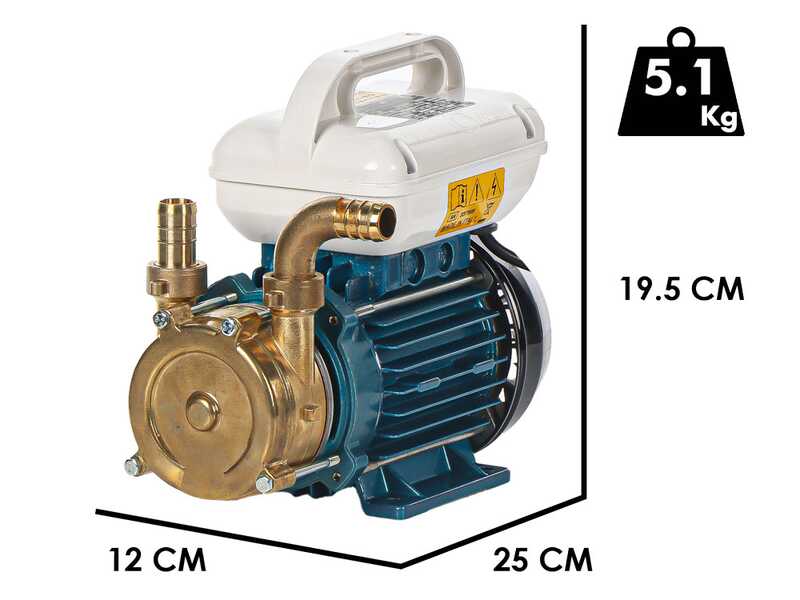

Product dimensions in cm (L x W x H)
25x12x19.5 cm
Net weight
5.1 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
40x32x29
Weight including packaging
6.5 Kg
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 10/11/2025 - 12/11/2025
Free returns (up to 30 days after receipt) *
€ 152,91
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Tellarini EEM 20 - Brass electric transfer pump

The EEM series is an excellent solution for suction and transfer of liquids, distinguished by a series of advanced technical features. Thanks to its strong self-priming capacity, the EEM series guarantees effective operation even in conditions of discontinuous suction, allowing the liquid to pass through efficiently and safely.

In addition, the reversibility of the flow offers operational flexibility that allows the pump to be adapted to different application requirements.

Made of CB754S brass, the EEM series pumps combine affordability with high performance, making them a convenient option without compromising on quality.

Equipped with a high-quality two-phase electric motor and a practical rocker switch, these multifunctional pumps are designed to solve a wide range of pumping problems in different contexts.

Before each application, it is essential to check the suitability of the pump for the specific situation and select the most appropriate seals to ensure optimal and long-lasting operation.

The EEM series is particularly suitable for domestic use, such as pumping water, diesel fuel, managing water systems and irrigation operations.

Thanks to its versatility and reliability, this series is an ideal choice for those looking for an effective and durable solution for pumping liquids.

Bronze pumps do not have a self-declaration of conformity in accordance with Regulation (CE) No. 1935/2004 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 October 2004 and Regulation (CE) No. 2023/2006 OF THE COMMISSION of 22 December 2006.

For applications requiring compliance with the above Regulations, please refer to the STAINLESS STEEL range of pumps."

Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V

Technical Features and Details

The pump offers a maximum flow rate of 28 litres per minute and a maximum head of 22 metres, ideal for a variety of applications.

Equipped with an oil seal for a secure seal, it can prime up to a height of 6 metres.

The 3/4" threaded ports are compatible with many connections, and the pump handles liquids with a maximum density of 1.1 g/cm³ without hard particles in suspension.

The maximum liquid temperature is 90°C (up to 130°C with special seals on request).

It is not suitable for aggressive liquids, petrol, solvents, or environments at risk of explosion and fire.

The pump allows the pumping flow to be reversed and includes brass hose connectors for 20 mm pipes (one straight and one 90° curved).

During installation, the pump must be filled with liquid; this operation will not be required again afterwards.

It also works with closed pipes for short periods, offering versatility.

Material

  • Pump body: Brass
  • Counterflange: AISI 304
  • Shaft: AISI 316
  • Impeller: Brass
  • Seals: NBR

MOTOR

  • Powered by a single-phase 230V 50Hz asynchronous motor
  • Equipped with MEC 63 motor at 2800 rpm, 0.5 HP/0.4 kW
  • Protective rating IP X4
  • Insulation class F
  • Power connection via cable with 1m Schuko plug
  • Start-up and reversal of the pumping flow via switch inverter

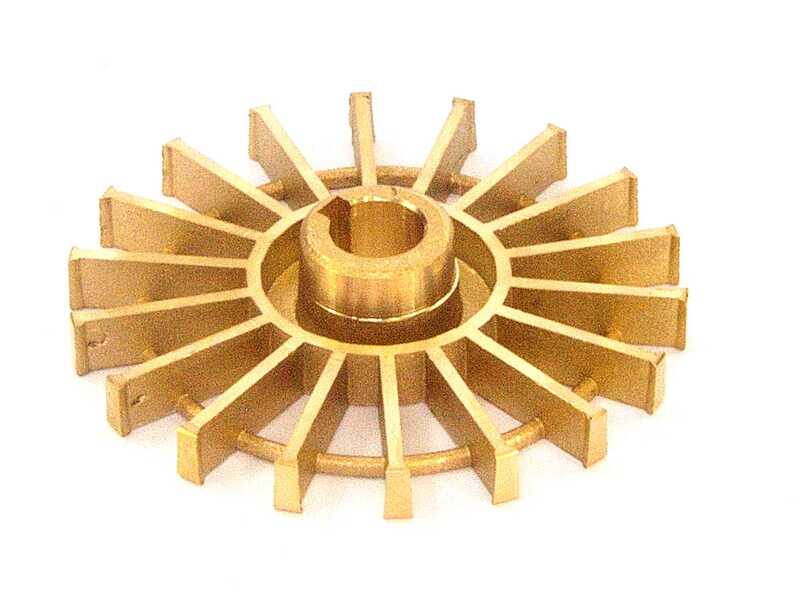

Impeller detail

Bronze pumps do not have a self-declaration of conformity in accordance with Regulation (CE) No. 1935/2004 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 October 2004 and Regulation (CE) No. 2023/2006 OF THE COMMISSION of 22 December 2006.

For applications requiring compliance with the above Regulations, please refer to the STAINLESS STEEL range of pumps."

Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V

Types of suitable liquids

Transfer pumps are designed to make it quick and easy to move different liquids from one container to another. They are practical tools that can be used at home, in the cellar or in agriculture, saving time and effort in everyday tasks.

This model is suitable for transferring liquids in domestic environments:

  • water
  • diesel fuel
  • irrigation
  • water systems
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Free items & Standard equipment

Free items included

The product will be shipped in its original packaging, including:

Instruction manual

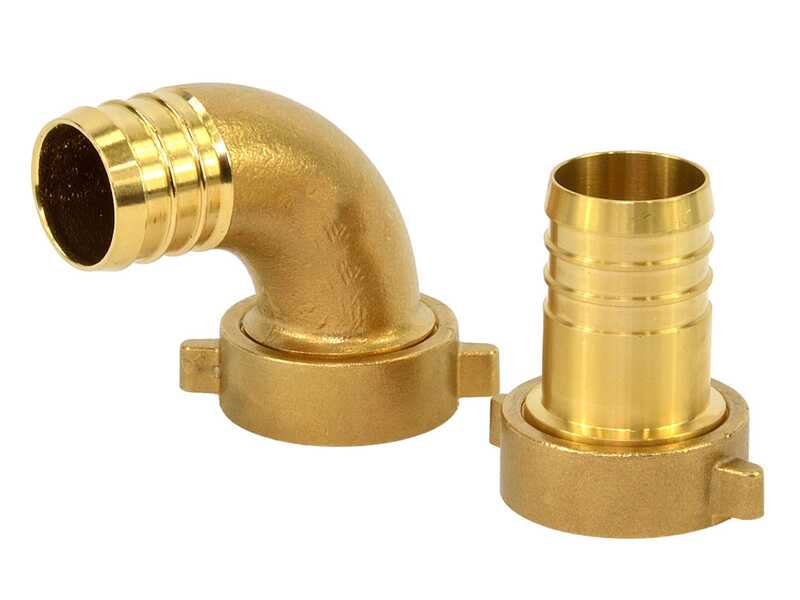

Connectors

Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
Tellarini EEM 20 - brass transfer pump - Single-phase - 230V Tellarini EEM 20 - brass transfer pump - Single-phase - 230V
