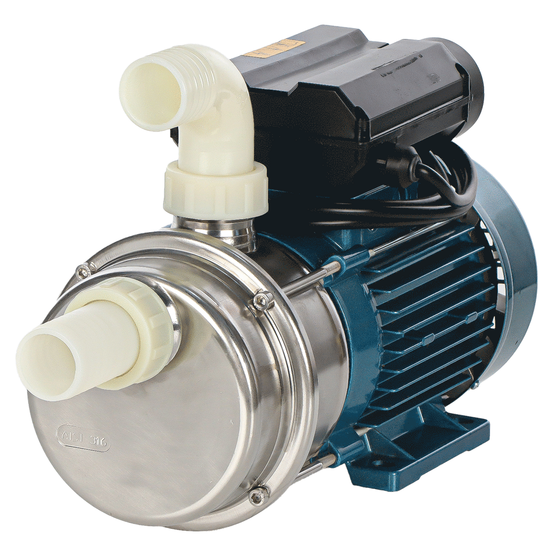

Tellarini ALM 30 - Electric Stainless Steel Transfer Pump - NYLON Straight + Curved Fittings

Add a question
ID: K609411

EAN: N/A

MPN: N/A

Tellarini ALM 30 - Electric Stainless Steel Transfer Pump - NYLON Straight + Curved Fittings
Available versions
Technical data
Use for wine
yes
Use for water
yes
Use For diesel
yes
yes
Flow rate
80 L/min
Motor type
Induction
Nominal power
2 HP
Pump material
Stainless steel
Fittings diameter
30 mm
Maximum draught
6 m
Max. head lift
40 m
Manufacturing country
Italy
Product Features
Model
ALM 30
Use for wine
yes
Use for water
yes
Use For diesel
yes
yes
Type
Self-priming
Operating mode
Electric - 230 V
Operating mode
Electric 230 V
Rotation
Double direction
Flow rate
80 L/min
Manufacturing country
Italy
Motor data
Motor type
Induction
Nominal power
2 HP
Motor speed
2800 RPM
Power supply
220 V electric
Protection rating
IPX4
Manufacturing country
Italy
Pump data
Pump material
Stainless steel
Fittings diameter
30 mm
Flow rate
80 L/min
Max. head lift
40 m
Maximum draught
6 m
Manufacturing country
Italy
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

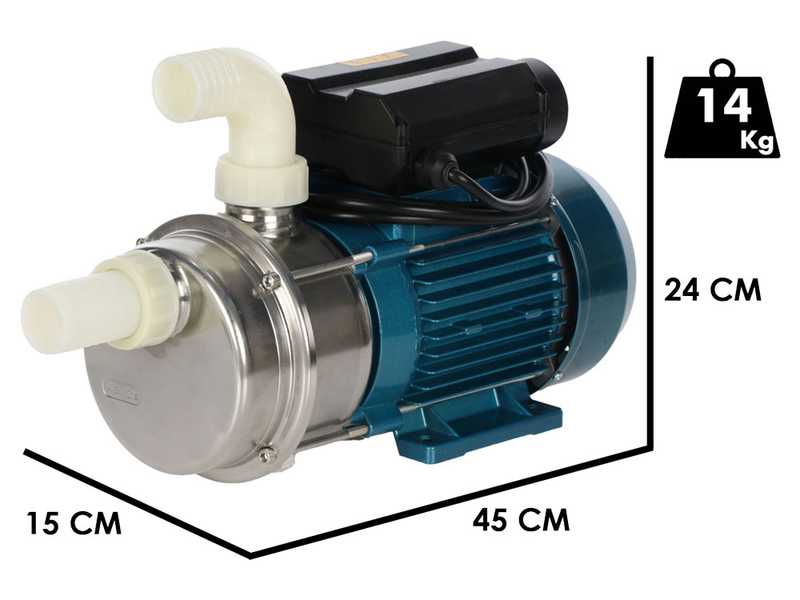

Product dimensions in cm (L x W x H)
45x15x24 cm
Net weight
14 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
48x34x26
Weight including packaging
15 Kg
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 22/10/2025 - 24/10/2025
€ 582,45
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

General Features

The ALM series is the ideal solution for liquid suction and transfer in various industrial and food applications.

Thanks to its strong self-priming capacity and the ability to operate even in discontinuous suction liquid supply, these pumps offer reliable and consistent performance.

Made entirely of AISI 316 stainless steel, a material known for its resistance to corrosion, these pumps are especially suitable for handling corrosive and food-grade liquids.

The stainless steel design also guarantees durability and easy cleaning, making them ideal for environments where hygiene is paramount.

The ALM series pumps are equipped with oversized single-phase asynchronous motors, which ensure sufficient power for even the heaviest applications.

Long-lasting rotary switches offer reliable and precise control, helping to reduce downtime and improve operational efficiency.

It is essential to check whether the pump is suitable for each specific application and to choose the most suitable seals to ensure a perfect seal and prevent leakage.

These pumps are especially suitable for a wide range of applications, including:

  • Oenology
  • Food industry
  • Chemical industry
  • Brewing process
  • Oil industry

Choosing pumps from the ALM series is a safe investment for those who need a reliable and durable solution for liquid suction and transfer in a variety of industrial and food applications. Thanks to their advanced technical features and robust design, these pumps meet the highest demands, guaranteeing excellent performance and a long service life.
Pump supplied with straight+curved NYLON fittings

Technical Specifications and Details

This pump offers a maximum flow rate of 80 litres per minute and a maximum head of 40 meters, making it ideal for multiple liquid transfer applications. The shaft seal is guaranteed by a mechanical seal, which ensures reliability and long service life. With a maximum priming height of 6 metres, the pump can also be installed in situations with considerable height differences.

The 1'' threaded spouts allow easy connection to pipes. This pump is designed to handle liquids with a maximum density of 1.1 g/cm3, as long as they do not contain any hard particles in suspension, such as sand. The maximum operating temperature is 90°C, but special seals can be required to allow operation up to 130°C.

It is important to remember that this pump is not suitable for aggressive liquids that could damage the building materials or seals, as specified in the technical specifications. Furthermore, it is not suitable for the transfer of petrol, solvents or for use in environments with explosion and fire hazards.

A remarkable feature is the possibility of reversing the pumping flow, offering greater flexibility in installation and use. The pump is designed to operate with the impeller locked to the shaft and can operate for short periods with the pipes closed, ensuring safety in case of emergency.

During installation, it is necessary to initially fill the pump with liquid; afterwards, this operation will no longer be necessary, simplifying maintenance and daily use of the pump.

Material

  • Pump body: AISI 316
  • Shaft: AISI 316

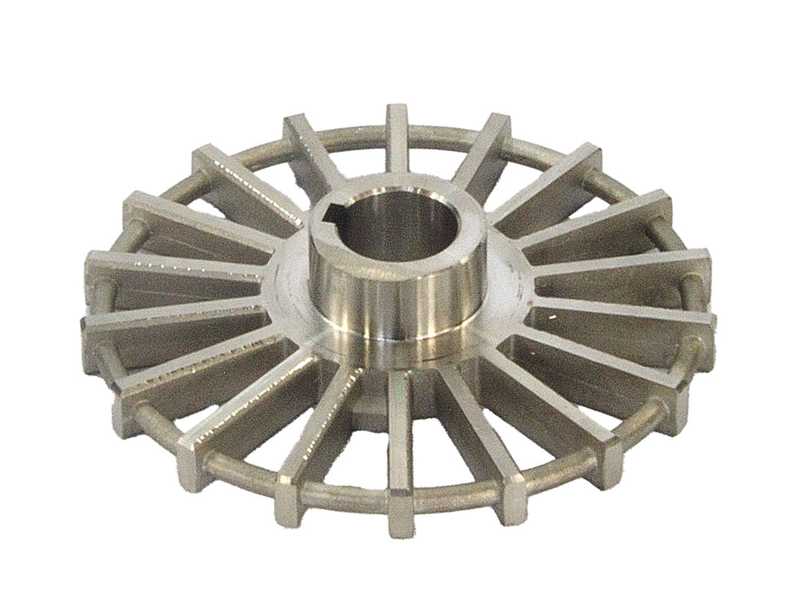

  • Impeller: AISI 316
  • Seals: NBR
  • Mechanical seal: Ceramic/Graphite/NBR

ENGINE

  • Powered by a 230V 50Hz single phase asynchronous motor
  • Equipped with 2.0 HP/1.5 KW MEC 71 motor at 2,800 rpm
  • Protection class IP X4
  • Insulation class F
  • Power connection via cable with 2m Schuko plug
  • Switching on and reversing pumping flow via switch inverter
  • Maximum flow rate: 80 L/ min
  • Maximum head: 40 m
  • Shaft seal: mechanical seal
  • Maximum priming height: 6 m
  • Threaded spouts: 1"
Free items & Standard equipment

Standard Equipment

The product is shipped in its original packaging, together with:

Instruction manual

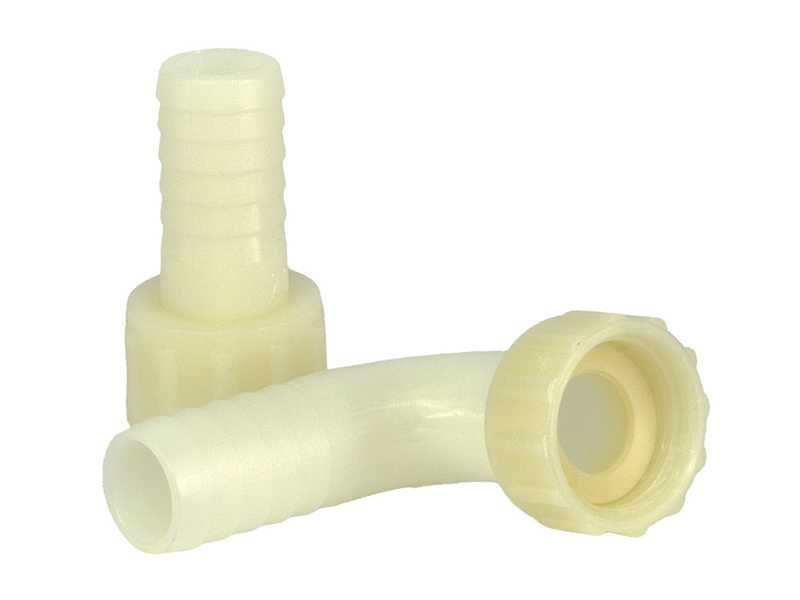

2x NYLON fittings
