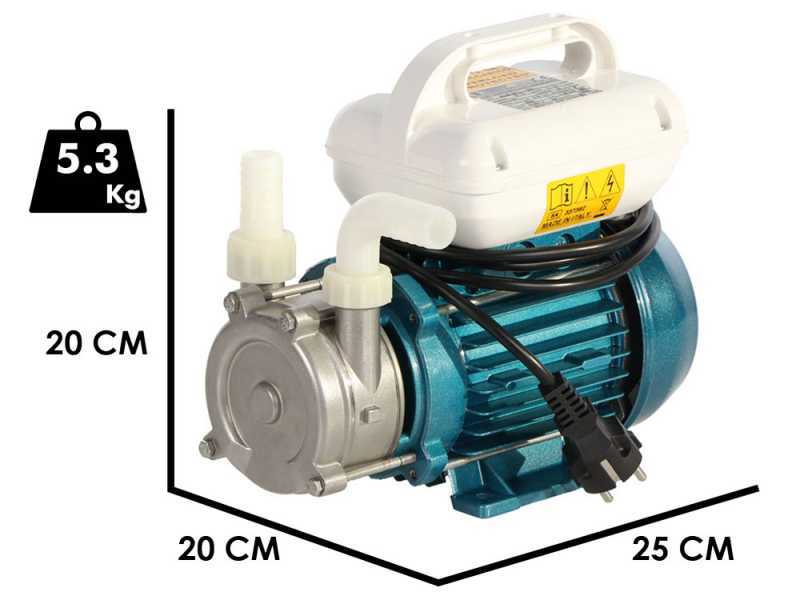

Tellarini ALM 20 L-SR - Electric Stainless Steel Transfer Pump - NYLON Straight + Curved Fittings

Add a question
ID: K609381

EAN: N/A

MPN: N/A

Tellarini ALM 20 L-SR - Electric Stainless Steel Transfer Pump - NYLON Straight + Curved Fittings
Operating mode
Electric 230 V
Flow rate
12 L/min
Motor type
Induction
Nominal power
0.2 HP
Pump material
Stainless steel
Fittings diameter
20 mm
Max. head lift
4 m
Max. suction height
6 m
Manufacturing country
Italy
Product Features
Model:
ALM 20 L-SR
Type:
Self-priming
Body material:
Anti-oxidant Alloy
Operating mode:
Electric - 220 V
Operating mode:
Electric 230 V
Rotation:
Double direction
Flow rate:
12 L/min
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.2 HP
Motor speed:
1400 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump material:
Stainless steel
Fittings diameter:
20 mm
Flow rate:
12 L/min
Max. head lift:
4 m
Max. suction height:
6 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
20x20x25 cm
Net weight:
5.3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
40x30x30 cm
Weight including packaging:
6.8 Kg
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 26/06/2025 - 30/06/2025
€ 345,35
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

Tellarini ALM 20 L-SR - Stainless Steel Electric Transfer Pump

The ALM series is the ideal solution for liquid suction and transfer in various industrial and food applications.

Thanks to its strong self-priming capacity and the ability to operate even in discontinuous suction liquid supply, these pumps offer reliable and consistent performance.

Made entirely of AISI 316 stainless steel, a material known for its resistance to corrosion, these pumps are especially suitable for handling corrosive and food-grade liquids.

The stainless steel design also guarantees durability and easy cleaning, making them ideal for environments where hygiene is paramount.

The ALM series pumps are equipped with oversized single-phase asynchronous motors, which ensure sufficient power for even the heaviest applications.

Long-lasting rotary switches offer reliable and precise control, helping to reduce downtime and improve operational efficiency.

It is essential to check whether the pump is suitable for each specific application and to choose the most suitable seals to ensure a perfect seal and prevent leakage.

These pumps are especially suitable for a wide range of applications, including:

  • Oenology
  • Food industry
  • Chemical industry
  • Brewing process
  • Oil industry
  • General industry

Choosing pumps from the ALM series is a safe investment for those who need a reliable and durable solution for liquid suction and transfer in a variety of industrial and food applications. Thanks to their advanced technical features and robust design, these pumps meet the highest demands, guaranteeing excellent performance and a long service life.

The pump is supplied with curved + straight NYLON fittings

Technical Specifications and Details

The ALM series pump offers outstanding hydraulic performance, with a maximum flow rate of 12 L/min and a maximum head of 4 meters. Shaft sealing is ensured by a high-quality mechanical seal, while the maximum priming height is up to 6 metres. The 3/4' threaded spouts and the ability to handle liquids with a maximum density of 1.1 g/cm³, free of hard particles floating in suspension such as sand, make this pump extremely versatile.

The maximum supported temperature is 90°C, with the possibility of reaching 130°C using seals on request.

Nevertheless, the pump is not suitable for transferring liquids that are corrosive to structural materials and seals, nor is it suitable for transferring petrol, solvents or for use in areas with a fire or explosion hazard.

Additional functions:

This pump offers the possibility of reverse pumping flow and a shaft-locked impeller coupling. Nylon hose connectors for 20 mm pipes are included, the pump can run for short periods with closed pipes. It is important to note that on initial installation, the pump must be filled with liquid; thereafter, this operation will no longer be necessary.

Technical Specifications:

The technical specifications of the ALM series pump include high quality materials:

  • Pump body: AISI 316
  • Counter flange: AISI 316
  • Shaft: AISI 316
  • Impeller: AISI 316
  • Seals: NBR
  • Mechanical seal: Ceramic/Graphite/NBR

Engine

The motor powering the ALM pump is a 230V 50Hz single-phase asynchronous motor, model MEC 63, operating at 1400 rpm with a power of 0.2 HP. This motor has an IP X4 protection class and an F insulation class. It is connected to the power supply via a cable with a 2 metre Schuko plug. The ALM pump allows the pumping flow to be switched on and reversed via a practical switch inverter.

This combination of hydraulic and technical specifications makes the ALM series the ideal choice for those looking for a reliable and versatile pump for various industrial and food applications.

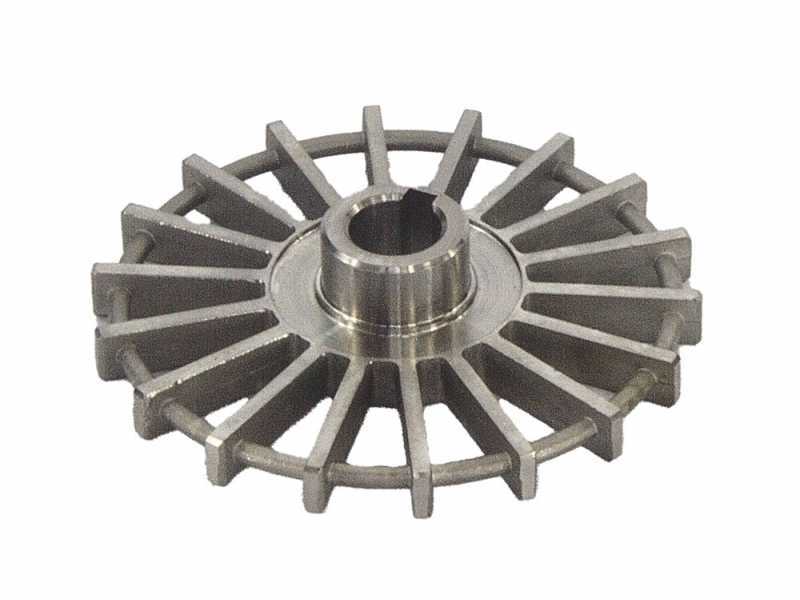

Impeller detail

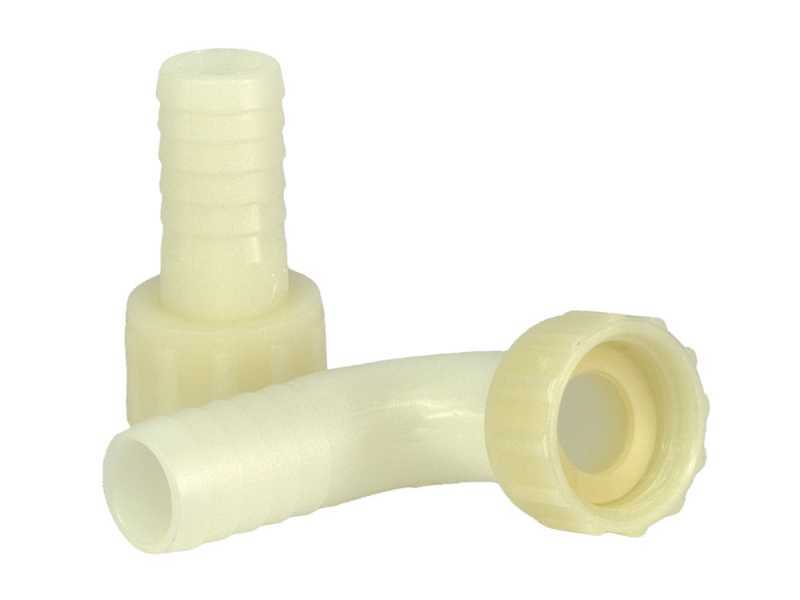

The pump is supplied with curved + straight NYLON fittings
Free items & Standard equipment

Standard Equipment

The product is shipped in its original packaging, together with:

Instruction manual

2x nylon fittings
