TecnoVIR Olivir - Electric Battery-powered Olive Harvester - 120-200 cm Aluminium Telescopic Pole

Questions & Answers (1)
ID: K605824

EAN: 8056149400074

MPN: 9701385TECNOVIR

7,9/10
After-sales assistance & Spare parts
TecnoVIR Olivir - Electric Battery-powered Olive Harvester - 120-200 cm Aluminium Telescopic Pole
Free gifts from AgriEuro
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Available versions
Technical data
Head material
ABS
Motion
Vertical, double
Speed (bpm)
1200 bpm
Max. prongs opening
29 cm
Pole material
Aluminium
Telescopic pole
Sì
Max. length
200 cm
Removable harvesting head for direct use
Yes
Motor type
Brush
Voltage
12 V
Nominal power (W)
350 W
Motor speed levels
1
Motor type
Battery-powered
Battery type
Car type
ABS Prongs
Sì
Manufacturing country
Italy
Product Features
Model
OLIVIR - 120-200 cm
Power supply
Lead-acid battery 12 V
Head material
ABS
Type
12 V battery-powered
Operating mode
12 V battery-powered
Motor position
Up - on the head
Motion
Vertical, double
Speed (bpm)
1200 bpm
"Wave" prongs
Yes
No. of prongs
7+7
Prongs length
16.5 cm
Prongs material
High-resistance technopolymers
ABS Prongs
Sì
Max. prongs opening
29 cm
Min. length
120 cm
Max. length
200 cm
Pole material
Aluminium
Removable harvesting head for direct use
Yes
Induction motor (brushless)
Max. power even with low battery
No
Energy Saving System
No
Pole type
Telescopic
Manufacturing country
Italy
Motor data
Motor position
On the head
Motor type
Battery-powered
Motor type
Brush
Battery type
Car type
Motor speed levels
1
Nominal power (W)
350 W
Power supply
12 V battery-powered
Fuse
Yes
Voltage
12 V
Recommended battery
80 Ah
Motor power
12 V
Manufacturing country
Italy
Equipment
Extension pole
120 / 200 cm
Telescopic pole
Sì
Extension power cable
10 m
Free gifts/extra features
Tank for mixture preparation
Yes
Instructions manual
Yes
Dimensions and logistics
Net weight
2.6 Kg
Packaging
Original packaging
Weight including packaging
4 Kg
Assembly time
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 08/09/2025 - 10/09/2025
€ 386,95
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

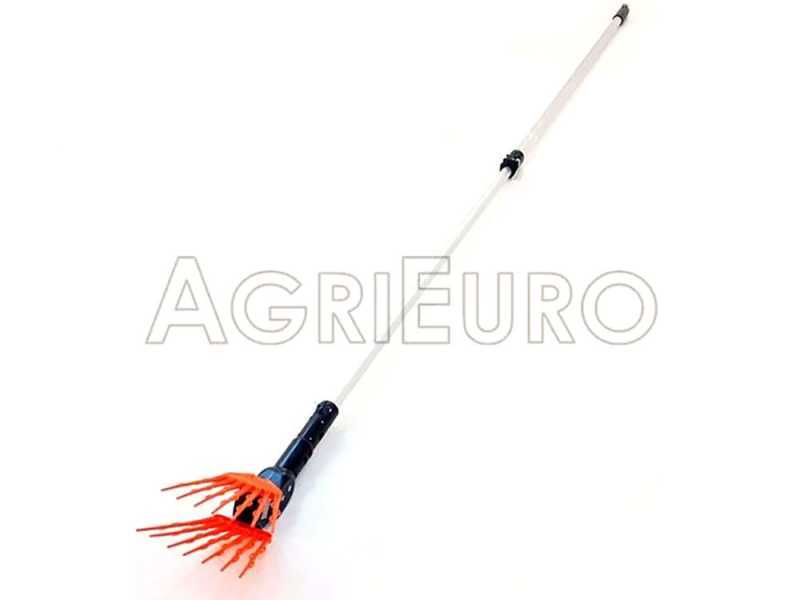

TecnoVIR OLIVIR Electric Battery-powered Olive Harvester

The TECNOVIR OLIVIR olive harvesters are the ideal tools for olive harvesting.

Since it is battery-powered, it is quiet and environmentally friendly.

The innovative techno polymer rake allows harvesting of any type of olive without damaging branches and leaves and reaching higher performance.

The olive harvester can work with a telescopic pole, adjustable between 120-200 cm, or without, directly holding the head (for even less fatigue).

The TECNOVIR OLIVIR model is an Italian product.

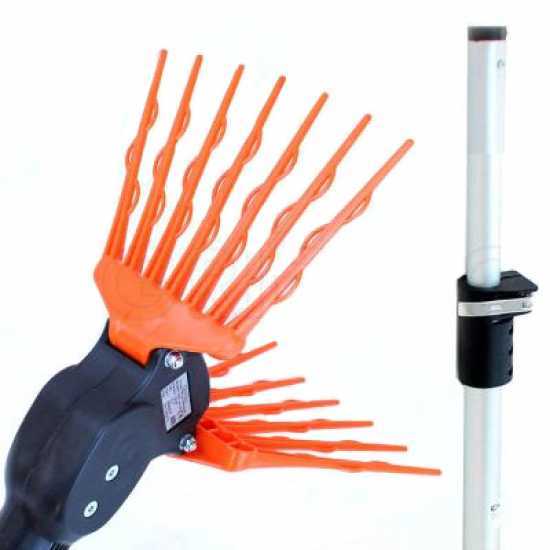

Rake

The big news is the new mould of the rakes, characterized by the wave shape of the prongs: they allow an even more immediate and less traumatic separation of the olives from the tree.

The fan shape of the rakes reproduces the movement of the hands, pushing the olives towards the base, where a tight space forces them to detach.

Even the smallest and most resistant fruits do not escape this type of machine.

Compared to other similar machines on the market, the fan-shaped design of the two combs has been optimised: they are not perfectly symmetrical but have their prongs slightly inclined, one to the right, the other to the left.

This significantly increases harvesting performance compared to other harvesters on the market with traditional, perfectly symmetrical fans

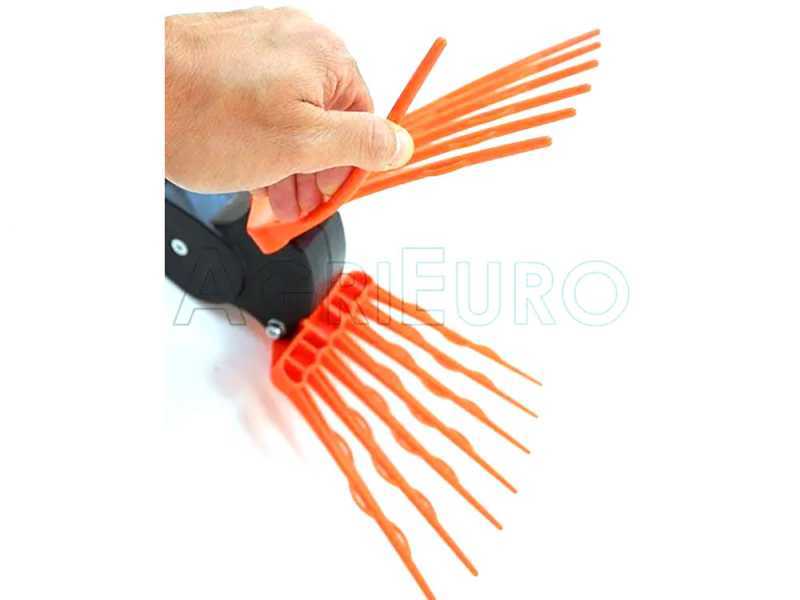

Extremely flexible prongs

  • Improved foliage penetration, even among the thickest branches;
  • Greater respect of the tree and less broken twigs and leaves compared to all the other olive harvesters with sturdy prongs
  • no breakage of the rods themselves, which are therefore never prone to breakage;
  • it does not damage the olives

Thanks to the new fan-shaped comb design, the lightened head, and the upgraded motor, this machine achieves a high execution speed, even up to maximum 1200 beats per minute.

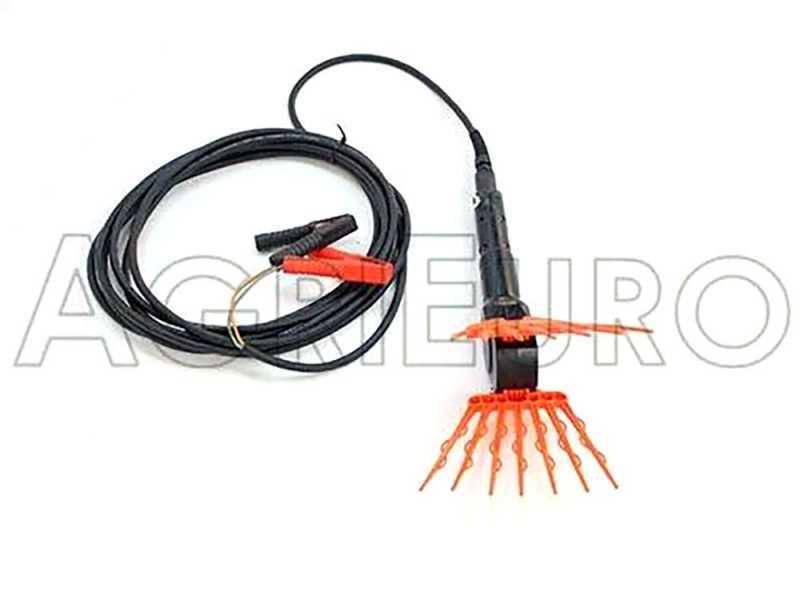

Double configuration

On 160-270 cm telescopic extension pole
(weight 2.4 kg)

Direct handle for manual use
(1.3 kg weight)

Thanks to the quick couplings, switching from one configuration to another will be extremely easy and fast.

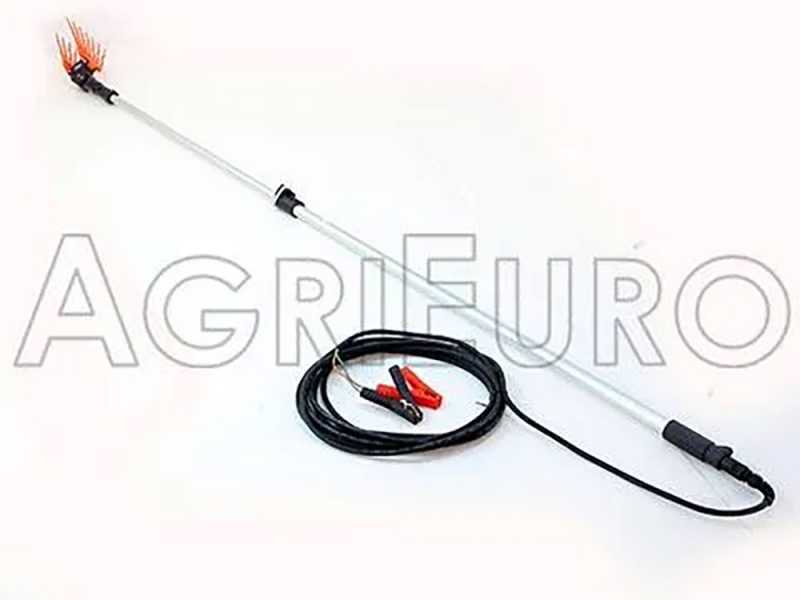

Technical specifications

Extremely compact engine/transmission unit covered with tapered plastic fairings:

  • it allows easy movements inside the foliage
  • easy to grip the head for direct harvesting, without an extension pole

Internal transmission entirely made of hardened steel gears

Suitable for all types of cultivation, from the largest to the smallest, hard-to-release olives, with a productivity of up to 100 kg/hour: performance that rivals pneumatic (compressor-driven) harvesters.

  • Power: the new series generates a very high number of beats, equivalent to that of pneumatic harvesters
  • Weight: only 2.4 kg (similar to pneumatic models)
  • Versatility

It has made as faithful as possible to compressed-air combs, in shape, in operation, in the shaft, in the power, in the design of the rakes
The great advantage of this harvester is that it does not detach the berry by vibration or shaking but by 'RAKING' or 'COMBING' the branch.

That is why it is the only battery-powered model that can guarantee:

  • the "TOTAL" detachment of grapes;
  • drastically reduced breaks of leaves and twigs.

Very wide angle of movement of the rakes, among the largest on the market, thanks to the excellent stroke of the piston that drives them.

This helps to obtain superior performance from this harvester.

Telescopic extension pole measuring between 160 and 270 cm super-light aluminium, sturdy and extremely manoeuvrable.

Professional quick pole fixing

Focus on the power switch

On the side, focus on the fuse chamber It protects the machine by removing the risk of electrical failures
WARNING: BATTERY NOT INCLUDED!!

We recommend that you equip yourself with a car battery, at least 60 amps (60 Ah)

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

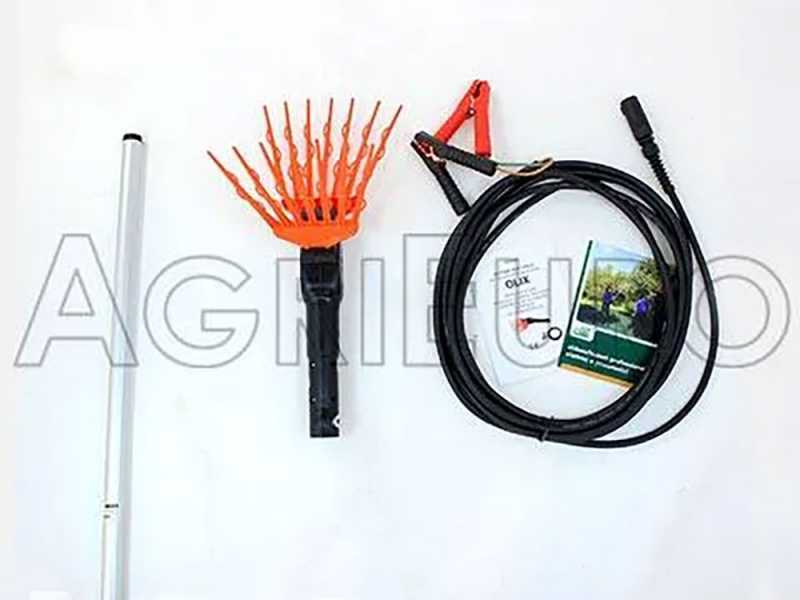

Standard equipment

The machine comes in three pieces: harvester head, pole and professional cable. Assembly is very simple and takes very few minutes.
