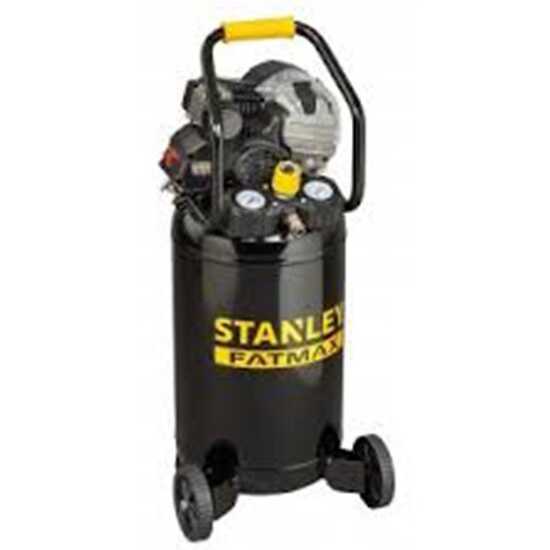

Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L

Hobby
Add a question
ID: K501418

EAN: 8016738763959

MPN: HYCT404STF512

27Pictures
1Videos
5Customer pics
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
+200 sold
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
30 L
Max. operating pressure
10 bar
Air intake flow
222 L/min
Cylinder head rpm
3400 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model:
HY 227/10/30V
Air compressor type 2:
Coaxial
Air compressor type:
Vertical
Operating mode:
Single-phase 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
30 L
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Pump data
Pump brand:
Stanley
Model:
HY227
Air intake flow:
222 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
3400 RPM
Equipment
Anti-vibrating system:
Yes
No. of outlet couplings:
1
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
32x31x81 cm
Net weight:
21 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
32x31x81 cm
Gross weight (packaging included) :
21 Kg
Assembly time:
5 minutes
Prompt Delivery
20 items in stock
Free Shipping
Estimated delivery: 26/04/2024 - 30/04/2024
€ 257,01
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

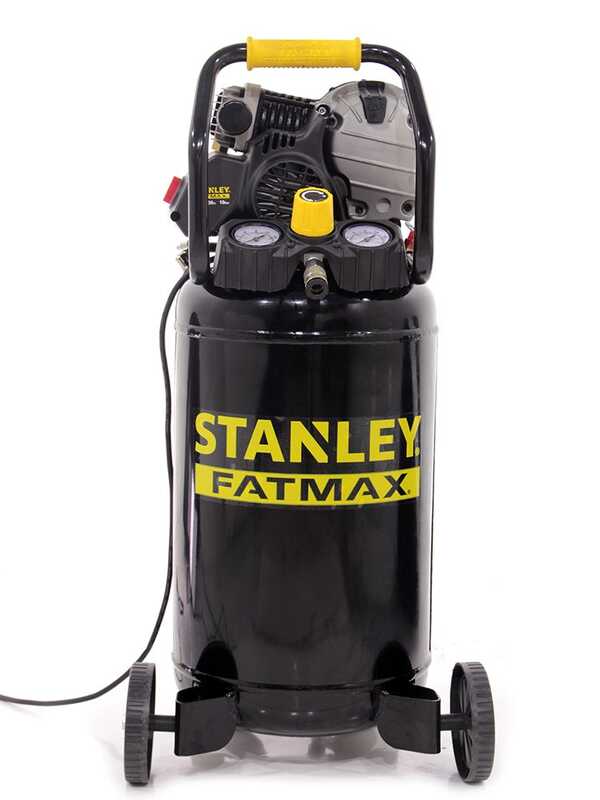

Stanley HY 227/10/30V Electric Air Compressor

Stanley Fatmax HY227/10/30V Air Compressor
Main features:

HY 227 (serial no. of the pumping unit)

10 - 10 bar Maximum pressure

30 - Tank capacity in litres: 30 L

V - Vertical tank

The Stanley Fatmax HY227/10/30V air compressor is suitable for a variety of applications. It is the ideal tool for hobbyists to carry out small household jobs.

Its compact size allows for an easy storage.

It mounts an electric motor with 2 Hp of power. This air compressor features a compressed air suction capacity of 222 L/min and can reach a maximum pressure of 10 bar.

It features a large-sized compressed air storage tank of 30 L. The air compressor weighs 21 Kg and can be easily transported thanks to its large wheels and the practical upper handle.

Suitable for a number of applications:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional painting
  • Screw driving
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L

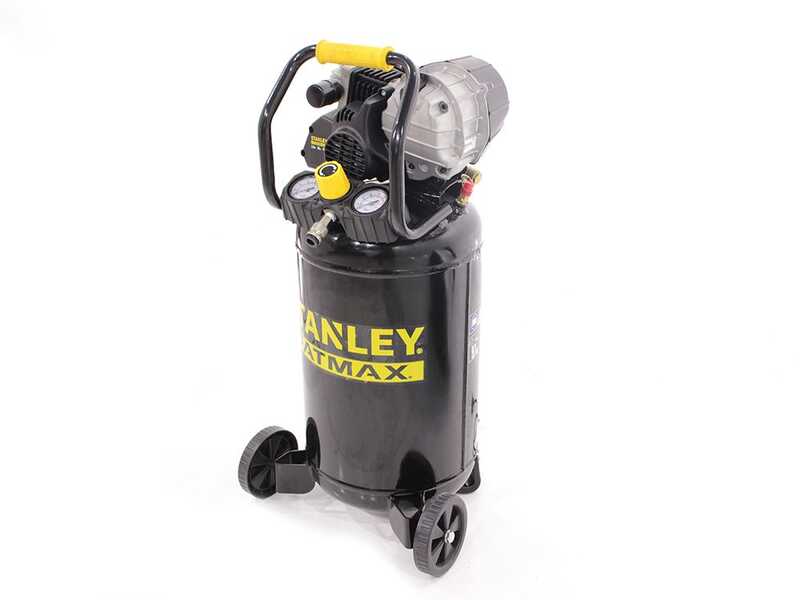

Technical features

Air intake flow: 222 L/min

Pumping unit type: coaxial

Pressure: 10 bar

Electric motor power: 2 Hp

Tank: 30 L

Dimensions:
- Width: 325 mm
- Height: 810 mm
- Depth (or thickness): 315 mm

Weight: 21 kg

Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L

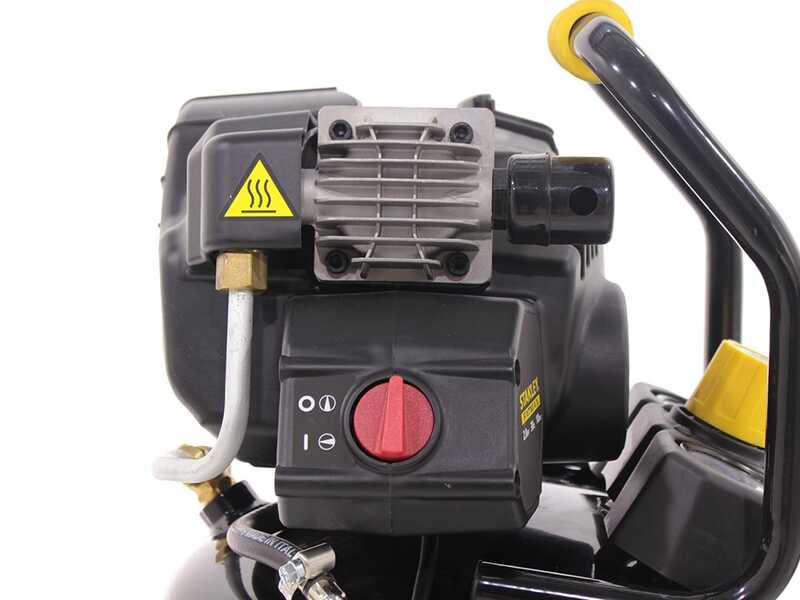

Controls

The Stanley Fatmax HY227/10/30V air compressor features easy and user-friendly controls, which are divided into:

Power switch

Tank air pressure gauge

Output air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L

Other features

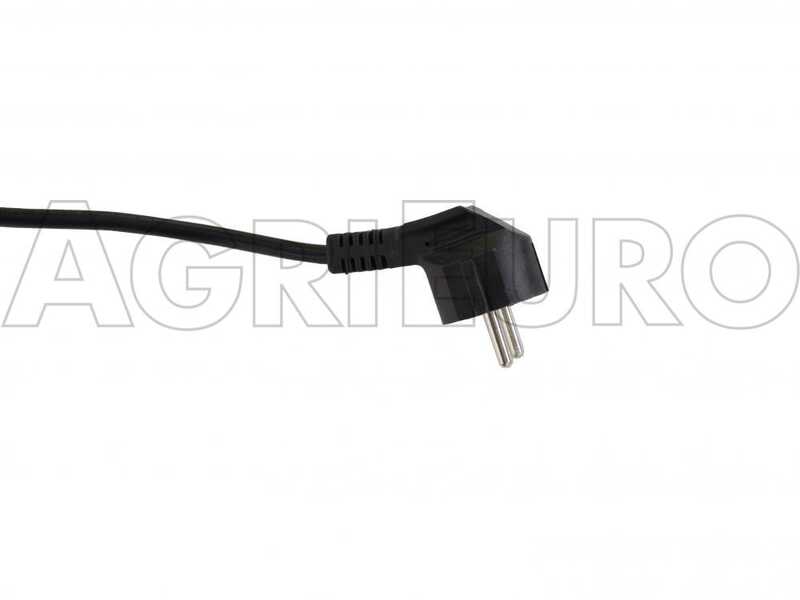

The air compressor is powered by a Schuko plug.

Ergonomic lifting handle

Anti-vibration rubber pads

Large transport wheels

Condensate drain valve

Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L
Stanley Fatmax HY 227/10/30V - Compact Electric Air Compressor - 2 Hp Motor - 30 L

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
