Stanley Fatmax HY 227/10/12 - Compact Portable Electric Air Compressor - 12 L

Questions & Answers (1)
ID: K501416

EAN: 8016738763928

MPN: HYBD404STF509

7,0/10
After-sales assistance & Spare parts

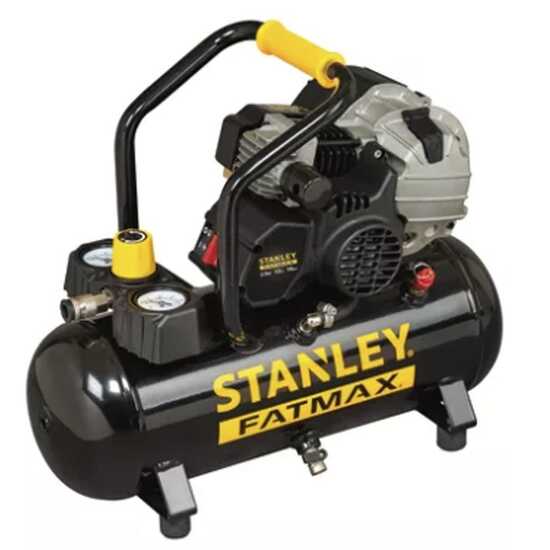

Stanley Fatmax HY 227/10/12 - Compact Portable Electric Air Compressor - 12 L
+300 sold
Free gifts from AgriEuro
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 23/03/2026 - 25/03/2026
Suggested price:
€ 226,85
€ 220,04
Vat included
Technical data
Air compressor tank
12 L
Max. operating pressure
10 bar
Air intake flow
222 L/min
Cylinder head rpm
3400 RPM
Lubrication
Oil
Pump type
Single-stage
Motor type
Electric
Nominal power
2 HP
Operating mode
Single-phase 230 V
Pump unit mounting
Welded
Product Features
Model
HY 227/10/12
Air compressor type
Portable
Handheld
yes
Operating mode
Single-phase 230 V
Operating mode
Electric 230 V
Max. operating pressure
10 bar
Number of tanks
1
Tank capacity
12 L
Air compressor tank
12 L
Noise level
97 LwA
Manufacturing country
China
Pump unit mounting
Welded
Motor data
Motor type
Electric
Nominal power
2 HP
Pump data
Pump brand
Stanley
Model
HY 227
Air intake flow
222 L/min
Pump type
Single-stage
Lubrication
Oil
No. of cylinders
1
Cooling manifold
No
Transmission data
Transmission type
Coaxial type direct
Cylinder head rpm
3400 RPM
Equipment
No. of outlet couplings
1
Rubber-coated soft grip
Yes
Lifting handle
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
52x25x47 cm
Net weight
15 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
52x25x47 cm
Weight including packaging
15 Kg
Assembly time
Assembled

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

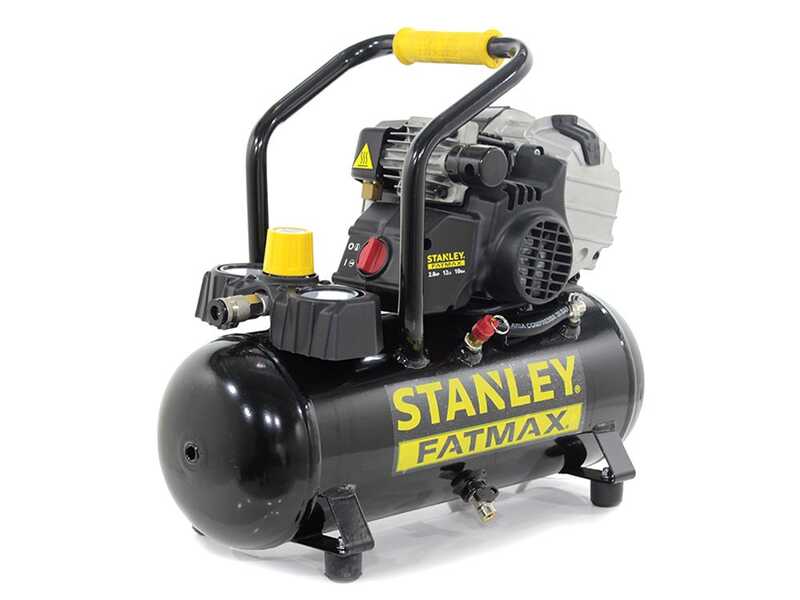

Stanley Fatmax HY 227/10/12 Electric Air Compressor

Nuair FU227/10/50V Air Compressor
Main features:

HY 227 (serial no. of the pumping unit)

10 - 10 bar Maximum pressure

12 - Tank capacity in litres: 12 L

The Stanley HY 227/10/12 is a compact medium-powered air compressor suitable for a variety of applications, such as:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional painting
  • Screw driving

Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 222 L/min. It is capable of reaching a maximum pressure of 10 bar.

Provided with a 12 L compressed air storage tank. It weighs 15 kg and can be easily transported thanks to the ergonomic upper handle.

This air compressor belongs to the FATMAX range by Stanley

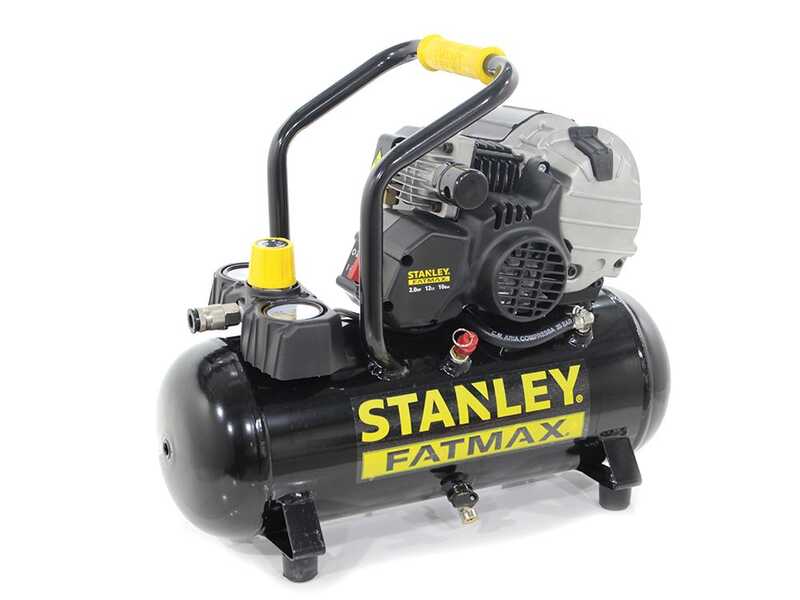

Technical features

Air intake flow: 222 L/min

Pumping unit type: coaxial

Pressure: 10 bar

Electric motor power: 2 Hp

Tank: 12 L

Dimensions:
- Width: 520 mm
- Height: 470 mm
- Depth (or thickness): 250 mm

Weight: 15 kg

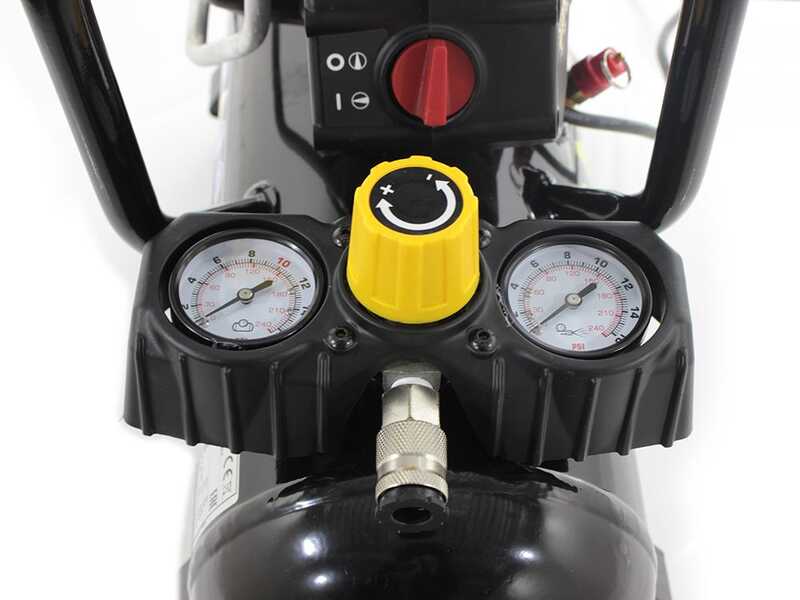

Controls

The Stanley Fatmax HY 227/10/12 air compressor features easy and user-friendly controls, which are divided into:

Output air pressure gauge

Tank air pressure gauge

Power switch

Air compressor female outlet fitting

Pressure adjusting knob

Other features

Schuko plug

Ergonomic lifting handle

Anti-vibration rubber pads

Condensate drain valve

Free items & Standard equipment

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
